GE JP3030TJWW, JP3030DJBB Specifications

Jp3030DJ/tJ

JP3530DJ_TJ, JP3030DJ_TJ

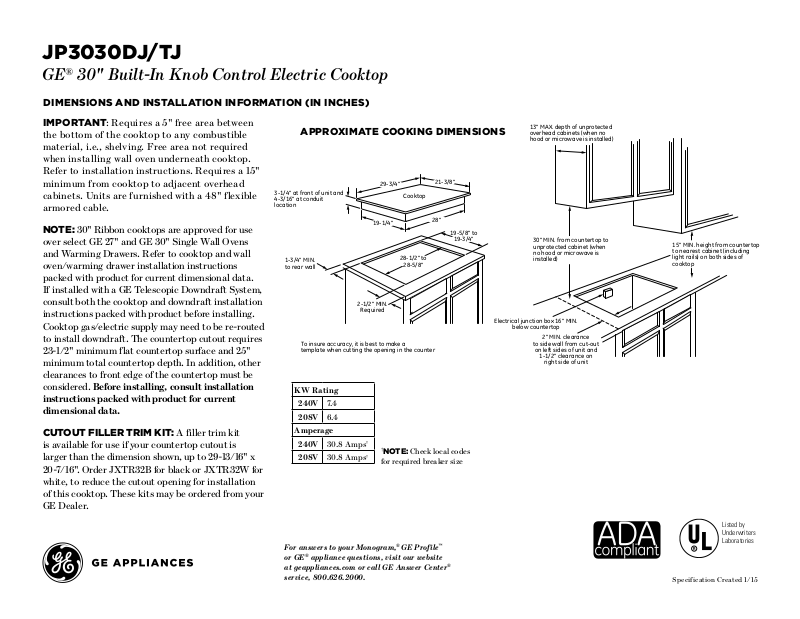

GE® 30" Built-In Knob Control Electric Cooktop

DImensIons anD InstallatIon InformatIon (In InChes)

Important: Requires a 5" free area between

the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.

note: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional data.
If installed with a GE Telescopic Downdraft System,
consult both the cooktop and downdraft installation
instructions packed with product before installing.
Cooktop gas/electric supply may need to be re-routed
to install downdraft.

The countertop cutout requires
23-1/2" minimum flat countertop surface and 25"
minimum total countertop depth. In addition, other
clearances to front edge of the countertop must be
considered. Before installing, consult installation

instructions packed with product for current
dimensional data.

Cutout fIller trIm kIt: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W for
white, to reduce the cutout opening for installation
of this cooktop. These kits may be ordered from your
GE Dealer.

approxImate CookIng DImensIons

21-3/8"

28"

3-1/4" at front of unit and
4-3/16" at conduit
location

19-1/4"

1-3/4" MIN.
to rear wall

2-1/2" MIN.

Required

To insure accuracy, it is best to make a
template when cutting the opening in the counter

KW Rating

240V 7.4

208V 6.4

Amperage

240V 30.8 Amps

208V 30.8 Amps

†

†

29-3/4"

Cooktop

28-1/2" to

28-5/8"

†

note: Check local codes

for required breaker size

19-5/8" to

19-3/4"

13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)

30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)

Electrical junction box 16" MIN.

below countertop

2" MIN. clearance

to side wall from cut-out

on left sides of unit and

1-1/2" clearance on

right side of unit

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.

Listed by
Underwriters
Laboratories

Specification Created 1/15

Jp3030DJ/tJ

®

GE

features anD BenefIts
Four radiant cooking elements - Cook foods quickly and evenly
on this sleek, glass surface

Two 8" Power Boil elements - Get rapid heat from this powerful
2,500-watt element

Keep Warm setting - Keep food warm with GE’s lowest heat setting or
boil water in minutes with this fully functional 6" element

Melt setting - Gently melt delicate foods without burning or scorching

Hot surface indicator lights - Know when elements are too hot to
touch with a quick glance

Cooktop “On” indicator light - A light lets you know when an element
is active

Model JP3030TJWW - True white

Model JP3030DJBB - Black on black

30" Built-In Knob Control Electric Cooktop
