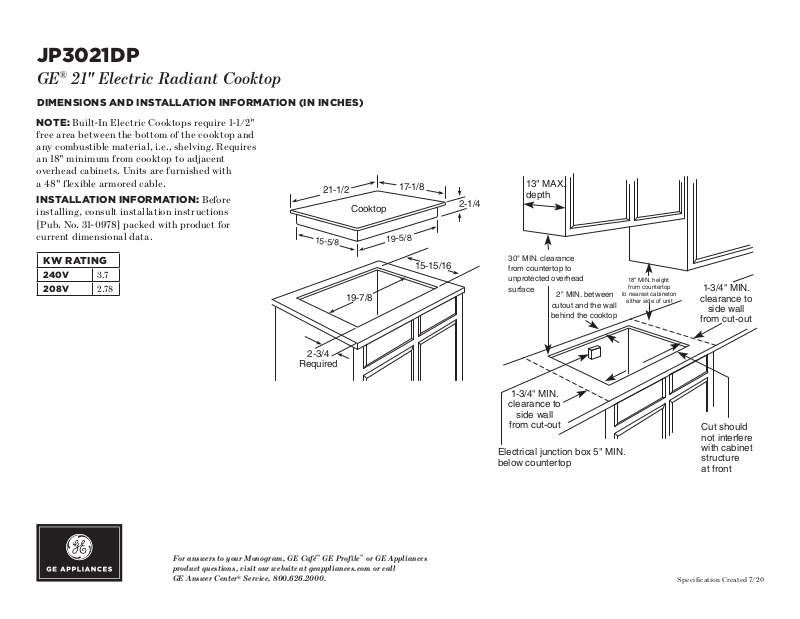

JP3021DP
GE® 21" Electric Radiant Cooktop
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Built-In Electric Cooktops require 1-1/2"
free area between the bottom of the cooktop and
any combustible material, i.e., shelving. Requires
an 18" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with
a 48" flexible armored cable.
INS TA LLATI O N IN F O RMATI O N: Before
installing, consult installation instructions
[Pub. No. 31-0978] packed with product for
current dimensional data.
21-1/2
Cooktop
15-5/8
17-1/8
19-5/8
13" MAX.
depth
2-1/4
KW R ATING
240V 3.7
208V 2.78
2-3/4
Required
19-7/8
15-15/16
30" MIN. clearance
from countertop to
unprotected overhead
surface
1-3/4
2" MIN. between
cutout and the wall
behind the cooktop
"
MIN.
clearance to
side wall
from cut-out
Electrical junction box 5" MIN.
below countertop
18" MIN. height
from countertop
to nearest cabineton
either side of unit
1-3/4
"
MIN.
clearance to
side wall
from cut-out
Cut should
not interfere
with cabinet
structure
at front
For answers to your Monogram, GE Café™ GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Specification Created 7/20
JP3021DP
GE® 21" Electric Radiant Cooktop
FEATURES AND BENEFITS
Compact Cooktop – Smaller cooktop is ideal for 21" cooktop installations
Ceramic Glass Cooktop – A smooth cooktop surface makes cleaning quick
and easy
Ribbon Heating Elements – Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times
6"/9" Dual Heating Element
Melt Setting – Gently melt delicate foods without scorching
Frameless Design – A smooth and seamless cooktop surface makes cleaning
quick and easy
Upfront Controls – Controls are placed within easy reach at the front center
of the cooktop
Hot Surface Indicator Lights – Illuminate when the cooking surface
is active and hot, adding convenience and safe caution
Heating Element "On" Light – Illuminates when the cooking surface
is activated
Model JP3021DPBB – Black
For answers to your Monogram, GE Café™ GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Specification Created 7/20
