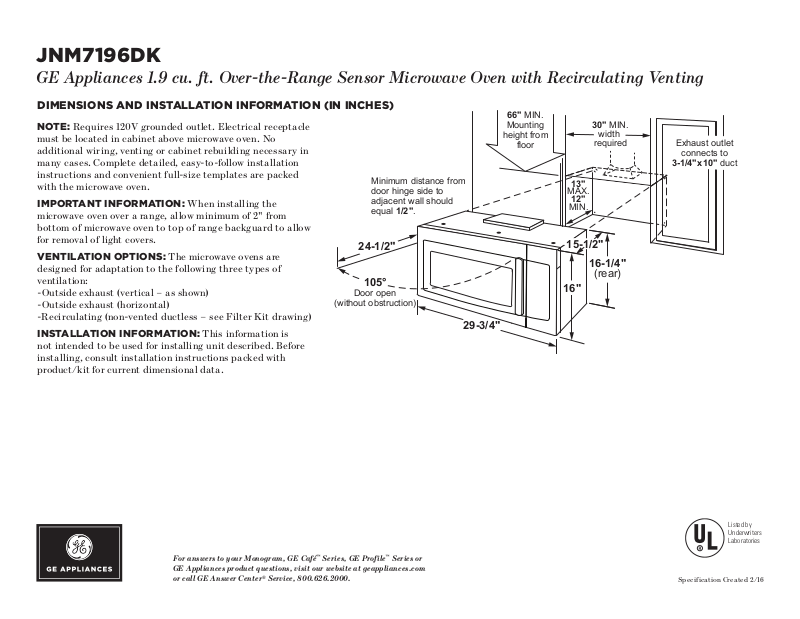

Page 1
JNM7196DK
105°
Door open
(without obstruction)
24-1/2
"
29-3/4"
16-1/4"
(rear)
15-1/2"
16"
13"
MAX.
12"
MIN.
66" MIN.
Mounting
height from
floor
Minimum distance from
door hinge side to
adjacent wall should
equal 1/2".
30" MIN.
width
required
Exhaust outlet
connects to
3-1/4"x10" duct
GE Appliances 1.9 cu. ft. Over-the-Range Sensor Microwave Oven with Recirculating Venting
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above microwave oven. No
additional wiring, venting or cabinet rebuilding necessary in
many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed
with the microwave oven.
IMPORTANT INFORMATION: When installing the
microwave oven over a range, allow minimum of 2" from
bottom of microwave oven to top of range backguard to allow
for removal of light covers.
VENTILATION OPTIONS: The microwave ovens are
designed for adaptation to the following three types of
ventilation:
-Outside exhaust (vertical – as shown)
-Outside exhaust (horizontal)
-Recirculating (non-vented ductless – see Filter Kit drawing)
INSTALL ATIO N I N F O R MATION: This information is
not intended to be used for installing unit described. Before
installing, consult installation instructions packed with
product/kit for current dimensional data.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 2/16
Page 2
JNM7196DK
GE Appliances 1.9 cu. ft. Over-the-Range Sensor Microwave Oven with Recirculating Venting
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
HOOD EXHAUST DUCT: Outside ventilation requires a HOOD
EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate
with a standard 3-1/4" x 10" rectangular duct. If a round duct is required, a
rectangular-to-round transition adaptor must be used. Do not use less than a
6" diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be
taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct
length of 3-1/4" x 10" rectangular or 6" diameter round duct should not exceed
140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc., present
additional resistance to airflow and are equivalent to a section of straight
duct which is longer than their actual physical size. When calculating the total
duct length, add the equivalent length of all transitions and adaptors plus the
lengths of all straight duct sections. The chart below shows the approximate
feet of equivalent length of some typical ducts.
DUCT EQUIVALENT FEET
A. Rectangular-To-round
Transition Adaptor 5 ft.
B. Wal l Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
OPTIONAL ACCESSORIES (AVAILABLE AT ADDITIONAL COST)
Filter Kit JX81H–
Recirculating
Charcoal Filter Kit
To be used when
Filler Panel Kit JX36D
When replacing a 36" or 42"
range hood, this kit fills in the
additional width to provide a
custom built-in appearance.
For installation between
cabinets only; not for endof-cabinet installation. Each
kit contains two 3"-wide filler
panels.
the microwave oven
cannot be vented to
the outside.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 2/16
Page 3
JNM7196DK
Defrost
Weight/Time
Popcorn Beverage Potato
Melt Reheat
Steam
Clean
Turntable
Cook
Time
Timer
Power
Level
Display
Set
Clock
Reset
Filter
Settings
Mute
Vent Fan
Surface
Light
Sensor Microwave
Microwave Features
Express Cook
Start
Pause
Cancel
Add
30 Sec
1
2
3
4
5
6 7 8 9 0
Hold 3 Sec
Hold 3 Sec
Lock Control
Hold 3 Sec
6:30
PM
GE Appliances 1.9 cu. ft. Over-the-Range Sensor Microwave Oven with Recirculating Venting
FEATURES AND BENEFITS
1.9 cu. ft. capacity - 1000 Watts (IEC-705 test procedure)
Easy clean enamel interior - Makes cleaning spills and splatters
a snap
Melt feature - Worry-free melting of butter, caramel, chocolate
and cheese
Easy clean with steam clean - Messes inside the microwave are
easy to wipe away after steam loosens food grime
Weight and time defrost - Simply enter the weight of the food,
and the oven automatically sets the optimal defrosting time and
power level or set your desired time for defrosting
Upfront charcoal filter with indicator light - Light indicates
when odor-removing charcoal filter needs to be replaced
Four-speed with boost, 400-CFM venting fan system - Quickly
removes smoke, steam and odors from the cooktop to keep
kitchen air fresh and clean
Recessed turntable with on/off - Controls turntable operation
Sensor cooking controls - Automatically adjusts time and power
for delicious cooking results
Model JNM7196DKBB - Black
Model JNM7196DKCC - Bisque
Model JNM7196DKWW - White
Listed by
Underwriters
Laboratories
Specification Created 2/16
