Installation |
Over the Range |
Instructions |
Microwave Oven |
|
JVM3150 |
|
JNM3151 |
|
|

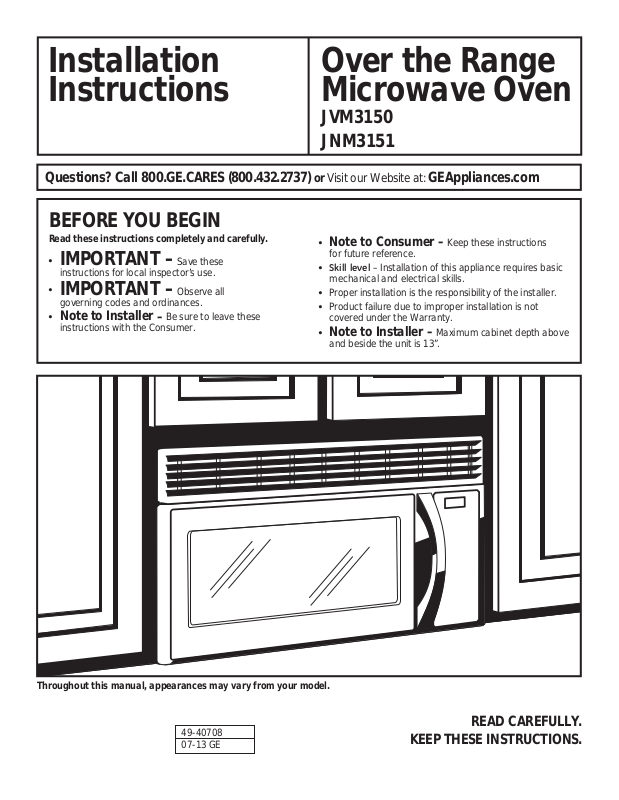

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT – Save these
instructions for local inspector’s use.
IMPORTANT – Observe all
governing codes and ordinances.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions for future reference.
6NLOO OHYHO – Installation of this appliance requires basic mechanical and electrical skills.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not covered under the Warranty.
Note to Installer – Maximum cabinet depth above and beside the unit is 13”.
Throughout this manual, appearances may vary from your model.
49-40708
07-13 GE
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
Installation Instructions
CONTENTS |
|
|
General information |
|
|
Important Safety Instructions........................................ |
3 |
|
Electrical Requirements .................................................. |
3 |
|
Hood Exhaust ................................................................ |
4, 5 |
|
'DPDJH³6KLSPHQW ,QVWDOODWLRQ................................... |
6 |
|
Parts Included ................................................................... |
6 |
|
Tools You Will Need ......................................................... |
7 |
|
Mounting Space ................................................................ |
7 |
|
Step-by-step installation guide |
|
|
Placement of Mounting Plate.................................. |
8–10 |
|
|
Removing the Mounting Plate............................. |
8 |
|
Finding the Wall Studs.......................................... |
8 |
|
Determining Wall Plate Location ........................ |
9 |
|
Aligning the Wall Plate ....................................... |
10 |
Installation Types .................................................... |
11–22 |
|
A |
Outside Top Exhaust.................................... |
12–14 |
|
Attach Mounting Plate to Wall ................. |
12 |
|
Preparation of Top Cabinet....................... |
13 |
|
Assemble and Install Adaptor .................. |
13 |
|
Mount the Oven................................... |
13, 14 |
|
Adjust the Exhaust Adaptor...................... |
14 |
|
Connecting Ductwork................................ |
14 |
B |
Outside Back Exhaust.................................. |
15–18 |
|
Preparing Rear Wall for |
|
|
Outside Back Exhaust................................ |
15 |
|
Attach Exhaust Adaptor to |
|
|
Oven Rear Panel......................................... |
15 |
|
Attach Mounting Plate to Wall ................. |
16 |
|
Preparation of Top Cabinet....................... |
16 |
|
Adapting Blower for Outside |
|
|
Back Exhaust................................................. |
17 |
|
Mount the Oven.......................................... |
18 |
C Recirculating................................................. |
19–22 |
Attach Mounting Plate to Wall ................ |
19 |
Preparation of Top Cabinet...................... |
19 |
Adapting Blower for |
|
Recirculation........................................ |
20, 21 |
Mount the Oven................................... |
21, 22 |
Installing the Charcoal Filter.................... |
22 |

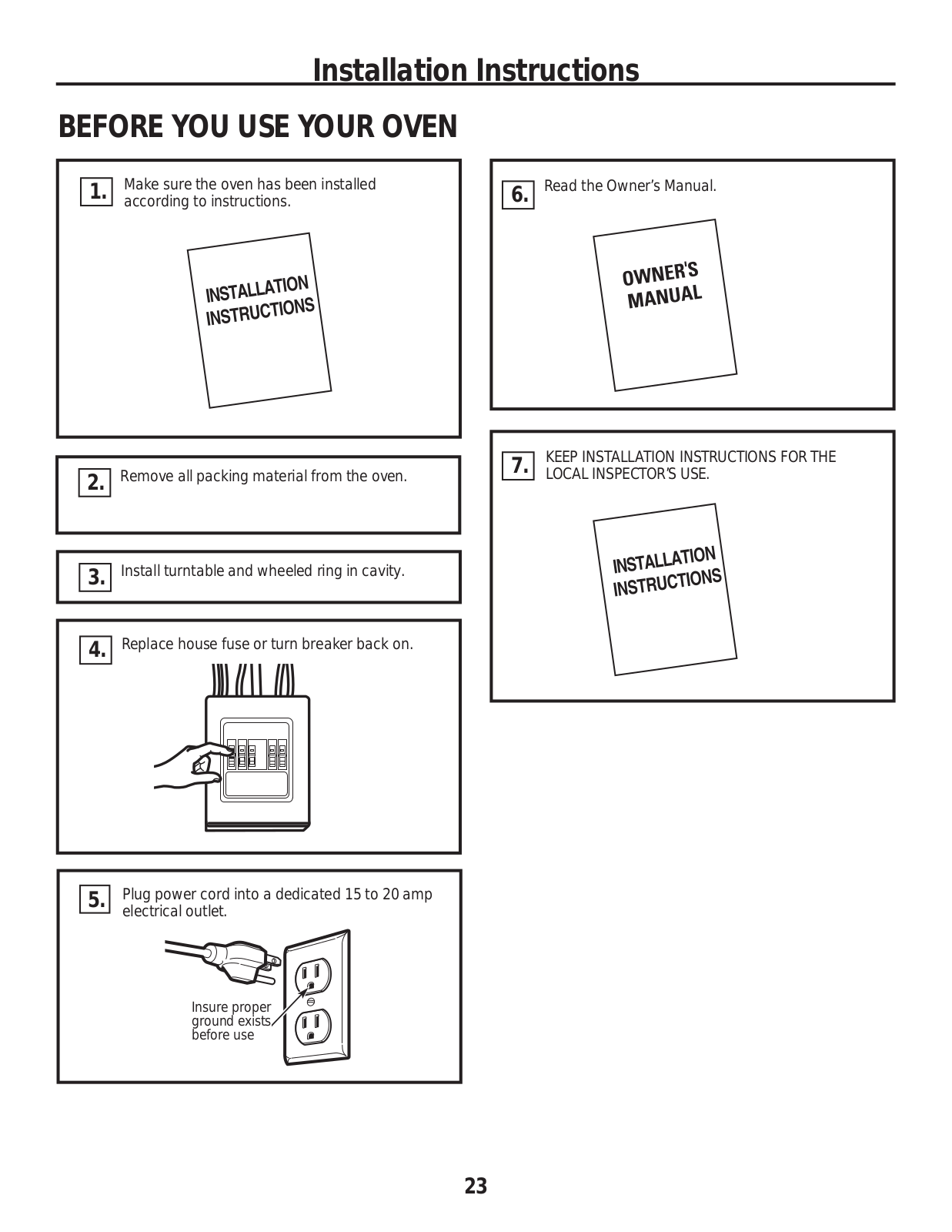

Before You Use Your Oven .......................................... |
23 |
2
Installation Instructions

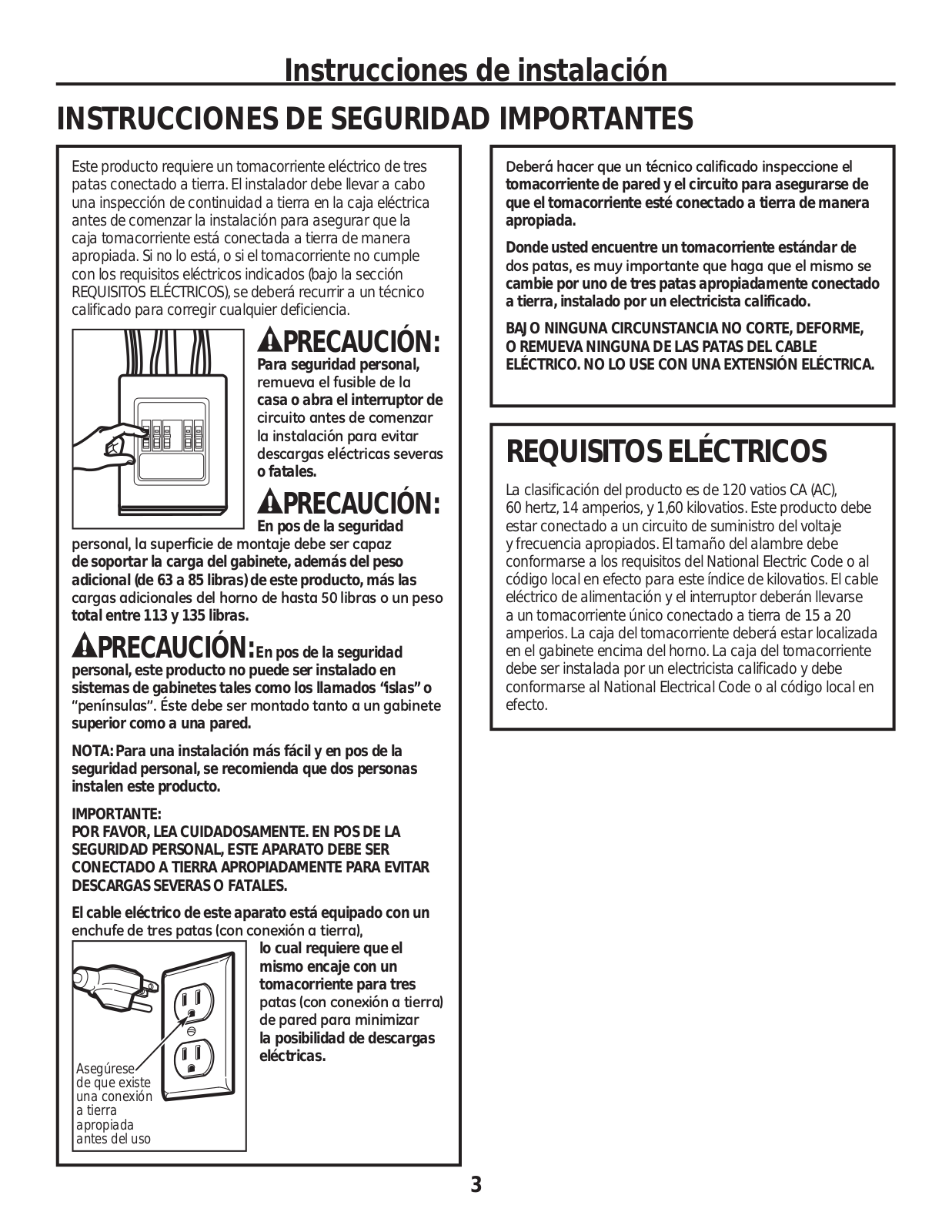

IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded outlet. The installer must perform a ground continuity check
on the power outlet box before beginning the installation to insure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.
CAUTION:
For personal safety, remove house fuse or open circuit
EUHDNHU EHIRUH EHJLQQLQJ installation to avoid severe
RU IDWDO VKRFN LQMXU\
CAUTION:
For personal safety, the mounting surface must be capable of supporting the cabinet load,in addition to the added weight of this 63–85 pound product, plus additional oven loads of up to 50 pounds or
a total weight of 113–135 pounds.
CAUTION:For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH
a top cabinet AND a wall.
NOTE: For easier installation and personal safety, it is recommended that two people install this product.
,03257$17³3/($6( 5($' &$5()8//< )25
PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.
Insure proper ground exists
before use
The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with
a standard three-prong (grounding) wall receptacle to minimize the possibility
RI HOHFWULF VKRFN KD]DUG from this appliance.
<RX VKRXOG KDYH WKH ZDOO UHFHSWDFOH DQG FLUFXLW FKHFNHG
E\ D TXDOLILHG HOHFWULFLDQ WR PDNH VXUH WKH UHFHSWDFOH LV properly grounded.
Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 14 amps and 1.60 kilowatts. This product must be connected to a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box should be located in the cabinet above the oven. The outlet box and supply circuit should be installed by
a qualified electrician and conform to the National Electrical Code or the prevailing local code.
3
Installation Instructions

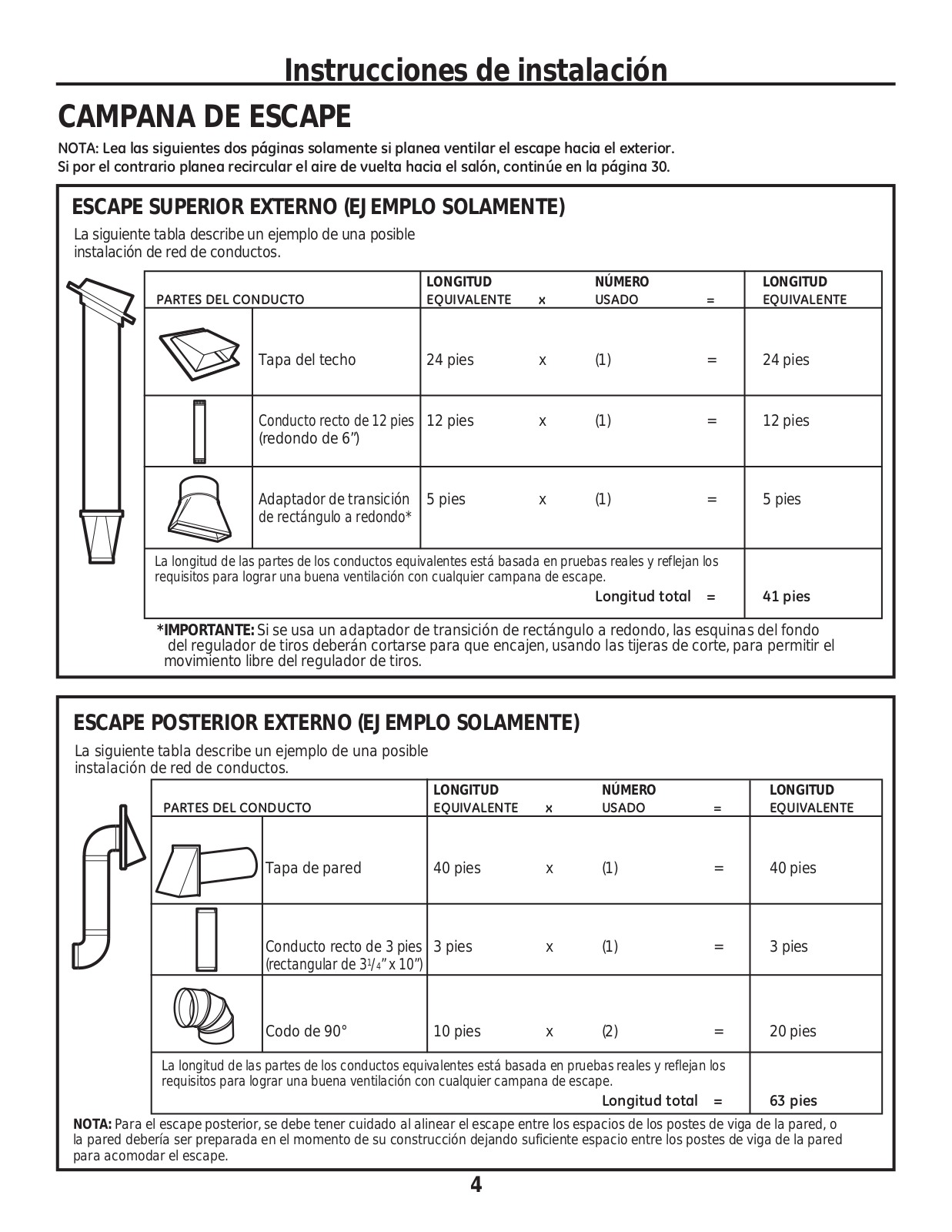

HOOD EXHAUST
NOTE: Read these next two pages only if you plan to vent your exhaust to the
RXWVLGH ,I \RX SODQ WR UHFLUFXODWH WKH DLU EDFN LQWR WKH URRP SURFHHG WR SDJH
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible ductwork installation.
|
|
|
|
EQUIVALENT |
|
NUMBER |
|
EQUIVALENT |
|
DUCT PIECES |
LENGTH x |
|
USED |
= |
LENGTH |
||||
|
|
|
Roof Cap |
24 Ft. |
x |
(1) |
= |
24 |
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
12 Ft. Straight Duct |
12 Ft. |
x |
(1) |
= |
12 |
Ft. |
|
|
|
|||||||
|
|
|
(6” Round) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rectangular-to-Round |
5 Ft. |
x |
(1) |
= |
5 Ft. |
|
|
|
|
Transition Adaptor* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Equivalent lengths of duct pieces are based on actual tests and |
|
|
|
|
|||||
reflect requirements for good venting performance with any vent hood. |
|
|
|
||||||
|
|
|
|
|
|
Total Length |
= |
41 |
Ft. |
|
|
|
|
|
|
|
|
|
|
*IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible ductwork installation.
|
|
|
|
|
|
|
|
|
|
|
|
|
EQUIVALENT |
|
NUMBER |
|
EQUIVALENT |
|
|
|
|
|
|
|
|
|
DUCT PIECES |
LENGTH* |
x |
USED |
= |
LENGTH |
|||||
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Wall Cap |
40 Ft. |
x |
(1) |
= |
40 |
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 Ft. Straight Duct |
3 Ft. |
x |
(1) |
= |
3 Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
(3¼” x 10” Rectangular) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90° Elbow |
10 Ft. |
x |
(2) |
= |
20 |
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Equivalent lengths of duct pieces are based on actual tests and |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
reflect requirements for good venting performance with any vent hood. |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Total Length |
= |
63 |
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
4
Installation Instructions
NOTE: If you need to install ducts, note that the total duct length of 3¼”x 10” rectangular or 6” diameter round duct should not exceed 120 equivalent feet.

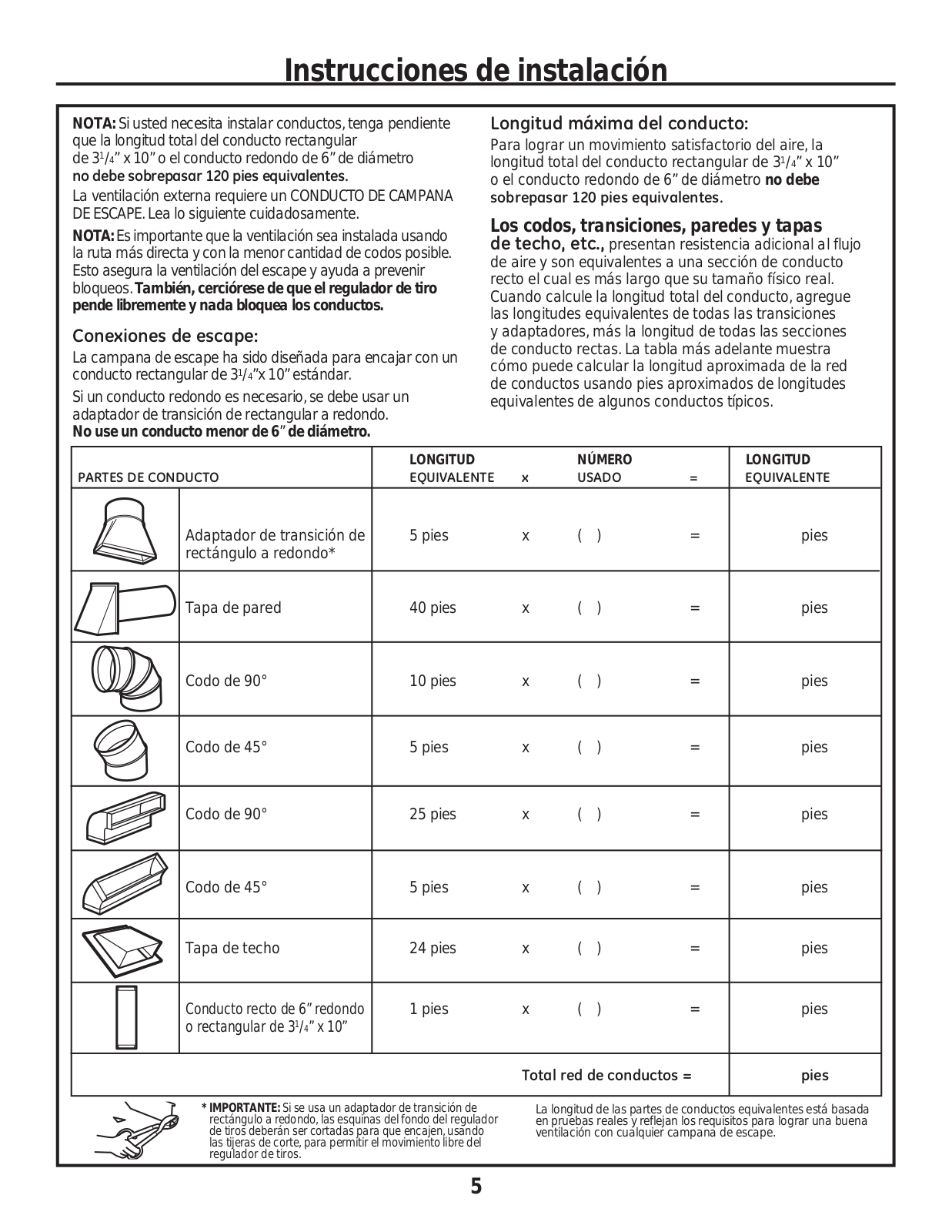

Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. $OVR PDNH VXUH GDPSHUV VZLQJ IUHHO\ DQG
QRWKLQJ LV EORFNLQJ WKH GXFWV
Exhaust connection:
The hood exhaust has been designed to mate with a standard 3¼” x 10” rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not use less than a 6” diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of 3¼” x 10” rectangular or 6” diameter round duct should not exceed 120 equivalent feet.
Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.
|
EQUIVALENT |
NUMBER |
|
EQUIVALENT |
DUCT PIECES |
LENGTH x |
USED |
= |
LENGTH |
|
|
|
|
Rectangular-to-Round |
5 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
Transition Adaptor* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wall Cap |
40 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90° Elbow |
10 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45° Elbow |
5 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90° Elbow |
25 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45° Elbow |
5 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roof Cap |
24 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Straight Duct 6” Round or |
1 Ft. |
x |
( |
) |
= |
|
|
Ft. |
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
3¼” x 10” Rectangular |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7RWDO 'XFWZRUN |
|
|
|
)W |
|
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.
5
Installation Instructions
'$0$*( ² 6+,30(17
INSTALLATION
If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

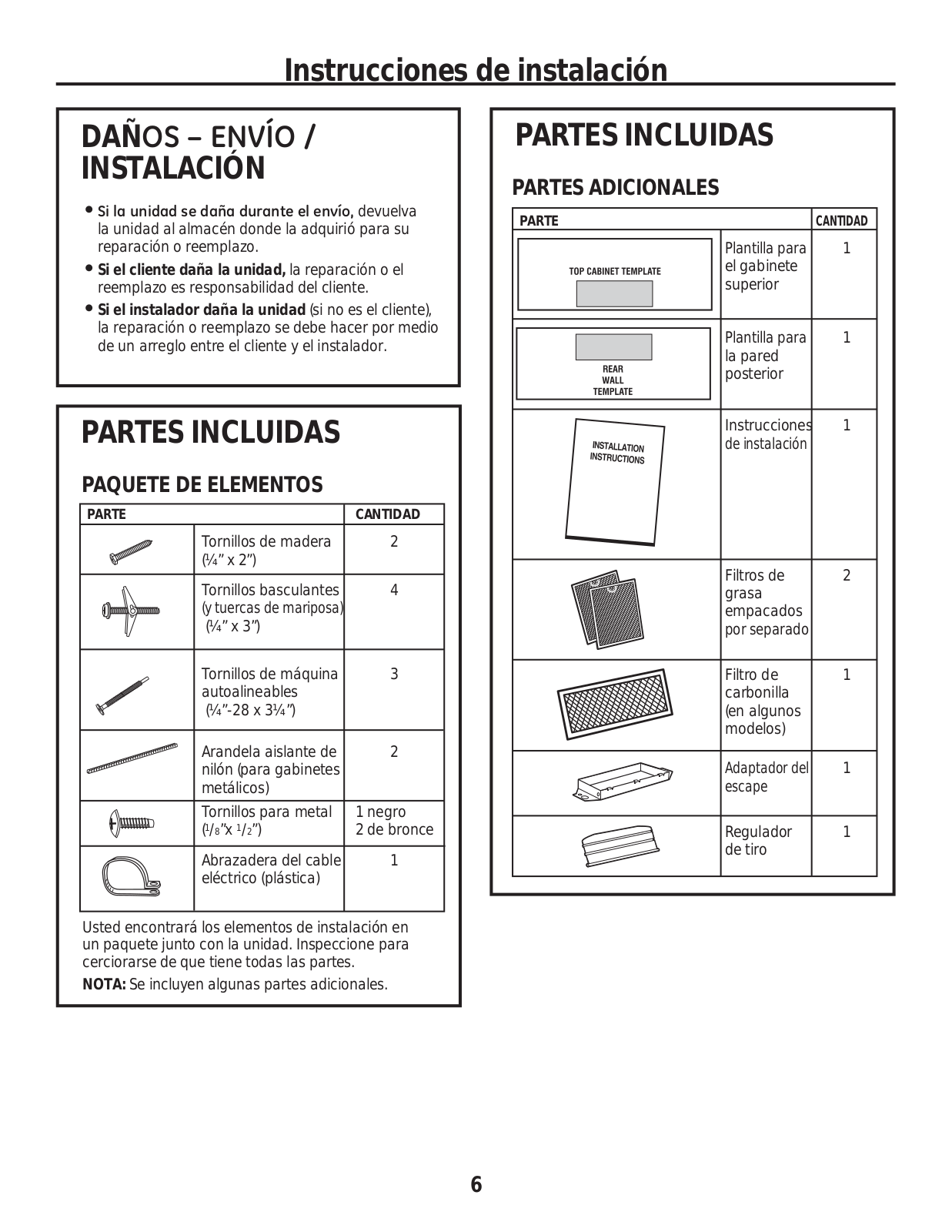

PARTS INCLUDED
HARDWARE PACKET
PART |
QUANTITY |
Wood Screws |
2 |
(¼” x 2”) |
|
Toggle Bolts (and |
4 |
wing nuts) (¼” x 3”) |
|
Self-aligning Machine |
3 |
Screws (¼”-28 x 3¼”) |
|
Nylon Grommet |
2 |
(for metal cabinets) |
|
Metal Screws |
1 black |
(1/8” x 1/2”) |
2 bronze |
Power Cord Strap |
1 |
(plastic) |
|
You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts.
NOTE: Some extra parts are included.
PARTS INCLUDED
ADDITIONAL PARTS
|
PART |
QUANTITY |
||||
|
|
|
|
|
Top Cabinet |
1 |
|
|
|
|
|
||
|
|
|
|
|
Template |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rear Wall |
1 |
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Template |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Installation |
1 |
|
|
|
|
|
Instructions |
|
|
|
Separately |
2 |
|
|
Packed |
|
|
|
Grease |
|
|
|
Filters |
|
|
|
|
|
|
|
Charcoal |
1 |
|
|
Filter |
|
|
|
(on some |
|
|
|
models) |
|
|
|
|
|
|
|
Exhaust |
1 |
|
|
||
|
|
||
|
|
Adaptor |
|
|
|
||
|
|
||
|
|
|
|
|
|
Damper |
1 |
6
Installation Instructions

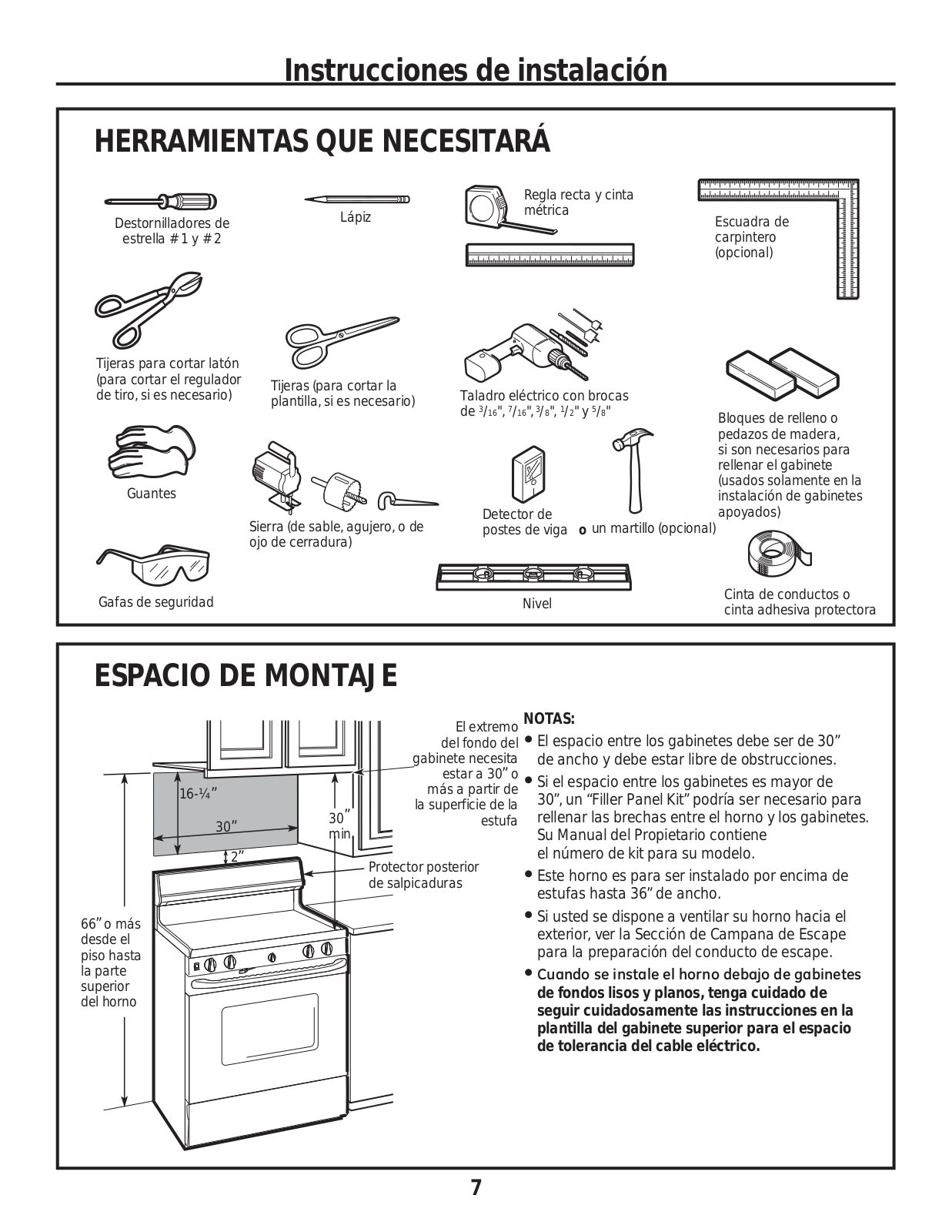

TOOLS YOU WILL NEED
|
Ruler or tape measure |
|
and straight edge |
Pencil |
Carpenter square |
# 1 and #2 Phillips screwdriver |
(optional) |
Tin snips (for cutting |
|
|
damper, if required) |
Scissors |
Electric drill with 1/16”, 7/16”, 3/8”, |
|
||
|
(to cut template, if necessary) |
|
|
|
1/2”and 5/8” drill bits |
Gloves
Saw (saber, hole or keyhole) |
Stud finder or Hammer (optional) |
Filler blocks or scrap wood pieces, if needed for top cabinet spacing (used on recessed bottom cabinet installations only)
Safety goggles |
Level |
Duct and masking tape |
|
MOUNTING SPACE
NOTE: Maximum cabinet depth is 13”. |
Bottom edge of |
|
cabinet needs |
||
|
to be 30” or |
|
16-¼” |
more from the |
|
cooking surface |
||
30” |
30” |
|
min. |
||
|
||
2” |
Backsplash |
|
|
66” or more from the floor to the top of the oven
NOTES:
The space between the cabinets must be 30” wide and free of obstructions.
If the space between the cabinets is greater than 30”, a Filler Panel Kit may be used to fill in the gap between the oven and the cabinets.
Your Owner’s Manual contains the kit number for your model.
This oven is for installation over ranges up to 36” wide.
If you are going to vent your oven to the outside, see Hood Exhaust Section for exhaust duct preparation.
When installing the oven beneath smooth, flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance.
7
Installation Instructions

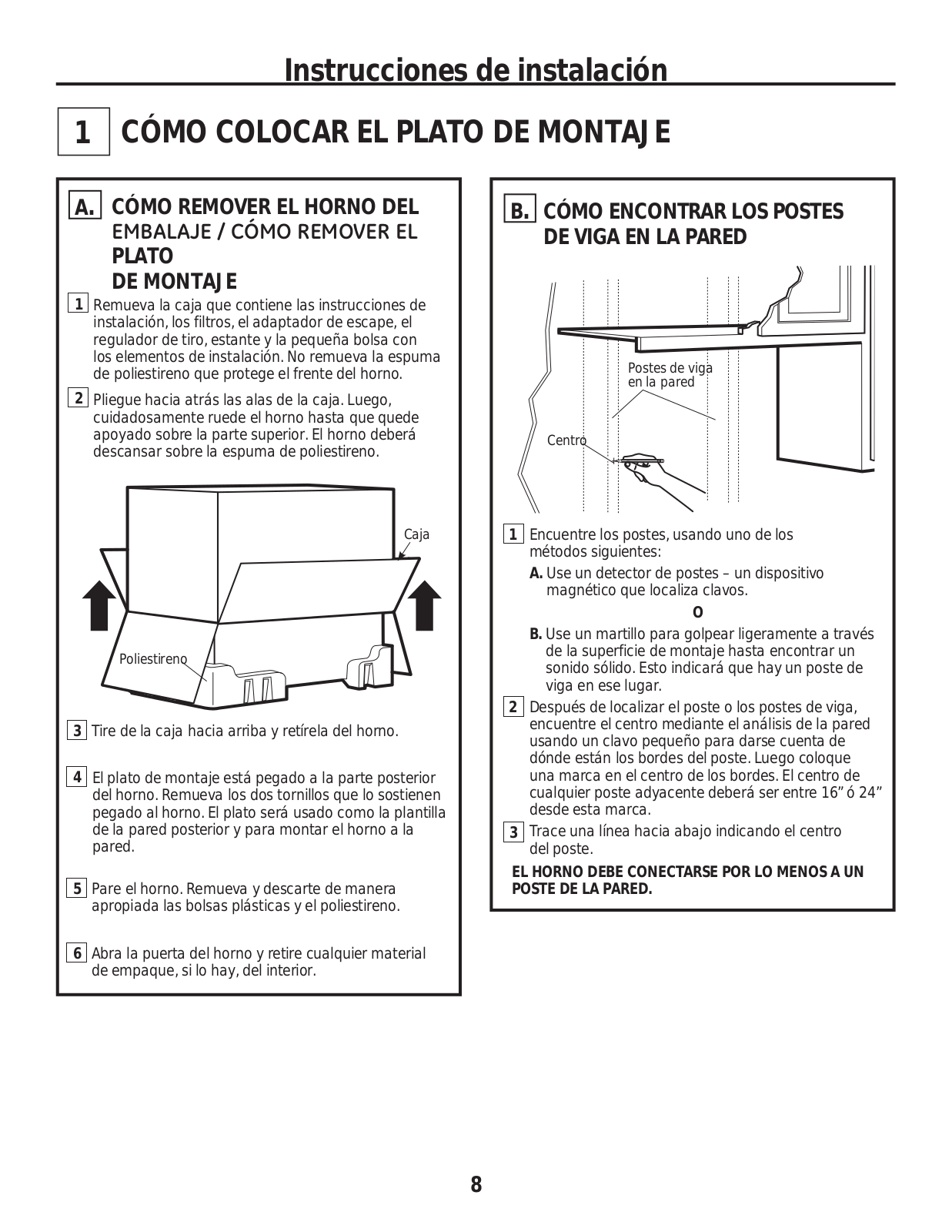

1 PLACEMENT OF THE MOUNTING PLATE
A. REMOVING THE OVEN FROM
7+( &$5721 5(029,1* 7+(
MOUNTING PLATE
1Remove the turntable, installation instructions, filters, exhaust adaptor, damper, shelf and the small hardware bag. Do not remove the foam packing protecting the front of the oven.
2Fold back all 4 carton flaps fully against carton sides. Then carefully roll the oven and carton over onto the top side. The oven should be resting in the foam packing.
Carton
Foam packing
3Pull the carton up and off the oven.
4The mounting plate is attached to the back of the oven. Remove the two screws holding it to the oven. The plate will be used as the rear wall template and for mounting the oven to the wall.
5Set the oven upright. Remove and properly discard plastic bags and foam packing.
6Open the oven door and remove any packing material, if present, from inside the oven.
B. FINDING THE WALL STUDS
Wall
Studs
Center
1Find the studs, using one of the following methods:
A.Stud finder – a magnetic device which locates nails.
OR
B.Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate a stud location.
2After locating the stud(s), find the center by probing the wall with a small nail to find the
edges of the stud. Then place a mark halfway between the edges. The center of any adjacent
studs should be 16” or 24” from this mark.
3 Draw a line down the center of the studs.
THE OVEN MUST BE CONNECTED TO AT LEAST ONE WALL STUD.
8
Installation Instructions

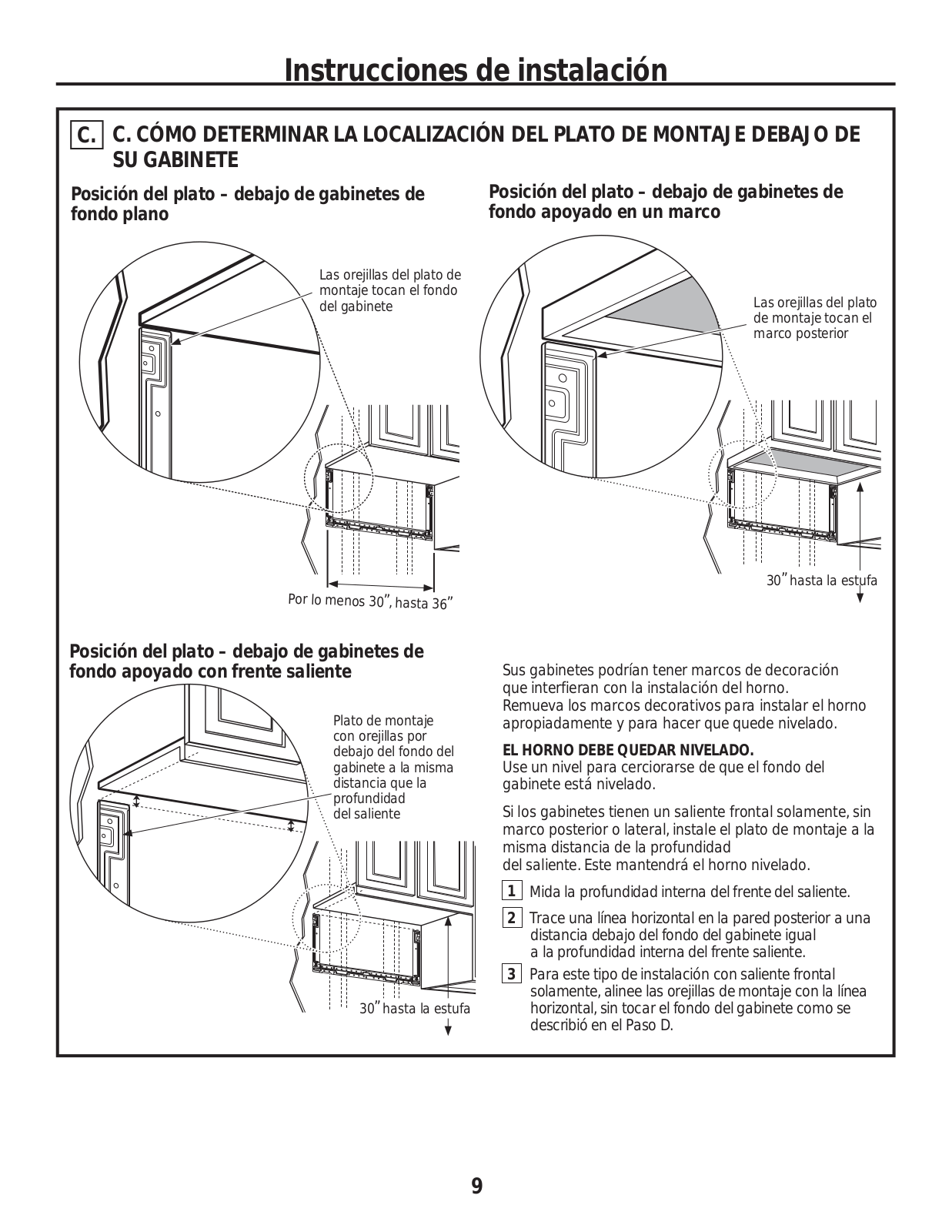

C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position – beneath flat bottom cabinet
Plate position – beneath framed recessed cabinet bottom
Mounting Plate
Tabs
Touching the
Cabinet Bottom
At |
least 30 |
” |
|
, up to 36” |
Plate position – beneath recessed bottom cabinet with front overhang
Mounting Plate with
Tabs Below Cabinet
Bottom the Same
Distance as the Front
Overhang Depth
Mounting Plate Tabs
Touching the Back
Frame
30” to Cooktop
Your cabinets may have decorative trim that interferes with the oven installation. Remove the decorative trim to install the oven properly and to make it level.
THE OVEN MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the oven level.
1Measure the inside depth of the front overhang.
2Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D.
30” to Cooktop
9
Installation Instructions

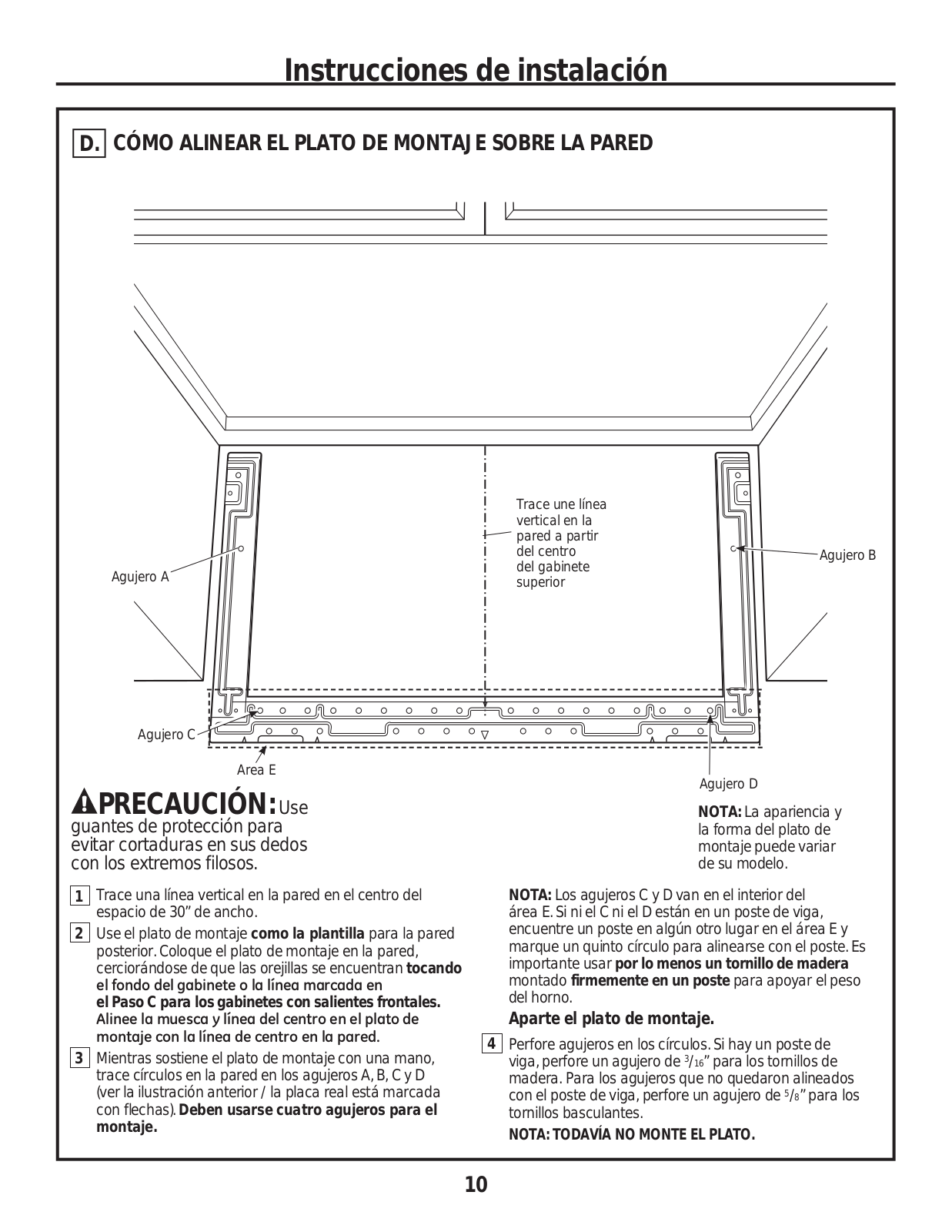

D. ALIGNING THE WALL PLATE
|
|
Draw a |
Hole B |
|
Hole A |
|
Vertical Line |
|
|
|
on Wall from |
|
||
|
|
|
||
|
|
Center of Top |
|
|
|
|
Cabinet |
|
|
Hole C |
|
|
|
|
Area E |
|
|
Hole D |
|
CAUTION: Wear |
|
|
NOTE: Appearance and |
|
|
|
shape of the mounting |
||
gloves to avoid cutting |
|
|
plate may vary from your |
|
fingers on sharp edges. |
|
|
model. |
|
1 Draw a vertical line on the wall at the center of the 30” |
|
NOTE: Holes C and D are inside area E. If neither |
||
wide space. |
|
C nor D is in a stud, find a stud somewhere in area E and |
||
2 Use the mounting plate as the template for the rear |
|
draw a fifth circle to line up with the stud. It is important |
||
wall. Place the mounting plate on the wall, making |
|
to use at least one wood screw mounted |
||
sure that the tabs are touching the bottom of the |
|
firmly in a stud to support the weight of the oven. |
||
cabinet or the level line drawn in Step C for cabinets |
|
Set the mounting plate aside. |
||
with front overhang. Line up the notch and center line |
4 |
Drill holes on the circles. If there is a stud, drill a 3/16” hole |
||
on the mounting plate to the center line on the wall. |
||||
|
for wood screws. For holes that don’t line up with a stud, |
|||
3 While holding the mounting plate with one hand, |
|
|||
|
drill a 5/8” hole for toggle bolts. |
|||
draw circles on the wall at holes A, B, C and D (see |
|
NOTE: DO NOT MOUNT THE PLATE |
||
illustration above/actual plate marked with arrows). Four |
|
|||
|
AT THIS TIME. |
|
||
holes must be used for mounting. |
|
|
||
|
|
|
10
Installation Instructions

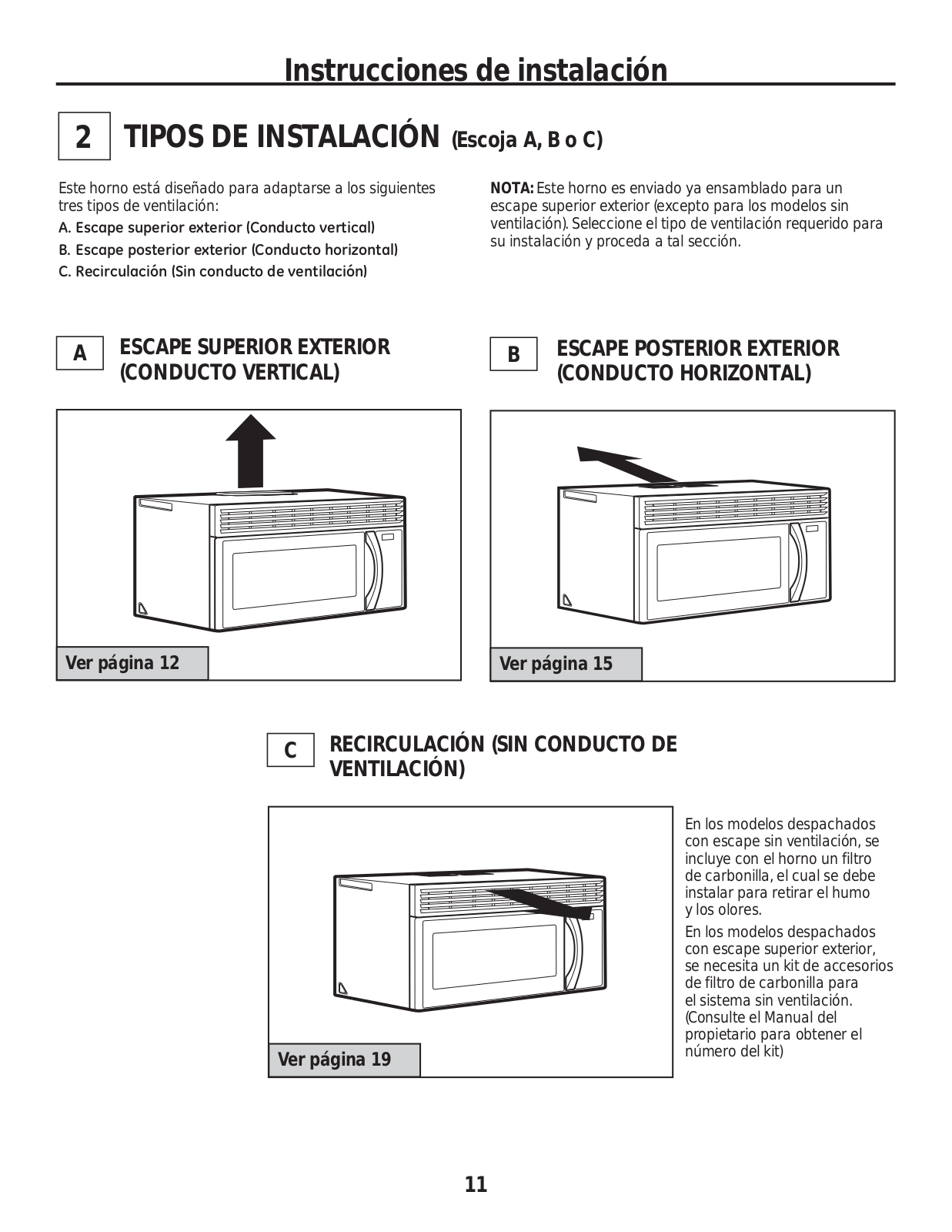

2 INSTALLATION TYPES (Choose A, B or C)
This oven is designed for adaptation to the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
% 2XWVLGH %DFN ([KDXVW +RUL]RQWDO 'XFW
C. Recirculating (Non-Vented Ductless)
NOTE: This oven is shipped assembled for Outside Top Exhaust (except for non-vented models). Select the type of ventilation required for your installation and proceed to that section.
|
OUTSIDE TOP EXHAUST |
|
OUTSIDE BACK EXHAUST |
A |
B |
||
|
(VERTICAL DUCT) |
|
(HORIZONTAL DUCT) |
|
|
See page 12 |
See page 15 |
CRECIRCULATING (NON-VENTED DUCTLESS)
See page 19 |
11 |
On models shipped for non-vented exhaust, a disposable charcoal filter is included with the oven and needs to be installed to help remove smoke and odors.
On models shipped for outside top exhaust, a Charcoal Filter Accessory Kit is required for the non-vented exhaust. (See your Owner’s Manual for the kit number.)
Installation Instructions

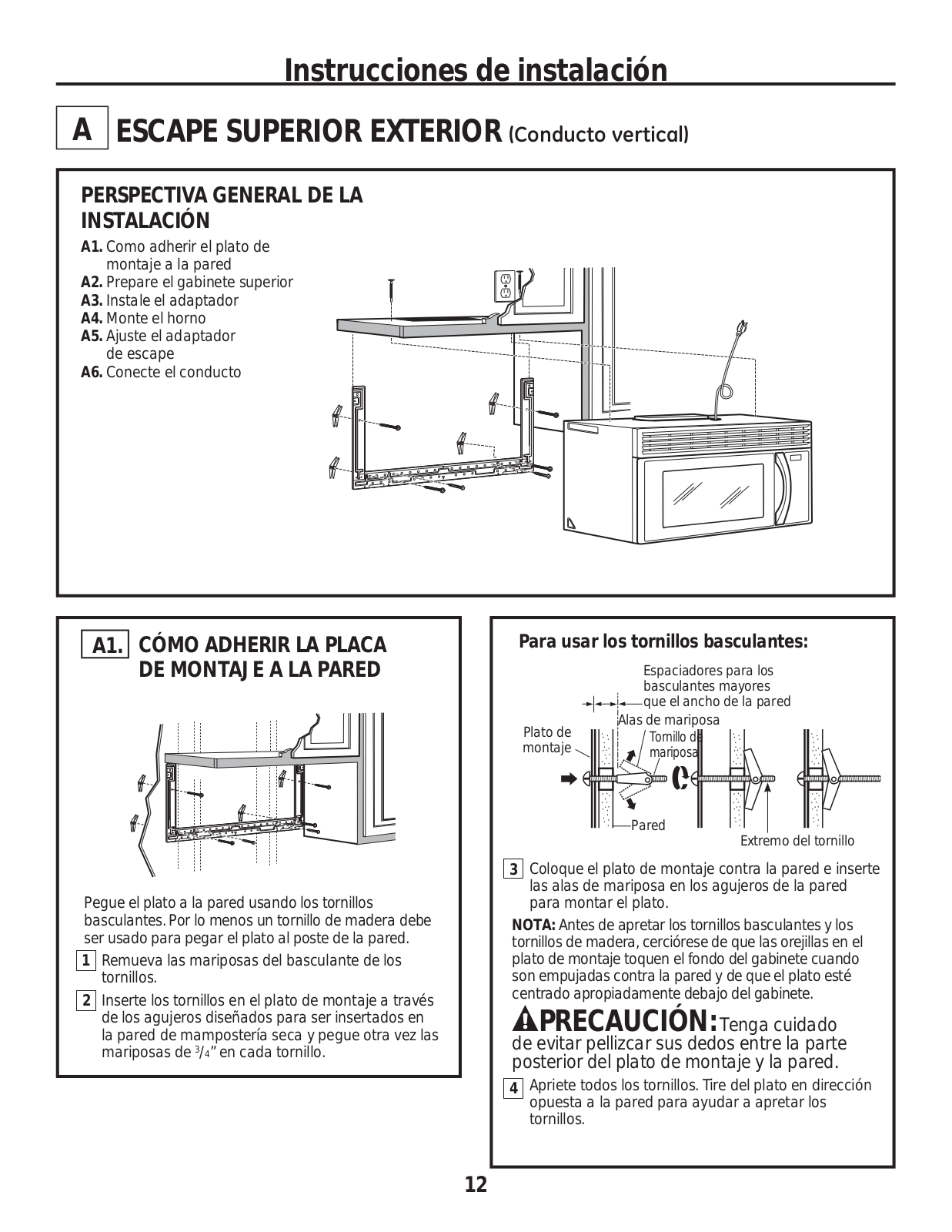

A OUTSIDE TOP EXHAUST (Vertical Duct)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Adapter
A4. Mount Oven
A5. Adjust Exhaust Adaptor
A6. Connect Ductwork
A1. ATTACH THE MOUNTING PLATE TO THE WALL
Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.
1Remove the toggle wings from the bolts.
2Insert the bolts into the mounting plate
through the holes designated to go into drywall and reattach the toggle wings to 3/4” onto each bolt.
To use toggle bolts:
Spacing for
Toggles More Than
Wall Thickness
Mounting |
Toggle Wings |
|
Toggle |
||
Plate |
||
Bolt |
||
|
||
|
Wall |
Bolt End
3Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood screw, make sure the tabs on the mounting plate touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
4Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.
12
Installation Instructions

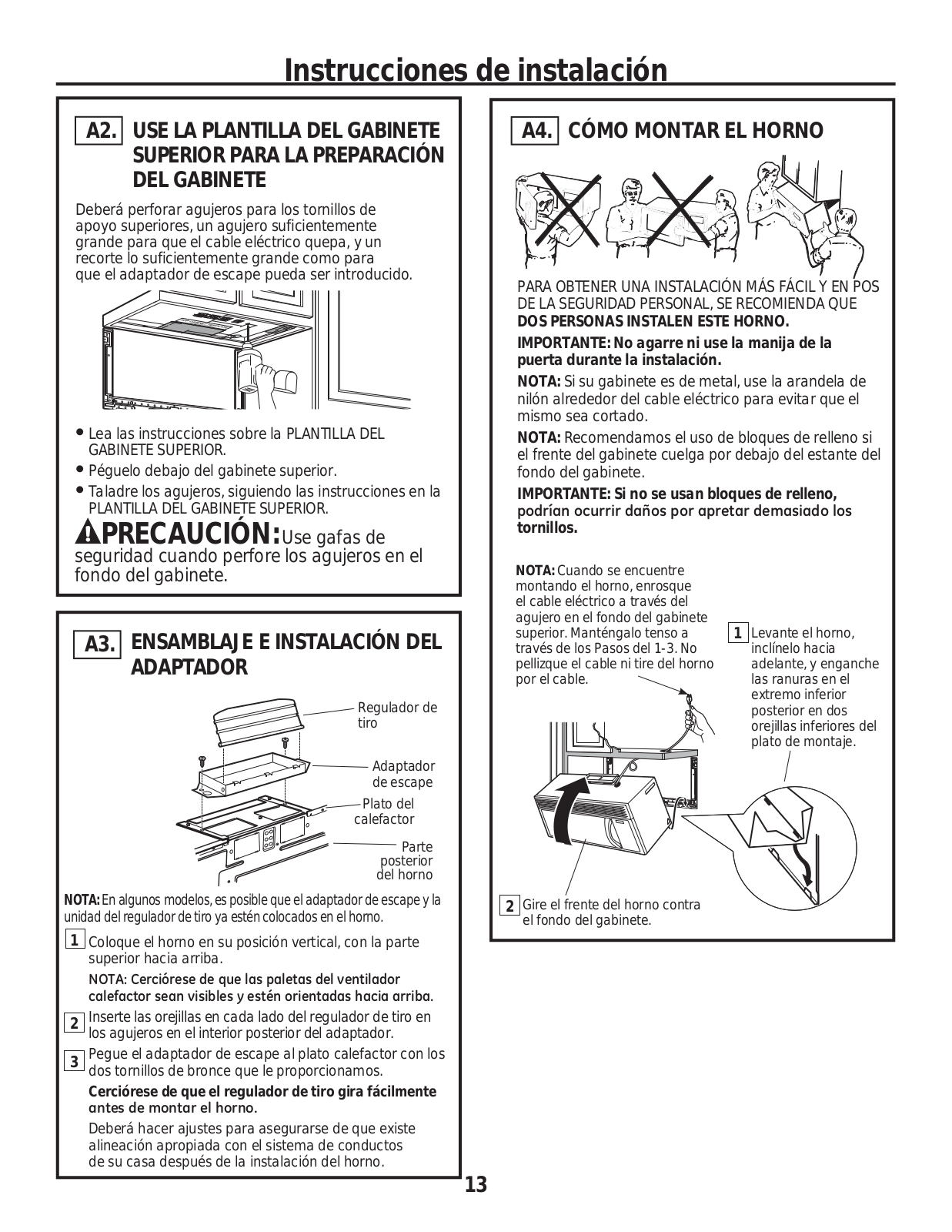

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET
You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.
Read the instructions on the TOP CABINET TEMPLATE.
Tape it underneath the top cabinet.
Drill the holes, following the instructions on the TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.
A3. ASSEMBLE AND INSTALL
ADAPTOR
Damper
Exhaust
Adaptor
Blower Plate
Back of |
Oven |
NOTE: On some models, the exhaust adaptor and damper assembly may already be assembled to the oven.
1Place the oven in its upright position, with the top of the unit facing up.
127( 0DNH VXUH WKH EORZHU IDQ EODGHV DUH YLVLEOH and are pointing up.
2Insert the tabs on each side of the damper into the holes at the inside rear of the adaptor.
3Attach the exhaust adaptor to the blower plate with the two bronze metal screws provided.
0DNH VXUH WKDW WKH GDPSHU SLYRWV HDVLO\ EHIRUH mounting oven.
You will need to make adjustments to assure proper alignment with your house exhaust duct after the oven is installed.
13
A4. MOUNT THE OVEN
FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle during installation.
NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.
NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.
,03257$17 ,I ILOOHU EORFNV DUH QRW used, case damage may occur from over tightening screws.
NOTE: When mounting the |
|
oven, thread power cord |
|
through hole in bottom |
|
of top cabinet. Keep it tight |
|
throughout Steps 1–3. |
|
Do not pinch cord or lift oven |
1 Lift oven, tilt it |
by pulling cord. |
forward and hook |
|
slots at back bottom |
|
edge onto two lower |
|
tabs of mounting |
|
plate. |
2Rotate front of oven up against cabinet bottom.
Installation Instructions

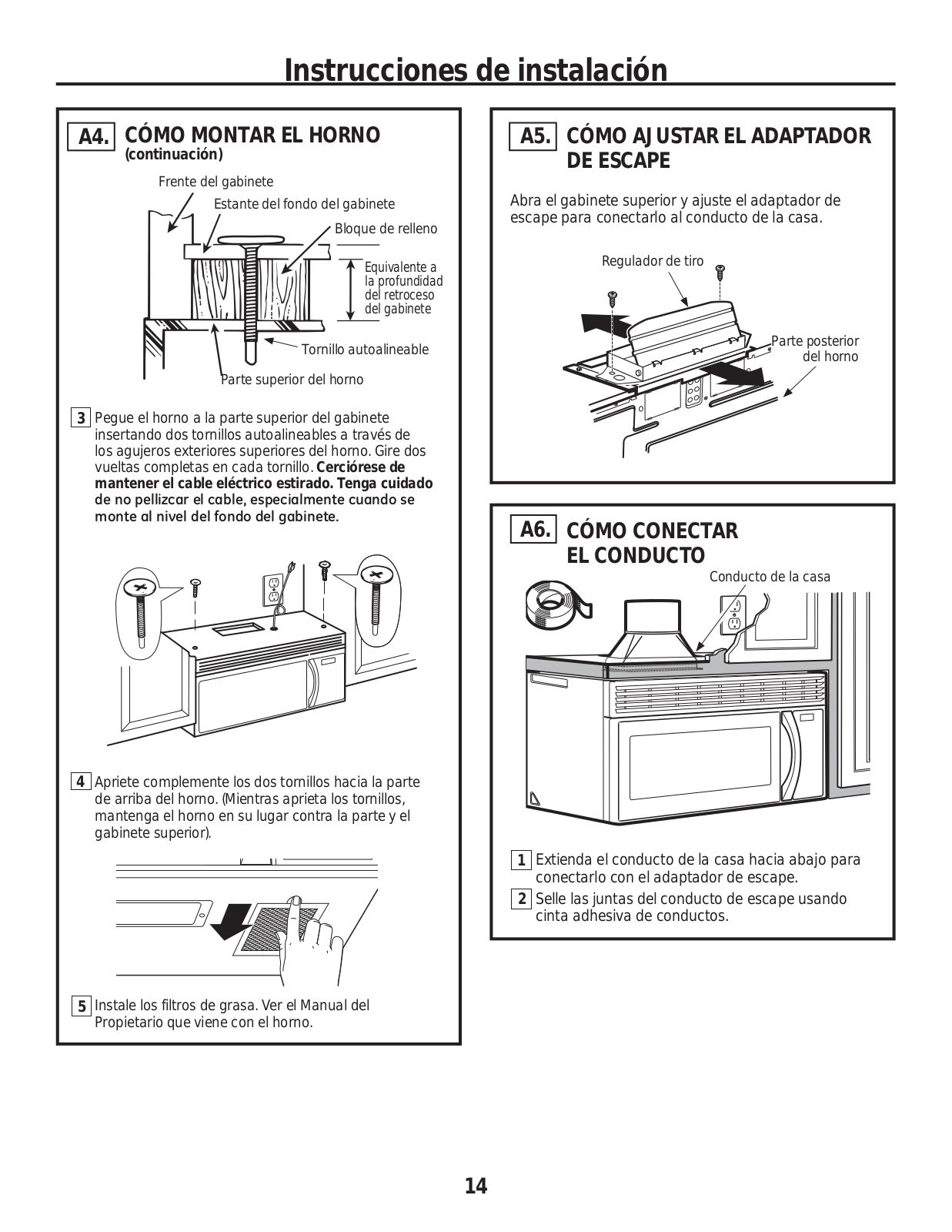

A4. MOUNT THE OVEN (continued)
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Equivalent to Depth of Cabinet Recess
Self-Aligning Screw
Oven Top
3Attach the oven to the top cabinet by inserting 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw. Be sure
WR NHHS SRZHU FRUG WLJKW %H FDUHIXO QRW WR SLQFK the cord, especially when mounting flush to bottom of cabinet.
4Tighten the two screws to the top of the oven completely. (While tightening screws, hold the oven in place against the wall and the top cabinet.)
5Install grease filters. See the Owner’s Manual packed with the oven.
A5. ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.
Damper
Back of
Oven
A6. CONNECTING DUCTWORK
House Duct
1Extend the house duct down to connect to the exhaust adaptor.
2 Seal exhaust duct joints using duct tape.
14
Installation Instructions

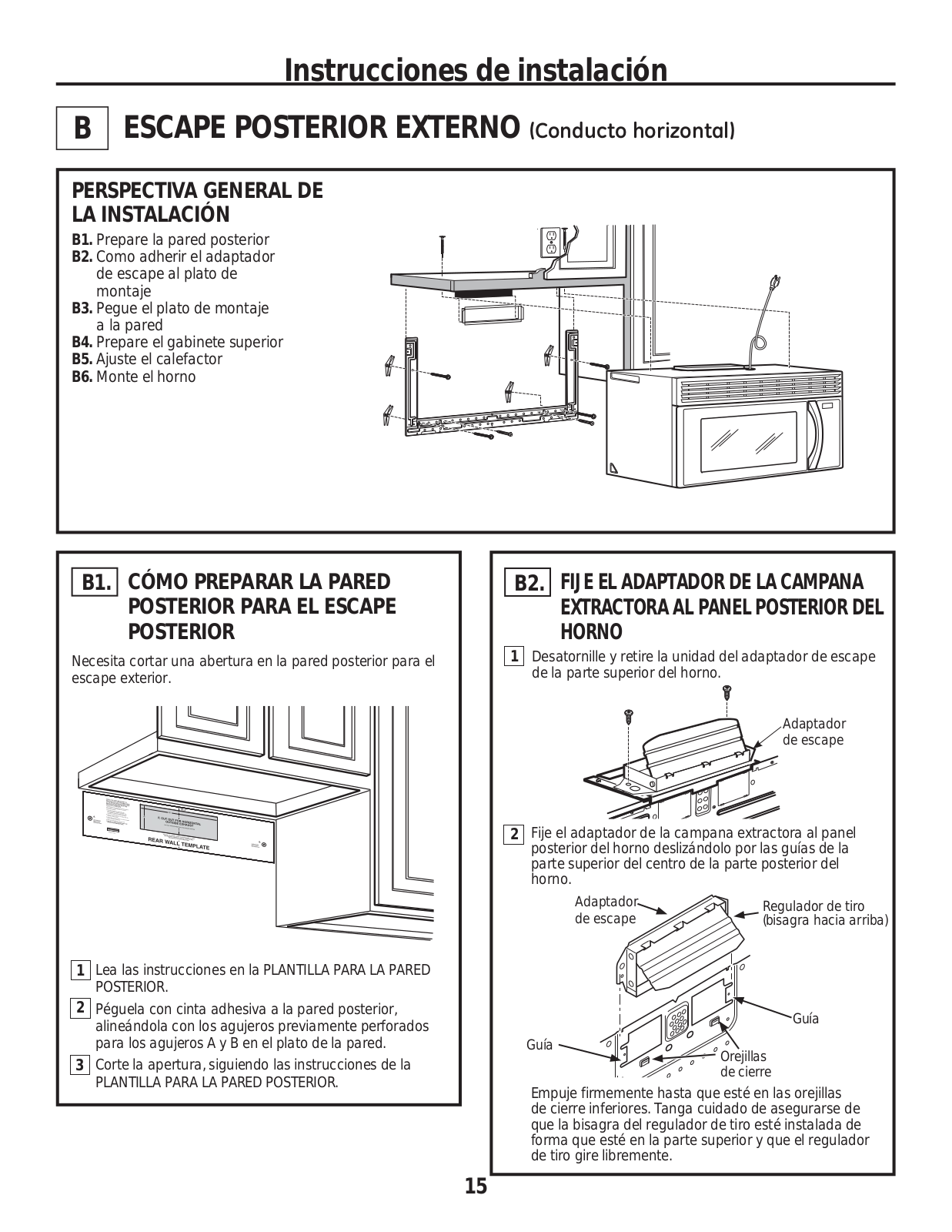

B OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Exhaust Adaptor to Wall Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Oven
B1. PREPARING THE REAR WALL FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside exhaust.
1Read the instructions on the REAR WALL TEMPLATE.
2Tape it to the rear wall, lining up with the holes previously drilled for holes A and B in the wall plate.
3Cut the opening, following the instructions of the REAR WALL TEMPLATE.
B2. ATTACH THE EXHAUST ADAPTOR TO THE OVEN REAR PANEL
1Unscrew and remove the exhaust adaptor assembly from the top of the oven.
Exhaust |
Adaptor |
2Attach the exhaust adaptor to the oven rear panel by sliding it into the guides at the top
center of the back of the oven.
Exhaust Adaptor |
Damper |
|
(hinge side up) |
Guide
Guide |
Locking |
|
|
|
Tabs |
Push in securely until it is in the lower locking tabs. Take care to assure the damper hinge is installed so that it is at the top and that the damper swings freely.
15
