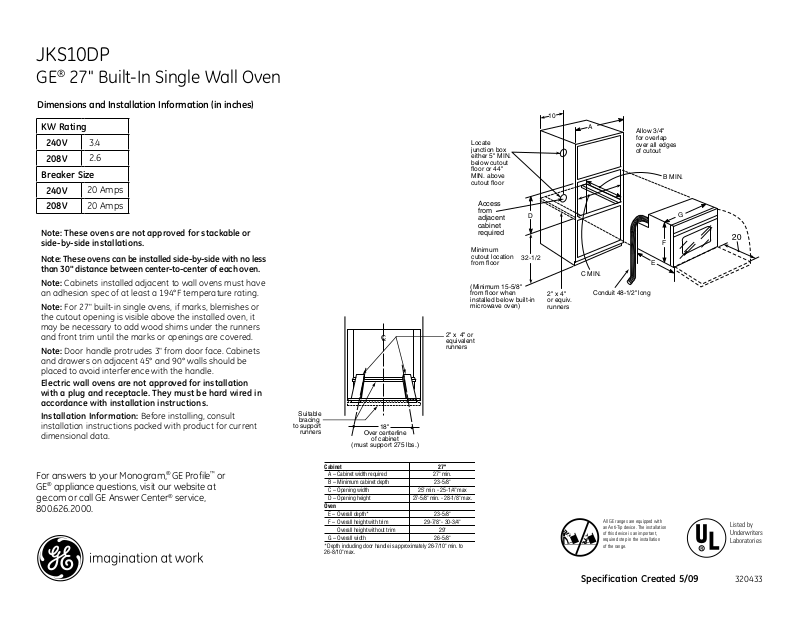

GE JKS10DPBB, JKS10DP User Manual

JKS10DP

Cabinet 27"

A – Ca binet width requ ired 27" min. B – Mi nimum cabinet de pth 23-5/8" C – Op ening width 25" min. - 25-1/4" max D – Openin g height 27-5/8" m in. - 28-1/8" max . Oven

Access from adjacent cabinet required

Suitable bracing

to support

runners

18"

Over centerline

of cabinet

(must support 275 lbs.)

2" x 4" or equivalent runners

2" x 4" or equiv. runners

B MIN.

C MIN.

Conduit 48-1/2" long

32-1/2

Allow 3/4" for overlap over all edges of cutout

Locate junction box either 5" MIN. below cutout floor or 44" MIN. above cutout floor

Minimum cutout location from floor

(Minimum 15-5/8" from floor when installed below built-in microwave oven)

Cabinet 27"

A – Ca binet width requ ired 27" min. B – Mi nimum cabinet de pth 23-5/8" C – Op ening width 25" min. - 25-1/4" max D – Openin g height 27-5/8" m in. - 28-1/8" max . Oven E – Overall depth* 23-5/8" F – Overall he ight with trim 29-7/8" - 30-3/4" Overall h eight without tri m 29" G – Overal l width 26-5/8" *Depth in cluding door hand le is approximat ely 26-7/10" min . to

26-8/10" max.

Suitable bracing

to support

runners

18"

Over centerline

of cabinet

(must support 275 lbs.)

2" x 4" or equivalent runners

GE® 27" Built-In Single Wall Oven

Dimensions and Installation Information (in inches)

KW Rating

240V

208V

Breaker Size

240V

208V

Note: These ovens are not approved for stackable or side-by-side installations.

Note: These ovens can be installed side-by-side with no less than 30" distance between center-to-center of each oven.

Note: Cabinets installed adjacent to wall ovens must have

an adhesion spec of at least a 194°F temperature rating. Note: For 27" built-in single ovens, if marks, blemishes or

the cutout opening is visible above the installed oven, it may be necessary to add wood shims under the runners and front trim until the marks or openings are covered.

Note: Door handle protrudes 3" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.

Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.

Installation Information: Before installing, consult

installation instructions packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

3.4

2.6

20 Amps

All GE ranges are equ ipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.

Specification Created 5/09

Listed by Underwriters Laboratories

320433

JKS10DP

Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of oven for approved cooktop models.

Gas or electric connections for gas cooktop must be located in an adjacent accessible location to the right

240V / 208V Junction Box Location

36" Typical Countertop Height

Allow 1" unit overlap all edges

25" MIN. 25 1/4" MAX.

27 5/8" MIN. 28 1/8" MAX.

3/4" Support Platform Required

Must Support 150 Lbs.

22" MIN. Above Support Platform

90° Street el

45° Elbow

Cabinet sides

2" Diameter hole (20-7/8" from front of countertop to hole center)

(Pub. 1-G003 pg. 107) May 11, 1993

5" To center of 2" diameter hole from countertop

90° Street el

45° Elbow

To center of 2" diamete

hole from countertop

Cabinet sides

3-7/16"

2" MIN. diameter hole (23-1/4" from front surface of countertop)

GE® 27" Built-In Single Wall Oven

Undercounter Installation Dimensions Sealed Burner Gas Cooktop

Standard Burner Gas Cooktop

Installation Dimensions

Note: Oven is rated for use only under 30" standard or sealed burner gas

and selected 30" CleanDesign and Calrod

Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.

electric cooktops.
