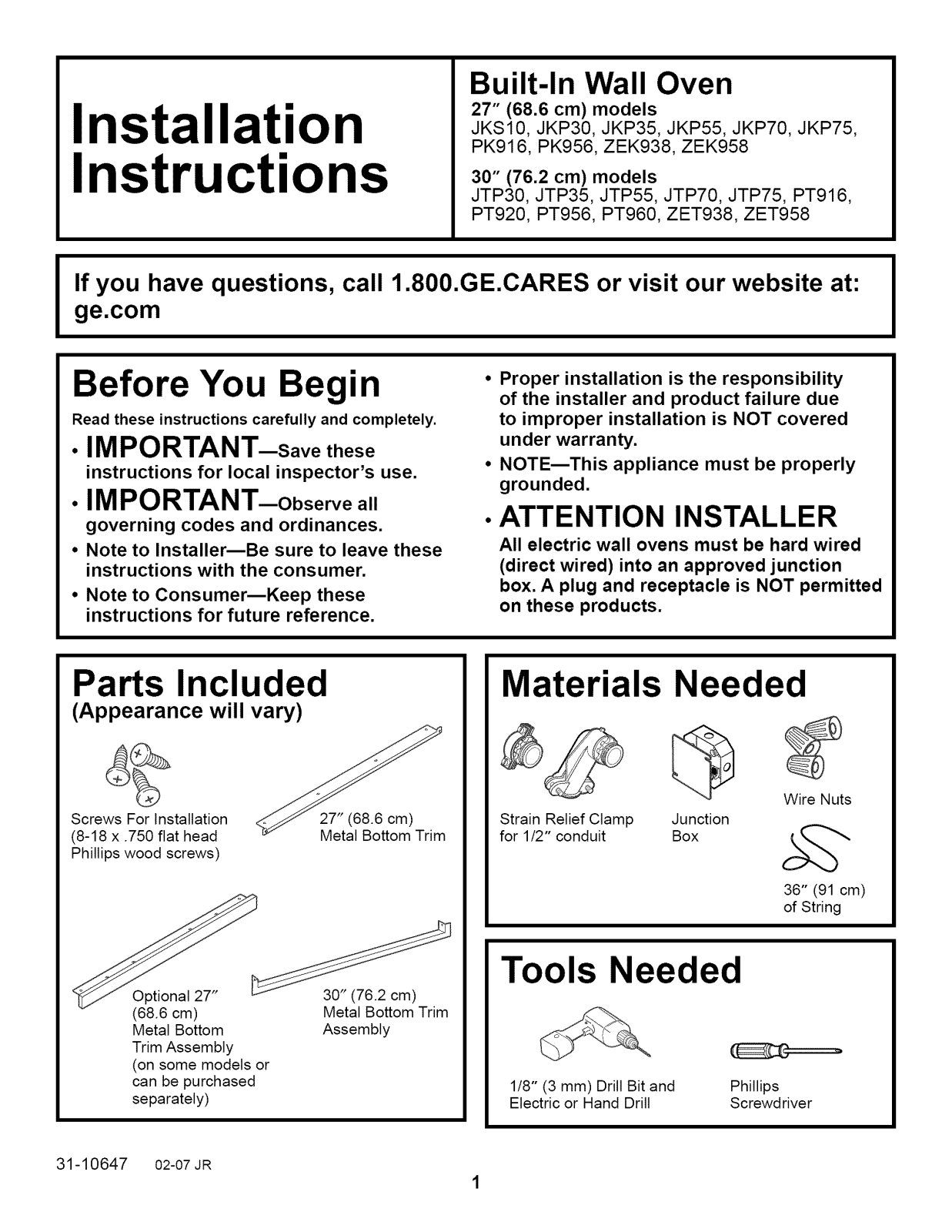

GE JKP30BM1BB, JKP30CM1CC, JKP30SM1SS, JKP30WM1WW, JKP35BM1BB Installation Guide

Built-In Wall Oven

27" (68.6 cm) models
JKS10, JKP30, JKP35, JKP55, JKP70, JKP75,

PK916, PK956, ZEK938, ZEK958

Ilnstallat!on

nstruct=ons

If you have questions, call 1.800.GE.CARES or visit our website at:
ge.com

30" (76.2 cm) models

JTP30, JTP35, JTP55, JTP70, JTP75, PT916,
PT920, PT956, PT960, ZET938, ZET958

Before You Begin

Read these instructions carefully and completely.

• IMPORTANT-save these

instructions for local inspector's use.

• IMPORTANT-observe all

governing codes and ordinances.

• Note to Installer--Be sure to leave these
instructions with the consumer.

• Note to Consumer--Keep these

instructions for future reference.

Parts Included

(Appearance will vary)

Screws For Installation
(8-18 x .750 flat head

Phillips wood screws)

27" (68.6 cm)

Metal Bottom Trim

• Proper installation is the responsibility

of the installer and product failure due
to improper installation is NOT covered
under warranty.

• NOTE--This appliance must be properly

grounded.

•ATTENTION INSTALLER

All electric wall ovens must be hard wired
(direct wired) into an approved junction

box. A plug and receptacle is NOT permitted
on these products.

Materials Needed

Wire Nuts

Strain Relief Clamp
for 1/2" conduit

Junction

Box

(68.6 cm)
Metal Bottom

Trim Assembly
(on some models or
can be purchased
separately)

31-10647 02-07 JR

30" (76.2 cm)
Metal Bottom Trim

Assembly

Tools Needed

1/8" (3 mm) Drill Bit and
Electric or Hand Drill

36" (91 cm)
of String

Phillips
Screwdriver

Installation Instructions

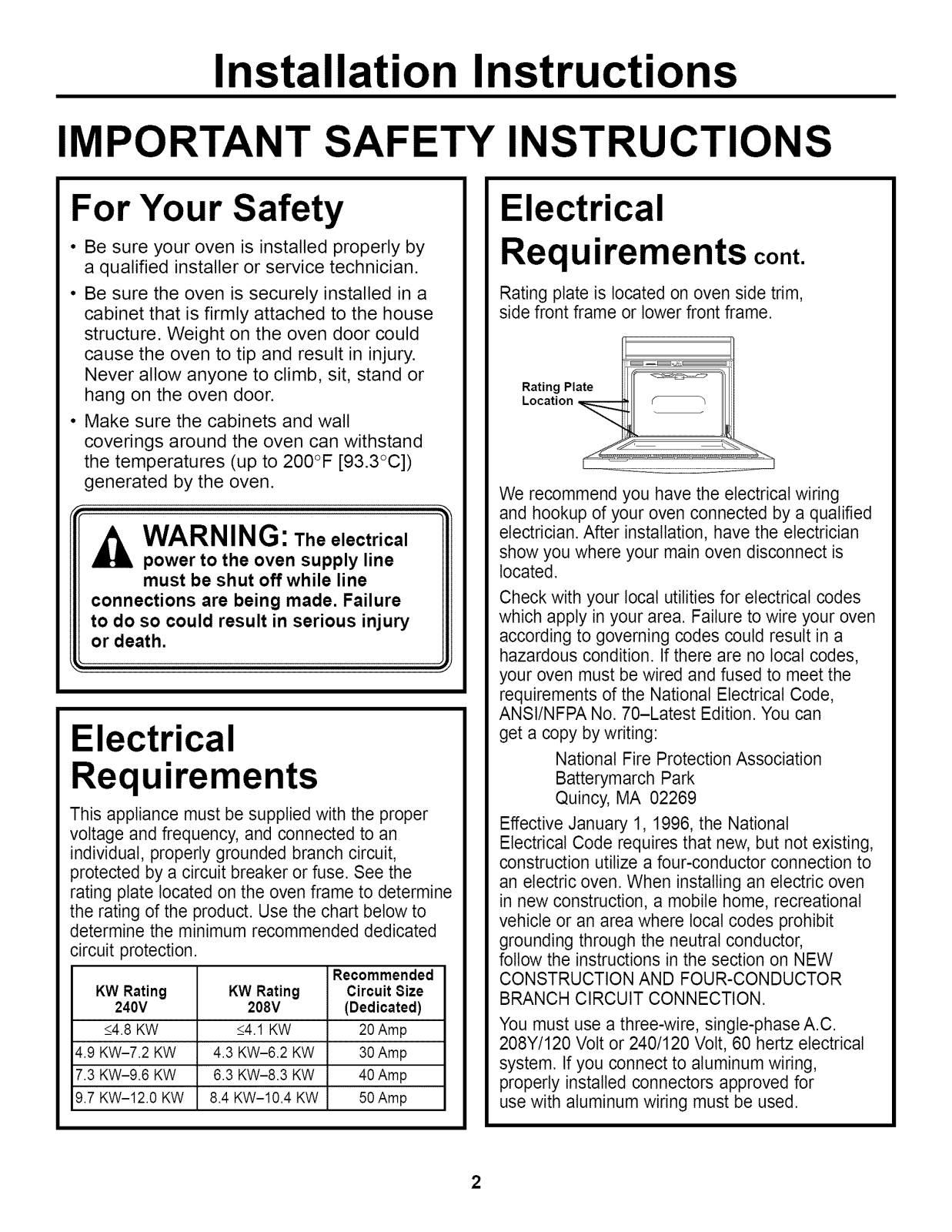

IMPORTANT SAFETY INSTRUCTIONS

For Your Safety

• Be sure your oven is installed properly by

a qualified installer or service technician.

• Be sure the oven is securely installed in a
cabinet that is firmly attached to the house
structure. Weight on the oven door could
cause the oven to tip and result in injury.

Never allow anyone to climb, sit, stand or
hang on the oven door.

• Make sure the cabinets and wall
coverings around the oven can withstand

the temperatures (up to 200°F [93.3°C])
generated by the oven.

WARNING: The electrical

power to the oven supply line
must be shut off while line

connections are being made. Failure

to do so could result in serious injury

or death.

Electrical
Requirements

This appliance must be supplied with the proper
voltage and frequency, and connected to an

individual, properly grounded branch circuit,
protected by a circuit breaker or fuse. See the

rating plate located on the oven frame to determine
the rating of the product. Use the chart below to

determine the minimum recommended dedicated
circuit protection.

Recommended

KW Rating KW Rating Circuit Size

240V 208V (Dedicated)

<4.8 KW <4.1 KW 20 Amp

4.9 KW-7.2 KW 4.3 KW-6.2 KW 30 Amp

7.3 KW-9.6 KW 6.3 KW-8.3 KW 40 Amp

9.7 KW-12.0 KW 8.4 KW-10.4 KW 50Amp

Electrical
Requirements cont.

Rating plate is located on oven side trim,
side front frame or lower front frame.

F --

Rating Plate

Location _ r'--_

I -- I

We recommend you have the electrical wiring
and hookup of your oven connected by a qualified
electrician. After installation, have the electrician

show you where your main oven disconnect is
located.

Check with your local utilities for electrical codes
which apply in your area. Failure to wire your oven

according to governing codes could result in a
hazardous condition. If there are no local codes,

your oven must be wired and fused to meet the
requirements of the National Electrical Code,

ANSI/NFPA No. 70-Latest Edition. You can
get a copy by writing:

National Fire Protection Association
Batterymarch Park

Quincy, MA 02269

Effective January 1, 1996, the National
Electrical Code requires that new, but not existing,

construction utilize a four-conductor connection to
an electric oven. When installing an electric oven

in new construction, a mobile home, recreational
vehicle or an area where local codes prohibit
grounding through the neutral conductor,

follow the instructions in the section on NEW
CONSTRUCTION AND FOUR-CONDUCTOR

BRANCH CIRCUIT CONNECTION.
You must use a three-wire, single-phase A.C.

208Y/120 Volt or 240/120 Volt, 60 hertz electrical
system. If you connect to aluminum wiring,

properly installed connectors approved for
use with aluminum wiring must be used.

2

Installation Instructions

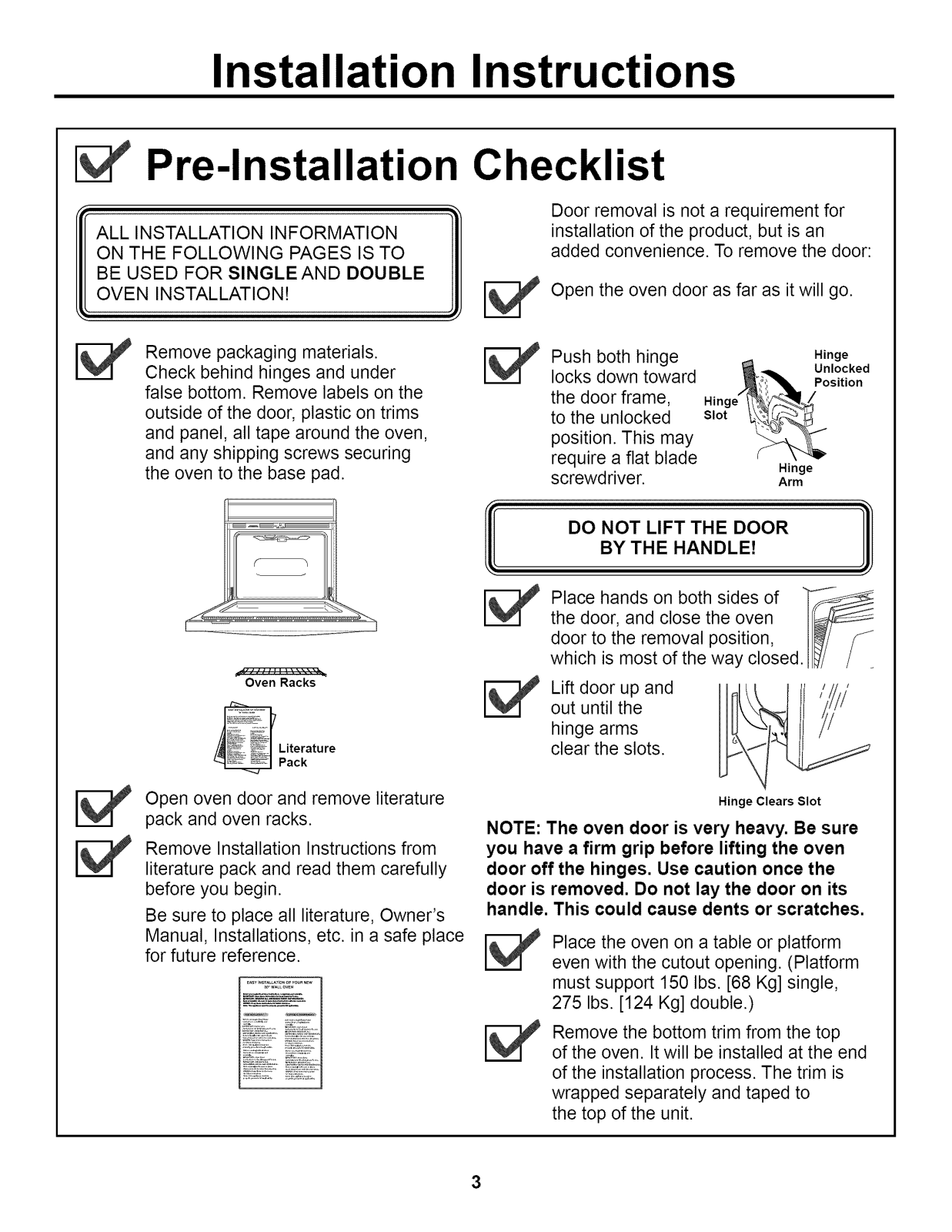

Pre-lnstallation Checklist

ALL INSTALLATION INFORMATION

ON THE FOLLOWING PAGES IS TO
BE USED FOR SINGLEAND DOUBLE
OVEN INSTALLATION!

i

Door removal is not a requirement for
installation of the product, but is an

added convenience. To remove the door:

Open the oven door as far as it will go.

Remove packaging materials.

Check behind hinges and under
false bottom. Remove labels on the

outside of the door, plastic on trims
and panel, all tape around the oven,
and any shipping screws securing
the oven to the base pad.

F o_

Oven Racks

_ iterature

Open oven door and remove literature
pack and oven racks.

Remove Installation Instructions from
literature pack and read them carefully

before you begin.

Be sure to place all literature, Owner's
Manual, Installations, etc. in a safe place

for future reference.

Pack

Push both hinge Hinge

locks down toward _l_'.!_b. Position
the door frame, Hinge"':':':_
to the unlocked s_ot __.d

position. This may

require a flat blade
screwdriver. Arm

DO NOT LIFT THE DOOR

BY THE HANDLE!

Place hands on both sides of "T_-_
the door, and close the oven II_ji_:_

door to the removal position, I_/
which is most of the way closed. I_//

[_ ift door up and

NOTE: The oven door is very heavy. Be sure

you have a firm grip before lifting the oven

door off the hinges. Use caution once the
door is removed. Do not lay the door on its

handle. This could cause dents or scratches.

out until the

hinge arms
clear the slots.

Place the oven on a table or platform

even with the cutout opening. (Platform

must support 150 Ibs. [68 Kg] single,

275 Ibs. [124 Kg] double.)

_._L. Unlocked

Hinge

Hinge Clears Slot

Remove the bottom trim from the top

of the oven. It will be installed at the end

of the installation process. The trim is

wrapped separately and taped to

the top of the unit.

3

Installation Instructions

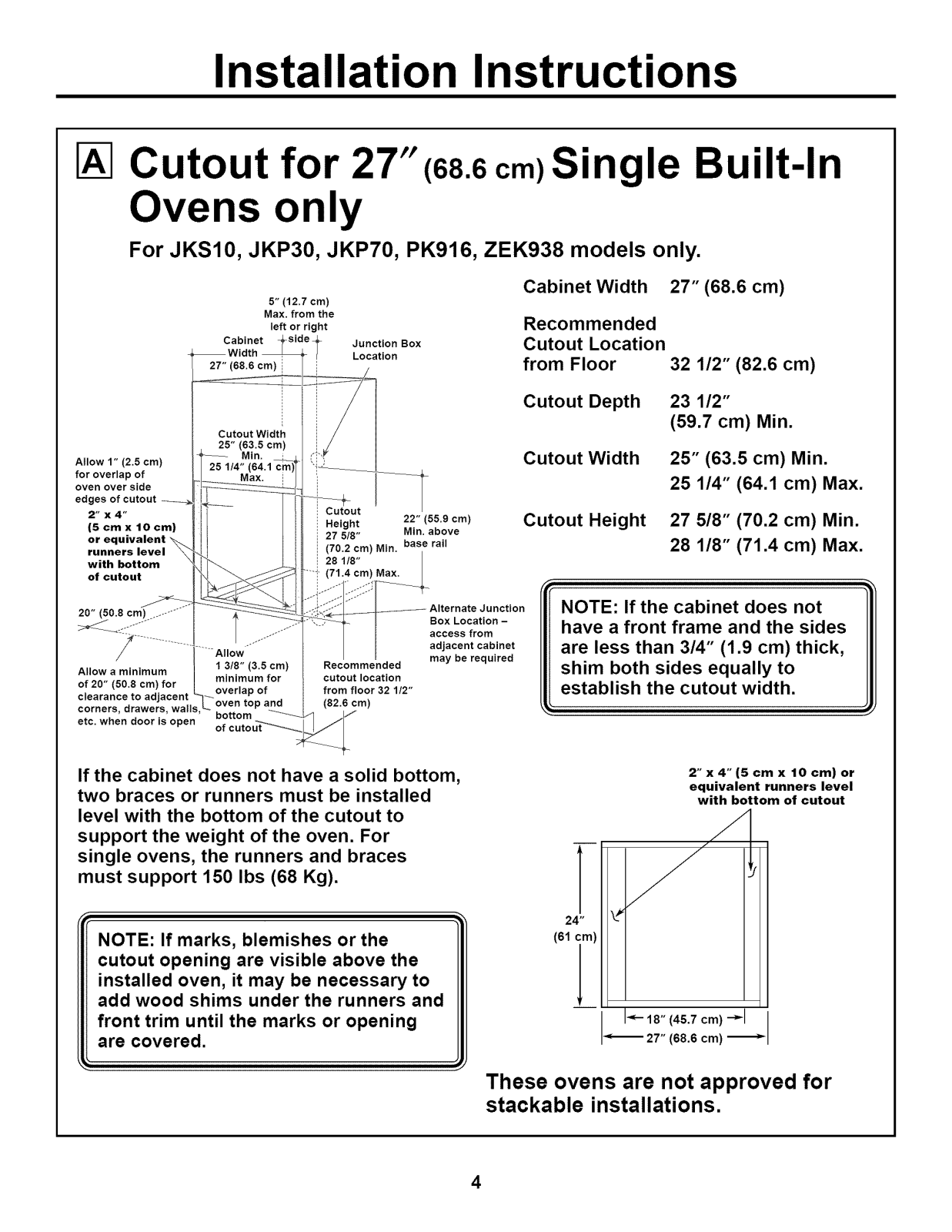

Cutout for 27"(68.6cm)Single Built-In

Ovens only

For JKS10, JKP30, JKP70, PK916, ZEK938 models only.

Max. from the

Cabinet _ side

--Width _

" l

Cutout Width
25" (63.5 cm)

Allow 1" (2.5 cm)
for overlap of

oven over side
edges of cutout

2"x4"

(5crux lOcm)

or

runners level
with bottom

of cutout

20" (50.8 cm)

_joJ-" j--

Allow a minimum 1 3/8" (3.5 cm)
of 20" (50.8 cm) for

clearance to adjacent overlap of
corners, drawers, walls, oven top and

etc. when door is open of cutou_"-_

- 7-

-.. __. ___ -.. .......Allow

Min. _"

25 114" (64.1

Max.

minimum for

bottom

5" (12.7 cm)

left or right

Junction Box

Location

Cutout

Height 22" (55.9 cm)
27 5/8" Min. above

(70.2 cm) Min. base rail
28 1/8"

Alternate Junction
Box Location -
access from

adjacent cabinet

Recommended
cutout location

from floor 32 1/2"

(82.6 cm)

may be required

Cabinet Width

27" (68.6 cm)

Recommended

Cutout Location
from Floor

Cutout Depth

32 1/2" (82.6 cm)
23 1/2"

(59.7 cm) Min.

Cutout Width

25" (63.5 cm) Min.
25 1/4" (64.1 cm) Max.

Cutout Height

27 5/8" (70.2 cm) Min.
28 1/8" (71.4 cm) Max.

NOTE: If the cabinet does not
have a front frame and the sides

are less than 3/4" (1.9 cm) thick,
shim both sides equally to

establish the cutout width.

If the cabinet does not have a solid bottom,
two braces or runners must be installed

level with the bottom of the cutout to
support the weight of the oven. For

single ovens, the runners and braces
must support 150 Ibs (68 Kg).

NOTE: If marks, blemishes or the
cutout opening are visible above the
installed oven, it may be necessary to

add wood shims under the runners and
front trim until the marks or opening

are covered.

2"x4"(5cmx 10cm) or
equivalent runners level

with bottom of cutout

f

T

24"

(61 cm)

1

I_- 18" (45.7 cm)

27" (68.6 cm) "_

These ovens are not approved for
stackable installations.

4

--i

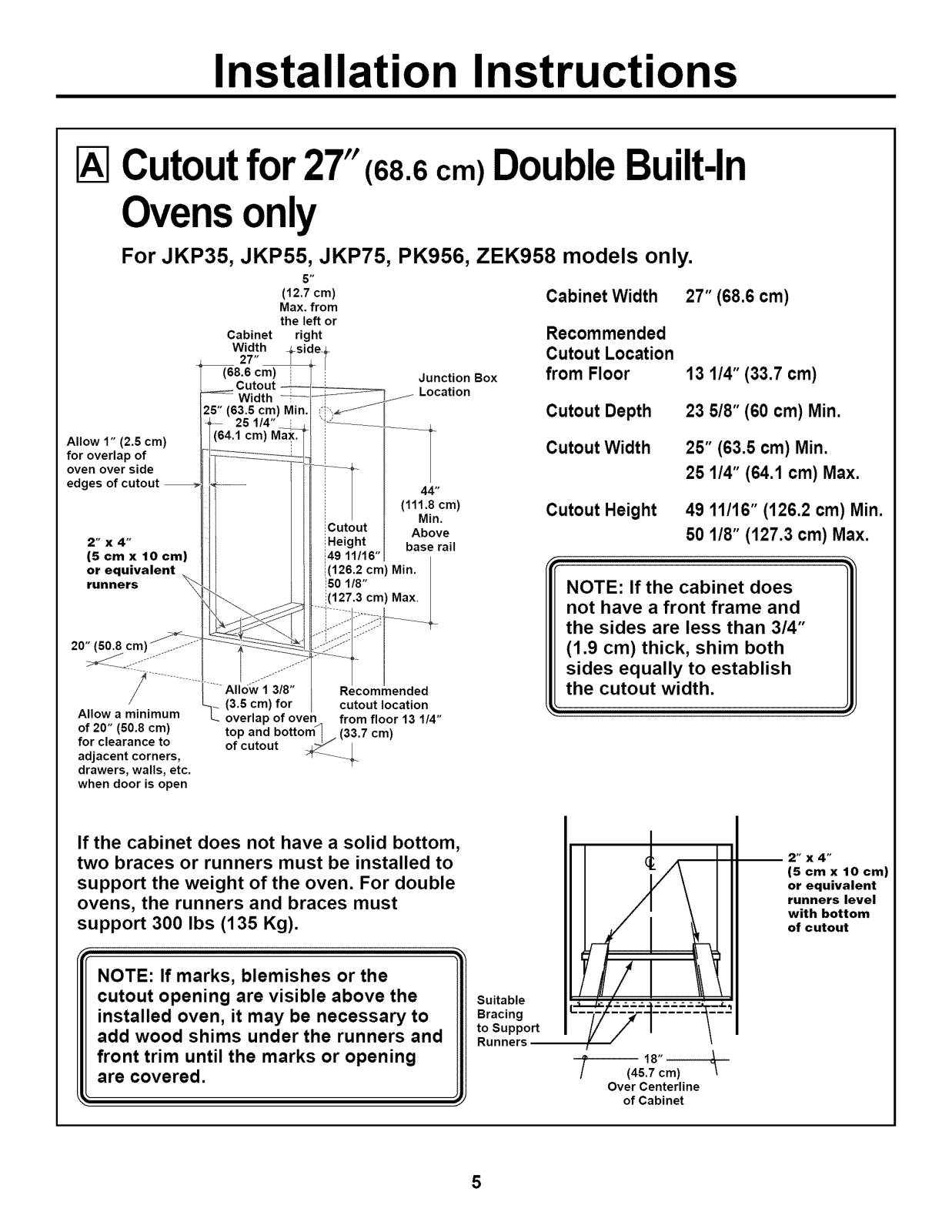

Cutoutfor27"(68.6 DoubleBuilt-In
Ovensonly

For JKP35, JKP55, JKP75, PK956, ZEK958 models only.

Allow 1" (2.6 cm)
for overlap of

over over side
edges of

2" x 4"
(Scmx10cm)

or equivalent

runners

20"(60.6

................ Allow 1 3/8"

Allow a minimum
of 20" (50.8 cm)

for clearance to
adjacent corners,

drawers, walls, etc.
when door is open

/ (3.6 cm) for

Installation Instructions

6"

(12.7 cm)

Max. from
the left or

Cabinet right

(68.6 cm)

Cutout

(63.5 cm) Men.

25 1/4" i

(64.1 cm) Ma_.

jj j

overlap of oven from floor 13 1/4"

top and bottom_ (33.7 cm)

of cutout

i Junction Box

_F._ Location

iii zzI

(111.6 cm)

iCut°ut Above
iHeight base rail
i49 11/t6"

i(126.2 cm) Men.
160118"
i(127.3 cm) Max.

Recommended
cutout location

Min,

Cabinet Width

27" (68.6 cm)

Recommended
Cutout Location
from Floor

Cutout Depth
Cutout Width

13 1/4" (33.7 cm)

23 5/8" (60 cm) Men.

25" (63.5 cm) Men.
25 1/4" (64.1 cm) Max.

Cutout Height

49 11/16" (126.2 cm) Men.
50 1/8" (127.3 cm) Max.

NOTE: If the cabinet does
not have a front frame and
the sides are less than 3/4"

(1.9 cm) thick, shim both
sides equally to establish

the cutout width.

If the cabinet does not have a solid bottom,

two braces or runners must be installed to
support the weight of the oven. For double

ovens, the runners and braces must

support 300 Ibs (135 Kg).

NOTE: If marks, blemishes or the
cutout opening are visible above the
installed oven, it may be necessary to

add wood shims under the runners and
front trim until the marks or opening

are covered.

Suitable
Bracing

to Support

5

-T (45.7 cm)

18" _-

Over Centerline

of Cabinet

2" x 4"

(Scmx10cm)
or equivalent

runners level
with bottom
of cutout

Installation Instructions

IAICutout for 27" (68.6cm)Single Built-In

Ovens only Under Counter

For JKS10, JKP30, JKP70, PK916, ZEK938 models only.

Gas or electric cooktops may
be installed over this oven.

See cooktop installation
instructions for cutout size,

See label on top of oven for
approved cooktop models.

240V / 208V

25" (63.5 cm)

Junction Box

Location

\.

\\

5"

(12.7 cm)

Max. from the

left or right

side

Gas and electrical connections

for gas cooktop must be located

in an adjacent accessible
location to the right.

Top and/or side fillers

may be necessary
if unit is positioned
between existing

cabinets. Be sure

they are attached

securely, since they

will anchor the oven

in the cabinet.

_25" (63.5 cm) Min.

25 1/4" (64.1cm) Max.

27 5/8" (70,2 cm) Min.
28 1/8" (71.4 cm) Max. "'; ""

Allow "_

1 318"
(3.5 cm)

unit overlap top

bottom of

oven, 1" (2.6 cm)
unit overlap side

edges

22" (55.9 cm) Min.
Above Support

Platform

24" (61cm)

36" (91.4 cm)
Typical

Countertop
Height

6
