GE JKD910WBWW, JKD910BBBB, JKD910SABAA, JKD910CBCC Specification
O
Profi/ePerformanceSeri
JKD910SBSS - GE Profile Performance" 27" Warming Drawer

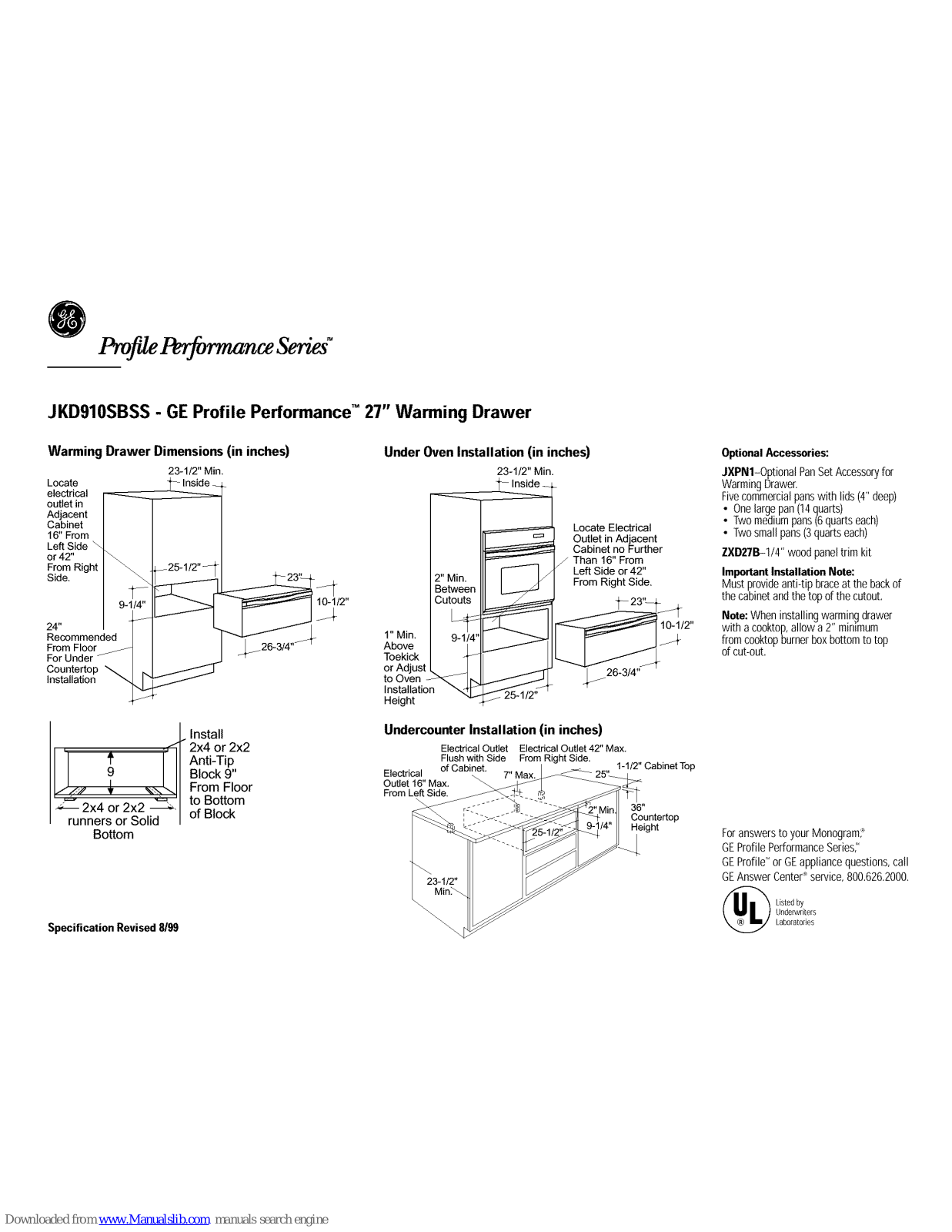

Warming Drawer Dimensions (in inches) Under Oven Installation (in inches)
Locate
electrical
outlet in
Adjacent
Cabinet
16" From
Left Side \
or 42"
From Right
Side.
24"
Recommended
FromFloor/
ForUnder
Coantertop _
Installation
9
2x4 or 2x2 "_'_,
runners or Solid
Bottom
23-1/2" Min. 23-1/2" Min,
Specification Revised 8/99
10-1/2"
. Install
2x4 or 2x2
Anti-Tip
Block 9"
From Floor
to Bottom
of Block
__ ocate Electrical
Outlet inAdjacent
Cabinet noFurther
/ Than 16"From
Left Sideor 42"
L_ _ I From RightSide,
Above
Toekick _] ___T
or Adjust . _J I
to Oven - >_ I_ 26-3/4"
Installation
Height / .....
Undercounter Installation (in inches)
Electrical Outlet Electrical Outlet 42" Max.
Flush with Side From Right Side.
of Cabinet, f_, 1-1/2" Cabinet Top
Electrical
7" Ma)c
J_
Outlet 16" Max. "_
From Left Side. _-'_+_ __
< 36"
1 "'_-J:_" Countertop
_ - Height
OptionalAccessories:
JXPNl-Optional PanSetAccessoryfor
WarmingDrawer.
Fivecommercialpanswithlids (4"deep)
Onelargepan(14quarts)
Two pans(6quartseach)
medium
Twosmallpans(3quartseach)
ZXD27B-1/4" woodpaneltrimkit
Important Installation Note:
Mustprovideanti-tipbraceat thebackof
thecabinetandthe topof thecutout.
Note:Wheninstallingwarmingdrawer
with acooktop,allowa 2" minimum
fromcooktopburnerboxbottomto top
of cut-out.
Foranswerstoyour Monogram,_
GEProfilePerformanceSeries:'
GEProfile or GEappliance questions, call
GEAnswerCenter'service,800.626.2000.
(_ isted by
Underwriters
La_oratodes
O

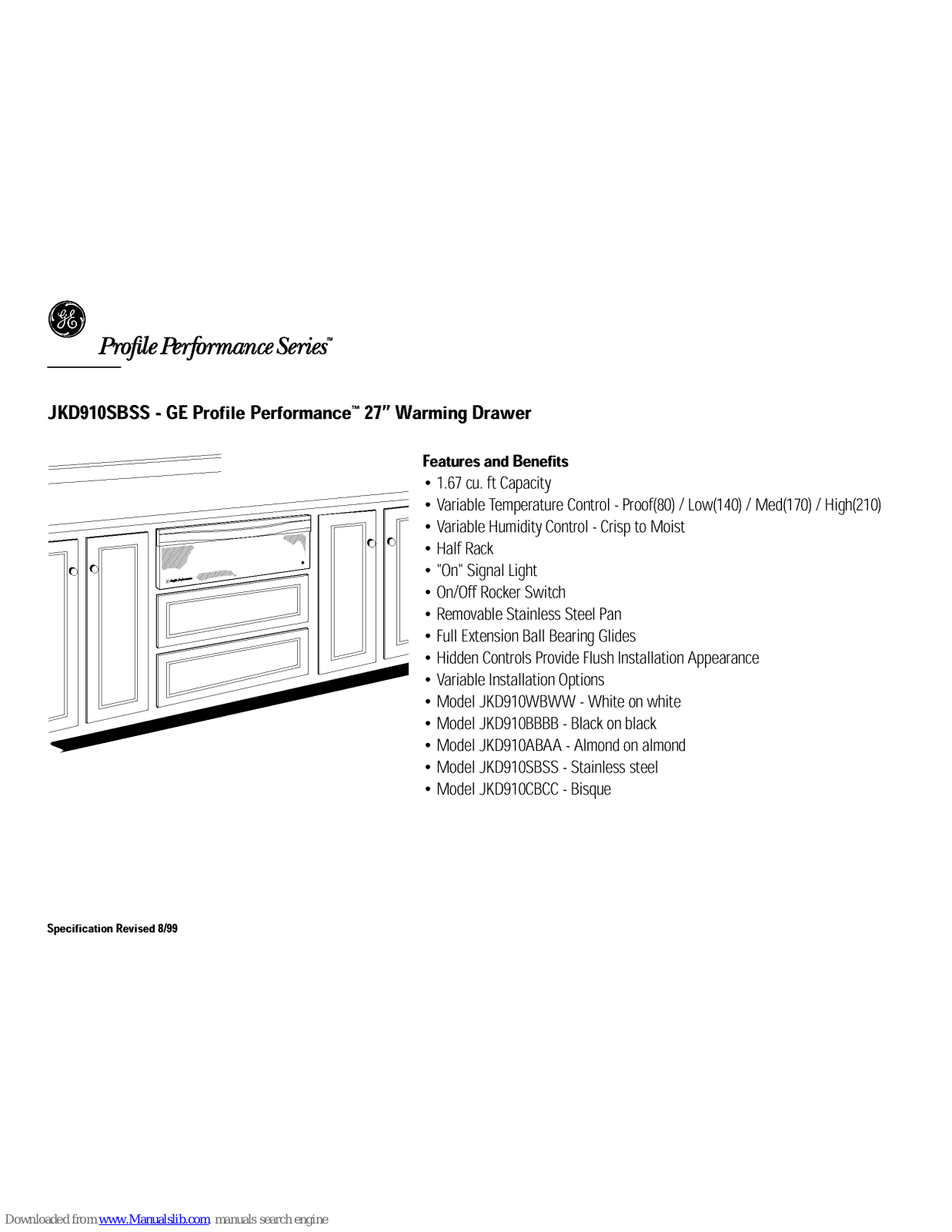

Profi/e nce Seri
JKD910SBSS - GE Profile Performance" 27" Warming Drawer
Featuresand Benefits
• 1.67cu.ft Capacity
• VariableTemperatureControl- Proof(80)/ Low(140)/ Med(170)/ High(210)
• VariableHumidityControl-Crispto Moist
• Half Rack
• "On"SignalLight
• On/OffRockerSwitch
• RemovableStainlessSteelPan
• FullExtensionBall BearingGlides
• HiddenControlsProvideFlushInstallationAppearance
• VariableInstallationOptions
• ModelJKD910WBWW-White onwhite
• ModelJKD910BBBB- Blackon black
• ModelJKD910ABAA- Almondonalmond
• ModelJKD910SBSS-Stainlesssteel
• ModelJKD910CBCC-Bisque
Specification Revised 8/99
