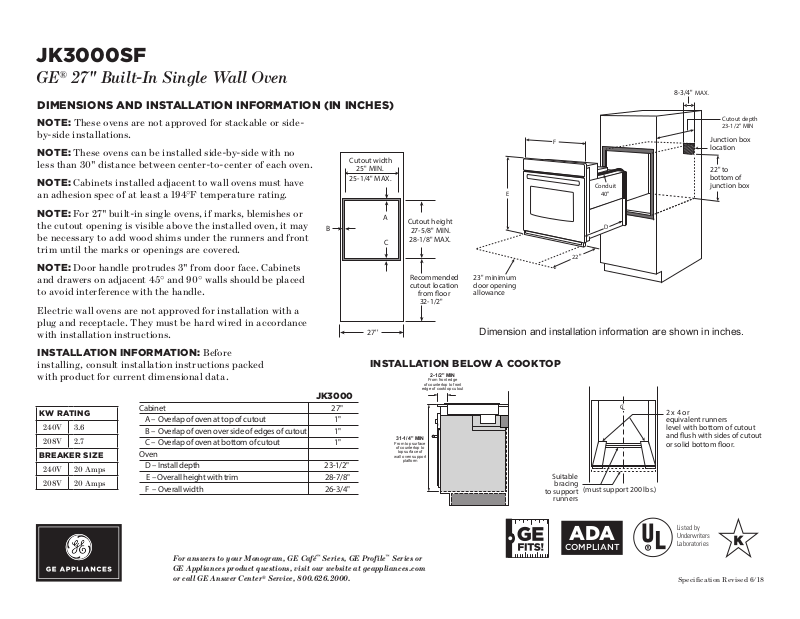

GE JK3000SF Specification

JK3000SF

F

E

22

"

Conduit

40"

8-3/4" MAX.

Cutout depth
23-1/2" MIN

Cabinet 27"

A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"

Oven

D – Install depth 23-1/2"
E – Overall height with trim 28-7/8"

CK7000
PK7000
JK5000
JK3000
JK1000

B

27''

A

C

Cutout width

25" MIN.

25-1/4" MAX.

Recommended
cutout location

from oor

32-1/2"

Cutout height

27-5/8" MIN.

28-1/8" MAX.

23" minimum
door opening
allowance

22" to
bottom of
junction box

Junction box
location

D

F

E

22

"

Conduit

40"

8-3/4"

MAX.

Cutout depth
23-1/2" MIN

B

27''

A

C

Cutout width

25" MIN.

25-1/4" MAX.

Recommended
cutout location

from oor

32-1/2"

Cutout height

27-5/8" MIN.

28-1/8" MAX.

23" minimum
door opening
allowance

22" to
bottom of
junction box

Junction box
location

D

B

27''

A

C

Cutout width

25" MIN.

25-1/4" MAX.

Recommended
cutout location

from oor

32-1/2"

Cutout height

27-5/8" MIN.

28-1/8" MAX.

Cutout depth
23-1/2" MIN

CK7000
PK7000
JK5000
JK3000
JK1000

B

27''

A

C

Cutout width

25" MIN.

25-1/4" MAX.

Recommended
cutout location

from oor

32-1/2"

Cutout height

27-5/8" MIN.

28-1/8" MAX.

22" to
bottom of
junction box

Junction box
location

2-1/2" MIN

INSTALLATION ABOVE A WALL OVEN

GE® 27" Built-In Single Wall Oven

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

NOTE: These ovens are not approved for stackable or side­by-side installations.

NOTE: These ovens can be installed side-by-side with no
less than 30" distance between center-to-center of each oven.

NOTE: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least a 194°F temperature rating.

NOTE: For 27" built-in single ovens, if marks, blemishes or
the cutout opening is visible above the installed oven, it may
be necessary to add wood shims under the runners and front
trim until the marks or openings are covered.

NOTE: Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be placed
to avoid interference with the handle.

Electric wall ovens are not approved for installation with a
plug and receptacle. They must be hard wired in accordance
with installation instructions.

INSTALLATION I N FORMATI O N : Before
installing, consult installation instructions packed
with product for current dimensional data.

KW R ATING

240V 3.6

208V 2.7

BREAKER SIZE

240V 20 Amps

208V 20 Amps

Cabinet 27"

A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"

Oven

D – Install depth 23-1/2"
E – Overall height with trim 28-7/8"
F – Overall width 26-3/4"

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

JK3000

Dimension and installation information are shown in inches.

top surface of

platform

From front edge

of countertop to front

edge of cooktop cutout

INSTALLATION BELOW A COOKTOP

31-1/4" MIN

From top surface

of countertop to

wall oven support

Suitable

bracing

to support

runners

ADA

COMPLIANT

C

L

(must support 200 lbs.)

2 x 4 or
equivalent runners
level with bottom of cutout

and ush with sides of cutout
or solid bottom oor.

Listed by
Underwriters
Laboratories

Speci fication Revised 6/18

JK3000SF

25

Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.

Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right

240V / 208V
Junction box
location

36"
Typical
countertop
height

24

4

"

Allow 1"
unit overlap
all edges

25" MIN.
25 1/4" MAX.

8-3/4"

27 5/8" MIN.
28 1/8" MAX.

3/4" Support
platform required

Must Support 200 Lbs.

22" MIN.
Above
support
platform

Side by Side single ovens

Side-by-Side Installations

Install two ovens in separate cutouts.

Center Line

Cutout -
observe all
dimensions and
requirements.

Cutout -
observe all
dimensions and
requirements.

Center Line

30" models

2

" MIN.

27" models

Side by Side single ovens

Side-by-Side Installations

Install two ovens in separate cutouts.

Center Line

Cutout ­observe all
dimensions and
requirements.

Cutout ­observe all
dimensions and
requirements.

Center Line

30" models

2

" MIN.

27" models

Side by Side single ovens

Side-by-Side Installations

Install two ovens in separate cutouts.

Center Line

Cutout -
observe all
dimensions and
requirements.

Cutout -
observe all
dimensions and
requirements.

Center Line

30" models

2

" MIN.

27" models

Side by Side single ovens under
cooktop and counter

Side-by-Side Installations

Install two ovens in separate cutouts.

Cooktop

Center LineCenter Line

NOTE: One cooktop may be centered over either oven in
the side-by-side istallation.

Cutout - observe
all dimensions and
requirements.

Cutout - observe
all dimensions and
requirements.

30" models

2

" MIN.

27" models

GE® 27" Built-In Single Wall Oven

UNDERCOUNTER DIMENSIONS AND INSTALLATION INFORMATION

NOTE: 36" ribbon cooktops are approved

for use over GE 30" single wall ovens and
warming drawers. 30" ribbon cooktops are
approved for use over GE 30" and GE 27"
single wall ovens and warming drawers.
Refer to cooktop and wall oven installation
information packed with products for current
dimensional data.

ELECTRIC WALL OVENS ARE NOT
APPROVED FOR INSTALLATION WITH
A PLUG AND RECEPTACLE. THEY MUST
BE HARD WIRED IN ACCORDANCE WITH
INSTALLATION INSTRUCTIONS.

NOTE: Oven is rated for use only under

GE 30" standard or sealed burner gas and
selected GE 30" smoothtop and Calrod®
electric cooktops.

Installation information: Before installing,
consult installation instructions packed with
product for current dimensional data.

SIDE BY SIDE OVENS

SIDE BY SIDE SINGLE OVENS
UNDER COOKTOP AND COUNTER

Dimension and installation information are shown in inches.

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

Speci fication Revised 6/18

JK3000SF

Lock

Controls

GE® 27" Built-In Single Wall Oven

FEATURES AND BENEFITS

Self-clean with steam clean option – Clean your oven the way
you want

Self-clean heavy-duty oven racks – Conveniently clean your
oven and racks together

Ten-pass bake element – Even baking is assured with heat that
covers more surface area

Eight-pass broil element – Get full broil coverage and even
browning from edge to edge

4.3 cu. ft. oven capacity – Cook more dishes at once

Black gloss oven interior – Enjoy a clean and
sleek appearance

Electronic touch controls – Confidently operate the oven with
one easy touch

Hidden bake – Make cleanup easy by eliminating hard-to­reach areas

Audible preheat signal – Know when the oven is ready

Certified Sabbath mode – Prepare foods by
kosher standards

Model JK3000SFSS – Stainless steel

GUARANTEED FIT

Replacing a similar wall oven from GE or another brand? GE wall ovens are
guaranteed for an exact fit to make replacement easy

Visit geappliances.com for more info

Speci fication Revised 6/18
