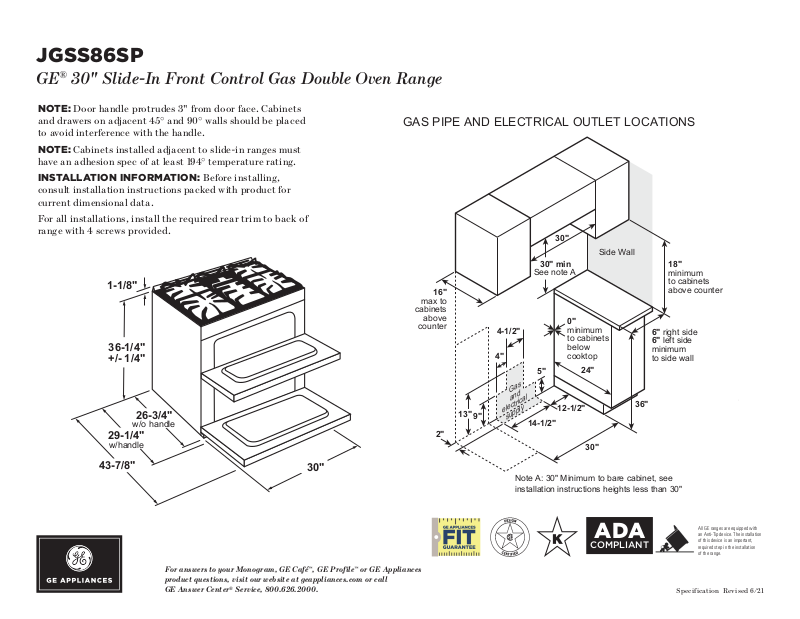

GE JGSS86SP Specification
JGSS86SP
36-1/4"
+/- 1/4"
1-1/8"
ADA
GE® 30" Slide-In Front Control Gas Double Oven Range
NOTE: Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be placed
to avoid interference with the handle.
NOTE: Cabinets installed adjacent to slide-in ranges must
have an adhesion spec of at least 194° temperature rating.
INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation instructions packed with product for
current dimensional data.
For all installations, install the required rear trim to back of
range with 4 screws provided.
1-1/8"
36-1/4"
+/- 1/4"
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
16"
max to
cabinets
above
counter
4-1/2"
4"
30"
30" min
See note A
0"
minimum
to cabinets
below
cooktop
5"
Side Wall
18"
minimum
to cabinets
above counter
6" right side
6" left side
minimum
to side wall
24"
29-1/4"
w/handle
43-7/8"
26-3/4"
w/o handle
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
30"
2"
13"
9"
Gas
and
electrical
supply
Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"
12-1/2"
14-1/2"
30"
36"
COMPLIANT
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 6/21
JGSS86SP
GE® 30" Slide-In Front Control Gas Double Oven Range
FEATURES AND BENEFITS
Fit Guarantee – This gas range will fit your existing 30" cut-out, or GE Appliances will help
pay for modifications up to $300.
Edge-to-Edge Cooktop – Continuous, edge-to-edge cooktop give you a large cooking space
and can handle any cookware.
Powerful Burner Options – Cook meals of all sizes thanks to one 18,000-BTU burner for
larger cookware and one 15,000-BTU burner for medium-sized pots and pans.
Integrated Griddle – This integrated non-stick griddle leads the industry in size and quality,
so you can cook a lot of food at once.
Center Oval Burner – This center oval burner gives you a fifth burner and the perfect place
to use griddles or odd-size cookware.
Steam Clean – A steam cleaning option cleans the oven cavity in a 30-minute cycle with less
odor and heat.
In-Oven Broil – An in-oven broiler makes broiler cooking hassle-free.
Large Capacity Double Oven – Cook an entire meal at once with a 6.7 cubic foot total
capacity double oven which provides enough room for multiple dishes.
True Convection – Enjoy consistent baking thanks to an advanced convection system
that pairs a third heating element with a rear fan for a high level of precision.
Model JGSS86SPSS – Stainless Steel
Visit geappliances.com for more info
Specification Revised 6/21
