Page 1
Specification Revised 11/01
TM

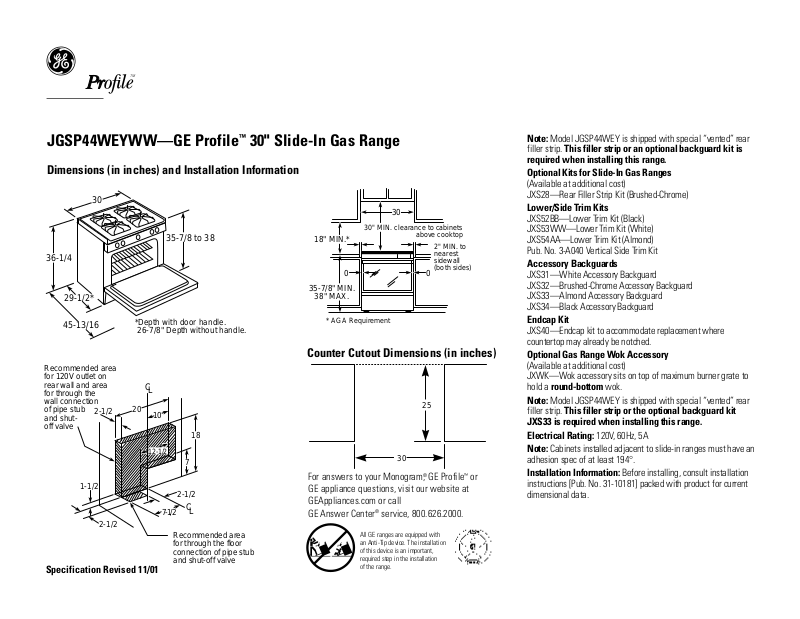

JGSP44WEYWW—GE Profile™30" Slide-In Gas Range
Dimensions (in inches) and Installation Information
Counter Cutout Dimensions (in inches)
36-1/4
29-1/2*
45-13/16
30
35-7/8 to 38
*Depth with door handle.
26-7/8" Depth without handle.
Note: Model JGSP44WEY is shipped with special “vented” rear
filler strip. This filler strip or an optional backguard kit is
required when installing this range.
Optional Kits for Slide-In Gas Ranges
(Available at additional cost)
JXS28—Rear Filler Strip Kit (Brushed-Chrome)
Lower/Side Trim Kits
JXS52BB—Lower Trim Kit (Black)
JXS53WW—Lower Trim Kit (White)
JXS54AA—Lower Trim Kit (Almond)
Pub. No. 3-A040 Vertical Side Trim Kit
Accessory Backguards
JXS31—White Accessory Backguard
JXS32—Brushed-Chrome Accessory Backguard
JXS33—Almond Accessory Backguard
JXS34—Black Accessory Backguard
Endcap Kit
JXS40—Endcap kit to accommodate replacement where
countertop may already be notched.
Optional Gas Range Wok Accessory
(Available at additional cost)
JXWK—Wok accessory sits on top of maximum burner grate to
hold a round-bottom wok.
Note: Model JGSP44WEY is shipped with special “vented” rear
filler strip. This filler strip or the optional backguard kit
JXS33 is required when installing this range.
Electrical Rating: 120V, 60Hz, 5A
Note: Cabinets installed adjacent to slide-in ranges must have an
adhesion spec of at least 194°.
Installation Information: Before installing, consult installation
instructions [Pub. No. 31-10181] packed with product for current
dimensional data.
00
2" MIN. to
nearest
sidewall
(both sides)
35-7/8" MIN.
38" MAX.
18" MIN.*
30
30" MIN. clearance to cabinets
above cooktop
* AGA Requirement
25
30
C
L
C
L
2-1/2
1-1/2
2-1/2
20
10
18
2-1/2
7-1/2
Recommended area
for 120V outlet on
rear wall and area
for through the
wall connection
of pipe stub
and shutoff valve
Recommended area
for through the floor
connection of pipe stub
and shut-off valve
7
12-1/2
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Page 2
Specification Revised 11/01
TM
JGSP44WEYWW—GE Profile™30" Slide-In Gas Range
Features and Benefits
• Glass Cooktop
• Sealed Cooktop Burner Design
• Standard Simmer Burner
• Maximum Output Burner
• Deluxe Cast Grates
• Porcelain-Enameled Drip Pans
• Electronic Pilotless Ignition System
• Self-Cleaning Oven with Delay Clean Option
• SmartSet Electronic Controls with Temperature Display, Start Pad, Delay Bake Option
with Cook and Hold, Audible Preheat Signal, Control Lock Capability
• Electronic Clock and Timer
• Auto Oven Shut-Off with Override
• In-Oven Broiling
• Porcelain-Enameled Broiler Pan
• Two Oven Racks
• Frameless Glass Oven Door With Window
• Removable Large Storage Drawer
• Soft Sure Grip Handle
• Model JGSP44WEYWW–White on White
• Model JGSP44BEYBB–Black on Black
• Model JGSP44AEYAA–Almond on Almond
• Model JGSP44CEYCC–Bisque on bisque
