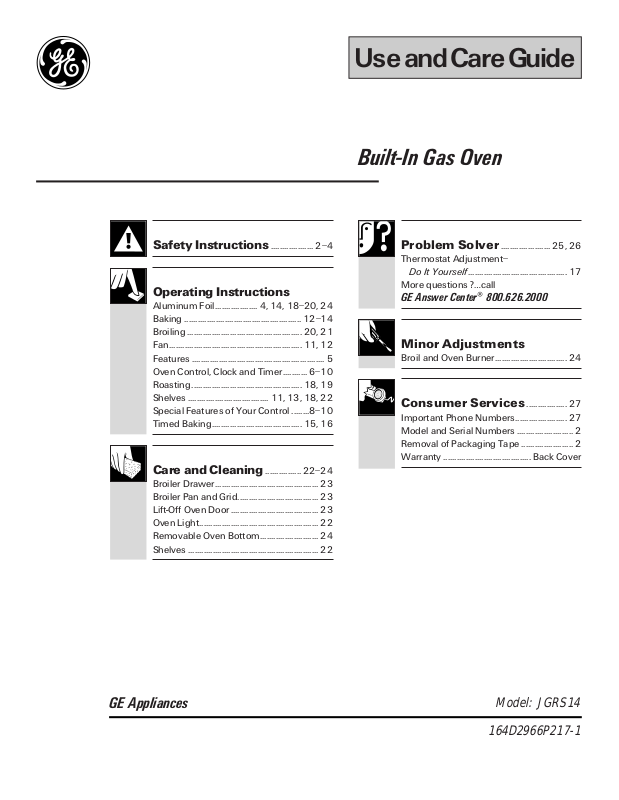

GE JGRS14 User Manual

Use and Care Guide
Built-In Gas Oven
GE Appliances
164D2966P217-1
Model: JGRS14
Safety Instructions ................... 2–4

Operating Instructions

Aluminum Foil................... 4, 14, 18–20, 24
Oven Control, Clock and Timer........... 6–10
Special Features of Your Control ........8–10
Care and Cleaning ................ 22–24
Broiler Pan and Grid.................................... 23
Lift-Off Oven Door....................................... 23
Oven Light..................................................... 22
Removable Oven Bottom.......................... 24
Problem Solver ...................... 25, 26
Thermostat Adjustment–
Do It Yourself............................................ 17
More questions ?…call
GE Answer Center® 800.626.2000

Minor Adjustments

Broil and Oven Burner................................ 24
Consumer Services.................. 27
Important Phone Numbers....................... 27
Model and Serial Numbers ......................... 2
Removal of Packaging Tape ....................... 2
HELP US HELP YOU…
Read this guide carefully.
It is intended to help you operate and maintain your new oven properly.
Keep it handy for answers to your questions. If you don’t understand something or need more help, call:
GE Answer Center
®
800.626.2000 24 hours a day, 7 days a week
How to Remove Packaging Tape
To assure no damage is done to the finish of the product, the safest way to remove adhesive left from packaging tape on new appliances is an application of a household liquid dishwashing detergent, mineral oil or cooking oil. Apply with a soft cloth and allow to soak. Wipe dry and then apply an appliance polish to thoroughly clean and protect the surface.
NOTE: The plastic tape must be removed from the chrome trim on oven parts. It cannot be removed if it is baked on.
Write down the model and serial numbers.
You’ll find them on a label on the front of the oven behind the door.
These numbers are also on the Consumer Product Ownership Registration Card that came with your oven. Before sending in this card, please write these numbers here:
Model Number Serial Number
Use these numbers in any correspondence or service calls concerning your oven.
If you received a damaged oven…
Immediately contact the dealer (or builder) that sold you the oven.
Save time and money. Before you request service…
Check the Problem Solver in the back of this guide. It lists causes of minor operating problems that you can correct yourself.
2
— Do not stor e or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by
a qualified installer, service agency or the gas supplier.
WARNING: If the information in this guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
IF YOU NEED SER VICE
To obtain service, see the Consumer Services page in the back of this guide.
We’re proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are three steps to follow for further help.
FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the details—including your phone number—to:
Manager, Consumer Relations GE Appliances Appliance Park Louisville, KY 40225
FINALLY, if your problem is still not resolved, write:
Major Appliance Consumer Action Program 20 North Wacker Drive Chicago, IL 60606
Important Safety Instructions
IMPOR TANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
IMPORTANT SAFETY NOTICE
• The California Safe Drinking W ater and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
• Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized further by venting with an open window or using a ventilation fan or hood.
When You Get Your Oven
• Have the installer show you the location of the oven gas cut-off valve and how to shut it off if necessary.
• Have your oven installed and properly grounded by a qualified installer, in accordance
with the Installation Instructions. Any adjustment and service should be performed only by qualified gas oven installers or service technicians.
• Do not attempt to repair or replace any part of your oven unless it is specifically recommended in this guide. All other servicing should be
referred to a qualified technician.
• Be sure all packaging materials are r emoved from the oven before operating it, to prevent
fire or smoke damage should the packaging material ignite.
• Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure. Never allow anyone to climb, sit, stand
or hang on the oven door.
• Be sure your oven is correctly adjusted by a qualified service technician or installer for the type of gas (Natural or LP) that is to be used.
Your oven can be converted for use on either type of gas. See the Installation Instructions.
WARNING: These adjustments must be made by a qualified service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.
Using Your Oven
• Do not leave children alone or unattended where an oven is hot or in operation. They
could be seriously burned.
• Do not allow anyone to climb, stand or hang on the door or the broiler drawer. They could damage the oven.
• CAUTION: ITEMS OF INTEREST TO CHILDREN SHOULD NOT BE STORED IN CABINETS ABOVE AN OVEN—CHILDREN CLIMBING ON THE OVEN TO REACH ITEMS COULD BE SERIOUSLY INJURED.
• Teach children not to play with the controls
or any other part of the oven.
• Never leave the oven door open when you are not watching the oven.
•
Always keep combustible wall coverings, curtains or drapes a safe distance from your oven.
• Never wear loose fitting or hanging garments while using the appliance. Be careful when
reaching for items stored in cabinets over the oven. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.
• For your safety, never use your appliance for warming or heating the room.
• Do not use water on grease fires.
Smother fire or flame or use a multi­purpose dry chemical or foam-type fire extinguisher .
Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foam-type fire extinguisher.
(continued next page)
3
IMPOR TANT SAFETY INSTRUCTIONS
(continued)
• Use only dry pot holders—moist or
damp pot holders on hot surfaces may
result in burns from steam. Do not let pot holders come near open flames when lifting cookware. Do not use a towel or other bulky cloth. Such cloths can catch fire on a hot burner.
• Always keep dish towels, dish cloths, pot holders and other linens a safe distance from your oven.
• Always keep wooden and plastic utensils and canned food a safe distance away from your oven.
• Do not leave paper products, cooking utensils or food in the oven when not in use.
• DO NOT STORE OR USE COMBUSTIBLE MATERIALS, GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
• Do not let cooking grease or other flammable materials accumulate in or near the oven.
• Do not use the oven as a storage area. Items
stored in an oven can ignite.
• Do not touch the interior surface of the oven.
These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact, any interior area of the oven: allow sufficient time for cooling first.
Potentially hot surfaces include the oven vent openings, surfaces near the openings and crevices around the door.
Remember: The inside surfaces of an oven may be hot when the door is opened.
• Keep the oven clean and free of accumulations of grease or spillovers, which may ignite.
• When cooking pork, follow the directions
exactly and always cook the meat to an internal temperature of at least 170°F. This assures that, in the remote possibility that trichina may be present in the meat, it will be killed and meat will be safe to eat.
• Stand away from the oven when opening the oven door. The hot air or steam that escapes can
cause burns to hands, face and/or eyes.
• Do not heat unopened food containers.
Pressure could build up and the container could burst, causing an injury.
• Keep the oven vent ducts unobstructed.
• Keep the oven free from grease build-up.
• Place the oven shelf in the desired position while the oven is cool.
• Pulling out the shelf to the stop-lock is a convenience in lifting heavy foods. It is also
a precaution against burns from touching the hot surfaces of the door or the oven walls.
• When using cooking or roasting bags in the oven, follow the manufacturer’s directions.
• Do not use your oven to dry newspapers.
If overheated, they can catch fire.
• Do not use aluminum foil anywhere in the oven except as described in this guide. Misuse could
result in a fire hazard or damage to the oven.
• Use only glass cookware that is recommended
for use in gas ovens.
• After broiling, always take the broiler pan out of the broiler compartment and clean it. Leftover grease in the broiler pan can catch fire next time you use the pan.
• If you should have a grease fire in the broiler pan, turn the oven off and keep the oven and
broiler drawer door closed to contain the fire until it burns out.
• When broiling, if meat is too close to the flame, the fat may ignite. Trim excess fat
to prevent excessive flare-ups.
• Never leave jars or cans of fat drippings in or near your oven.
SAVE THESE INSTRUCTIONS
4
5
FEATURES OF YOUR OVEN
Important Safety Instructions Features of Your Oven
8
2
11
1
4
9
5
Explained
Feature Index on page
1 Broiler Drawer 20, 21, 23 2 Lift-Off Oven Door 23
Easily removed for oven cleaning.
3 Model and Serial Numbers 2 4 Oven Shelf Supports 12, 13, 18
Shelf positions for cooking are suggested in the Baking and Roasting sections.
5 Oven Shelves with Stop-Locks 11, 13,
18, 22
Explained
Feature Index on page
6 Oven Light Pad —
Lets you turn the interior oven light on and off.
7 Oven Control, Clock and Timer 6–10, 22 8 Oven Vent Grille 4, 11
9 Oven Vent 4, 11 10 Oven Interior Light 22 11 Removable Oven Bottom 24 12 Broiler Pan and Grid 4, 18,
20, 21, 23
10
ON/OFF
START
CLEAR
OFF
BROIL
BAKE
OVEN
OVEN LIGHT
HI/LO
TIME CONTROLS
DELAY START
COOKING
TIME
CLOCK
ON OFF
KITCHEN
TIMER
TEMP
HOUR
MIN
76
12
3
FEATURES OF YOUR OVEN CONTROL
01. BAKE. Press to select the bake function.
02. OVEN LIGHT ON/OFF. Press to turn the oven
light on or off.
03. DISPLAY. Shows the operations you have
selected, the time of day and the cooking status.
04. START. Must be pressed to start any cooking
function.
05. COOKING TIME. Use for Timed Bake.
06. DELAY START. Use along with COOKING
TIME to set the oven to start and stop automatically at a time you select.
07. CLOCK. Press to enter the time of day.
08. KITCHEN TIMER ON/OFF. Press to select the
timer function. The timer does not control oven operations. The timer can time up to 9 hours and 59 minutes.
09. CLEAR/OFF. Press to cancel any timed oven
operation except the clock and timer.
10. HOUR +/– and MIN +/– pads. Press to set
times up to 9 hours and 59 minutes—for example, the time of day on the clock, the timer and the starting and length of cooking time for Timed Bake.
11. TEMP +/– pads. Press to set the cooking
temperature you want to use.
12. BROIL HI/LO. Press to select the broil function. If “F–and a number or letter” flash in the display
and the oven control signals, this indicates function error code. Press CLEAR/OFF. Allow
the oven to cool for one hour. Put the oven back into operation. If function error code repeats, disconnect power to the oven and call for service.
ON/OFF
START
CLEAR
OFF
BROIL
BAKE
OVEN
OVEN LIGHT
HI/LO
TIME CONTROLS
DELAY START
COOKING
TIME
CLOCK
ON OFF
KITCHEN
TIMER
TEMP
HOUR
MIN
12 11 10 10 8 79
6
1 2 3 4 5 6
Features of Your Oven Control Oven Control, Clock and Timer
OVEN CONTROL, CLOCK AND TIMER
Clock
How to Set the Timer
1. Press KITCHEN TIMER ON/OFF.
2. Press the HOUR and MIN + or –
pads until the amount of time you want shows in the display.
If you make a mistake, press KITCHEN TIMER ON/OFF and begin again.
3. Press START.
After pressing START, “SET” disappears; this tells you the time is counting down, although the display does not change until one minute has passed.
4. When time is up, the oven control signals
until you press KITCHEN TIMER ON/OFF. Display then shows the time of day.
NOTE: The minute timer is independent of all the other functions and it does not control the oven. The CLEAR/OFF pad does not affect the timer.
ON OFF
KITCHEN
TIMER
START
MIN
HOUR
ON OFF
KITCHEN
TIMER
7
The clock must be set for the automatic oven timing functions to work properly . The time of day clock cannot be changed during Delay Start. (It can be
changed during a regular bake or broil operation.)
Power Failure
If a flashing time of day is in the display,you have
experienced a power failure. Reset the clock.
To reset the clock, press CLOCK. Enter the correct time of day by pressing the HOUR and MIN + or – pads. Press START.
(continued next page)
Timer
You may program the timer to time cooking or other household activities for up to 9 hours and 59 minutes.
The timer counts down in minutes, 1 minute at a time, until the last 60 seconds are reached, then the control will beep one time. The seconds will not be displayed until the last minute is reached.
When the timer reaches “ :00,” the control will beep 3 times followed by one beep every 6 seconds until KITCHEN TIMER ON/OFF is pressed.
The 6 second tone can be canceled by following the steps in the Special Features of Your Oven Control section under Tones at the End of a Timed Cycle.
To Set the Clock
1. Press CLOCK.
2. Press the HOUR and MIN + or –
pads to set the time of day.
3. Press START. This enters the time and
starts the clock.
To check the time of day when the display is showing other information, simply press CLOCK.
The time of day shows until another pad is pressed.
START
MIN
HOUR
CLOCK
8
OVEN CONTROL, CLOCK AND TIMER
(continued)
The control has a series of tones that will sound at different times. These tones may sound while you set the control for an oven function or at the end of the oven function. They will also alert you when an incorrect time or temperature has been entered or if there is a problem with the oven.
Tones While Setting the Control Preheat Notification Tone
When you press a touch pad you will hear a beep. This beep will let you know you have placed enough pressure on the pad to activate it.
When you set an oven temperature the oven automatically starts to heat. When the temperature inside the oven reaches your set temperature a tone will sound to let you know to place the food in the oven.
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds, until CLEAR/OFF is pressed. This continuous 6 second beep may be canceled.
To cancel the 6 second beep:
1. Press BAKE and BROIL HI/LO
at the same time for 2 seconds until the display shows “SF.”
2. Press KITCHEN TIMER ON/OFF. The
display shows “CON BEEP” (continuous beep). Press KITCHEN TIMER ON/OFF again. The display shows “BEEP.” (This cancels the one beep every 6 seconds.)
3. Press START.
START
ON OFF
KITCHEN
TIMER
BROIL
HI/LO
BAKE
Attention Tone
This tone will sound if you set an invalid function or try to set an additional function. The tone can be quickly identified by watching the display messages.
SPECIAL FEATURES OF YOUR OVEN CONTROL
Y our new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them. The special feature modes can only be activated while the display is showing the time of day clock.
They remain in the control’s memory until the steps are repeated. When the display shows your choice press START. The special features will remain in memory after a power failure.
9
12 Hour Shut-Off Cook and Hold
With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function. If you wish to turn off this feature, follow the steps below.
1. Press BAKE and BROIL HI/LO
at the same time for 2 seconds until the display shows “SF.”
2. Press DELAY START. The display
will show “12 shdn” (12 hour shut-off). Press DELAY START again and the display will show “no shdn” (no shut-off).
3. Press START to activate the no
shut-off and leave the control set in this special features mode.
Your new control has a cook and hold feature that keeps cooked foods warm for up to 3 hours after the cooking function is finished. T o activate this feature:
1. Press BAKE and BROIL HI/LO
at the same time for 2 seconds until the display shows “SF.”
2. Press COOKING TIME. The
display will show “Hld OFF.”
—Press COOKING TIME again to
activate the feature. The display will show “Hld ON.”
3. Press START to activate the
cook and hold feature and leave the control set in this special features mode.
START
COOKING
TIME
BROIL
HI/LO
BAKE
START
DELAY START
BROIL
HI/LO
BAKE
9
Oven Control, Clock and Timer Special Features of Your Oven Control
12 Hour, 24 Hour or Clock Black-Out
Your control is set to use a 12 hour clock. If you would prefer to have a 24 hour military time clock or black-out the clock display , follow the steps below.
1. Press BAKE and BROIL HI/LO at the same time for
2 seconds until the display shows “SF.”
2. Press CLOCK once. The display will show “12 hr.” —Press CLOCK again to change to the 24 hour military
time clock. The display will show “24 hr.”
—Press CLOCK again to black-out the clock display.
The display will show “OFF.”
3. Press START to activate your choice and leave the
control set in this special features mode.
NOTE: If the clock is in the black-out mode you will not be able to use the Delay Start function.
(continued next page)
START
CLOCK
BROIL
HI/LO
BAKE
Loading...
+ 19 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
