GE JGBS23SEL Specification

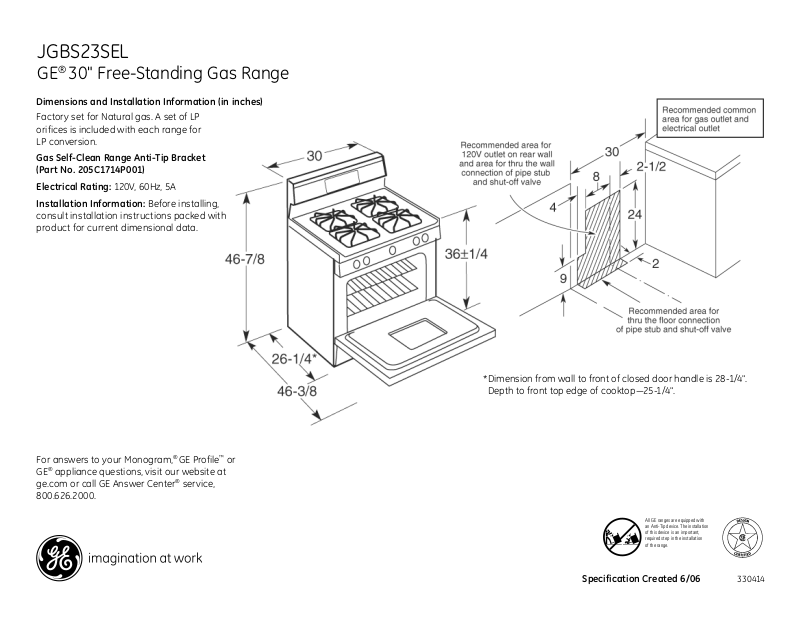

JGBS23SEL
GE® 30" Free-Standing Gas Range
Dimensions and Installation Information (in inches)
Factory set for Natural gas. A set of LP orifices is included with each range for LP conversion.
Gas Self-Clean Range Anti-Tip Bracket (Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
*Dimension from wall to front of closed door handle is 28-1/4". Depth to front top edge of cooktop—25-1/4".
All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation
of the range.
Specification Created 6/06 |
330414 |
JGBS23SEL
GE® 30" Free-Standing Gas Range
Features and Benefits
•Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items at once
•12,000 BTU Power Burner - Delivers a wide range of heat output ideal for most cooking requirements
•Precise Simmer Burner - Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
•Sealed Cooktop Burners - Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
•Electronic Clock And Timer - Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
•Deluxe Grates - Provide a sturdy and durable cookware surface for everyday cooking
•Big Hearth Window - Features an enhanced shape to add an elegant appearance and make viewing trouble-free
•Model JGBS23SELSS - Stainless steel (stainless steel door and black cooktop)
TIMER
SET
CLOCK
|
|
|
Specification Created 6/06 |
330414 |
|
