GE JGBS23DET Specification
CERTIFIED
JGBS23DET
30" FS Gas Ranges-CL
24
30" FS Gas Ranges-CL
30
8
4
2-1/2
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve

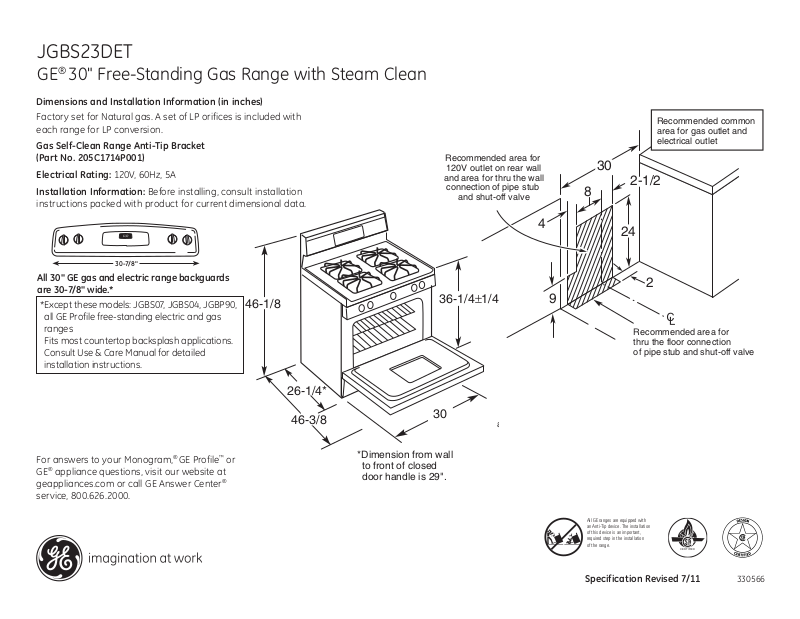

Installation Information (Dimensions in inches)
Recommended common
area for gas outlet and
electrical outlet
GE® 30" Free-Standing Gas Range with Steam Clean
Dimensions and Installation Information (in inches)
Factory set for Natural gas. A set of LP orifices is included with
each range for LP conversion.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
30 -7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
46-1/8
26-1/4*
46-3/8
36-1/4±1/4
30
*Dimension from wall
to front of closed
door handle is 29".
4
9
24
2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 7/11
330566
JGBS23DET
GE® 30" Free-Standing Gas Range with Steam Clean
Features and Benefits
• 4.8 cu. ft. capacity - More room for cooking more dishes at once
• Steam clean cycle - The power of steam loosens baked-on foods and assists
in oven cleaning
• High output burner - This 12,500 BTU burner element provides the high heat
ideal for frying or sautéing and fast heat-up
• Precise simmer burner - Delivers a low setting of 140 degrees, ideal for
delicate foods and sauces
• Big hearth window - Elegant shaped window makes it easy to monitor the
progress of food
• Model JGBS23DETWW - White on white (white door and white cooktop)
• Model JGBS23DETCC - Bisque on bisque (bisque door and bisque cooktop)
• Model JGBS23DETBB - Black on black (black door and black cooktop)
Specification Revised 7/11
330566
