GE JGBS22WEK Specification
JGBS22WEK
30" FS Gas Ranges-CL
30
46-7/8
26-1/4*
46-3/8
36-1/4±
1/4
Installation Information (Dimensions in inches)
24
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
CERTIFIED

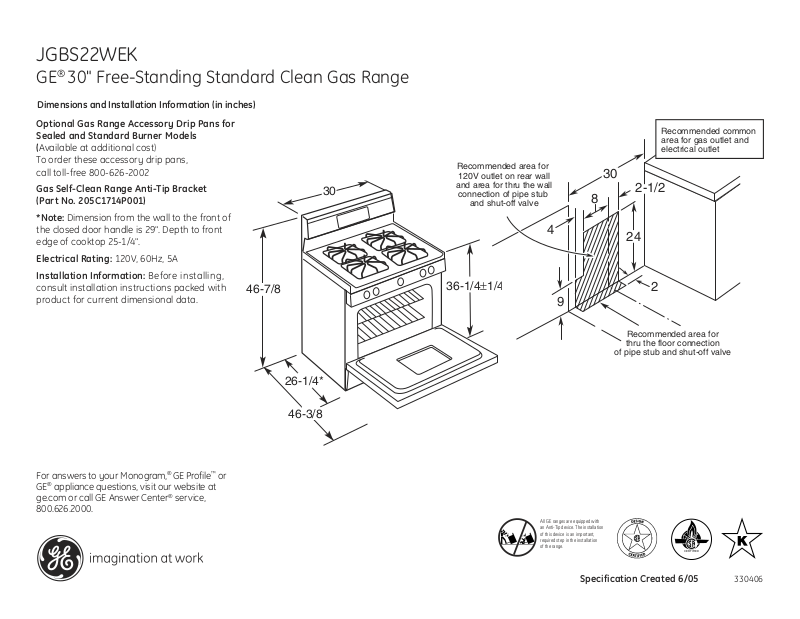

GE® 30" Free-Standing Standard Clean Gas Range
Dimensions and Installation Information (in inches)
Optional Gas Range Accessory Drip Pans for
Sealed and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
*Note:
the closed door handle is 2
Dimension from the wall to the front of
9". Depth to front
edge of cooktop 25-1/4".
Electrical Rating
Installation Information:
: 120V, 60Hz, 5A
Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 6/05
330406
JGBS22WEK
CLOCK
SET
TIMER
O
N
O
F
F
GE® 30" Free-Standing Standard Clean Gas Range
Features and Benefits
• Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more
items at once
• All Purpose Burners – Deliver a wide range of heat output ideal for most
cooking requirements
• Sealed Cooktop Burners – Eliminate the space between the burners and the cooktop
to help contain spills and boil over liquids, ensuring easy cleanup
• Electronic Clock and Timer – Features a convenient digital clock and easy-to-use
timer with an audible signal to help coordinate cooking times in the kitchen
• Standard Grates – Provide a sturdy and convenient cookware surface for
everyday cooking
• Frameless Glass Oven Door – Offers an easy-to-clean and stylish design that
blends seamlessly into existing cabinetry
• Big ClearViewTM Window – An extra large clear window makes monitoring the
progress of food easy
• Model JGBS22WEKWW - White on white (white door and cooktop)
Specification Created 6/05
330406
