GE JGBS22BEAAD Specification
GE Appliances
Revised 9/98

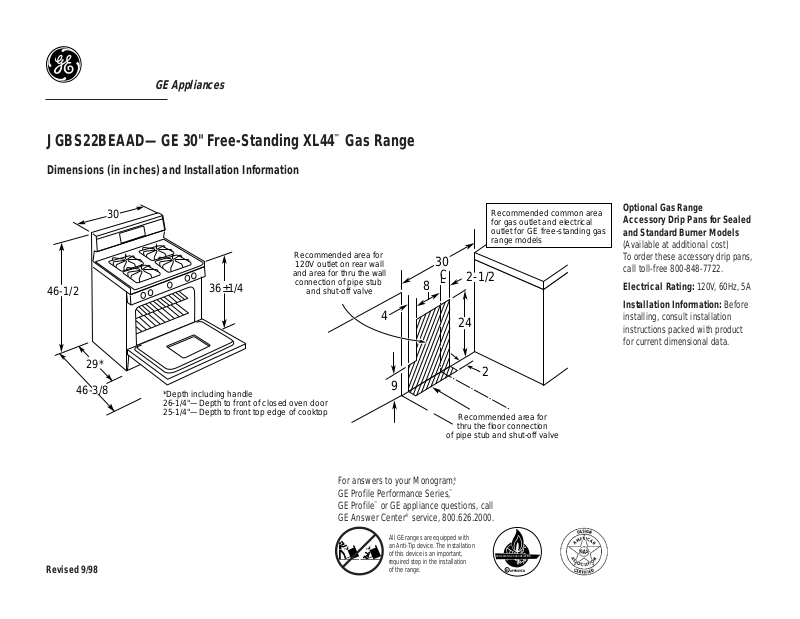

JGBS22BEAAD—GE 30" Free-Standing XL44™Gas Range
Dimensions (in inches) and Installation Information
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
30
46-1/2
29*
46-3/8
36±1/4
*Depth including handle
26-1/4"—Depth to front of closed oven door
25-1/4"—Depth to front top edge of cooktop
Optional Gas Range
Accessory Drip Pans for Sealed
and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-848-7722.
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
24
30
8
4
9
2
C
L
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
CANADIAN GAS ASSOCIATION
R
APPROVED
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
GE Appliances
Revised 9/98
JGBS22BEAAD—GE 30" Free-Standing XL44™Gas Range
Features and Benefits
• One-Piece Upswept Porcelain-Enameled Cooktop
• Sealed Cooktop Burners
• (4) 9,500/850 BTU All-Purpose Burners
• Black Standard Porcelain-Steel Square Grates
• Electronic Pilotless Ignition System
• Extra-Large 4.4 cu. ft. Standard Clean Oven
• Electronic Clock and Timer
• Slide Out Broiler Drawer
• Extra-Large Broiler Pan and Grid
• 2 Oven Racks / 6 Embossed Rack Positions
• Removable Frameless Glass Oven Door with Window
• Designer-Style Handle
• Optional Accessory One-Piece Drip Pans Available at Additional Cost
• Model JGBS22BEAWH–White
• Model JGBS22BEAAD–Almond
