GE JGBS18MEN, JGBS18MENBS User Manual

CERTIFIED

JGBS18MEN

24

30" FS Gas Ranges-CL

30

8

4

9

2

2-1/2

Recommended area for
thru the floor connection
of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common
area for gas outlet and
electrical outlet

24

30" FS Gas Ranges-CL

30

8

4

2-1/2

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

46-1/8

26-1/4*

46-3/8

36-1/4±1/4

Installation Information (Dimensions in inches)

Recommended common
area for gas outlet and
electrical outlet

*Dimension from wall

to front of closed
door handle is 29".

30

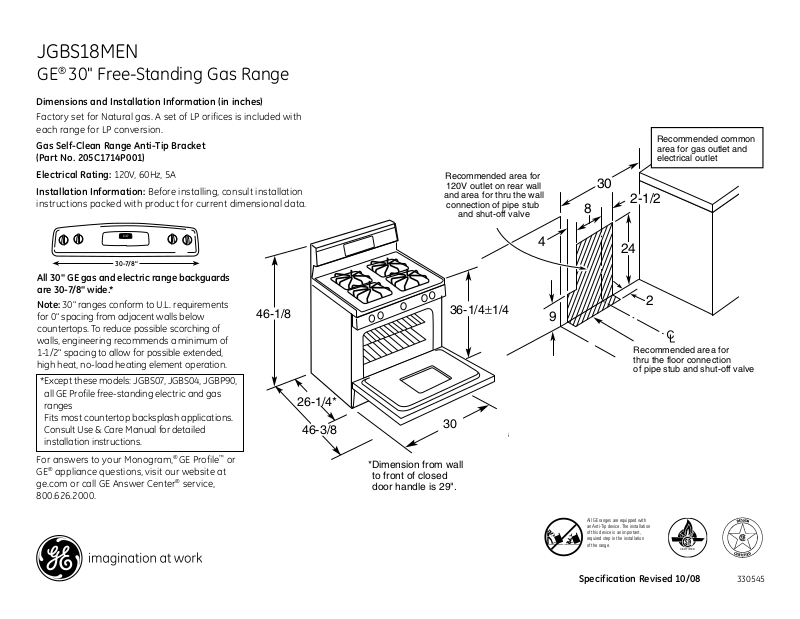

GE® 30" Free-Standing Gas Range

Dimensions and Installation Information (in inches)

Factory set for Natural gas. A set of LP orifices is included with
each range for LP conversion.

Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

30-7/8"

All 30" GE gas and electric range backguards
are 30-7/8" wide.*

Note: 30" ranges conform to U.L. requirements

for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.

* Except these models: JGBS07, JGBS04, JGBP90,

all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Specification Revised 10/08

330545

BR

OI

L

O

VE

N

LI

G

H

T

C

L

OC

K

TI

M

E

CO

N

TR

OL

S

O

V

E

N

C

O

N

TR

OL

S

T

r

ue

T

em

p

O

N

TE

M

P

N

O

R

M

A

L

H

I

LO

O

FF

K

I

T

C

HE

N

T

I

ME

R

O

N

O

FF

B

AKE

ST

AR

T

ON

C

L

EAR

O

FF

JGBS18MEN

GE® 30" Free-Standing Gas Range

Features and Benefits

• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking
more items at once

• Standard Clean Oven - Offers a traditional oven design that requires hand

cleaning

• All Purpose Burners - Deliver a wide range of heat output ideal for most

cooking requirements

• Sealed Cooktop Burners - Eliminate the space between the burners and the

cooktop to help contain spills and boil over liquids, ensuring easy cleanup

• Electronic Clock And Timer - Features a convenient digital clock and easy-

to-use timer with an audible signal to help coordinate cooking times in the
kitchen

• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that

blends seamlessly into existing cabinetry

• Standard Grates - Provide a sturdy and convenient cookware surface for

everyday cooking

• ClearView™ Window - Features a convenient viewing area to check the

progress of food

• Two Oven Racks - Feature a durable construction to help accommodate any

size or type of cookware

• Six Rack Positions - Provides flexibility and allows consumers to make the

most of available oven capacity

• Model JGBS18MENBS - CleanSteel

™

Specification Revised 10/08

330545
