GE JGBS14PCDWW Specification

JGBS14PCDWW

GE® 30" Free-Standing Gas Range

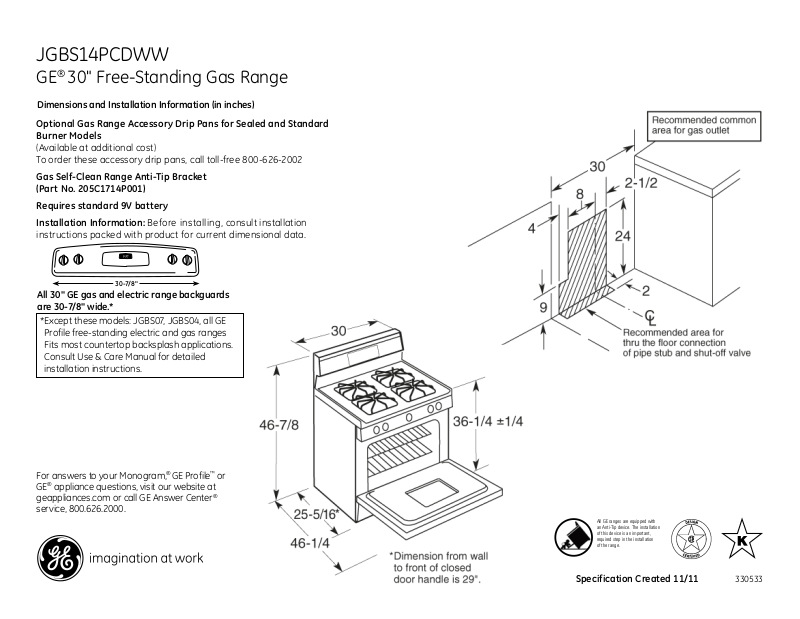

Dimensions and Installation Information (in inches)

Optional Gas Range Accessory Drip Pans for Sealed and Standard
Burner Models

(Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002

Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)

Requires standard 9V battery

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

30 -7/8"

All 30" GE gas and electric range backguards
are 30-7/8" wide.*

* Except these models: JGBS07, JGBS04, all GE

Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Specification Created 11/11

330533

JGBS14PCDWW

GE® 30" Free-Standing Gas Range

Features and Benefits

• 4.8 cu. ft. capacity - Ideal for special occasions and big meals, the extra large oven

interior allows more to cook at once

• All purpose burners - All-purpose burner delivers two levels of BTU output to

accommodate virtually all your cooking needs

• Cordless Battery Ignition

• Low Battery Indicator Light

• Porcelain upswept cooktop - Raised edges and porcelain-enameled surface makes

cleaning incredibly easy

• Lift-up cooktop - Cooktop lifts up to give you access to the subtop, where spills and

crumbs can collect, to make cleaning effortless

• Easy clean subtop - The subtop is porcelain enameled to make cleaning spills and

messes quick and simple

• Standard grates - Quality grates keep pots and pans securely in place over
the burners

• Two oven racks - Includes two oven racks that are sturdy and reliable

• Model JGBS14PCDWW - White on white

Specification Created 11/11

330533
