GE JGBS04PPT Specification
JGBS04PPT
30
8
2-1/2
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet

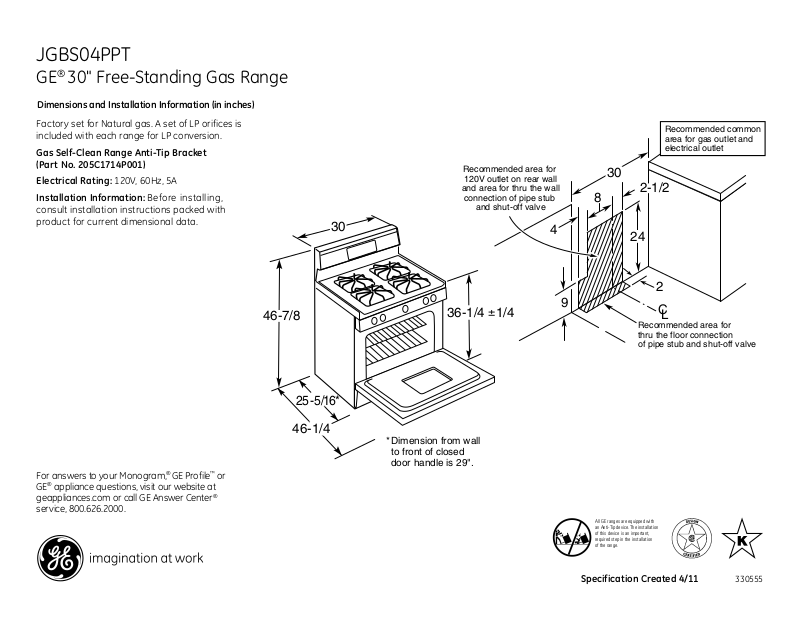

GE® 30" Free-Standing Gas Range
Dimensions and Installation Information (in inches)
Factory set for Natural gas. A set of LP orifices is
included with each range for LP conversion.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
46-7/8
30
25-5/16*
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36-1/4 ±1/4
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
4
24
2
9
C
L
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
®
For answers to your Monogram,
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
GE Profile™ or
46-1/4
* Dimension from wall
to front of closed
door handle is 29".
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 4/11
330555
JGBS04PPT
GE® 30" Free-Standing Gas Range
Features and Benefits
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking
more items at once
• Standard Clean Oven - Offers a traditional oven design that requires
hand cleaning
• All Purpose Burners - Deliver a wide range of heat output ideal for most
cooking requirements
• Standard Grates - Provide a sturdy and convenient cookware surface for
everyday cooking
• Porcelain Oven Door - Offers a scratch-resistant porcelain coating for
easy cleaning
• Two Oven Racks - Feature a durable construction to help accommodate any
size or type of cookware
• Easy Clean Subtop - Porcelain enameled subtop collects spills and messes for
easy cleaning
• Broiler Drawer - Supplies a concentrated heat for crisping and browning
• Designer-Style Handle - Exudes a clean style that adds to the modern
appearance of the range
• Model JGBS04PPTWW - White on white (white door and white
patterned cooktop)
Specification Created 4/11
330555
