GE JGBS04PPH Specification
GE Appliances
JGBS04PPH – GE® 30" Free-Standing Standard Clean Gas Range

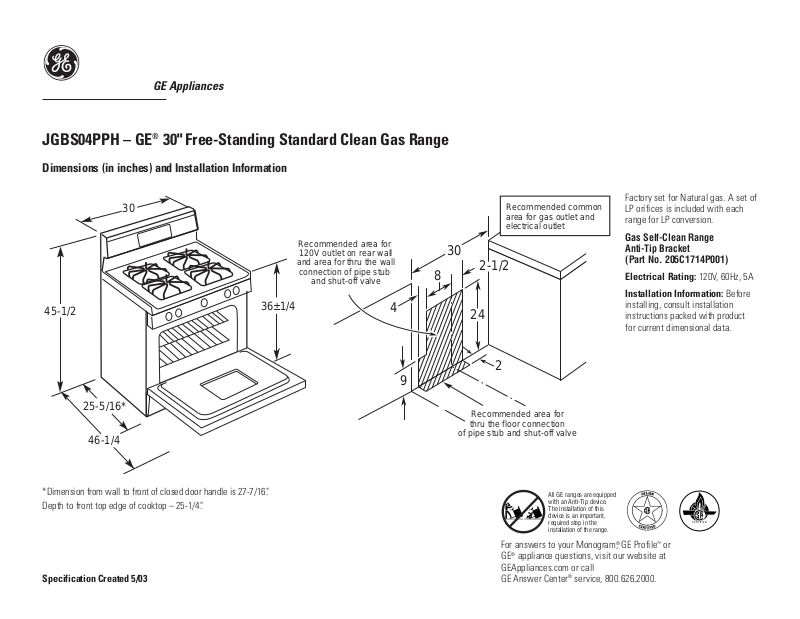

Dimensions (in inches) and Installation Information
30
Recommended area for 120V outlet on rear wall and area for thru the wall connection of pipe stub and shut-off valve
45-1/2 |
36±1/4 |
4 |
9
25-5/16*
46-1/4
*Dimension from wall to front of closed door handle is 27-7/16". Depth to front top edge of cooktop – 25-1/4".
Recommended common area for gas outlet and electrical outlet
30
2-1/2
8
24
2
Recommended area for thru the floor connection
of pipe stub and shut-off valve
Factory set for Natural gas. A set of LP orifices is included with each range for LP conversion.
Gas Self-Clean Range
Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
All GE ranges are equipped |
|
with an Anti-Tip device. |
|
The installation of this |
|
device is an important, |
|
required step in the |
CERTIFIED |
installation of the range. |
|
|
For answers to your Monogram,® GE Profile™ or |
|
GE® appliance questions, visit our website at |
|
GEAppliances.com or call |
Specification Created 5/03 |
GE Answer Center® service, 800.626.2000. |
GE Appliances
JGBS04PPH – GE® 30" Free-Standing Standard Clean Gas Range
0
2 4
<![if ! IE]><![endif]>6
8
OFF
FRONT
0
2 4
<![if ! IE]><![endif]>6
8
OVEN |
TEMP |
OFF
REAR
0
2 4
<![if ! IE]><![endif]>6
8
H
I
LITE
OFF
REAR
0
2 4
<![if ! IE]><![endif]>6
8
H
I
LITE
OFF
FRONT
Features and Benefits
•Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more items at once.
•All Purpose Burners – Deliver a wide range of heat output ideal for most cooking requirements.
•Standard Grates – Provide a sturdy and convenient cookware surface for everyday cooking.
•Porcelain Oven Door – Offers a scratch-resistant porcelain coating for easy cleaning.
•Two Oven Racks – Feature a durable construction to help accommodate any size or type of cookware.
•Six Rack Positions – Provide flexibility and allows consumers to make the most of available oven capacity.
•Model JGBS04PPHWW – White on white (white door and white patterned cooktop)
•Model JGBS04PPHWH – White (black door and control panel/white patterned cooktop)
•Model JGBS04PPHCT – Bisque (black door and control panel/bisque patterned cooktop)
Specification Created 5/03
