GE Appliances
JGBS04PEACT – GE 30" Free-Standing XL44™Gas Range
Specification Created 4/02

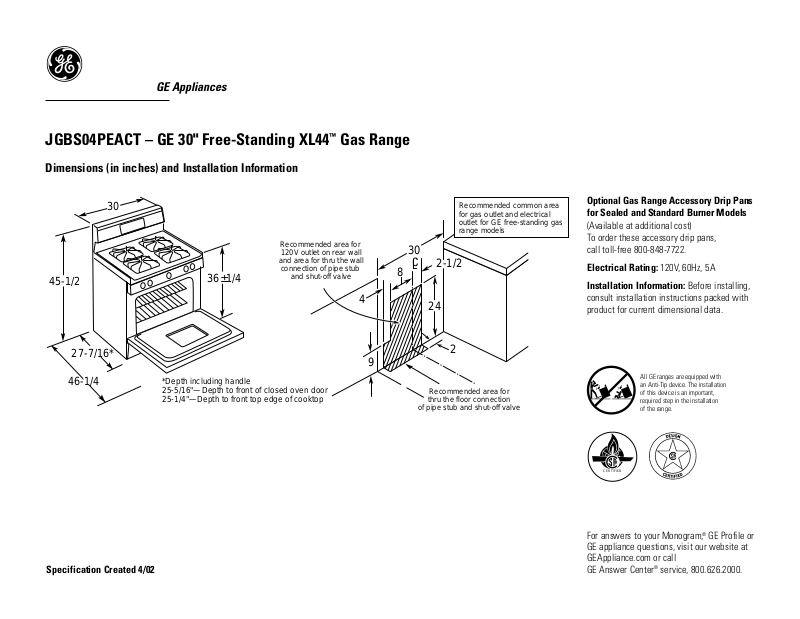

Dimensions (in inches) and Installation Information
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
30
45-1/2
27-7/16*
46-1/4
36±1/4
*Depth including handle
25-5/16"—Depth to front of closed oven door
25-1/4"—Depth to front top edge of cooktop
Optional Gas Range Accessory Drip Pans
for Sealed and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-848-7722.
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
24
30
8
4
9
2
C
L
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
CERTIFIED
For answers to your Monogram,®GE Profile or
GE appliance questions, visit our website at
GEAppliance.com or call
GE Answer Center®service, 800.626.2000.
Specification Created 4/02
GE Appliances
JGBS04PEACT – GE 30" Free-Standing XL44™Gas Range
I
H
8
6
4
2
0
OFF
REAR
L
IT
E
I
H
8
6
4
2
0
OFF
FRONT
O
V
E
N
T
E
M
P
L
I
T
E
I
H
8
6
4
2
0
OFF
REAR
L
IT
E
I
H
8
6
4
2
0
OFF
FRONT
L
IT
E
Features and Benefits
• Porcelain-Enameled Lift-Up Cooktop
• Standard/Twin Cooktop Burners
• Black Standard Porcelain-Steel Square Grates
• Electronic Pilotless Ignition System
• Extra-Large 4.4 cu. ft. Standard Clean Oven
• Slide Out Broiler Drawer
• Extra-Large Broiler Pan with Grid
• 2 Oven Racks/6 Embossed Rack Positions
• Easy-Clean Porcelain-Enameled Subtop
• Solid Color-Matched Porcelain-Enameled Oven Door
• Chrome Visor-Style Handle
• Porcelain-Enameled Scratch-Resistant Backguard
• Optional Accessory One-Piece Drip Pans Available at Additional Cost
• Also Available with Standing Ignition as Model JGBS04PPA
• Model JGBS04PEAWH – White
• Model JGBS04PEACT – Bisque
