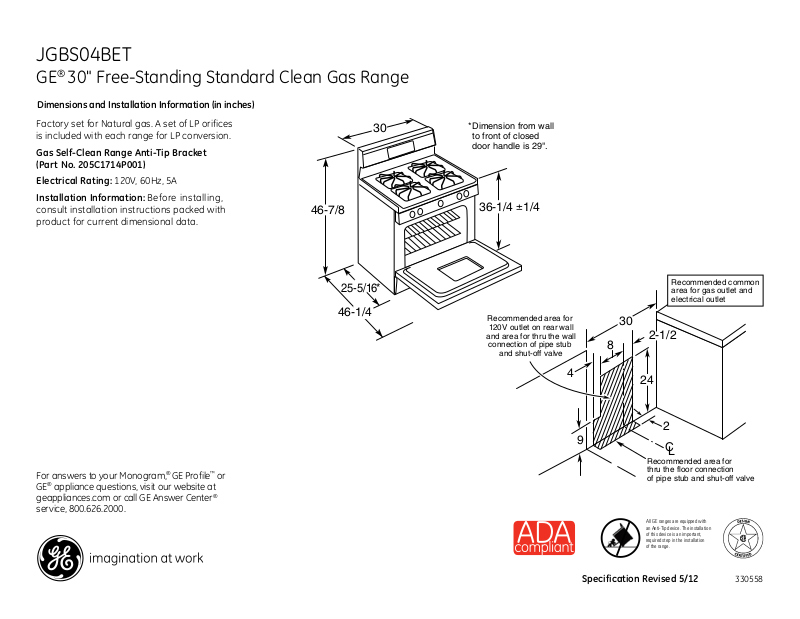

JGBS04BET
GE® 30" Free-Standing Standard Clean Gas Range
Dimensions and Installation Information (in inches)
Factory set for Natural gas. A set of LP orifices |
30 |
|
is included with each range for LP conversion. |
||
|
Gas Self-Clean Range Anti-Tip Bracket (Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A Installation Information: Before installing,
consult installation instructions packed with |
46-7/8 |
product for current dimensional data.
25-5/16*
46-1/4
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
*Dimension from wall to front of closed door handle is 29".
36-1/4 ±1/4
Recommended common area for gas outlet and electrical outlet
Recommended area for |
|
|
30 |
|
|
|
*Dimension from wall |
|
|
|
|
|
|
120V outlet on rear wall |
|
|
|
2- |
1/2 |
|
to front of closed |
|
|
|
|
||
and area for thru the wall |
8 |
|
||||
door handle is 29"connection. |
of pipe stub |
|
|
|
||
and shut-off valve |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
4 24
9 |
2 |
C |
|
|
L |
Recommended area for thru the floor connection
of pipe stub and shut-off valve
All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation
of the range.
Specification Revised 5/12 |
330558 |
JGBS04BET
GE® 30" Free-Standing Standard Clean Gas Range
Features and Benefits
•Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items at once
•Standard Clean Oven - Offers a traditional oven design that requires hand cleaning
•All Purpose Burners - Deliver a wide range of heat output ideal for most cooking requirements
•Electronic Clock And Timer - Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
•Standard Grates - Provide a sturdy and convenient cookware surface for everyday cooking
•Frameless Glass Oven Door - Offers an easy-clean and stylish design that blends seamlessly in existing cabinetry
•Two Oven Racks - Feature a durable construction to help accommodate any size or type of cookware
•Electronic Ignition - Ensures a continuous flame and reignites automatically if accidentally extinguished
•Easy Clean Subtop - Porcelain enameled subtop collects spills and messes for easy cleaning
•Broiler Drawer - Supplies a concentrated heat for crisping and browning
•Extra-Large Broiler Pan with Grid
•Designer-Style Handle - Exudes a clean style that adds to the modern appearance of the range
•Model JGBS04BETWH - White (black door and control panel/white patterned cooktop)
Specification Revised 5/12 |
330558 |
