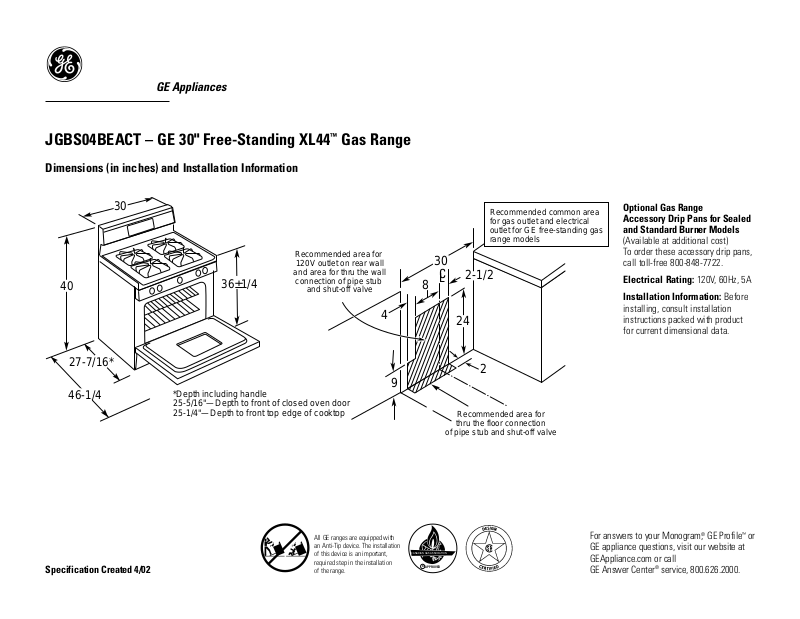

Page 1
GE Appliances
JGBS04BEACT – GE 30" Free-Standing XL44™Gas Range
Dimensions (in inches) and Installation Information
30
40
27-7/16*
46-1/4
36±1/4
*Depth including handle
25-5/16"—Depth to front of closed oven door
25-1/4"—Depth to front top edge of cooktop
Optional Gas Range
Accessory Drip Pans for Sealed
and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-848-7722.
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
24
30
8
4
9
2
C
L
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
Specification Created 4/02
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliance.com or call
GE Answer Center®service, 800.626.2000.
CANADIAN GAS ASSOCIATION
R
APPROVED
Page 2
Specification Created 4/02
GE Appliances
JGBS04BEACT – GE 30" Free-Standing XL44™Gas Range
I
H
8
6
4
2
0
O
F
F
R
E
A
R
L
IT
E
I
H
8
6
4
2
0
O
FF
F
R
O
N
T
O
V
E
N
T
E
M
P
L
I
T
E
I
H
8
6
4
2
0
O
FF
R
E
A
R
L
I
T
E
I
H
8
6
4
2
0
O
FF
F
R
O
N
T
L
IT
E
Features and Benefits
• Porcelain-Enameled Lift-Up Cooktop
• Standard/Twin Cooktop Burners
• Black Standard Porcelain-Steel Square Grates
• Electronic Pilotless Ignition System
• Extra-Large 4.4 cu. ft. Standard Clean Oven
• Slide Out Broiler Drawer
• Extra-Large Broiler Pan with Grid
• 2 Oven Racks/6 Embossed Rack Positions
• Easy-Clean Porcelain-Enameled Subtop
• Removable Black Frameless-Glass Oven Door
• Designer-Style Handle
• Porcelain-Enameled Scratch-Resisant Backguard
• Optional Accessory One-Piece Drip Pans Available at Additional Cost
• Also Available with Standing Pilot Ignition as Model JGBS04BPA
• Model JGBS04BEAWH – White
• Model JGBS04BEACT – Bisque
