GE JGBP90MEH Specification

GE Appliances

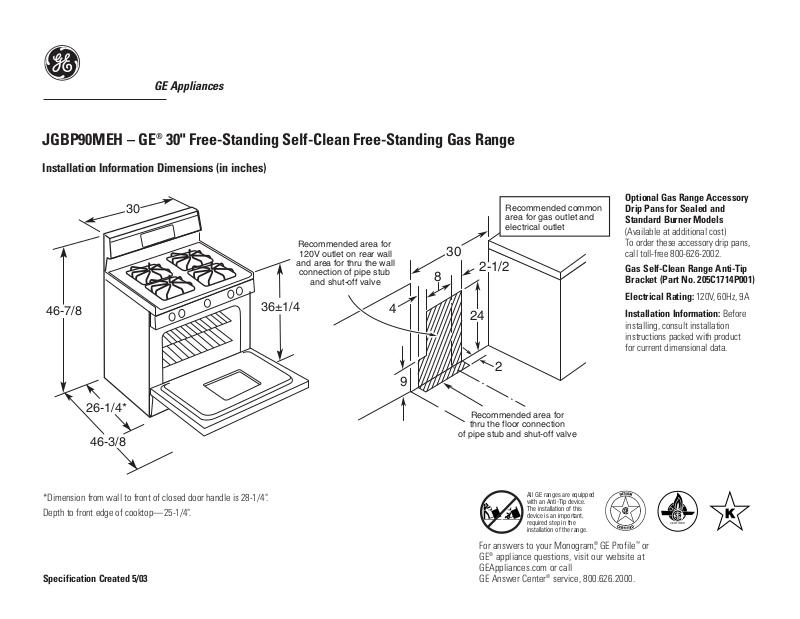

JGBP90MEH – GE® 30" Free-Standing Self-Clean Free-Standing Gas Range

Installation Information Dimensions (in inches)

30

Recommended area for 120V outlet on rear wall and area for thru the wall connection of pipe stub and shut-off valve

46-7/8

36±1/4

4

9

26-1/4*

46-3/8

*Dimension from wall to front of closed door handle is 28-1/4".

Depth to front edge of cooktop—25-1/4".

Recommended common area for gas outlet and electrical outlet

30

2-1/2

8

24

2

Recommended area for thru the floor connection

of pipe stub and shut-off valve

All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.

Optional Gas Range Accessory Drip Pans for Sealed and Standard Burner Models

(Available at additional cost)

To order these accessory drip pans, call toll-free 800-626-2002.

Gas Self-Clean Range Anti-Tip

Bracket (Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 9A

Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

CERTIFIED

	For answers to your Monogram,® GE Profile™ or
	GE® appliance questions, visit our website at
Specification Created 5/03	GEAppliances.com or call
	GE Answer Center® service, 800.626.2000.

GE Appliances

JGBP90MEH – GE® 30" Free-Standing Self-Clean Free-Standing Gas Range

Features and Benefits

• Self-Clean Oven – Conveniently cleans the oven cavity without need of scrubbing.

• Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more items at once.

• TrueTemp™ System – Delivers even heat distribution and maximum oven control.

• QuickSet V Oven Controls – Feature an easy to use design that allows you to set precise cooking temperatures.

• High Output Burner – Provides a powerful burner output for efficient heat-up and sautéing.

• Precise Simmer Burner – Offers a low setting of 600 BTUs, ensuring more temperature control for simmering.

•All Purpose Burners – Deliver a wide range of heat output ideal for most cooking requirements.

•Model JGBP90MEHBC – Brushed Chrome

Specification Created 5/03
