XL44TMSelf-Cleaning Gas Range

GE Appliances

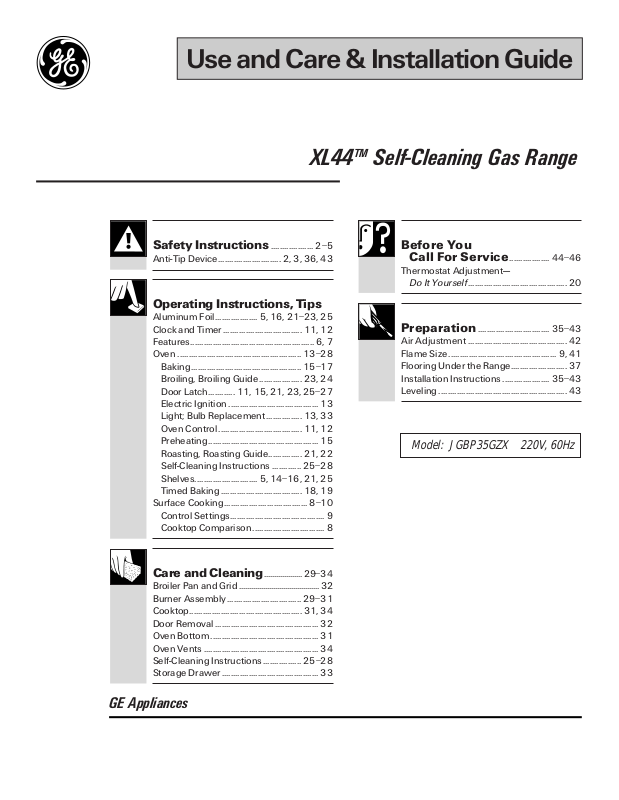

Use and Care & Installation Guide

Safety Instructions ................... 2–5

Anti-Tip Device............................ 2, 3, 36, 43

Operating Instructions, Tips

Aluminum Foil................... 5, 16, 21–23, 25

Clock and Timer ................................... 11, 12

Features....................................................... 6, 7

Oven ....................................................... 13–28

Baking................................................. 15–17

Broiling, Broiling Guide ................... 23, 24

Door Latch............ 11, 15, 21, 23, 25–27

Electric Ignition ........................................ 13

Light; Bulb Replacement................ 13, 33

Oven Control ..................................... 11, 12

Preheating................................................. 15

Roasting, Roasting Guide............... 21, 22

Self-Cleaning Instructions ............. 25–28

Shelves............................ 5, 14–16, 21, 25

Timed Baking .................................... 18, 19

Surface Cooking..................................... 8–10

Control Settings.......................................... 9

Cooktop Comparison ................................ 8

Care and Cleaning................... 29–34

Broiler Pan and Grid ........................................ 32

Burner Assembly ................................. 29–31

Cooktop.................................................. 31, 34

Door Removal .............................................. 32

Oven Bottom................................................ 31

Oven Vents ................................................... 34

Self-Cleaning Instructions ................. 25–28

Storage Drawer ........................................... 33

Before You

Call For Service

.................. 44–46

Thermostat Adjustment—

Do It Yourself

............................................ 20

Preparation ................................ 35–43

Air Adjustment ............................................ 42

Flame Size ................................................ 9, 41

Flooring Under the Range......................... 37

Installation Instructions ..................... 35–43

Leveling ......................................................... 43

Model: JGBP35GZX 220V, 60Hz

HELP US HELP YOU…

Read this guide carefully.

It is intended to help you operate and maintain your new range properly.

Keep it handy for answers to your questions.

If you received a damaged range…

Immediately contact the dealer (or builder) that sold you the range.

Save time and money. Before you request service…

Check the Before You Call for Service section in the back of this guide. It lists causes of minor operating problems that you can correct yourself.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

•If you cannot reach your gas supplier, call the fire department.

— Installation and service must be

performed by a qualified installer, service agency or the gas supplier.

WARNING: If the information in this guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WARNING

• ALL RANGES CAN TIP

• INJURY TO PERSONS COULD RESULT

• INSTALL ANTI-TIP DEVICES PACKED WITH RANGE

• SEE INSTALLATION INSTRUCTIONS

Important Safety Instructions

IMPORTANT SAFETY NOTICE

• The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California

to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon

monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of LP with high butane gas content. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

• Fluorescent light bulbs and safety valves on standing pilot ranges contain mercury. If your

model has these features, they must be recycled according to local, state and federal codes.

When You Get Your Range

• Have the installer show you the location of the range gas shut-off valve and how to shut it off if necessary.

• Have your range installed and properly grounded by a qualified installer, in accordance

with the Installation Instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians.

•

Do not attempt to repair or replace any part of your range unless it is specifically recommended in this guide. All other servicing should be referred

to a qualified technician.

• Plug your range into a 220-volt grounded outlet only. If in doubt about the grounding of the

home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded outlet.

• Locate the range out of kitchen traffic path and out of drafty locations to prevent pilot outage (on standing pilot models) and poor air circulation.

• Be sure all packing materials are removed fr om the range before operating it to prevent fire or

smoke damage should the packing material ignite.

• Be sure your range is correctly adjusted by a qualified service technician or installer.

WARNING: These adjustments must be made by a

qualified service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage.

• After prolonged use of a range, high floor temperatures may result and many floor coverings will not withstand this kind of use.

Never install the range over vinyl tile or linoleum that cannot withstand such type of use. Never install it directly over interior kitchen carpeting.

Using Your Range

WARNING—All ranges

can tip and injury could result. To prevent accidental tipping of the range, attach it to the wall by installing

the Anti-Tip device supplied. To check if the device is installed and

engaged properly, carefully tip the range forward. The Anti-Tip device should engage and prevent the range from tipping over.

If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.

Please refer to the Anti-Tip device information in this guide. Failure to take this precaution could result in tipping of the range and injury.

• Do not leave children alone or unattended where a range is hot or in operation.

They could be seriously burned.

• For your safety, never use your appliance for warming or heating the room.

(continued next page)

IMPOR TANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

IMPOR TANT SAFETY INSTRUCTIONS

(continued)

• CAUTION: ITEMS OF INTEREST TO CHILDREN SHOULD NOT BE STORED IN CABINETS ABOVE A RANGE OR ON THE BACKSPLASH OF A RANGE—CHILDREN CLIMBING ON THE RANGE TO REACH ITEMS COULD BE SERIOUSLY INJURED.

• Do not allow anyone to climb, stand or hang on the door, storage drawer or cooktop. They

could damage the range and even tip it over, causing severe personal injury.

• Let the burner grates and other surfaces cool before touching them or leaving them where children can reach them.

• Never wear loose fitting or hanging garments while using the appliance. Be careful when

reaching for items stored in cabinets over the cooktop. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.

• Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a

flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

Flaming grease outside a pan can be put out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foamtype fire extinguisher.

• Do not store flammable materials in an oven, a storage drawer or near a cooktop.

• DO NOT STORE OR USE COMBUSTIBLE MATERIALS, GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

• Do not let cooking grease or other flammable materials accumulate in or near the range.

• When cooking pork, follow the directions exactly

and always cook the meat to an internal temperature of at least 77°C. (170°F.). This assures that, in the remote possibility that trichina may be present in the meat, it will be killed and the meat will be safe to eat.

Surface Cooking

• Always heat fat slowly, and watch as it heats.

• Always use the LITE position (on electric ignition models) or the HI position (on standing pilot models) when igniting the top burners and

make sure the burners have ignited.

• Never leave the surface burners unattended at high flame settings. Boilovers cause smoking

and greasy spillovers that may catch on fire.

• Adjust the top burner flame size so it does not extend beyond the edge of the cookware.

Excessive flame is hazardous.

• Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam.

• Do not let pot holders come near open flames when lifting cookware. Do not use a towel or

other bulky cloth in place of a pot holder .

• To minimize the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.

• Always turn the surface burners to off before removing cookware.

• Carefully watch foods being fried at a high flame setting.

• Never block the vents (air openings) of the range. They provide the air inlet and outlet that

are necessary for the range to operate properly with correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range under the storage drawer or kick panel.

• Do not use a wok on models with sealed burners if the wok has a round metal ring that is placed over the burner grate to support the wok. This

ring acts as a heat trap, which may damage the burner grate and burner head. Also, it may cause the burner to work improperly. This may cause a carbon monoxide level above that allowed by current standards, resulting in a health hazard.

• Foods for frying should be as dry as possible.

Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

• Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the pan too

full of fat can cause spillovers when food is added.

• Use a deep fat thermometer whenever possible to prevent overheating fat beyond the smoking point.

• Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is cool.

• When using glass cookware, make sure it is

designed for top-of-range cooking.

• If a combination of oils or fats will be used in frying, stir together before heating or as fats

melt slowly.

• Use proper pan size—Avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to properly contain food and avoid boilovers and spillovers and large enough to cover burner grate. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped and remain cool.

• Keep all plastics away from the top burners.

• Do not leave plastic items on the cooktop—

they may melt if left too close to the vent.

• Do not leave any items on the cooktop.

The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

• To avoid the possibility of a burn, always be certain that the controls for all burners are at the off position and all grates are cool before attempting to remove them.

• When flaming foods are under the hood, turn the fan off. The fan, if operating, may spread the flames.

• If range is located near a window, do not hang

long curtains that could blow over the top burners and create a fire hazard.

• When a pilot goes out (on standing pilot models), you will detect a faint odor of gas as your signal to relight the pilot. When relighting the pilot, make sure burner controls are in the off position, and follow instructions in this guide to relight.

• If you smell gas, and you have already made sure pilots are lit (on standing pilot models), turn off the gas to the range and call a qualified service technician. Never use an open flame to locate a leak.

Baking, Broiling and Roasting

• Do not use the oven for a storage area. Items stored in the oven can ignite.

• Place the oven shelves in the desired position while the oven is cool.

• Stand away from the range when opening the door of a hot oven. The hot air and steam that

escapes can cause burns to hands, face and eyes.

• Keep the oven free from grease buildup.

• Pulling out the shelf to the shelf-stop is a convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls. The lowest position “R” is not designed to slide.

• Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.

• Do not use aluminum foil anywhere in the oven except as described in this guide. Misuse could

result in a fire hazard or damage to the range.

• When using cooking or roasting bags in the oven, follow the manufacturer’s directions.

• Use only glass cookware that is recommended

for use in gas ovens.

• Always remove the broiler pan from range as soon as you finish broiling. Grease left in the pan

can catch fire if oven is used without removing the grease from the broiler pan.

• When broiling, if meat is too close to the flame, the fat may ignite. Trim excess fat to prevent

excessive flare-ups.

• Make sure the broiler pan is in place correctly

to reduce the possibility of grease fires.

• If you should have a grease fire in the broiler pan,

turn off oven control, and keep the oven door closed to contain fire until it burns out.

Self-Cleaning Oven

• Clean only parts listed in this Use and Care Guide.

• Do not clean door gasket. The door gasket is

essential for a good seal. Care should be taken not to rub, damage or move the gasket.

• Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

• Before self-cleaning the oven, remove the shelves, the broiler pan and grid and other cookware.

• Be sure to wipe up excess spillage before starting the self-cleaning operation.

• If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply.

Have it serviced by a qualified technician.

SAVE THESE INSTRUCTIONS

Vent appearance and location vary

Important Safety Instructions

FEATURES OF YOUR RANGE

Features and appearance may vary.

MASK FOR SHELVES

AUTO CLEAN

BAKE

OVEN

BROIL

DELAY OVEN ON CLEAN STOP TIMER

BAKE CLEAN

BROIL LOCK

O N

CLEAR

OFF

–

CLOCK

COOK

TIME

STOP TIME

TIMER

ON/OFF

Night Light

9 10

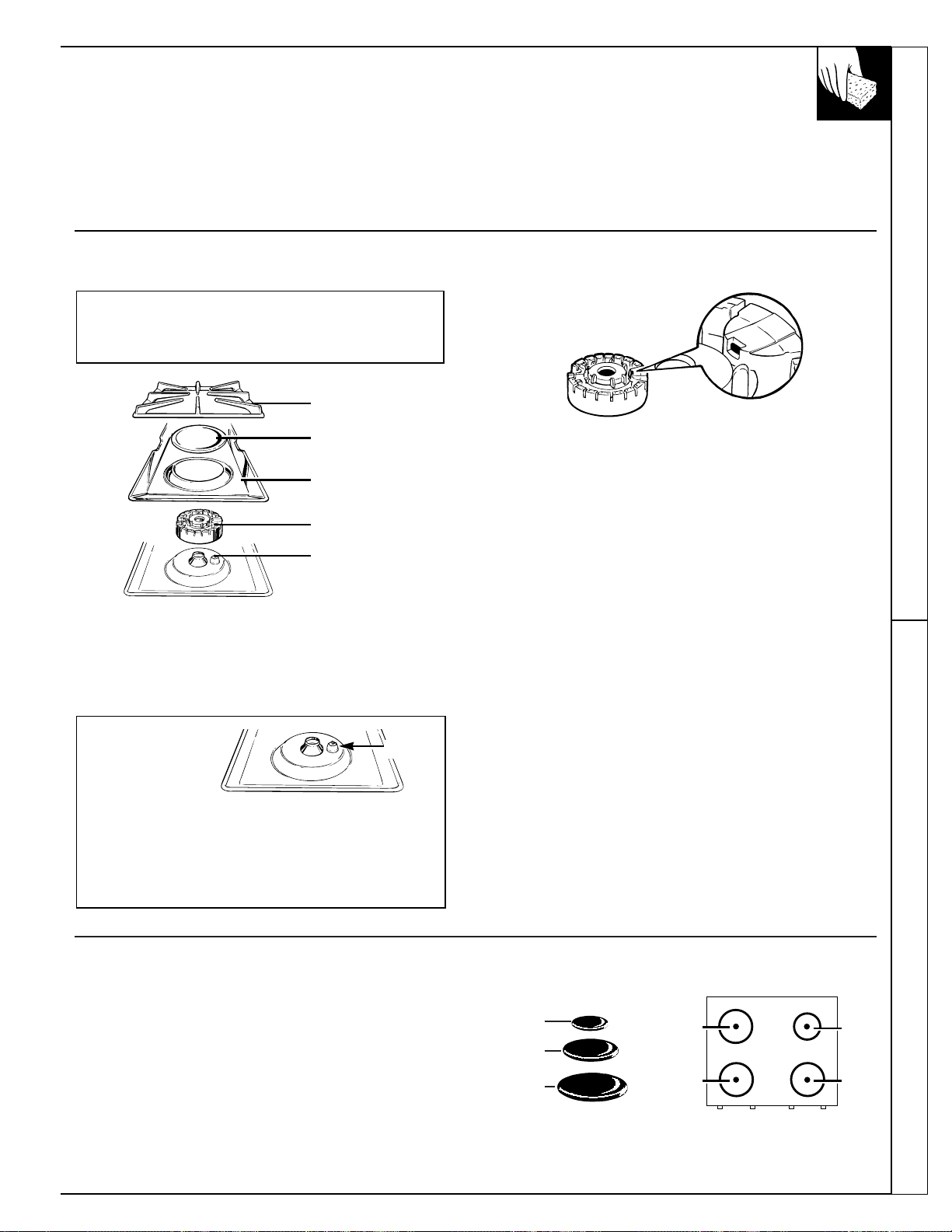

Sealed Burners

Your range is equipped with one of the two types of surface burners shown above.

Standard Twin Burners

Burner Cap

Burner Head

Drip Pan (on some models)

Burner

DELAY OVEN ON CLEAN STOP TIMER

BAKE CLEAN

BROIL LOCK

O N

TIMER

ON/OFF

STOP

TIME

COOK

TIME

AUTO SELF

CLEAN

BROIL

HI/LO

BAKE

CLOCK

CLEAR

OFF

TIME

–

OVEN

Features of Your Range

Feature Index See page

(Not all models have all features. Appearance of features varies.)

1 Air Intake (under storage drawer or kick panel) 4, 34 2 Model and Serial Numbers –

(on front frame of range, behind storage drawer or removable kick panel)

3 Anti-Tip Device 2, 3, 36, 43

Lower right rear corner on range back. See the Installation Instructions.

4 Lift-Off Oven Door 4, 23–28, 32

(easily removed for oven cleaning)

5 Oven Bottom 31 6 Oven Interior Light 13, 25, 33 7 Oven Light On/Off Switch 13 8 Grates, Drip Pans (on some models) and Surface Burners 4, 5, 8–10,

25, 29–31

9 Fluorescent Night Light (on some models) 3, 13, 34

10 Oven Control, Clock and Timer 11, 12, 15, 18–21,

23, 25–28, 33

11 Night Light Switch (on some models) 13 12 Oven Vents 4, 5, 14, 34 13 Cooktop 4, 5, 8–10, 31, 34 14 Surface Burner Control Knobs 4, 9, 33 15 Oven Door Latch 11, 15, 18, 21,

(use for self-cleaning cycle only) 23, 26–28

16 Oven Shelves with Stop-Locks 5, 14–17, 21,

(easily removed or repositioned on shelf supports) 24, 25, 32

17 Oven Shelf Supports 5, 14, 15,

Shelf positions for cooking are suggested in the 21, 24, 32 Baking, Roasting and Broiling sections.

18 Oven Door Gasket 5, 25, 32 19 Air Vent in Oven Door 4, 5, 14, 34

(top of oven door)

20 Storage Drawer or Removable Kick Panel 4, 33, 34

(depending on model)

21 Broiler Pan and Grid 5, 21, 23–25, 32

Do not clean in the self-cleaning oven.

HOW DOES THIS COOKTOP COMPARE

TO YOUR OLD ONE?

Y our new cooktop has gas burners. If you are used to cooking with induction or other electric surface units, you will notice some differences when you use gas burners.

The best types of cookware to use, plus heat-up and cool-down times, depend upon the type of burner or surface unit you have.

The following chart will help you to understand the differences between gas burner cooktops and any other type of cooktop you may have used in the past.

Type of Cooktop Description How it Works Gas Burners Regular or sealed Flames heat the pans directly. Pan flatness is not critical to cooking results, but

gas burners. flat-bottomed pans provide more stability on top of the grates. Gas burners heat

the pan right away and change heat settings right away. When you turn the control off, cooking stops right away.

Radiant Electric coils Heat travels to the glass surface and then to the cookware, so pans must be flat on (Glass Ceramic) under a glass- the bottom for good cooking results. The glass cooktop stays hot enough to Cooktop ceramic cooktop. continue cooking after it is turned off. Remove the pan from the surface unit if

you want cooking to stop.

Induction High frequency Pans must be made of ferrous metals (metal that attracts a magnet). Heat is

induction coils produced by a magnetic circuit between the coil and the pan. Heats up right away under a glass and changes heat settings right away, like a gas cooktop. After turning the control surface. off, the glass cooktop is hot from the heat of the pan, but cooking stops right away.

Electric Coil Flattened metal Heats by direct contact with the pan and by heating the air under the pan. For best

tubing containing cooking results, use good quality pans. Electric coils are more forgiving of electric resistance warped pans than radiant or solid disks. Heats up quickly but does not change wire suspended heat settings as quickly as gas or induction. Electric coils stay hot enough to over a drip pan. continue cooking for a short time after they are turned off.

Solid Disk Solid cast iron Heats by direct contact with the pan, so pans must be flat on the bottom for good

disk sealed to the cooking results. Heats up and cools down more slowly than electric coils. The cooktop surface. disk stays hot enough to continue cooking after it is turned off. Remove the pan

from the solid disk if you want the cooking to stop.

SURFACE COOKING

Surface Burner Controls

The knobs that turn the surface burners on and off are located on the control panel in front of the burners.

The two knobs on the left control the left front and left rear burners. The two knobs on the right control the right front and right rear burners.

Before Lighting a Burner

• If drip pans are supplied with your range, they should be used at all times.

• Make sure all grates on the range are in place before using any burner.

On ranges with sealed burners:

• The smaller burner (right rear position) will give the best simmer results. It offers precise cooking performance for delicate foods, such as sauces or foods which need to cook over low heat for a long time. It can be turned down to a very low simmer setting.

• The right front burner is higher powered than the others and will bring liquids to a boil quicker.

To Light a Surface Burner

Push the control knob in and turn it to LITE. You

will hear a little ‘‘clicking’’ noise—the sound of the electric spark igniting the burner.

Turn the knob to adjust the flame size. If the knob stays at LITE, it will continue to click.

When one burner is turned to LITE, all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

In case of a power failure, you can light the surface burners on your range with a match. Hold a lighted match to the burner, then turn the knob to the LITE position. Use extreme caution when

lighting burners this way.

Surface burners in use when an electrical power failure occurs will continue to operate normally.

How to Select Flame Size

Watch the flame, not the knob, as you reduce heat. The flame size on a gas burner should match the

cookware you are using. FOR SAFE HANDLING OF COOKWARE NEVER

LET THE FLAME EXTEND UP THE SIDES OF THE COOKWARE.

Any flame larger than the bottom of the cookware is wasted and only serves to heat the handle.

(continued next page)

Cooktop Comparison Surface Cooking

After Lighting a Burner

• Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

• Be sure the burners and grates are cool before you place your hand, a pot holder, cleaning cloths or other materials on them.

SURFACE COOKING

(continued)

Top-of-Range Cookware

Aluminum: Medium-weight cookware is

recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with tight-fitting lids when cooking with minimum amounts of water.

Cast-Iron: If heated slowly, most skillets will give satisfactory results.

Enamelware: Under some conditions, the enamel of some cookware may melt. Follow cookware manufacturer’s recommendations for cooking methods.

Glass: There are two types of glass cookware—those for oven use only and those for top-of-range cooking (saucepans, coffee and teapots). Glass conducts heat very slowly.

Heatproof Glass Ceramic: Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly . Check cookware manufacturer’s directions to be sure it can be used on gas ranges.

Stainless Steel: This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution. Combination metal skillets usually work satisfactorily if they are used with medium heat as the manufacturer recommends.

Stove Top Grills

(on models with sealed burners)

Wok This Way

(on models with sealed burners)

Do not use stove top grills on your sealed gas burners. If you use the stove top grill on the sealed gas burner it will cause incomplete combustion and can result in exposure to carbon monoxide levels above allowable current standards. This can be hazardous to your health.

We recommend that you use a flat-bottomed wok. They are available at your local retail store.

A traditional round bottom wok can be used with Wok Holder accessory, model JXWK which can be ordered from your appliance dealer. The Wok Holder fits on top of the range grate to provide support and proper air circulation for traditional round bottom woks only. Do not use flat bottomed woks with the Wok Holder.

Do not use a wok on any other support ring.

Placing the ring over the burner grate may cause the burner to work improperly, resulting in carbon monoxide levels above allowable current standards. This could be dangerous to your health. Do not try to use such woks without the ring unless you are using the Wok Holder. You could be seriously burned if the wok tipped over.

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

DELAY OVEN ON CLEAN STOP TIMER

BAKE CLEAN

BROIL LOCK

O N

TIMER

ON/OFF

STOP

TIME

COOK

TIME

AUTO SELF

CLEAN

BROIL

HI/LO

BAKE

CLOCK

CLEAR

OFF

TIME

–

OVEN

Surface Cooking Features of Your Oven Control

FEATURES OF YOUR OVEN CONTROL

(appearance may vary)

1. BAKE. Press this pad to select the bake function.

2. BROIL or BROIL HI/LO. Press this pad to

select the broil function.

3. PROGRAM STATUS. Words light up in the

display to indicate what is in the time display. Programmed information can be displayed at any

time by touching the pad of the operation you want to see. For example, you can display the current time of day while the timer is counting down by pressing the CLOCK pad.

4. TIME DISPLAY. Shows the time of day, the

times set for the timer or automatic oven operation.

5. OVEN TEMPERATURE AND BROIL DISPLAY. Shows the oven temperature or the

broil setting selected.

6. FUNCTION INDICATORS. Lights up to show whether oven is in bake, broil or self-clean mode.

7. COOK TIME. Press this pad for Timed Baking operations.

8. STOP TIME. Use this pad along with the COOK TIME or CLEAN pad to set the oven to start automatically at a time you select.

9. AUTO CLEAN or AUTO SELF CLEAN.

Press this pad to select self-cleaning function. See the Operating the Self-Cleaning Oven section.

10. CLEAR/OFF. Press this pad to cancel all oven

operations except clock and timer.

11. INCREASE (+). Short taps to this pad increase

the time or temperature by small amounts. Press and hold the pad to increase the time or temperature by larger amounts.

12. DECREASE (–). Short taps to this pad decrease

the time or temperature by small amounts. Press and hold the pad to decrease the time or temperature by larger amounts.

13. CLOCK. To set the clock, first press the CLOCK

pad. Then press the + or – pad to change the time of day. Press the CLOCK pad to start.

14. TIMER ON/OFF. Press this pad to select timer

function. The timer does not control oven operations. The timer can time up to 9 hours and 55 minutes.

To set the timer, first press the TIMER ON/OFF pad. Then press the + or – pad to change the time.

To cancel the timer, press and hold the TIMER ON/OFF pad until the word “TIMER” disappears from the display.

If “F– and a number” flash in the display and the oven control signals, this indicates function error code. If the function error code appears

during the self-cleaning cycle, check the oven door latch. The latch handle may have been moved, even if only slightly, from the latched position. Make sure the latch is moved to the right as far as it will go. Press the CLEAR/OFF pad. Allow the oven to cool for one hour. Put oven back into operation. If the function error code repeats, disconnect power to the range and call for service.

29781314

2 3

4 5 7 8

1413

1211109

4 5 6

BROIL

CLEAR

OFF

DELAY OVEN ON CLEAN STOP TIMER

BAKE

AUTO

CLEAN

OVEN

BAKE CLEAN

–

BROIL LOCK

COOK

O N

TIME

CLOCK

TIME

STOP TIME

TIMER

ON/OFF

OVEN CONTROL, CLOCK AND TIMER

Clock To Set the Clock

The clock must be set for the automatic oven timing functions to work properly . The time of day cannot be changed during a Timed Baking or Self-Cleaning cycle.

1. Press the CLOCK pad.

2. Press the + or – pad to set the time of day.

3. Press the CLOCK pad to start.

CLOCK

Timer To Set the Timer

The timer is a minute timer; it does not control oven operations. The maximum setting on the timer is 9 hours and 55 minutes.

1. Press the TIMER

ON/OFF pad.

2. Press the + or –

pad to set the amount of time on the timer.

The timer will start automatically within a few seconds of releasing the pad. The timer, as you are setting it, will display seconds until 1 minute is reached. Then it will display minutes and seconds until 60 minutes is reached.

After 60 minutes, it will display hours (“HR” now appears in display) and minutes until the maximum time of 9 hours and 55 minutes is reached.

–

TIMER

ON/OFF

To Reset the Timer To Cancel the Timer

If “TIMER” is displayed, press the + or – pad until desired time is reached.

If “TIMER” is not displayed, press the TIMER ON/OFF pad first, then follow the instructions above to set the timer.

Press and hold the TIMER ON/OFF pad until the word “TIMER” disappears from the display.

End of Cycle Tone Display Messages

The end of cycle tone is a series of three beeps followed by one beep every six seconds. If you would like to remove the signal that beeps every six seconds, press and hold the CLEAR/OFF pad for 10 seconds.

To return the signal that beeps every six seconds, press and hold the CLEAR/OFF pad for 10 seconds.

If “door” appears in the display, the door is open. Close the door. If “LOCK” appears in the display, the oven door is in the locked position. Bake, Broil and Cook Time cannot be set if the door is in the locked position.

Power Outage

After a power outage, when power is restored, the display will flash and time shown will no longer be correct—for example, after a 5-minute power interruption the clock will be 5 minutes slow.

All other functions that were in operation when the power went out will have to be programmed again.

USING YOUR OVEN

Before Using Your Oven Electric Ignition

Be sure you understand how to set the controls properly. Practice removing and replacing the shelves while the oven is cool. Read the information and tips on the following pages. Keep this guide handy where you can refer to it, especially during the first weeks of using your new range.

Power Outage

CAUTION: Do not make any attempt to operate

the electric ignition oven during an electrical power failure.

The oven or broiler cannot be lit during a power failure. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power failure occurs, the oven burner shuts off and cannot be re-lit until power is restored. This is because the flow of gas is automatically stopped and will not resume when power is restored until the glow bar has reached operating temperature.

Oven Moisture Fluorescent Night Light (on some models)

As your oven heats up, the temperature change of the air in the oven may cause water droplets to form on the door glass. These droplets are harmless and will evaporate as the oven continues to heat up.

Use the switch on the upper control panel to turn the light on and off.

Oven Light Automatic Oven Shut Off

Use the switch on the lower control panel to turn the light on or off.

As a safety feature, this oven will automatically shut itself off if it has been left on for more than 12 hours.

(continued next page)

Oven Control, Clock and Timer Using Your Oven

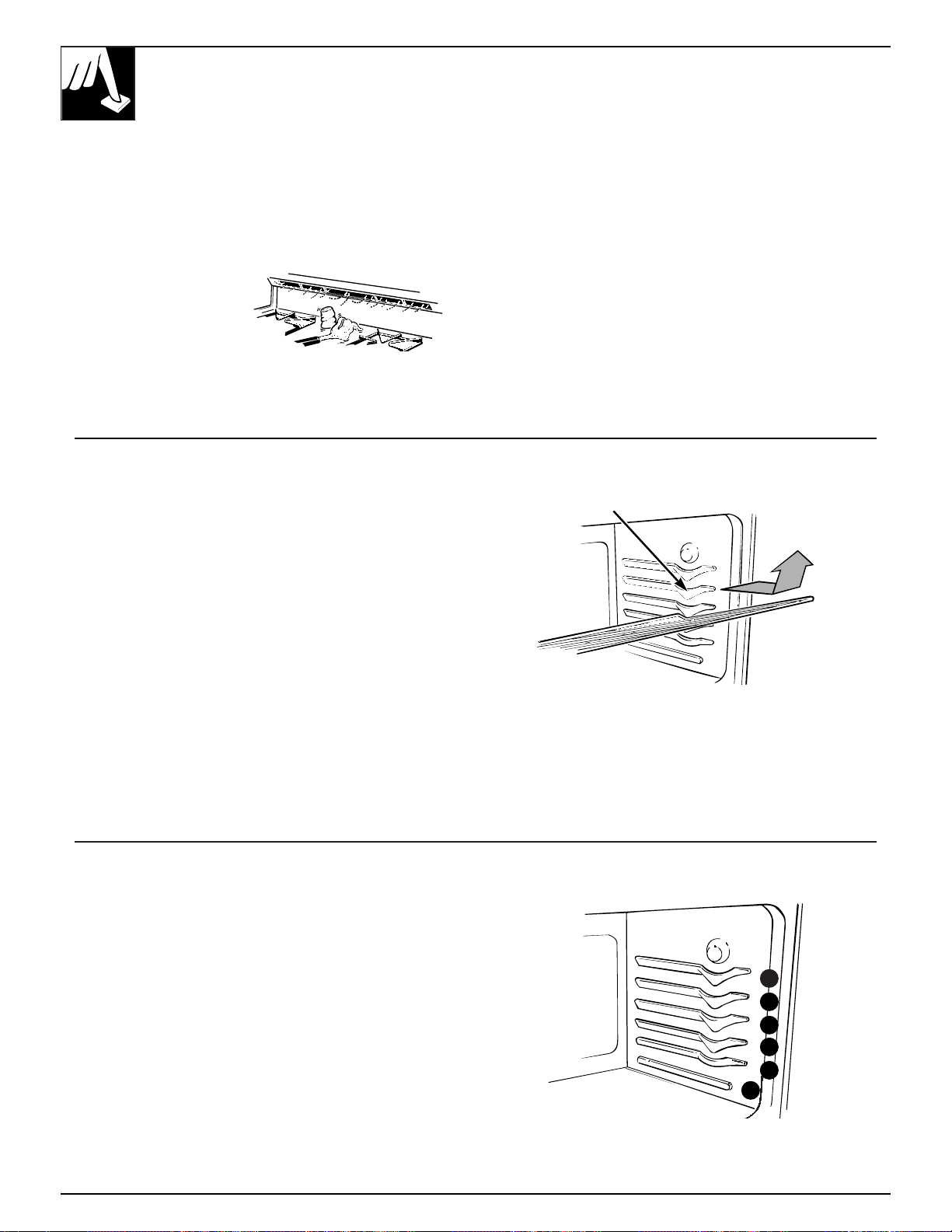

USING YOUR OVEN

(continued)

The oven is vented through duct openings at the rear of the cooktop. See the Features section. Do not block these openings when cooking in the oven—it is important that the flow of hot air from the oven and fresh air to the oven burners be uninterrupted.

• The vent openings and nearby surfaces may become hot. Do not touch them.

• Do not leave plastic items on the cooktop— they may melt if left too close to the vent.

• Handles of pots and pans on the cooktop may become hot if left too close to the vent.

• Metal items will become very hot if they are left on the cooktop and could cause burns.

• Do not leave any items on the cooktop. The hot air

from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

Vent appearance and location vary

Oven Vents

Shelf Positions

The oven has five shelf supports for baking, roasting and broiling identified in this illustration as A (bottom), B, C, D and E (top). It also has a special low shelf position (R) for roasting extra large items, such as a large turkey—the shelf is not designed to slide out at this position. Shelf positions for cooking are suggested in the Baking, Roasting and Broiling sections.

Oven Shelves

The shelves are designed with stop-locks so when placed correctly on the shelf supports, they will stop before coming completely out of the oven and will not tilt when you are removing food from them or placing food on them.

When placing cookware on a shelf, pull the shelf out to the bump on the shelf support. Place the cookware on the shelf, then slide the shelf back into the oven. This will eliminate reaching into the hot oven.

To remove a shelf from the oven, pull it toward you, tilt the front end upward and pull the shelf out.

To replace, place the shelf on the shelf support with the stop-locks (curved extension of the shelf) facing up and toward the rear of the oven. Tilt up the front and push the shelf toward the back of the oven until it goes past the bump on the shelf support. Then lower the front of the shelf and push it all the way back.

Bump

BAKING

Do not lock the oven door with the latch during baking. The latch is used for self-cleaning only.

Your oven temperature is controlled using the latest technology oven control systems. It is recommended that you operate your new oven for a number of weeks to become familiar with its performance.

If you think an adjustment is necessary, see the Adjust the Oven Thermostat section. It gives easy

Do It

Yourself instructions on how to adjust the thermostat.

How to Set Your Range for Baking

To avoid possible burns, place shelves in the correct

position before you turn the oven on.

1. Press the BAKE pad.

2. Press the + or – pad until the desired temperature

is displayed.

The oven will start automatically . The word “ON” and “100°” will be displayed. As the oven heats up, the display will show the changing temperature. When the oven reaches the temperature you set, a tone will sound.

3. Press the CLEAR/OFF pad when baking is finished

and then remove the food from the oven.

To change the oven temperature during BAKE cycle, press the BAKE pad and then the + or – pad

to get the new temperature.

Oven Shelves

Arrange the oven shelf or shelves in the desired locations while the oven is cool. The correct shelf position depends on the kind of food and the browning desired. As a general rule, place most foods in the middle of the oven, on either shelf position B or C. See the chart for suggested shelf positions.

(continued next page)

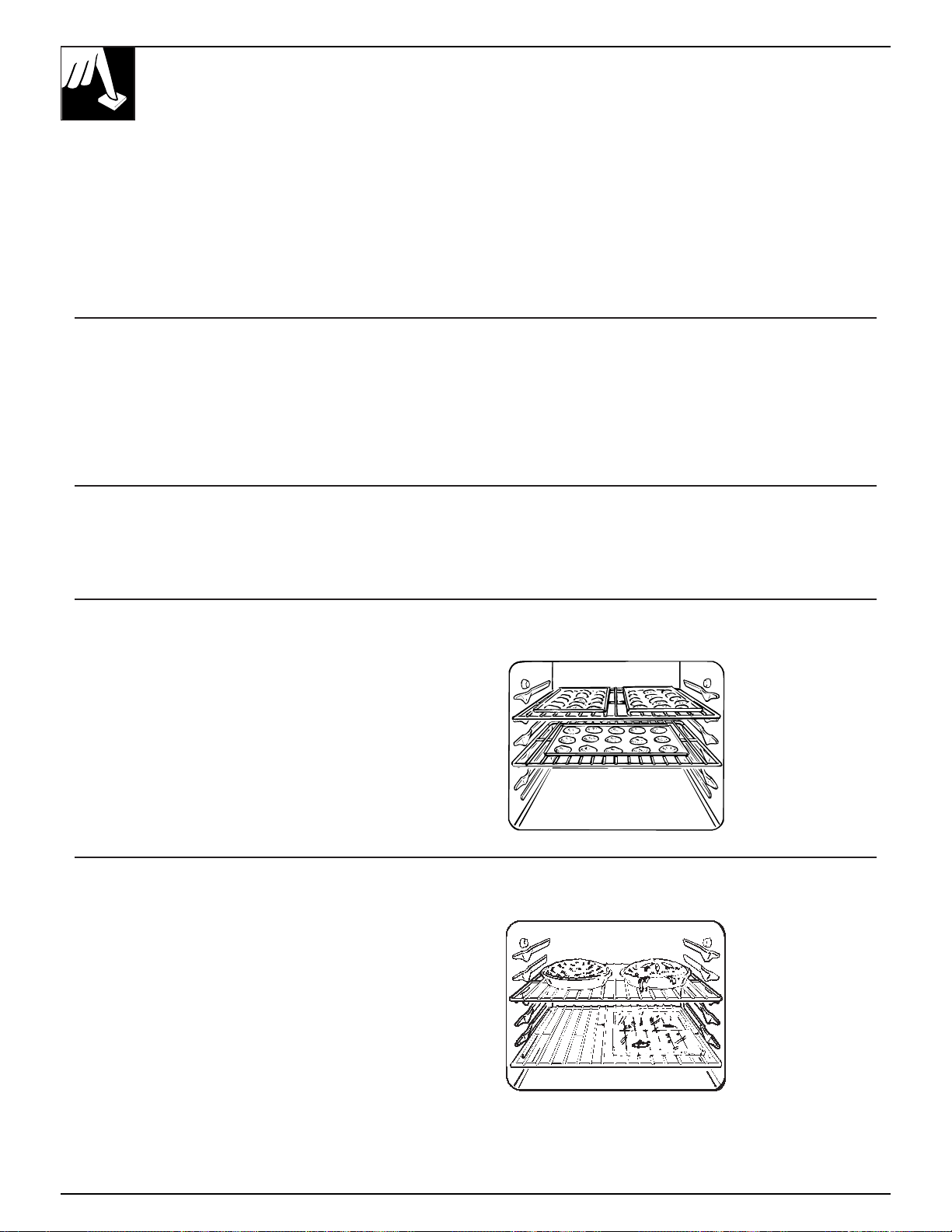

Type of Food Shelf Position

Angel food cake A Biscuits or muffins B or C Cookies or cupcakes B or C Brownies B or C Layer cakes B or C Bundt or pound cakes A or B Pies or pie shells B or C Frozen pies A (on cookie sheet) Casseroles B or C Roasting B or R

Using Your Oven Baking

BAKING

(continued)

Preheating

Preheat the oven if the recipe calls for it. Preheat means bringing the oven up to the specified temperature before putting the food in the oven. To preheat, set the oven at the correct temperature— selecting a higher temperature does not shorten preheat time.

Preheating is necessary for good results when baking cakes, cookies, pastry and breads. For most casseroles and roasts, preheating is not necessary. For ovens without a preheat indicator light or tone, preheat 10 minutes. After the oven is preheated place the food in the oven as quickly as possible to prevent heat from escaping.

Pan Placement

For even cooking and proper browning, there must be enough room for air circulation in the oven. Baking results will be better if baking pans are centered as much as possible rather than being placed to the front or to the back of the oven.

Pans should not touch each other or the walls of the oven. Allow 2 to 4 cm (1 to 1

⁄2″) space between pans as well as from the back of the oven, the door and the sides. If you need to use two shelves, stagger the pans so one is not directly above the other.

Baking Guides

When using prepared baking mixes, follow package recipe or instructions for best baking results.

When baking cookies, flat cookie sheets (without sides) produce better-looking cookies. Cookies baked in a jelly roll pan (short sides all around) may have darker edges and pale or light browning may occur.

Cookies can be baked on several shelves at the same time but browning may be uneven because of reduced air circulation.

Do not use a cookie sheet so large that it touches the walls or the door of the oven.

Aluminum Foil

Never entirely cover a shelf with aluminum foil.

This will disturb the heat circulation and result in poor baking. A smaller sheet of foil may be used to catch a spillover by placing it on a lower shelf several centimeters below the food.

Do not put aluminum foil on the oven bottom.

Baking

Pies

For best results, bake pies in dark, rough or dull pans to produce a browner, crisper crust. Stagger the pies for most even browning. Frozen pies in foil pans should be placed on an aluminum cookie sheet for baking since the shiny foil pan reflects heat away from the pie crust; the cookie sheet helps retain it.

Cakes

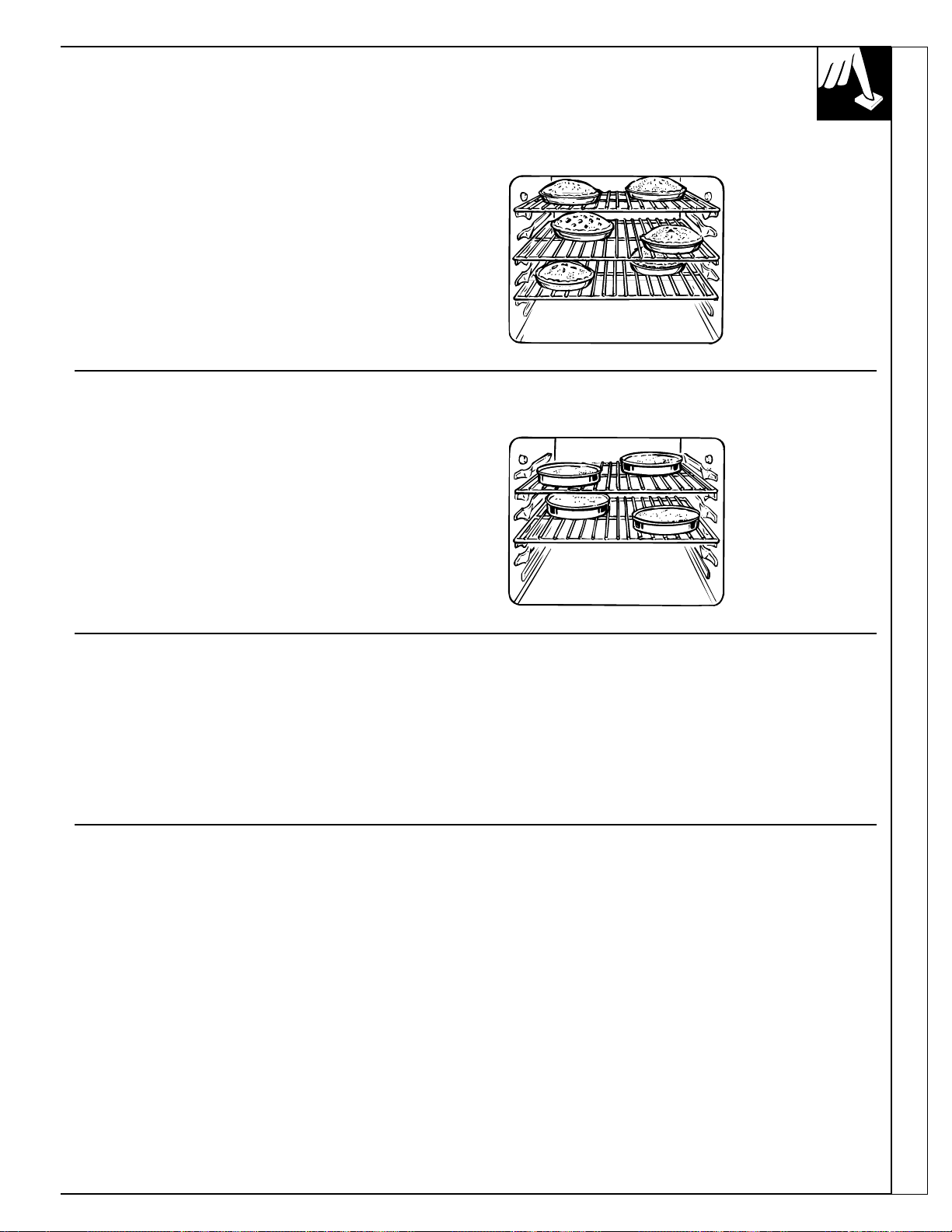

For best browning when baking several 20.3 cm or

22.9 cm (8″ or 9″) cakes, stagger them so one pan is not directly above another. Warped or bent pans will cause uneven baking results and poorly shaped products. A cake baked in a pan larger than the recipe recommends will usually be crisper, thinner and drier than it should be. If baked in a pan smaller than recommended, it may be undercooked and batter may overflow.

Baking Pans

Use the proper baking pan. The type of finish on the pan determines the amount of browning that will occur.

• Dark, rough or dull pans absorb heat resulting in a browner, crisper crust. Use this type for pies.

• Shiny, bright and smooth pans reflect heat, resulting in a lighter, more delicate browning. Cakes and cookies require this type of pan.

• Glass baking dishes also absorb heat. When baking in glass baking dishes, the temperature may need to be reduced by 12°C. (25°F.).

Don’t Peek

Set the timer for the estimated cooking time and do not open the door to look at your food. Most recipes provide minimum and maximum baking times such as “bake 30-40 minutes.”

DO NOT open the door to check until the minimum time. Opening the oven door frequently during cooking allows heat to escape and makes baking times longer. Your baking results may also be affected.

TIMED BAKING

How to Time Bake

Do not lock the oven door with the latch during Timed Baking. The latch is used for self-cleaning only.

The oven control allows you to turn the oven on or off automatically at specific times that you set.

NOTE: Before beginning make sure the clock shows the correct time of day.

To set the clock, first press the CLOCK pad. Press the + or – pad until the correct time of day is displayed. Press the CLOCK pad to start.

How to Set Immediate Start and Automatic Stop

To avoid possible burns, place the shelves in the

correct position before you turn the oven on. The oven will turn on immediately and cook for a

selected length of time. At the end of Cook Time, the oven will turn off automatically.

1. Press the COOK TIME pad.

2. Press the + pad until the desired length of baking

time appears in the display.

3. Press the BAKE pad.

4. Press the + or – pad until the desired temperature

is displayed. An attention tone will occur if step 3 is not done.

The oven will start automatically. The word “ON” and “100°” will be displayed. The Cook Time will begin to count down. As the oven heats up, the display will show the changing temperature. When the oven reaches the temperature you set, a tone will sound. The oven will continue to cook for the programmed amount of time, then shut off automatically.

5. Press the CLEAR/OFF pad to clear

the display if necessary. Remove the food from the oven. Remember, even though the oven shuts off automatically, foods continue cooking after the controls are off.

NOTE: Foods that spoil easily, such as milk, eggs, fish, stuffings, poultry and pork, should not be allowed to sit for more than one hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

CLEAR

OFF

COOK

TIME

How to Set Delay Start and Automatic Stop

To avoid possible burns, place the shelves in the

correct position before you turn the oven on. You can set the oven control to delay-start the oven,

cook for a specific length of time and then turn off automatically.

For example: Let’s say it’s 2:00 and dinner time is shortly after 7:00. The recipe suggests 3 hours baking time at 163°C. (325°F.). Here’s how:

1. Press the COOK TIME pad.

2. For 3 hours of cooking time, press the + pad until

“3:00” appears in the display.

3. Press the STOP TIME pad.

“5:00” appears in the display and “STOP TIME” flashes. The control automatically sets the Stop Time by adding the Cook Time to the time of day. In this example, the time of day is 2:00 and the Cook Time is 3 hours. Adding 3 hours to the time of day equals 5:00.

4. Change the Stop T ime from 5:00 to 7:00 by pressing

the + pad until “7:00” appears in the display.

5. Press the BAKE pad.

6. Press the + or – pad until “325°” is displayed.

At 4:00, the oven will turn on automatically. The word “ON” and “100°” will be displayed. The Cook Time will begin to count down. As the oven heats up, the display will show the changing temperature. The oven will continue to cook for the programmed 3 hours and shut off automatically at 7:00.

7. Press the CLEAR/OFF pad to clear the display

if necessary. Remove the food from the oven. Remember, even though the oven shuts off automatically, foods continue cooking after the controls are off.

NOTE:

• The low temperature zone of this range [between 65°C. and 93°C. (150°F. and 200°F.)] is available to keep hot cooked foods warm. Food kept in the oven longer than two hours at these low temperatures may spoil.

• Foods that spoil easily, such as milk, eggs, fish, stuffings, poultry and pork, should not be allowed to sit for more than one hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure the oven light is off because heat from the bulb will speed harmful bacteria growth.

BAKE

STOP

TIME

COOK

TIME

Quick Reminder:

1. Press the COOK TIME pad.

2. Press the + or – pad to set the length of

Cooking Time.

3. Press the STOP TIME pad.

4. Press the + or – pad to set the Stop Time.

5. Press the BAKE pad.

6. Press the + or – pad until the desired

temperature appears in the display.

Timed Baking

ADJUST THE OVEN THERMOSTA T—

DO IT YOURSELF!

You may find that your new oven cooks differently than the one it replaced. We recommend that you

use your new oven for a few weeks to become more familiar with it, following the times given in your recipes as a guide.

If you think your new oven is too hot or too cold, you can adjust the thermostat yourself. If you think

it is too hot, adjust the thermostat to make it cooler. If you think it is too cool, adjust the thermostat to make it hotter.

We do not recommend the use of inexpensive thermometers, such as those found in grocery stores,

to check the temperature setting of your new oven. These thermometers may vary 11–22°C. (20–40°F.).

To Adjust the Thermostat:

1. Press the BAKE pad.

2. Select an oven temperature between 260°C. and

287°C. (500°F. and 550°F.).

3. Immediately, before the BAKE indicator stops

flashing, press and hold the BAKE pad for about 4 seconds. The display will change to the oven adjustment display.

4. The oven temperature can be adjusted up to

(+) 20°C. (35°F.) hotter or (–) 20°C. (35°F.) cooler. Use the + or – pads to select the desired change in the display.

5. After you have made the adjustment,

press the CLEAR/OFF pad to go back to the time of day display. Use your oven as you would normally.

NOTE: This adjustment will not affect the broiling or self-cleaning temperatures. It will be retained in memory after a power failure.

CLEAR

OFF

BAKE

ROASTING

Do not lock the oven door with the door latch during roasting. This is used for self-cleaning only.

Roasting is cooking by dry heat. Tender meat or poultry can be roasted uncovered in your oven. Roasting temperatures, which should

be low and

steady, keep spattering to a minimum. The oven has a

special low shelf (R) position just above the oven bottom. Use it when extra cooking space is needed, for example, when roasting a large turkey. The shelf is not designed to slide out at this position.

Roasting is really a baking procedure used for meats. Therefore, oven controls are set for Baking or Timed Baking. (You may hear a slight clicking sound, indicating the oven is working properly.) Timed Baking will turn the oven on and off automatically.

Most meats continue to cook slightly while standing, after being removed from the oven. The standing time recommended for roasts is 10 to 20 minutes. This allows roasts to firm up and makes them easier to carve. The internal temperature will rise about 3°C. to 8°C. (5° to 10°F.); to compensate for the temperature rise, if desired, remove the roast from oven sooner [3°C. to 8°C. (5° to 10°F.) less than the temperature in the Roasting Guide].

Remember that food will continue to cook in the hot oven and therefore should be removed when the desired internal temperature has been reached.

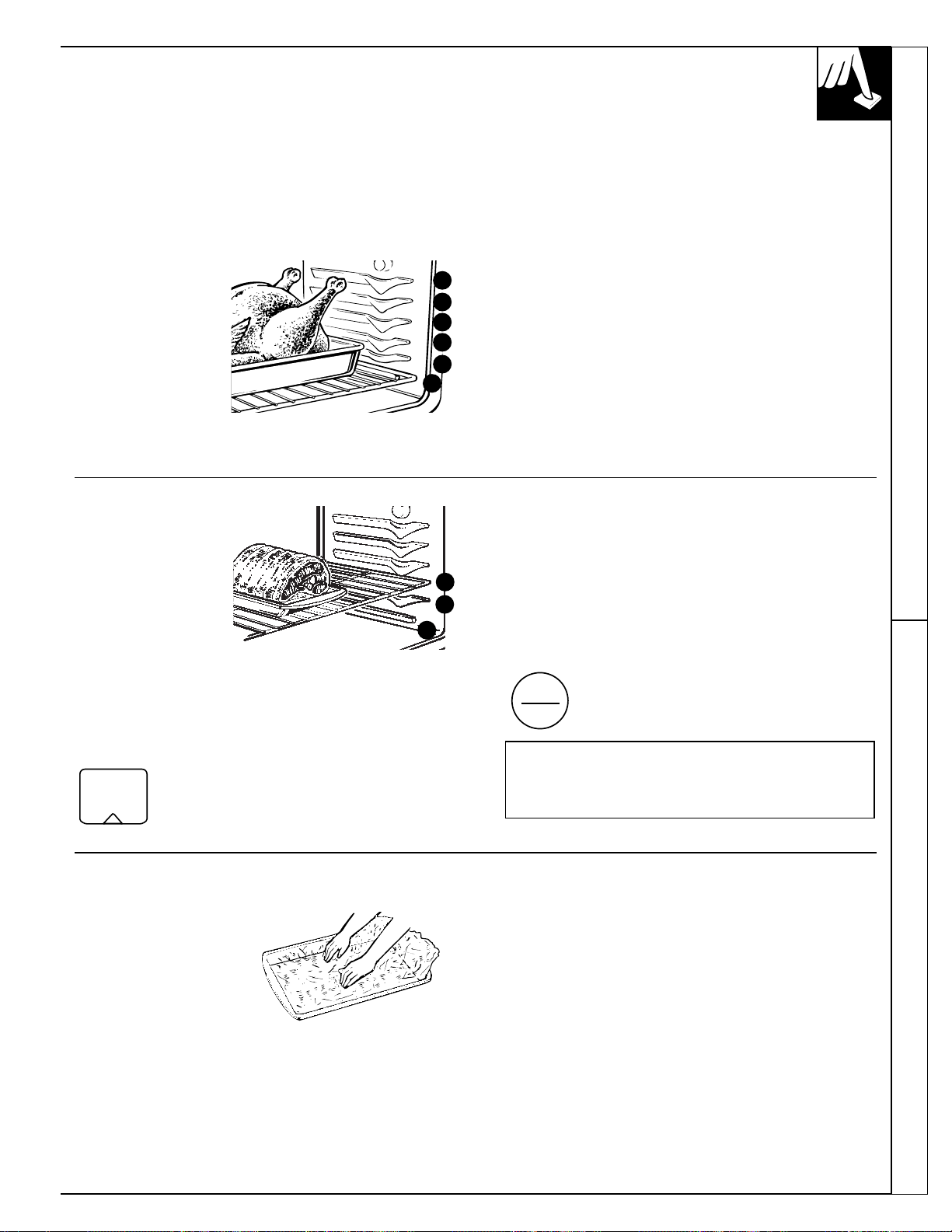

1. Position the oven

at shelf (B) position for small size roast [1.3 to

2.3 kg (3 to 5 lbs.)] and at (R) position for larger roasts.

2. Check the weight of the meat. Place the meat fat-side-

up, or poultry breast-side-up, on roasting grid in a shallow pan. The melting fat will baste the meat. Select a pan as close to the size of the meat as possible. (The broiler pan with grid is a good pan for this.)

3. Press the BAKE pad.

4. Press the + or – pad until the desired temperature

is displayed.

The oven will start automatically. The word “ON” and “100°” will be displayed. As the oven heats up, the display will show the changing temperature. When the oven reaches the temperature you set, a tone will sound.

5. Press the CLEAR/OFF pad when

roasting is finished and then remove the food from the oven.

To change the oven temperature during the roasting cycle, press the BAKE pad and then

the + or – pad to get the new temperature.

Use of Aluminum Foil Dual Shelf Cooking

You can use aluminum foil to line the broiler pan. This makes clean-up easier when using the pan for marinating, cooking with fruits, cooking heavily cured meats or basting food during cooking. Press the foil tightly around the inside of the pan.

This allows more than one food to be cooked at the same time. For example: while roasting a 10 kg (20 lb.) turkey on shelf (R) a second shelf may be added on position D so that scalloped potatoes can be cooked at the same time. Calculate the total cooking time to enable both dishes to complete cooking at the same time. Allow 15–20 minutes of additional cooking time.

Adjust the Oven Thermostat Roasting

CLEAR

OFF

BAKE

ROASTING

(continued)

Questions

Q. Is it necessary to check for doneness with a

meat thermometer?

A. Checking the finished internal temperature at the

completion of cooking time is recommended. Temperatures are shown in Roasting Guide. For roasts over 3.6 kg (8 lbs.), check with thermometer at half-hour intervals after half the time has passed.

Q. Why is my roast crumbling when I try to

carve it?

A. Roasts are easier to slice if allowed to cool 10 to

20 minutes after removing from oven. Be sure to cut across the grain of the meat.

Q. Do I need to preheat my oven each time I cook

a roast or poultry? A. It is not necessary to preheat your oven. Q. When buying a roast, are there any special tips

that would help me cook it more evenly? A. Yes. Buy a roast as even in thickness as possible,

or buy rolled roasts.

Q. Can I seal the sides of my foil “tent” when

roasting a turkey? A. Sealing the foil will steam the meat. Leaving

it unsealed allows the air to circulate and brown

the meat.

ROASTING GUIDE

Frozen Roasts

Frozen roasts of beef, pork, lamb, etc., can be started without thawing, but allow 15 to 25 minutes per 450 grams (1 pound) additional time [15 minutes per 450 grams (1 pound) for roasts under 2.3 kg (5 lbs.), more time for larger roasts.]

Make sure poultry is thawed before roasting. Unthawed poultry often does not cook evenly. Some commercial frozen poultry can be cooked successfully without thawing. Follow directions given on package label.

Oven Approximate Roasting Time Internal

Type Temperature Doneness in Minutes per 450 Grams (1 Pound) Temperature °C. Meat 1.4 to 2.3 kg 2.7 to 3.6 kg

(3 to 5 lbs.) (6 to 8 lbs.)

Tender cuts; rib, 163°C. (325°F.) Rare: 24–35 18–25 60°–66° (140°–150°F.)† high quality sirloin tip, Medium: 35–39 25–31 66°–71° (150°–160°F.) rump or top round* Well Done: 39–45 31–33 77°–85° (170°–185°F.)

Lamb leg or 163°C. (325°F.) Rare: 21–25 20–23 60°–66° (140°–150°F.)† bone-in shoulder* Medium: 25–30 24–28 66°–71° (150°–160°F.)

Well Done: 30–35 28–33 77°–85° (170°–185°F.) Veal shoulder, leg or loin* 163°C. (325°F.) Well Done: 35–45 30–40 77°–82° (170°–180°F.) Pork loin, rib or shoulder* 163°C. (325°F.) Well Done: 35–45 30–40 77°–82° (170°–180°F.) Ham, precooked 163°C. (325°F.) To Warm: 18–23 minutes per 450 grams 46°–52° (115°–125°F.)

(1 pound) (any weight)

Poultry 1.4 to 2.3 kg Over 2.3 kg

(3 to 5 lbs.) (5 lbs.)

Chicken or Duck 163°C. (325°F.) Well Done: 35–40 30–35 85°–88° (185°–190°F.) Chicken pieces 177°C. (350°F.) Well Done: 35–40 85°–88° (185°–190°F.)

4.5 to 6.8 kg Over 6.8 kg (10 to 15 lbs.) (15 lbs.) In thigh:

Turkey 163°C. (325°F.) Well Done: 16–22 12–19 85°–88° (185°–190°F.)

*For boneless rolled roasts over 15 cm (6″) thick, add 5 to 10 minutes per 450 grams (1 pound) to times given above. †The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 60°C. (140°F.)

means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

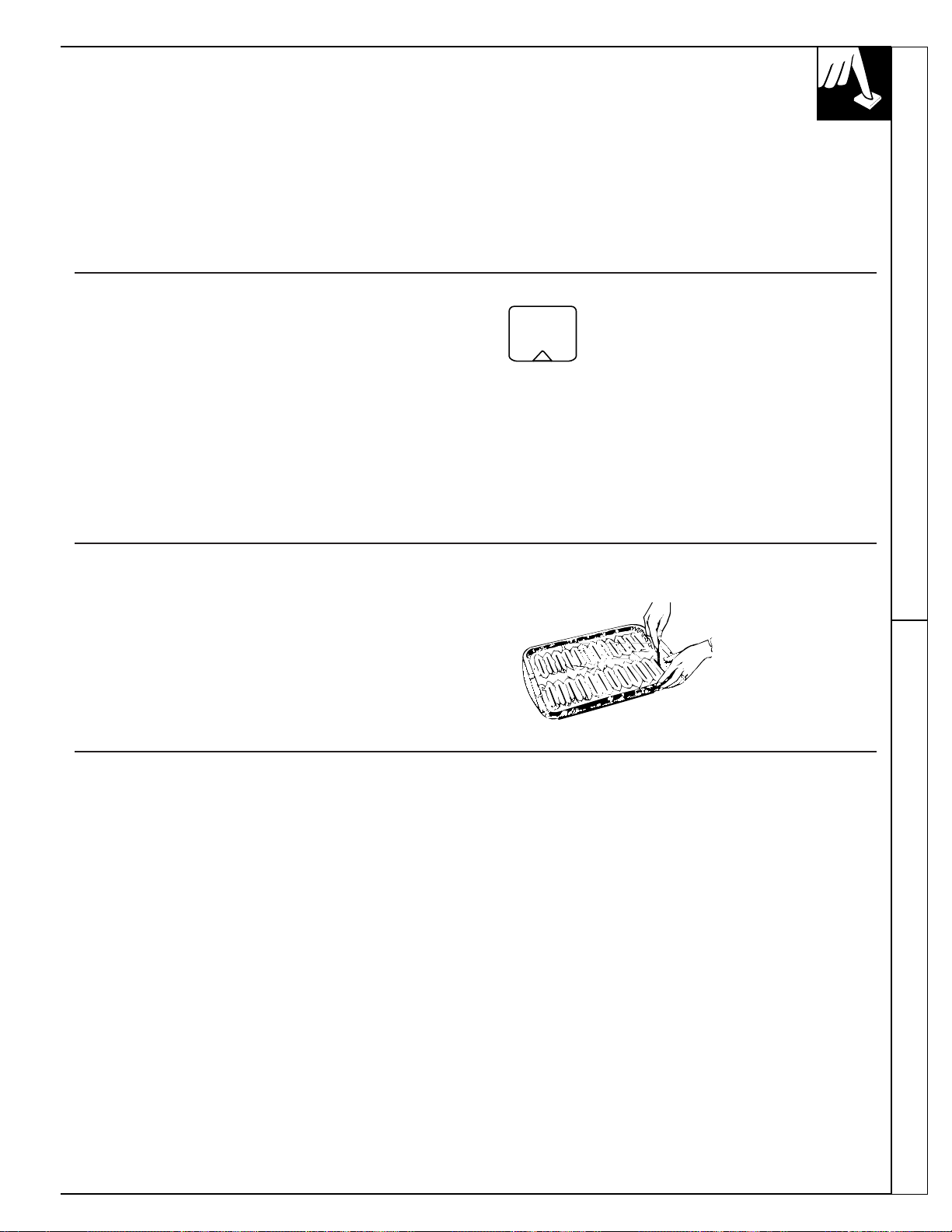

BROILING

Do not lock the oven door with the latch during broiling. The latch is used for self-cleaning only.

Broiling is cooking food by direct heat from above the food. Most fish and tender cuts of meat can be broiled. Follow these directions to keep spattering and smoking to a minimum.

The oven door must be closed during broiling.

Turn the food only once during broiling. Time the foods for the first side according to the Broiling Guide. Turn the food, then use the times given for the second side as a guide to the preferred doneness.

Roasting Guide Broiling

1. If the meat has fat or gristle around the edge, cut

vertical slashes through both about 5 cm (2″) apart. If desired, the fat may be trimmed, leaving layer about 3 mm (1/8″) thick.

2. Place the meat on the broiler grid on the broiler pan

which comes with the range. Always use the grid so the fat drips into the broiler pan; otherwise the juices may become hot enough to catch on fire.

3. Position the shelf on the recommended shelf

position as suggested in the Broiling Guide.

4. Close the oven door.

5. Press the BROIL pad.

6. Press the + pad once for LO Broil [232°C. (450°F)] or

press the + pad twice for HI Broil [287°C. (550°F)]. T o change from HI Broil to LO Broil, press the

BROIL pad and then the – pad once.

7. When broiling is completed, press the CLEAR/OFF

pad. Serve the food immediately, and leave the pan outside the oven to cool during the meal for easiest cleaning.

BROIL

Use of Aluminum Foil

You can use aluminum foil to line your broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.

Without the slits, the foil will prevent fat and meat juices from draining to the broiler pan. The juices could become hot enough to catch on fire. If you do not cut the slits, you are frying, not broiling.

Questions and Answers

Q. When broiling, is it necessary to always use a

grid in the pan?

A. Yes. Using the grid suspends the meat over the

pan. As the meat cooks, the juices fall into the pan, thus keeping meat drier. Juices are protected by the grid and stay cooler, thus preventing excessive spatter and smoking.

Q. Should I salt the meat before broiling? A. No. Salt draws out the juices and allows them to

evaporate. Always salt after cooking. Turn the meat with tongs; piercing the meat with a fork also allows the juices to escape. When broiling poultry or fish, brush each side often with butter.

Q. Why are my meats not turning out as brown as

they should?

A. Check to see if you are using the recommended

shelf position. Broil for the longest period of time indicated in the Broiling Guide. Turn the food only once during broiling.

BROILING GUIDE

The oven door must be closed during broiling.

• Always use the broiler pan and grid that comes with your range. It is designed to minimize smoking and spattering by trapping juices in the shielded lower part of the pan.

• For steaks and chops, slash the fat evenly around the outside edges of the meat. To slash, cut crosswise through the outer fat surface just to the edge of the meat. Use tongs to turn the meat over to prevent piercing the meat and losing the juices.

• Use LO Broil to cook foods such as poultry or thick pork chops thoroughly without over browning them.

• If desired, marinate meats or chicken before broiling. Or brush with barbecue sauce last 5 to 10 minutes only .

• When arranging food on the pan, do not let fatty edges hang over the sides because dripping fat could soil the oven.

• The broiler compartment does not need to be preheated. However, for very thin foods, or to increase browning, preheat if desired.

• Frozen steaks can be broiled by positioning the shelf at next lowest shelf position and increasing cooking time given in this guide 1

⁄2times per side.

Quantity and/or Shelf 1st Side 2nd Side

Food Thickness Position Minutes Minutes Comments Bacon 227 g (1/2 lb.) C 4 3 Arrange in single layer.

(about 8 thin slices)

Ground Beef 450 g (1 lb.) (4 patties) D 10–11 7 Space evenly. Up to 8 patties take

13–19 mm (1/2–3/4″) thick about same time.

Beef Steaks

Rare 2.5 cm (1″) thick C 9 7 Steaks less than 2.5 cm (1″) thick will Medium [450–680 g C 12 5–6 cook through before browning. Well Done (1–11⁄2lbs.)] C 13 8–9 Rare 3.8 cm (11⁄2″) thick C 10 6–7 Slash fat. Medium [907 g–1.13kg C 12–15 10–12 Well Done (2–21⁄2lbs.)] C 25 16–18

Chicken 1 whole [907 g–1.13kg B 30–35 15–20 Brush each side with melted butter.

(2–21⁄2lbs.)], split lengthwise Broil skin-side-down first. Bone-in, 4 bone in breasts B 25–30 10–15

Bakery Products

Bread (Toast) or 2 to 4 slices D 2–3 1/2–1 Space evenly. Place English muffins Toaster Pastries 1 pkg. (2) cut-side-up and brush with butter if English Muffins 2, split D 3–5 desired.

Lobster Tails 2 to 4 C 13–16 Do not Cut through back of shell and spread

170–227 g turn over. open. Brush with melted butter before (6–8 oz.) each broiling and after half of time.

Fish 450 g (1-lb.) fillets D 6 6 Handle and turn very carefully.

6–13 mm Brush with lemon butter before broiling (1/4–1/2″) thick and during broiling if desired. Preheat

broiler to increase browning.

Ham Slices 2.5 cm (1″) thick C 8 8 Precooked 13 mm (1/2″) thick D 6 6

Pork Chops 2 [13 mm (1/2″) thick] D 10 8 Slash fat. Well Done 2 [2.5 cm (1″) thick], D 15 8

about 450 g (1 lb.)

Lamb Chops

Medium 2 [2.5 cm (1″) thick], about D 8 4–7 Slash fat. Well Done 284–340 g (10–12 oz.) D 10 10 Medium 2 [3.8 cm (11⁄2″) thick], D 10 4–6 Well Done about 450 g (1 lb.) D 17 12–14

Wieners similar 450 g (1-lb.) pkg. (10) D 6 1–2 If desired, split sausages in half precooked sausages, lengthwise; cut into 13–15 cm bratwurst (5–6″) pieces.

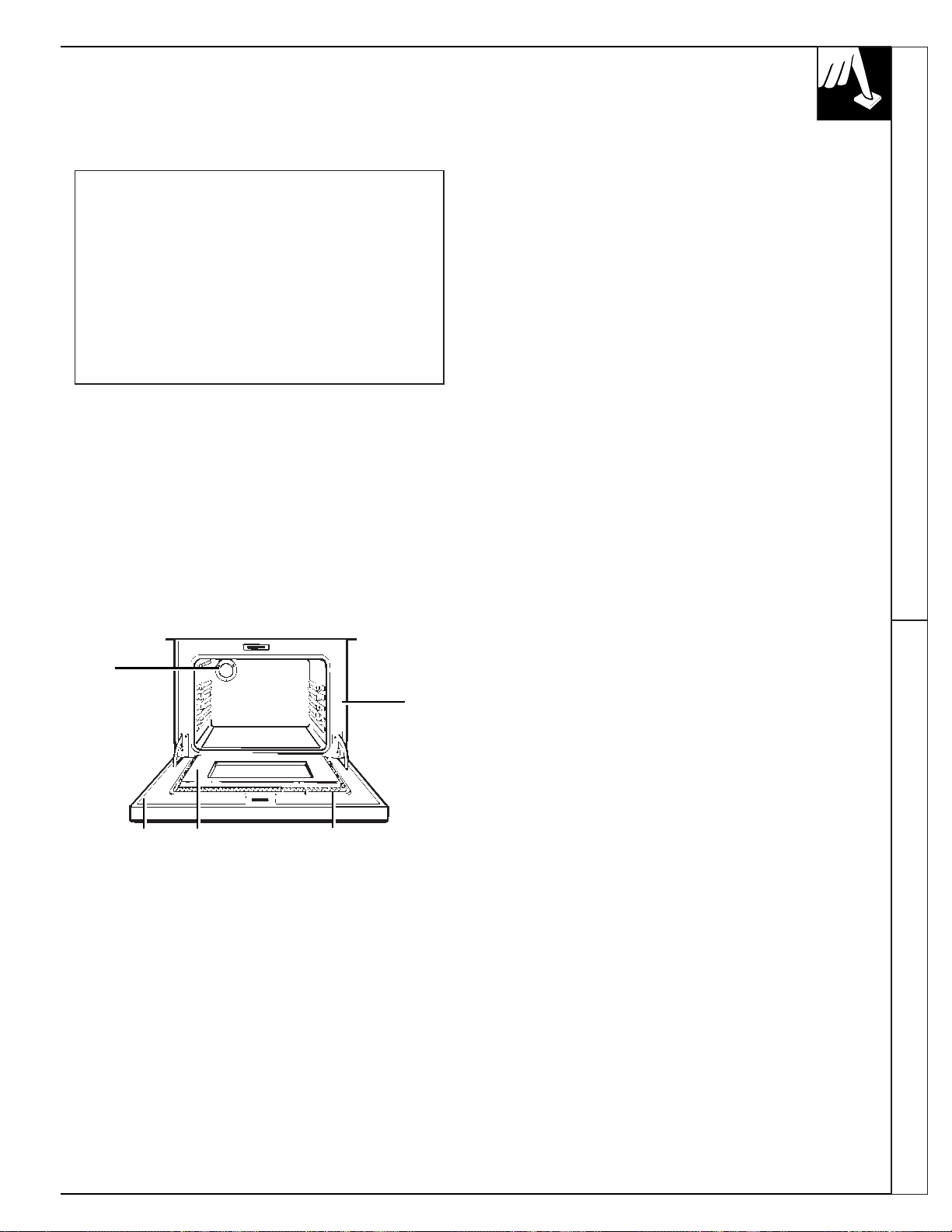

OPERATING THE SELF-CLEANING OVEN

Normal Cleaning Time: 3 hours

Before a Clean Cycle

We recommend venting with an open window or using a ventilation fan or hood during the first self-clean cycle.

1. Remove the broiler pan, broiler grid, all cookware

and any aluminum foil from the oven—they cannot withstand the high cleaning temperatures.

NOTE: Take the shelves out of the oven before you begin the self-clean cycle.

2. Wipe up heavy soil on the oven bottom. If you use soap, rinse thoroughly before self-cleaning

to prevent staining.

Clean spatters or spills on the oven front frame, and the oven door outside the gasket with a dampened cloth. The oven front frame and the oven door outside the gasket do not get cleaned by the self-clean cycle. On these areas use detergent and hot water or a soapfilled steel wool pad. Rinse well with a vinegar and water solution. This will help prevent a brown residue from forming when the oven is heated. Buff these areas with a dry cloth. Do not clean the gasket.

Clean the top, sides and outside front of the oven door with soap and water. Do not use abrasives or oven cleaners.

Make sure the oven light bulb cover is in place. Do not rub or clean the door gasket—

the fiberglass material of the gasket has an extremely low resistance to abrasion. An intact and well-fitting oven door gasket is essential for energy-efficient oven operation and good baking results. If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

4. Close the door and make sure the oven light is off. If

the oven light is not turned off, the life of the bulb will be shortened or it may burn out immediately .

CAUTION: The grates and drip pans (on some models) should never be cleaned in the self-cleaning oven.

Do not use commercial oven cleaners or oven protectors in or near the self-cleaning oven.

A combination of any of these products plus the high clean cycle temperatures may damage the porcelain finish of the oven.

(continued next page)

Quick Reminder:

1. Prepare the oven for cleaning.

2. Close and latch the oven door.

3. Press the AUTO CLEAN or AUTO SELF

CLEAN pad.

4. Press the + or – pad. If you wish to change the preset Clean Time of

3 hours, press the + or – pad until the desired Stop Time appears in the display.

Broiling Guide Operating the Self-Cleaning Oven

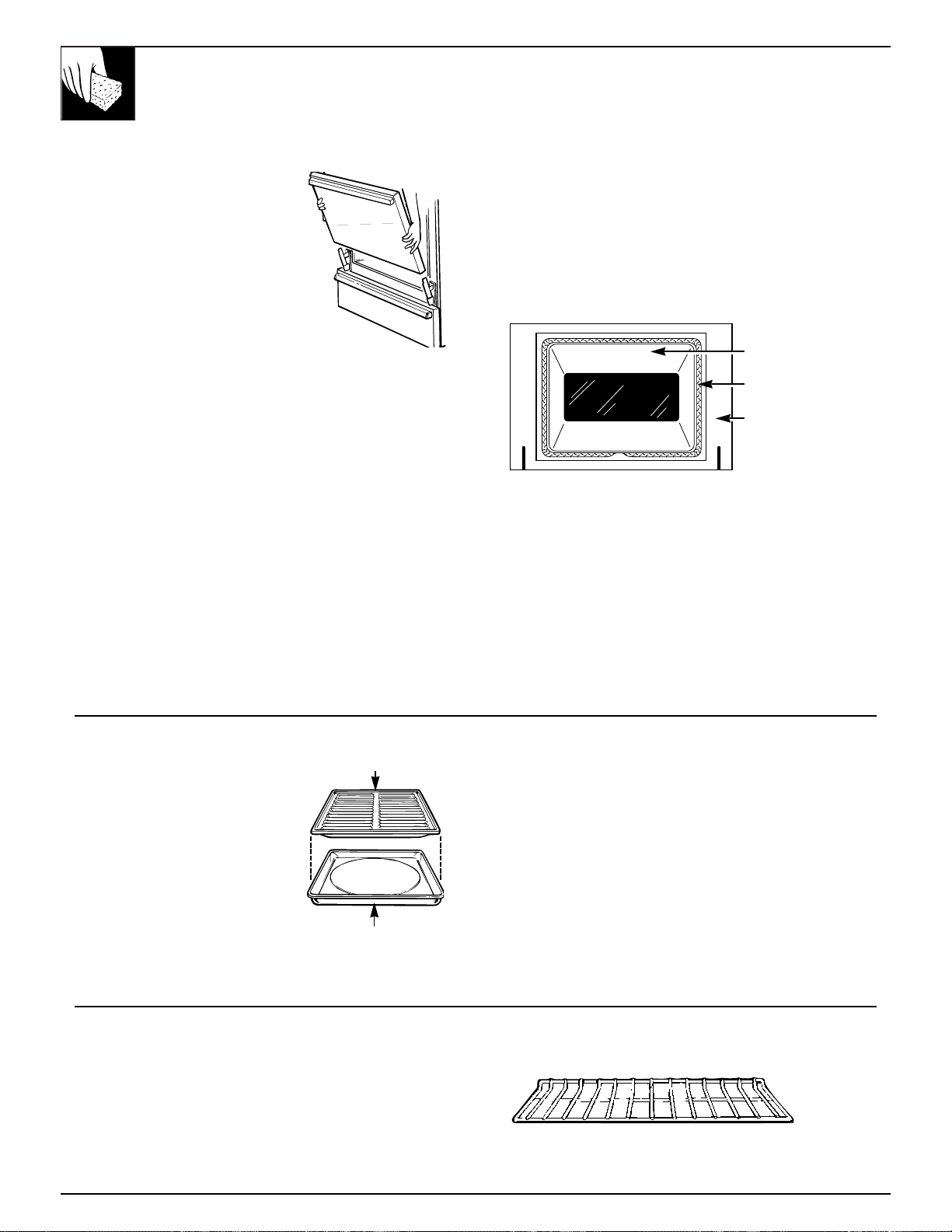

Oven front frame

Oven door

gasket

Oven light

Area

inside

gasket

Area

outside

gasket

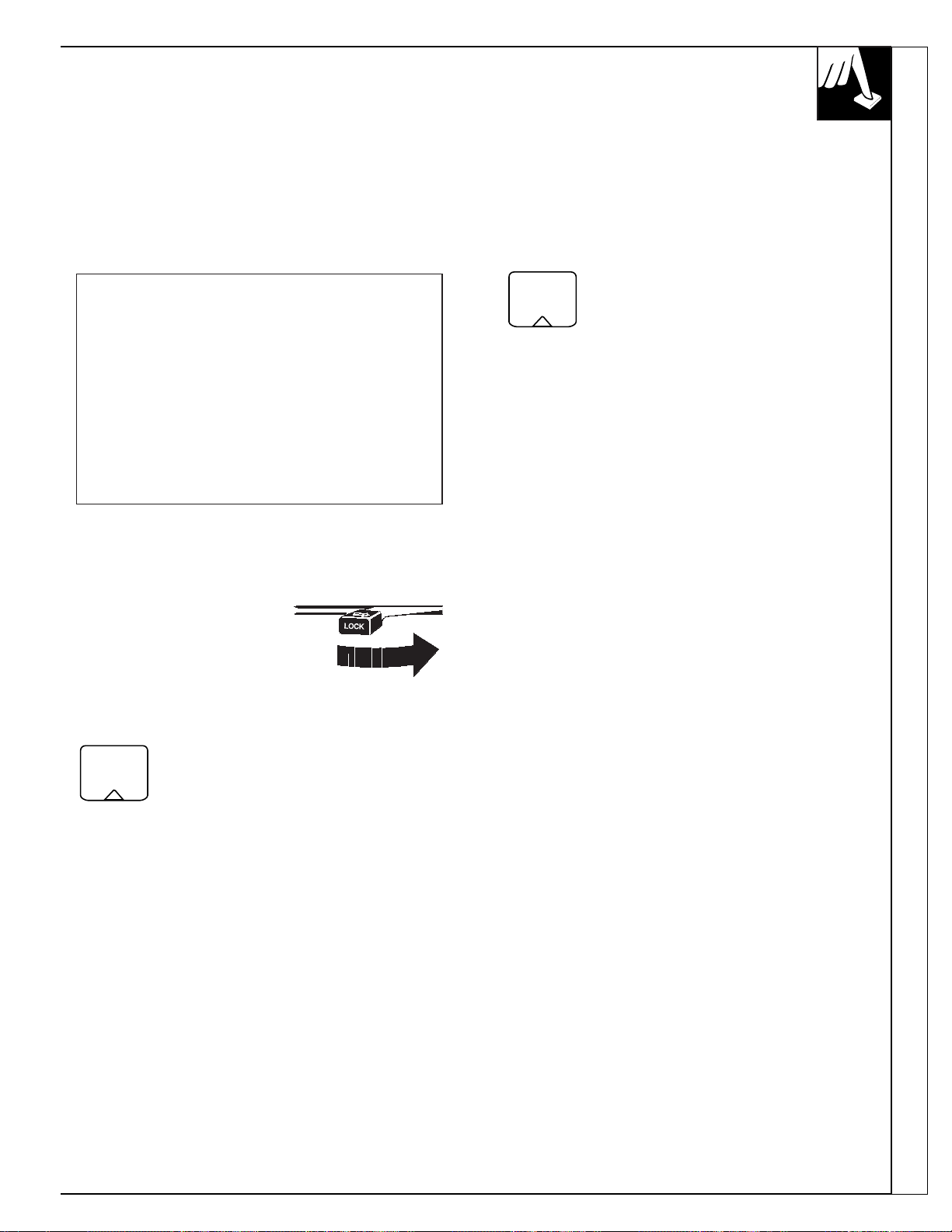

OPERATING THE SELF-CLEANING OVEN

(continued)

How to Set the Oven for Cleaning

1. Follow the directions in the Before a Clean Cycle

section.

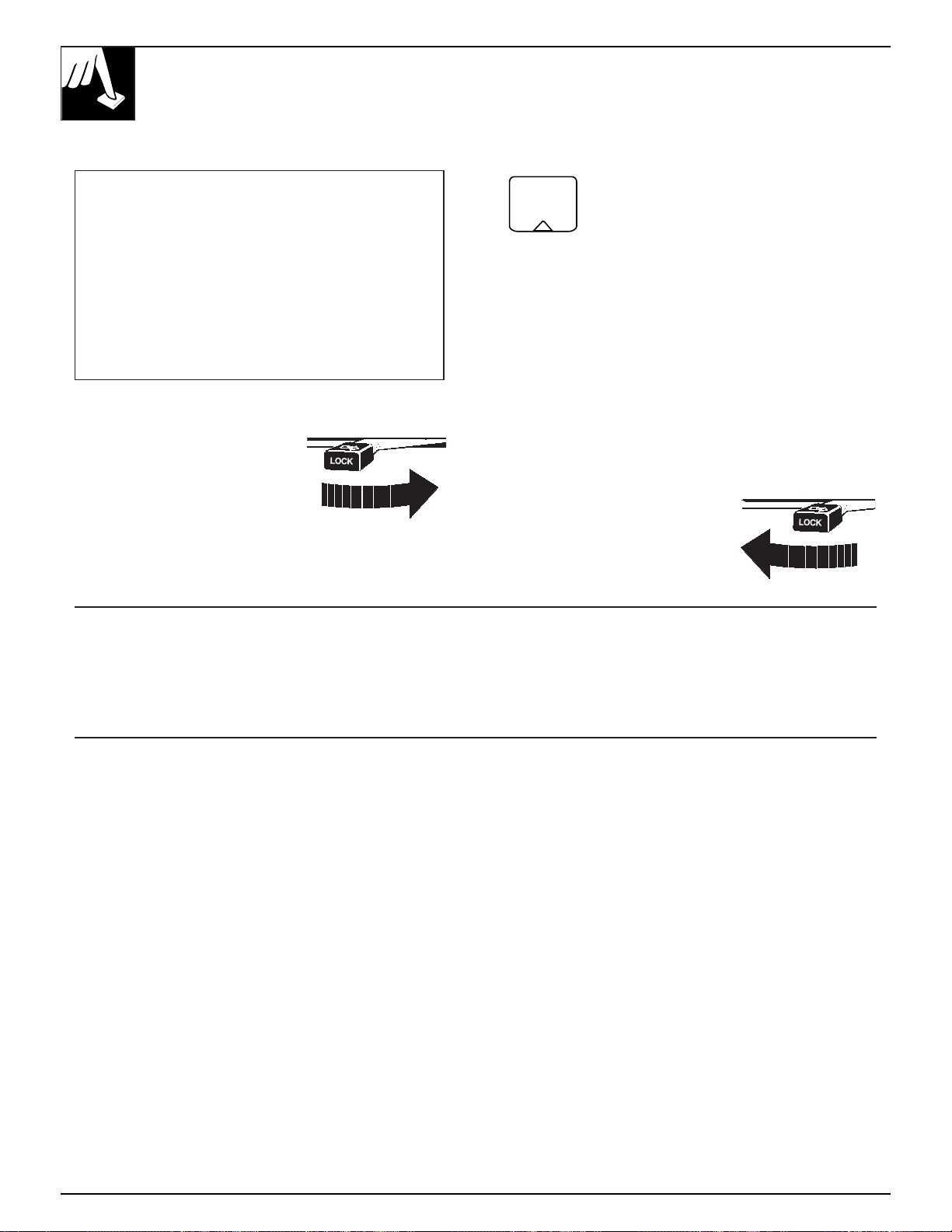

2. Close the oven door and slide the latch handle to the right as far as it will go.

Never force the door latch handle. Forcing the handle may damage the door lock mechanism.

3. Press the AUTO CLEAN or AUTO

SELF CLEAN pad.

4. Press the + or – pad until the desired Clean Time

is displayed.

The Clean Time is normally 3 hours. You can change the Clean Time to any time between 2 and 4 hours, depending on the amount of soil in your oven.

The self-clean cycle will automatically begin after “CLEAN” is displayed and the word “ON” appears in the display. When the oven heats to a high temperature, the word “LOCK” will be displayed and a short time later, the door latch handle will be locked in position. It will not be possible to open the oven door until the LOCK light goes off and the oven has cooled below locking temperature.

5. When the LOCK light is off,

slide the latch handle to the left as far as it will go and open the door.

AUTO

CLEAN

Quick Reminder:

1. Prepare the oven for cleaning.

2. Close and latch the oven door.

3. Press the AUTO CLEAN or AUTO SELF

CLEAN pad.

4. Press the + or –pad. If you wish to change the preset Clean Time of 3

hours, press the + or – pad until the desired Stop Time appears in the display.

To Stop a Clean Cycle

Press the CLEAR/OFF pad. This will stop the cleaning cycle but you will not be able to open the door until the oven cools below the locking temperature.

After a Clean Cycle

When the clean cycle is finished, the word “CLEAN” will go out in the display and the oven will begin to cool. When the oven temperature has fallen below the locking temperature, the word “LOCK” goes out and the door can be opened.

After a clean cycle, you may notice some white ash in the oven. Just wipe it up with a damp cloth.

If white spots remain, remove them with a soap-filled steel wool pad. Be sure to rinse thoroughly with a vinegar and water mixture. These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, the cycle may be repeated.

Operating the Self-Cleaning Oven

How to Delay Start of Cleaning

Delay Start is setting the oven timer to start the clean cycle automatically at a later time than the present time of day.

NOTE: Before beginning make sure the oven clock shows the correct time of day.

For example: Let’s say it’s 7:00 and you want the oven to begin self-cleaning at 10:00 after you’re finished in the kitchen.

1. Prepare the oven for cleaning.

2. Close the oven door and slide

the latch handle to the right as far as it will go. Make sure the oven light is off.

Never force the door latch handle. Forcing the handle may damage the door lock mechanism.

3. Press the AUTO CLEAN or AUTO

SELF CLEAN pad.

4. Press the + or – pad. The oven is set.

5. The Clean Time is preset for 3 hours. You can change

the Clean Time to any time between 2 and 4 hours, depending on the amount of soil in your oven. If a shorter Clean Time is desired, press the – pad until the desired Clean Time is displayed.

6. Press the STOP TIME pad. “10:00”

appears in the display and “STOP TIME” flashes.

The control automatically sets the Stop Time by adding the Clean Time to the time of day.

In this example, the time of day is 7:00 and the Clean Time is 3 hours. Adding 3 hours to the time of day equals 10:00.

7. Change the Stop Time from 10:00 to 1:00 by

pressing the + pad until “1:00” appears in the display. The words “DELAY CLEAN” will also appear in the display.

The self-clean cycle will automatically begin at 10:00 and finish at 1:00. The word “ON” will appear in the display at 10:00.

When the oven locks, the word “LOCK” will be displayed and a short time later the door latch handle will be locked in position. It will not be possible to open the oven door until the temperature drops below the lock temperature.

When the clean cycle is finished, the word “CLEAN” will go out in the display and the oven will begin to cool. When the oven temperature has fallen below the locking temperature the word ‘‘LOCK’’ goes out and the door can be opened.

8. When the LOCK light is off, slide the latch handle

to the left as far as it will go and open the door.

Never force the latch handle. Wait until the word ‘‘LOCK’’ goes out in the display. Forcing the latch handle may damage the lock.

(continued next page)

STOP

TIME

AUTO

CLEAN

Quick Reminder—Delay Start for Self-Clean:

1. Prepare the oven for cleaning.

2. Close the oven door.

3. Press the AUTO CLEAN or AUTO SELF

CLEAN pad.

4. Press the + or – pad until the desired Clean

Time appears.

5. Press the STOP TIME pad.

6. Press the + or – pad until the desired Stop

Time appears in the display.

OPERATING THE SELF-CLEANING OVEN

(continued)

Questions and Answers

Q. If my oven clock is not set to the correct time of

day, can I still self-clean my oven?

A. If the clock is not set to the correct time of day you

will not be able to set a delay clean to end at a specific time.

Q. Can I use commercial oven cleaners on any part

of my self-cleaning oven?

A. No cleaners or coatings should be used around any

part of this oven. If you do use them and do not thoroughly rinse the oven with water, wiping it absolutely clean afterwards, the residue can scar the oven surface and damage metal parts the next time the oven is automatically cleaned.

Q. What should I do if excessive smoking occurs

during cleaning?

A. This is caused by excessive soil. Press the

CLEAR/OFF pad. Open the windows to rid the room of smoke. Wait until the oven has cooled and the word “LOCK” is off in the display. Wipe up the excess soil and reset the clean cycle.

Q. Is the “crackling” or “popping” sound I hear

during cleaning normal?

A. Yes. This is the sound of the metal heating and

cooling during both the cooking and cleaning functions.

Q. Should there be any odor during the cleaning? A. Yes, there will be an odor during the first few

cleanings. Failure to wipe out excessive soil might also cause a strong odor when cleaning.

Q. What causes the hair-like lines on the enameled

surface of my oven?

A. This is a normal condition, resulting from heating

and cooling during cleaning. These lines do not affect how your oven performs.

Q. Why do I have ash left in my oven after

cleaning?

A. Some types of soil will leave a deposit which is ash.

It can be removed with a damp sponge or cloth.

Q. Can I cook food on the cooktop while the oven

is self-cleaning?

A. Yes. While the oven is self-cleaning, you can use

the cooktop just as you normally do.

Q. The word “door” appeared in the display when

I selected the Clean Cycle. What’s wrong?

A. The door latch handle must be moved all the way

to the right. Move the latch handle and cleaning will start.

CARE AND CLEANING

Proper care and cleaning are important so your range will give you efficient and satisfactory service. Follow these directions carefully in caring for it to help assure safe and proper maintenance.

BE SURE ELECTRICAL POWER IS DISCONNECTED BEFORE CLEANING ANY PART OF YOUR RANGE.

Operating the Self-Cleaning Oven Care and Cleaning

Sealed Burner Assemblies

(on some models)

Burner Heads

(on sealed burners only)

Turn all controls OFF before removing the burner parts and drip pans (if so equipped).

The burner grates, caps, burner heads and drip pans (if so equipped) can be lifted off, making them

easy to clean.

For proper ignition, make sure the small hole in the section that fits over the electrode is kept open. A sewing needle or wire twist tie works well to unclog it.

The slits in the burner heads of your range must be kept clean at all times for an even, unhampered flame.

You should clean the surface burners routinely, especially after bad spillovers, which could clog these openings.

To remove burned-on food, soak the burner heads in a solution of mild liquid detergent and hot water for 20-30 minutes. For more stubborn stains, use a toothbrush.

Before putting the burner head back, shake out excess water and then dry it thoroughly by setting it in a warm oven for 30 minutes.

Replace the burner caps. Make sure that caps are replaced on the correct size burner. There is one small, 2 medium and one large cap.

The electrode of the spark igniter is exposed when the burner head is removed. When one burner is turned to LITE, all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

CAUTION: DO NOT OPERA TE THE BURNER WITHOUT ALL BURNER P ARTS AND DRIP P ANS (IF SO EQUIPPED) IN PLACE.

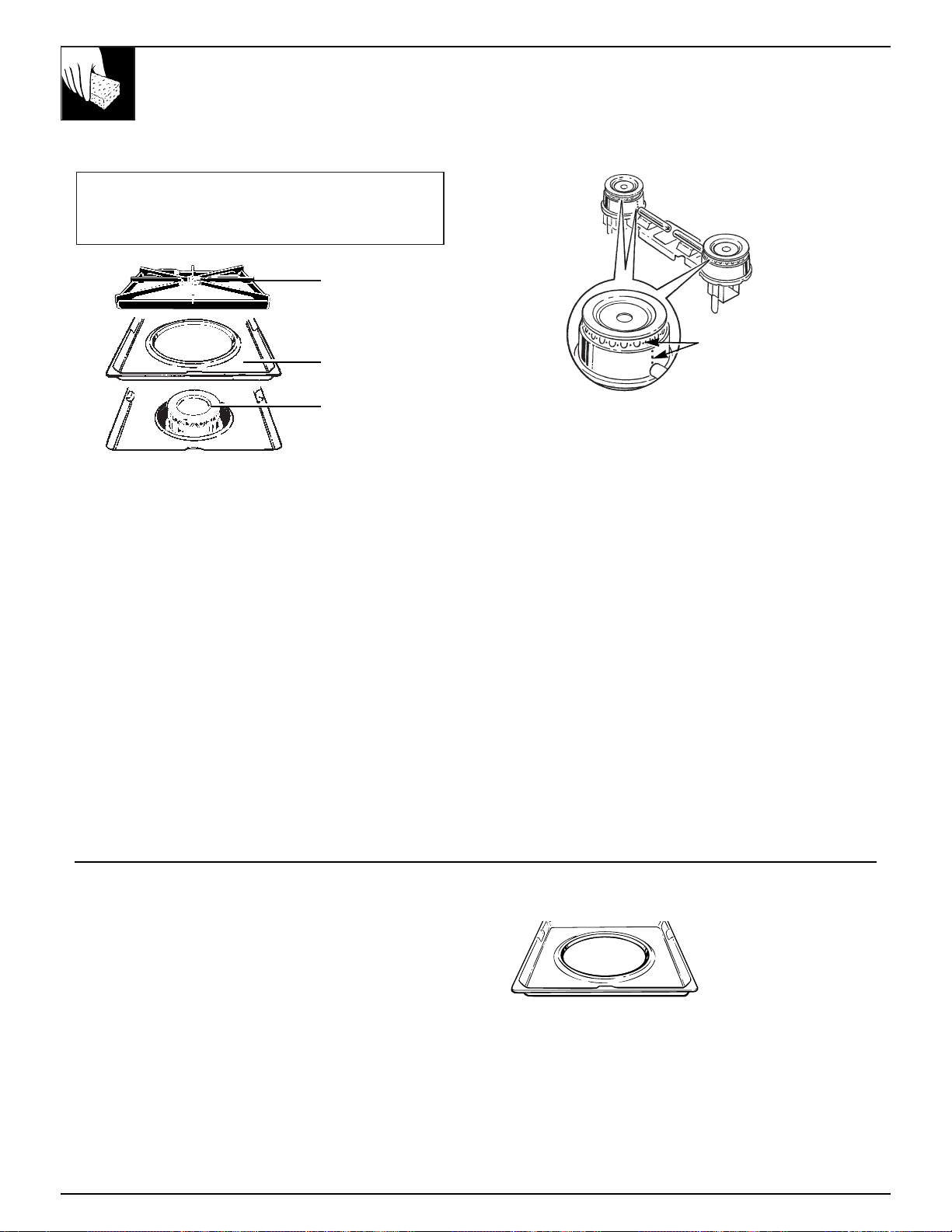

Grate

Burner Cap

Burner Head

Drip Pan (on some models)

Electrode

Burner Caps (on sealed burners only)

Lift off when cool. Wash burner caps in hot, soapy water and rinse with clean water. You may scour with a plastic scouring pad to remove burned-on food particles.

Dry them in a warm oven or with a cloth—don’t reassemble them wet. Replace the burner caps.

Make sure that caps are replaced on the correct size burner. There is one small, 2 medium and one large cap.

(continued next page)

small

medium

small

medium

large

medium

large

Front of Range

CARE AND CLEANING

(continued)

Standard Twin Burners

(on some models)

On models with standard twin burners, the cooktop lifts up for easy access.

Turn all controls OFF before removing burner parts and drip pans (if so equipped).

The burner grates and drip pans (if so equipped) can be lifted off, making them easy to clean.

The holes in the surface burners of your range must be kept clean at all times for proper ignition and an even, unhampered flame.

You should clean the surface burners routinely, especially after bad spillovers, which could clog

these holes. Wipe off surface burners. If heavy spillover occurs, remove the surface burners from the range. Burners lift out for cleaning. Lift up the cooktop and then lift out the surface burners.

To remove burned-on food, soak the surface burner in a solution of mild liquid detergent and hot water. Soak the surface burner for 20 to 30 minutes. For more stubborn stains, use a cleanser like Soft Scrub

brand or Bon Ami®brand. Rinse well to remove any

traces of the cleanser that might clog the surface burner openings. Do not use steel wool because it

will clog the surface burner openings and scratch the surface burners. If the holes become clogged, clean them with a sewing needle or twist tie.

Before putting the surface burner back, shake out excess water and then dry it thoroughly by setting it in a warm oven for 30 minutes. Then place it back in the range, making sure it is properly seated and level.

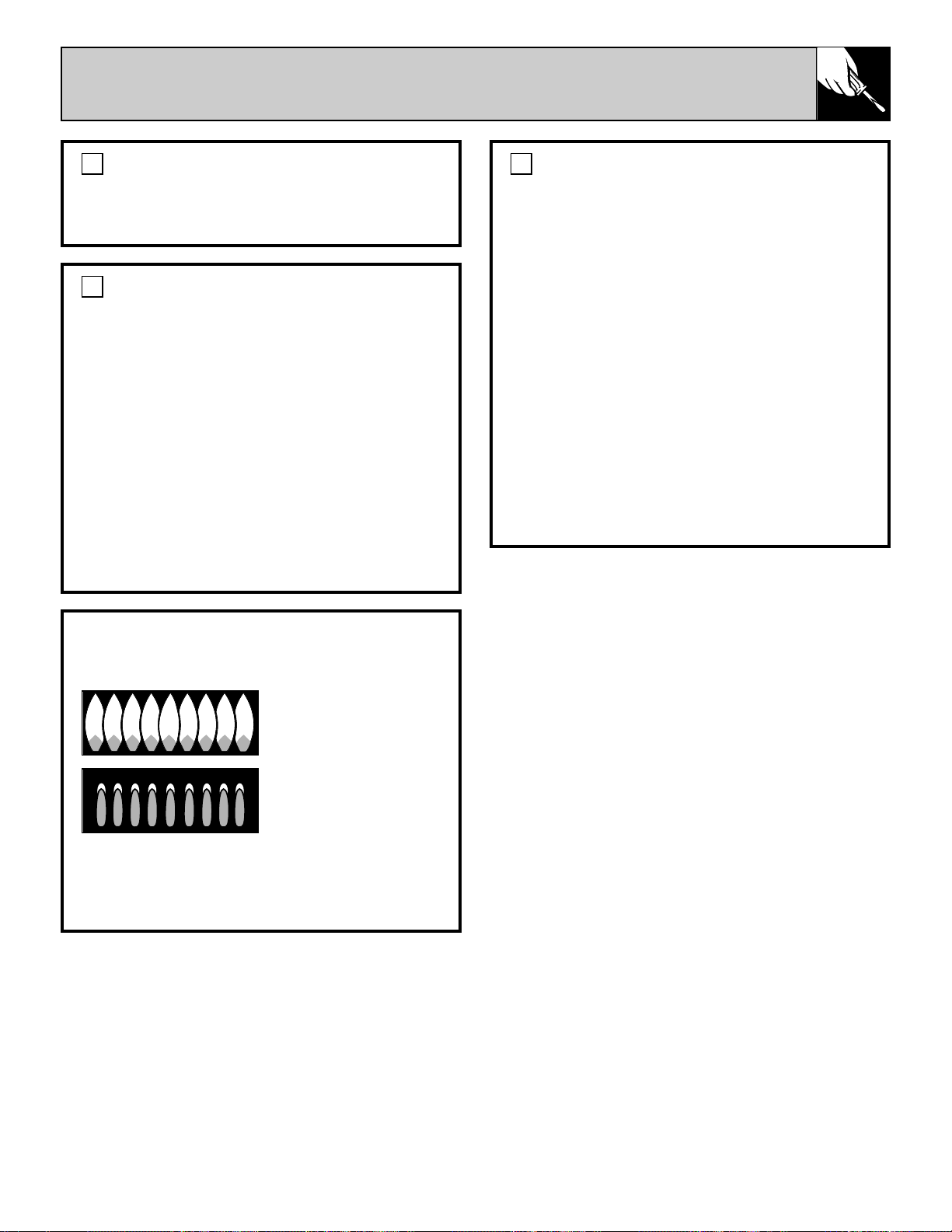

Check the flame pattern of each burner. If the flames are “jumpy” (not steady), clean the holes again with a sewing needle or twist tie.

CAUTION: DO NOT OPERA TE THE BURNER WITHOUT ALL BURNER P ARTS AND DRIP P ANS (IF SO EQUIPPED) IN PLACE.

Grate

Drip Pan (on some models)

Surface Burner

Clean these

holes

thoroughly

on each

burner.

Drip Pans (on some models)

Remove the grates and lift out the drip pans.

Drip pans can be cleaned in dishwasher or by hand. To get rid of burned-on food, place them in a

covered container (or plastic bag) with 62 ml (1/4 cup) ammonia to loosen the soil. Then scrub with a soap-filled scouring pad if necessary.

When replacing the drip pans, make sure they are in the correct position.

CAUTION: Do not clean the drip pans in a self-cleaning oven.

Care and Cleaning

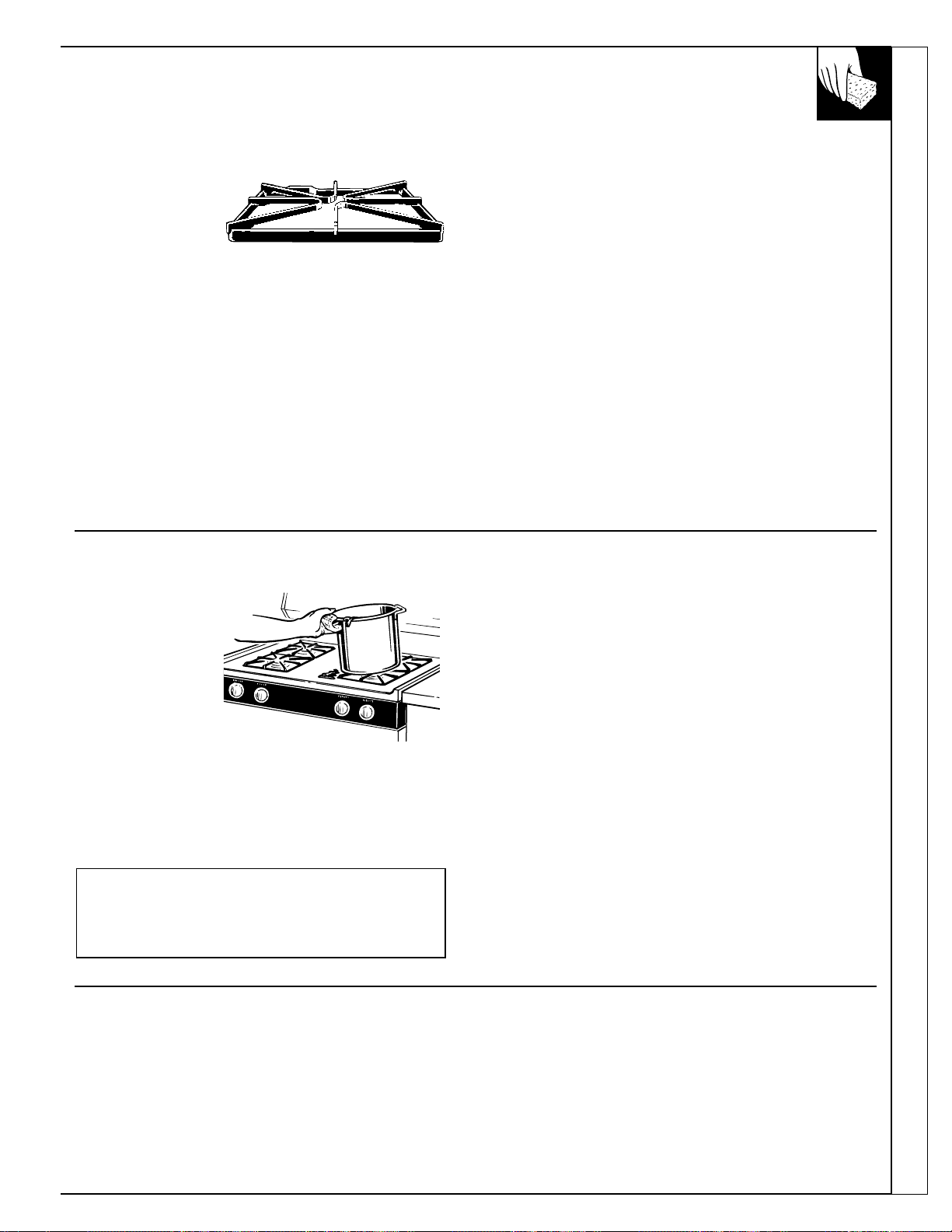

Burner Grates

Lift out when cool. Grates should be washed regularly and, of course, after spillovers. W ash them in hot, soapy water and rinse with clean water. After cleaning, dry them thoroughly by putting them in a warm oven for a few minutes. Don’t put the grates back on the range while they are wet. When replacing the grates, be sure they’re positioned securely over the burners.

T o prevent rusting on cast iron grates, apply a light coating of cooking oil on the bottom of the grates.

To get rid of burned-on food, place the grates in a covered container (or plastic bag) with 62 ml (1/4 cup) ammonia, for approximately 12 hours or overnight, to loosen the soil. Let sit overnight (or approximately 12 hours), then scrub with a soap-filled scouring pad if necessary. Rinse grates thoroughly and dry completely before replacing them on the range top.

Although they’re durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures. You will notice this sooner with lighter color grates.

Do not operate a burner for an extended period of time without cookware on the grate.

The finish on

the grate may chip without cookware to absorb the heat.

CAUTION: Do not clean the grates in a dishwasher or in a self-cleaning oven.

Cooktop Surface Oven Bottom

To avoid damaging the porcelain enamel surface of the cooktop and to prevent it from becoming dull,

clean up spills right away. Foods with a lot of acid (tomatoes, sauerkraut, fruit juices, etc.) or foods with high sugar content could cause a dull spot if allowed to set.

When the surface has cooled, wash and rinse. For other spills such as fat spatterings, etc., wash with soap and water once the surface has cooled. Then rinse and polish with a dry cloth.

The oven bottom has a porcelain enamel finish. To make cleaning easier, protect the oven bottom from excessive spillovers by placing a cookie sheet on the shelf below the shelf you are cooking on. This is particularly important when baking a fruit pie or other foods with a high acid content.

We don’t recommend using aluminum foil on the oven bottom. It can affect air flow if the holes are blocked and it can concentrate heat at the bottom of the oven, resulting in poor baking performance.

Hot fruit fillings or other foods that are highly acidic (such as milk, tomatoes or sauerkraut, and sauces with vinegar or lemon juice) may cause pitting and damage to the porcelain enamel surface and should be wiped up immediately. To clean up spillovers, use soap and water, an abrasive cleaner or scouring pad. Rinse well to remove any soap before self-cleaning.

Do not store flammable materials in an oven or near the cooktop. Do not store or use combustible

materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Brushed Chrome Cooktop (on some models)

Clean the brushed chrome top with warm, soapy water or Bon Ami®brand cleanser and immediately dry it with a clean, soft cloth. Take care to dry the surface following the “grain.”

To help prevent finger marks after cleaning, spread a thin film of baby oil on the surface. Wipe away excess oil with a clean, soft cloth.

CARE AND CLEANING

(continued)

Lift-Off Oven Door

The oven door is removable, but it is heavy. You may need help removing and replacing the door.

To remove the door, open it a few inches to the special stop position that will hold the door open. Grasp firmly on each side and lift the door straight up and off the hinges.

NOTE: Be careful not to place hands between the hinge and the oven door frame as the hinge could snap back and pinch fingers.

To replace the door, make sure the hinges are in the special stop position. Position the slots in the bottom of the door squarely over the hinges. Then lower the door slowly and evenly over both hinges at the same time. If the hinges snap back against the oven frame, pull them back out.

TO CLEAN THE DOOR:

(Do not immerse the door in water.)

Inside of the door:

• Because the area inside the gasket is cleaned during

the self-clean cycle, you do not need to clean this by hand. Any soap left on the liner causes additional stains when the oven is heated.

• The area outside the gasket can be cleaned with

a scouring pad.

• Do not rub or clean the door gasket—the

fiberglass material of the gasket has an extremely low resistance to abrasion. An intact and wellfitting oven door gasket is essential for energyefficient oven operation and good baking results. If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

Outside of the door:

• Use soap and water to thoroughly clean the top,

sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door.

• Spillage of marinades, fruit juices, tomato sauces

and basting materials containing acids may cause discoloration and should be wiped up immediately. When the surface is cool, clean and rinse.

• Do not use oven cleaners, cleansing powders or harsh abrasives on the outside of the door.

Inside Gasket Gasket Outside Gasket

Broiler Pan and Grid

After broiling, remove the

broiler pan from the oven. Remove the grid from the pan. Carefully pour out grease from the pan into a proper container. W ash and rinse the broiler pan and grid in hot water with a soapfilled or plastic scouring pad.

If food has burned on, sprinkle the grid with detergent while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.

The broiler pan may be cleaned with a commercial oven cleaner. Do not use an oven cleaner on the grid.

Both the broiler pan and grid can also be cleaned in a dishwasher.

Do not store a soiled broiler pan and grid anywhere in the range.

CAUTION: Do not clean the broiler pan or grid in a self-cleaning oven.

Grid

Pan

Oven Shelves

Clean the shelves with an abrasive cleanser or steel wool. After cleaning, rinse the shelves with clean

water and dry with a clean cloth. NOTE: Take the shelves out of the oven before you

begin the self-clean cycle.

Care and Cleaning

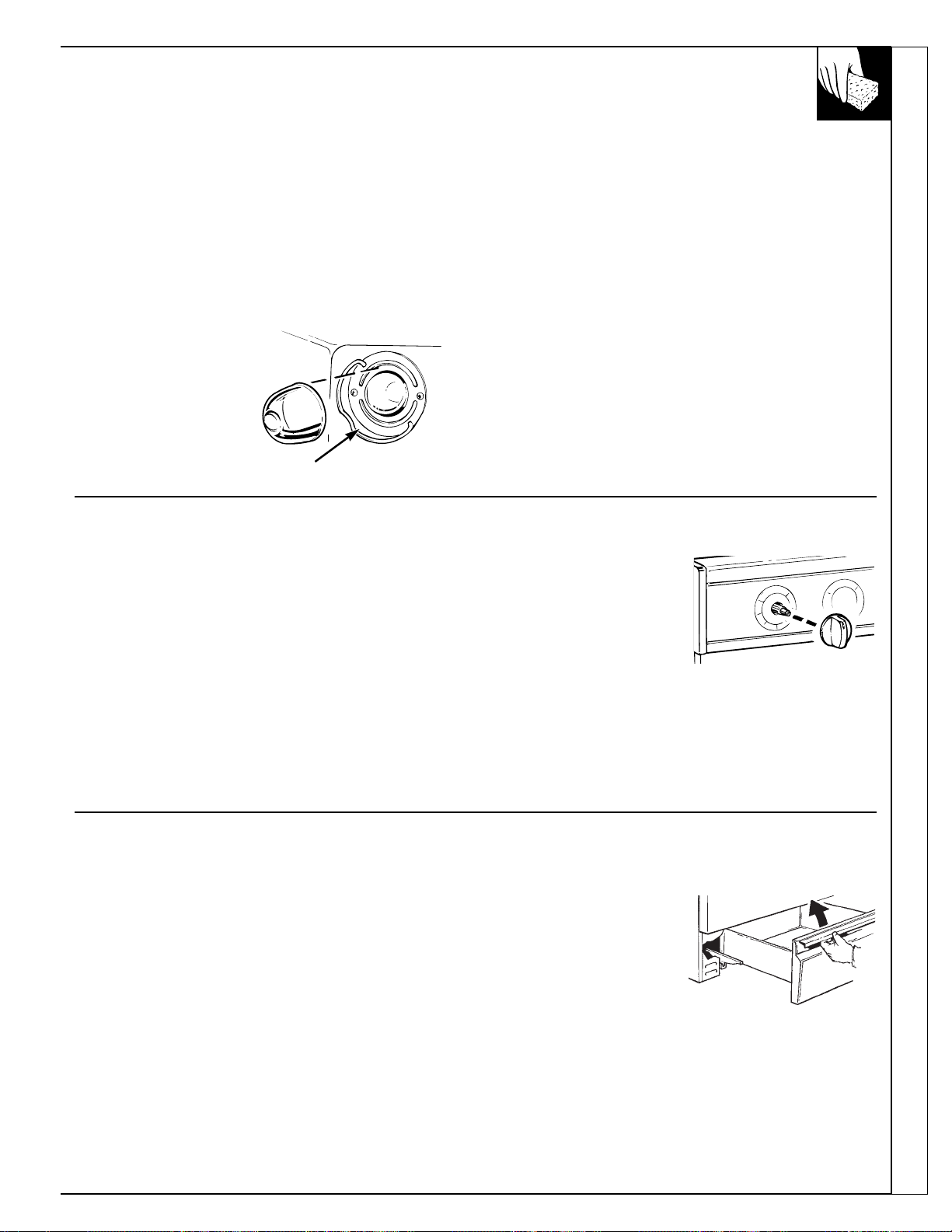

Oven Light Replacement (on some models )

CAUTION: Before replacing your oven light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel. Be sure to let the light cover and bulb cool completely.

The oven light bulb is covered with a removable glass cover that is held in place with a bail-shaped wire. Remove the oven door, if desired, to reach cover easily.

To remove:

1. Hold a hand under the

cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

DO NOT REMOVE ANY SCREWS TO REMOVE COVER.

2. Do not touch hot bulb with a wet cloth. Replace

bulb with a 40-watt household appliance bulb.

To replace cover:

1. Place it into the groove of the light receptacle. Pull

the wire forward to the center of the cover until it snaps into place. When in place, the wire holds the cover firmly. Be certain the wire is in the depression in the center of the cover.

2. Connect electrical power to the range.

Wire cover holder

Control Panel and Knobs

It’s a good idea to wipe the control panel after each use of the oven. Clean with mild soap and water or vinegar and water, rinse with clean water and polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the control panel—they will damage the finish. A 50/50 solution of vinegar and hot water works well.

The control knobs may be removed for easier cleaning. To remove a knob, pull it straight off the stem. If knob is difficult to remove, place a towel or dishcloth between the knob and control panel and pull gently. Wash the knobs in soap and water or a vinegar and hot water solution.

Metal parts can be cleaned with soap and water. Do not use steel wool, abrasives, ammonia, acids or commercial oven cleaner. Dry with a soft cloth.

Removable Storage Drawer (on some models)

The storage drawer is a good place to store cookware and bakeware. Do not store plastics and flammable material in the drawer.

The storage drawer may be removed for cleaning under the range. Clean the storage drawer with a damp cloth or sponge. Never use harsh abrasives or scouring pads.

To remove the storage drawer:

1. Pull the drawer straight

out until it stops.

2. Tilt the front of the

drawer up and free of the range.

To replace the storage drawer:

1. Set the stops on the back of the drawer over the

stops in the range.

2. Slide the drawer evenly and straight back, so that

the rails in the range are engaged.

(continued next page)

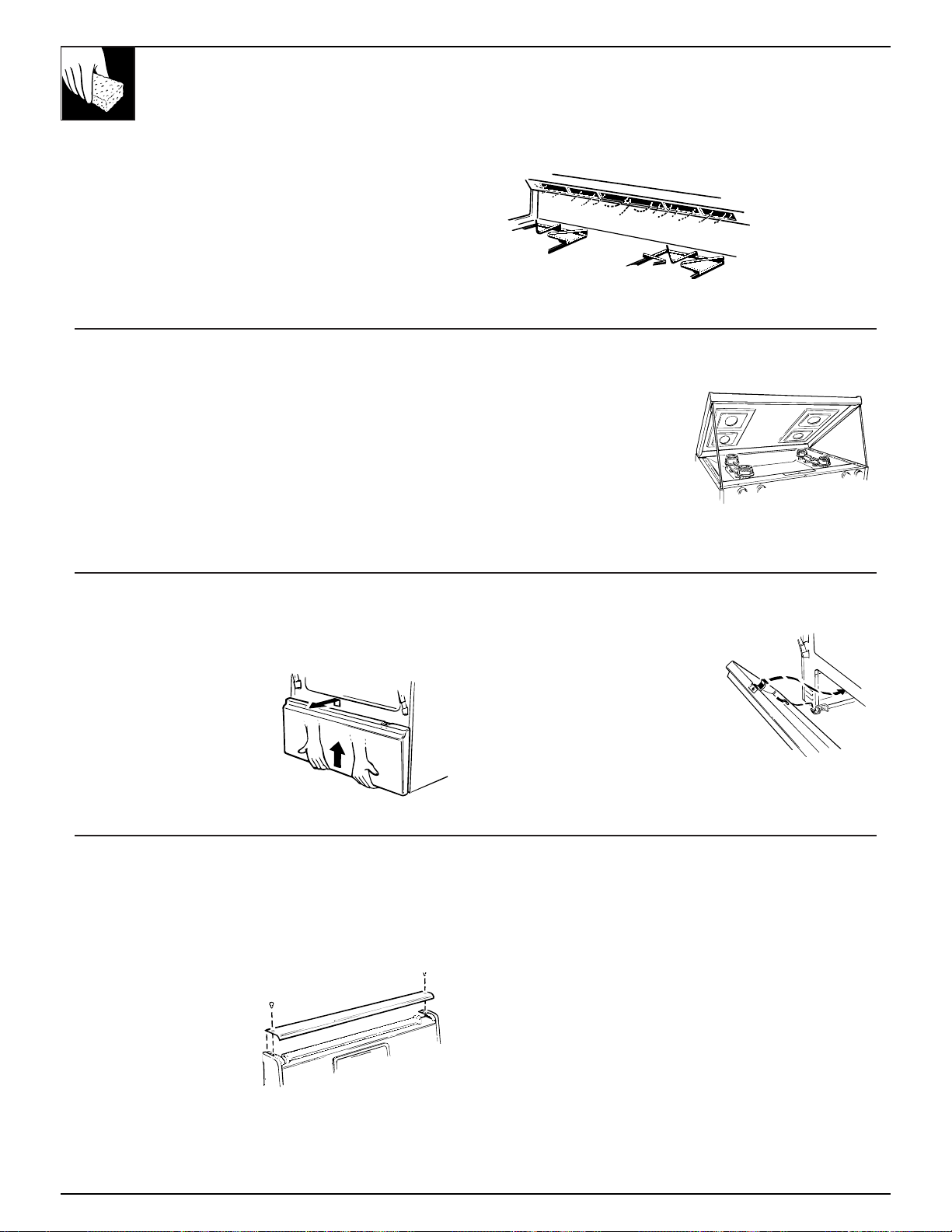

CARE AND CLEANING

(continued)

Oven Air Vents

Never block the vents (air openings) of the range.

They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range, under the kick panel or storage drawer (depending on the model).

Vent appearance and location vary

Lift-up Cooktop

(on models with standard twin burners)

Clean the area under the cooktop often. Built-up soil, especially grease, may catch on fire.

To make cleaning easier, the cooktop may be lifted up.

To raise the cooktop:

1. Be sure the burners are turned off.

2. Remove the grates.

3. Grasp the two front burner wells and lift up.

Some models have dual support rods that will hold the cooktop up while you clean underneath it.

After cleaning under the cooktop with hot, soapy

water and a clean cloth, lower the cooktop. Be careful not to pinch your fingers.

Removable Kick Panel (on some models)

The kick panel may be removed for cleaning under the range.

To remove, lift up the bottom of the panel slightly to disengage the panel from the tabs at the base of the range. Pull the bottom of the panel forward until the spring clips are released at the top of the panel.

To replace, insert the two slots at the bottom of the panel onto the two tabs at the base of the range and push the top of the panel forward to engage the spring clips.

Fluorescent Night Light (on some models)

CAUTION: Do not touch the bulb with wet hands or when the bulb is hot. Never wipe the light area with a wet cloth. Electrical power must be shut off if you have to replace the bulb.

1. With a phillips

screwdriver, remove the two screws.

2. Lift canopy straight up.

3. Remove the fluorescent light bulb. Replace the

bulb with one of the same length and wattage.

4. Replace the canopy.

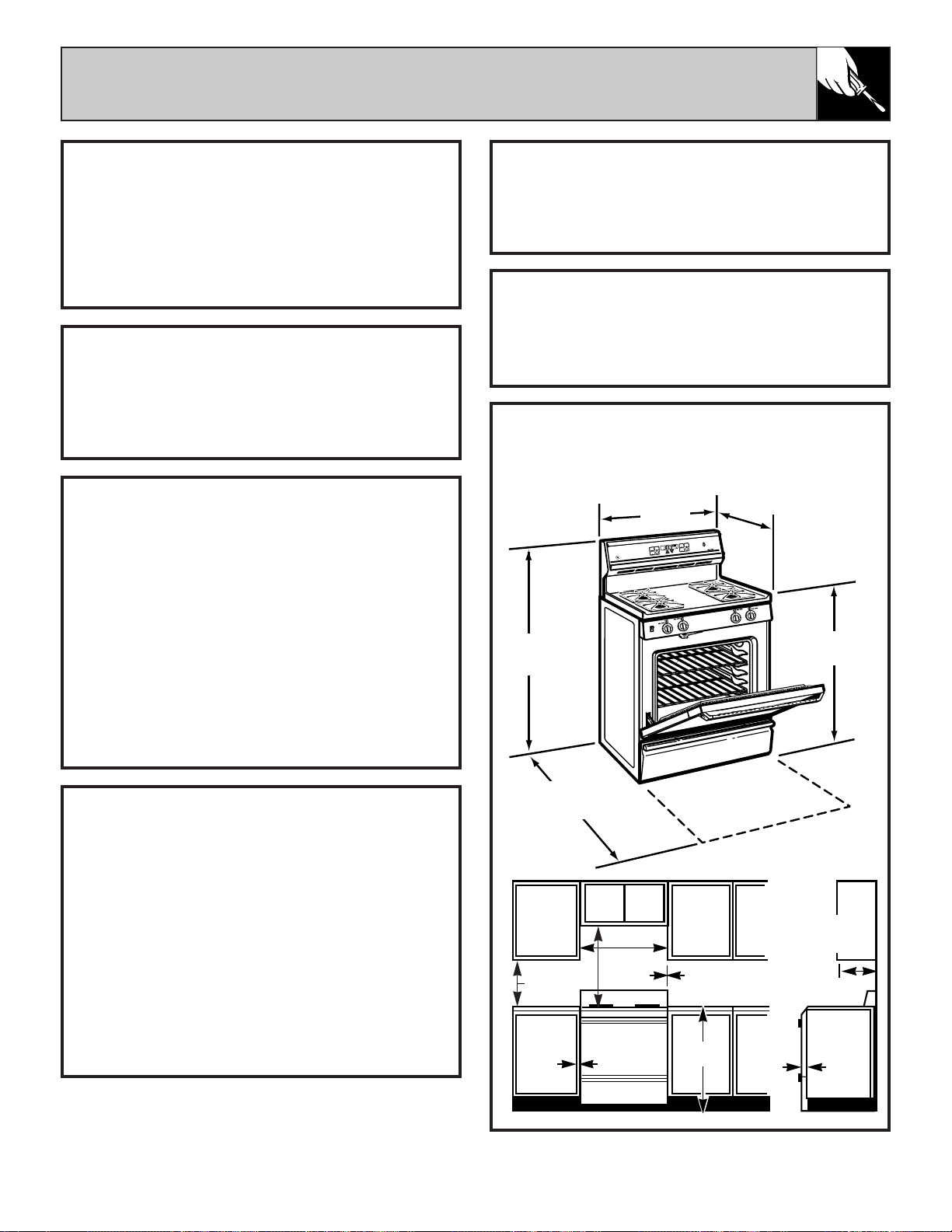

INSTALLATION INSTRUCTIONS

CAUTION

Do not attempt to operate the oven of this range during a power failure (electric ignition models only).

DIMENSIONS AND CLEARANCES

Provide adequate clearances between the range and adjacent combustible surfaces.

MASK FOR SHELVES

AUTO CLEAN

BAKE

OVEN

BROIL

Y O

N C

LEA

N S

P TIM

BAKE CLEAN

BROIL LOCK

O N

CLEAR OFF

–

CLOCK

COOK TIME

TIME

STOP

TIME

TIMER

ON/OFF

Night Light

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical switches.

3. Extinguish any open flame.

4. Immediately call your gas supplier.

FOR YOUR SAFETY

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT: Save these instructions for the local electrical inspector’s use.

INSTALLER: Leave these instructions with the appliance after installation is completed.

CONSUMER:

Keep this Use and Care Guide and the Installation Instructions for future use.

This appliance must be properly grounded.

WARNING

• Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this guide. For assistance or additional information, consult a qualified installer, service agency, manufacturer (dealer) or the gas supplier.

• Never reuse old flexible connectors. The use of old flexible connectors can cause gas leaks and personal injury. Always use NEW flexible connectors when installing a gas appliance.

Depth with Door Closed (includes door handle):

71.8 cm (28

⁄4″)

76.2 cm (

30″

)

118.1 cm (461⁄2″)

92.1 cm

± 6 mm

(36

⁄

″ ±

1/4

″)

Depth with Door Open:

117.8 cm (463⁄8″)

To cabinets below cooktop and at the range

back

76.2 cm (30

″)

33 cm (13″)

76.2 cm (30″)

Minimum

2.5 cm (1″)

To wall on either side

Maximum depth

for cabinets above

countertops

Front edge of the range side panel

forward from cabinet

45.7 cm (18″)

0 cm

(0″)

6 mm

(1/4″)

Minimum to cabinets on either side of the range

91.5 cm

(36″)

(continued next page)

IMPORTANT

Remove all packing material and literature from oven before connecting gas and electrical supply to range.

INSTALLATION INSTRUCTIONS

(continued)

EXCEPTION: Installation of a listed microwave oven or cooking appliance over the cooktop shall conform to the installation instructions packed with that appliance.

• If cabinets are placed above the range, allow a minimum clearance of 76.2 cm (30

″) between the cooking surface and the bottom of unprotected cabinets.

• If a 76.2 cm (30″) clearance between cooking surface and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 6 mm (1/4″) insulating millboard covered with sheet metal not less than .31 mm (0.0122″) thick.

• Clearance between the cooking surface and protected cabinets MUST NEVER BE LESS

THAN 61 cm (24

″). The vertical distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets extending closer than

2.5 cm (1″) to the plane of the range sides must not be less than 45.7 cm (18″). (See Dimensions and Clearances illustration in this section.)

• CAUTION: Items of interest to children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

WARNING

All ranges can tip and injury could result. To prevent accidental tipping of the range, attach an approved Anti-Tip device to the wall. (See Installing the Anti-Tip Device in this section.) To check if the device is installed and engaged properly,

carefully tip the range forward. The Anti-Tip device should engage and prevent the range from tipping over.

If you pull the range out from the wall for any reason, make sure the Anti-Tip device is engaged when you push the range back against the wall.

• For your safety , never use your range for warming or heating the room. Your oven and cooktop are not designed to heat your kitchen. Top burners should not be operated without cookware on the grate. Such abuse could result in fire and damage to your range and will void your warranty.

• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Explosions or fires could result.

• Do not use oven for a storage area. Items stored in the oven can ignite.

• Do not let cooking grease or other flammable materials accumulate in or near the range.

IMPORTANT SAFETY INSTRUCTIONS

Installation of this range must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1 or the current Propane Installation Code, CAN/CGAB149.2, and with local codes where applicable.

This range has been design-certified by the American Gas Association according to ANSI Z21.1, latest edition and Canadian Gas Association according to CAN/CGA-1.1, latest edition. As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find these precautions in the Important Safety Instructions in the front of this guide. Read them carefully.

• Have your range installed by a qualified installer or service technician.

• Your range must be electrically grounded in accordance with local codes or, in the absence of local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes. See Electrical Connections in this section.

• Before installing your range on linoleum or any other synthetic floor covering, make sure the floor covering can withstand 82°C. (180°F.) without shrinking, warping or discoloring. Do not install the range over carpeting unless a sheet of 6 mm (1/4″) thick plywood or similar insulator is placed between the range and carpeting.

• Make sure the wall coverings around the range can withstand heat generated by the range up to 93°C. (200°F.).

• Avoid placing cabinets above the range. To reduce the hazard caused by reaching over the open flames of operating burners, install a ventilation hood over the range that projects forward at least 12.7 cm (5″) beyond the front of the cabinets.

• The ventilating hood must be constructed of sheet metal not less than .31 mm (0.0122″) thick. Install above the cooktop with a clearance of not less than 6 mm (1/4″) between the hood and the underside of the combustible material or metal cabinet. The hood must be at least as wide as the appliance and centered over the appliance. Clearance between the cooking surface and the ventilation hood surface MUST NEVER BE

LESS THAN 61 cm (24″).

MODEL AND SERIAL NUMBER LOCATION

Depending on your range, you’ll find the model and serial numbers on a label on the front frame of the range, behind the storage drawer or kick panel.

TOOLS YOU WILL NEED

• Phillips and flat-blade screwdrivers

• Pencil and ruler

• Two pipe wrenches (one for backup)

• 3.5 cm (1

⁄8″) open-end or adjustable wrench

• Nut drivers or wrenches: 5 mm (3/16″) and 6 mm (1/4″)

ADDITIONAL MATERIALS YOU MAY NEED

• Gas line shut-off valve.

• Pipe joint sealant or UL-approved pipe thread tape with Teflon* that resists action of butane gas.

• Flexible metal appliance connector [1.3 cm (1/2″) I.D.]. A 1.5 m (5′) length is recommended for ease of installation but other lengths are acceptable. Never use an old connector when installing a new range.

• Flare union adapter for connection to gas supply line [1.9 cm (3/4″) or 1.3 cm (1/2″) NPT x 1.3 cm (1/2″) I.D.].

• Flare union adapter for connection to pressure regulator on range [1.3 cm (1/2″) NPT x 1.3 cm (1/2″) I.D.].

*Teflon: Registered trademark of DuPont

PREPARATION

• Remove all tape and packaging. Lift up the cooktop (on models with standard twin burners) and remove any packing material under it. Make sure the standard twin burners are properly seated and level.

• Take the accessory pack out of the oven.

• Check to be sure that no range parts have come loose during shipping.

GENERAL

• See Dimensions and Clearances in this section for all rough-in and spacing dimensions. These dimensions must be met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electric Outlet Locations) may be adjusted to meet specific requirements.

• The range may be placed with 0 cm (0″) clearance (flush) at the back wall and side walls of the range.

LOCATION

Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings around the base of the range that supply fresh air for combustion and ventilation are not obstructed by carpeting or woodwork.

PROTECT YOUR FLOOR

Your range, like many other household items, is heavy and can settle into soft floor coverings such as cushioned vinyl or carpeting. Use care when moving the range on this type of flooring. It is recommended that the following simple and inexpensive instructions be followed to protect your floor.

The range should be installed on a sheet of plywood (or similar material). When the floor covering ends

at the front of the range, the area that the range will rest on should be built up with plywood to the same level or higher than the floor covering. This will allow the range to be moved for cleaning or servicing. Also, make sure your floor covering will withstand 82°C. (180°F.). (See the Important Safety Instructions section of the Installation Instructions.)

KITCHEN CABINETS

Make sure the wall coverings around your range can withstand the heat generated [up to 93°C. (200°F.)] by the range. (See the Important Safety Instructions section of the Installation Instructions.)

(continued next page)

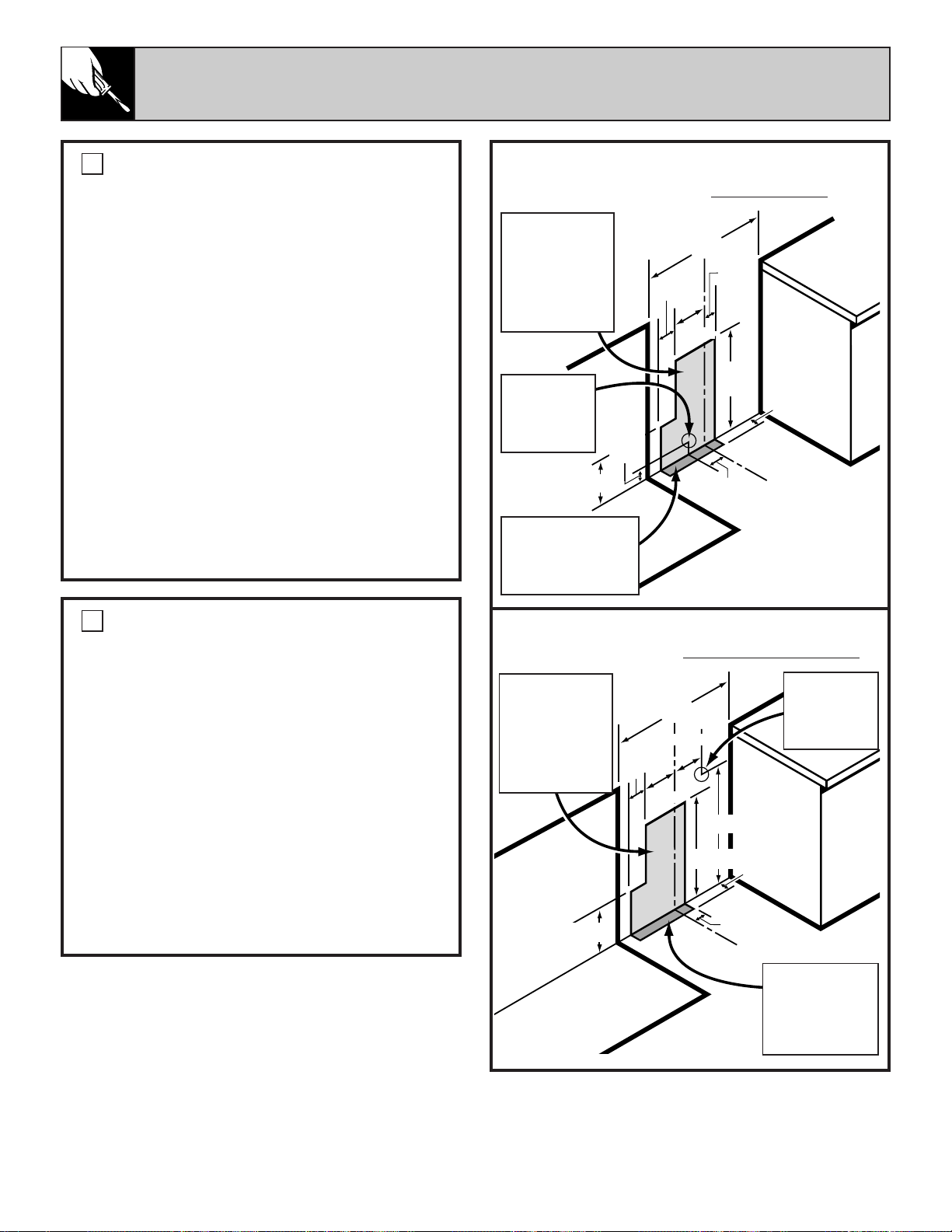

INSTALLATION INSTRUCTIONS

(continued)

Gas Pipe and Electric Outlet Locations for Models Equipped with Sealed Burners

Gas Pipe and Electric Outlet Locations for Models Equipped with Standard Twin Burners

PROVIDE ADEQUATE GAS SUPPLY

Your range is designed to operate at a pressure of

25.4 cm (10″) of water column on butane gas. Make sure you are supplying your range with the type of gas for which it is designed.

If you decide to use this range on a different type of gas, conversion adjustments must be made by a service technician or other qualified person before attempting to operate the range on that gas.

For proper operation, the pressure of butane gas supplied to the regulator must be between 25.4 cm (10″) and 33 cm (13″) of water column. When checking for proper operation of the regulator, the inlet pressure must be at least 2.5 cm (1″) greater than the operating (manifold) pressure as given above. The pressure regulator located at the inlet of the range manifold must remain in the supply line. A flexible metal appliance connector used to connect the range to the gas supply line should have an I.D. of 1.3 cm (1/2″) and be 1.5 m (5′) in length for ease of installation. In Canada, flexible connectors must be single wall metal connectors no longer than 1.8 m (6′) in length.

CONNECT THE RANGE TO GAS

Shut off the main gas supply valve before disconnecting the old range and leave it off until new hook-up has been completed. Don’t forget to relight the pilot on other gas appliances when you turn the gas back on.

Because hard piping restricts movement of the range, the use of an A.G.A.-certified flexible metal appliance connector is recommended unless local codes require a hard-piped connection. Never use an old connector when installing a new range. If the hard piping method is used, you must carefully align the pipe; the range cannot be moved after the connection is made.

To prevent gas leaks, put pipe joint compound on, or wrap pipe thread tape with Teflon* around, all male (external) pipe threads.

*Teflon: Registered trademark of DuPont

This area allows for flush range installation with

through-the-wall

connection of pipe stub/shut-off valve and rear wall 220V outlet.

Shortest connection from hard pipe stub location to range hookup.

This area allows for flush range installation with through-the-floor connection of pipe stub/shut-off valve.

76.2 cm (30″)

(24″)

15.9 cm (6

⁄4″)

22.9 cm (9″)

5.1 cm (2″)

(4″)

6.4 cm

61 cm

(10.2 cm)

20.3 cm

(4″

)

10.2 cm

(21⁄2″)

(8″)

This area allows for flush range installation with

through-the-wall

connection of pipe stub/shut-off valve and rear wall 220V outlet.

Shortest connection from hard pipe stub location to range hookup.

This area allows for flush range installation with

through-the-floor

connection of pipe stub/shut-off valve.

76.2 cm (30″)

61 cm (24″)

73.7 cm (29″)

22.9 cm (9″)

5.1 cm (2″)

6.4 cm (21⁄2″)

20.3 cm

17.8 cm (7″)

(8″)

10.2 cm (4″)

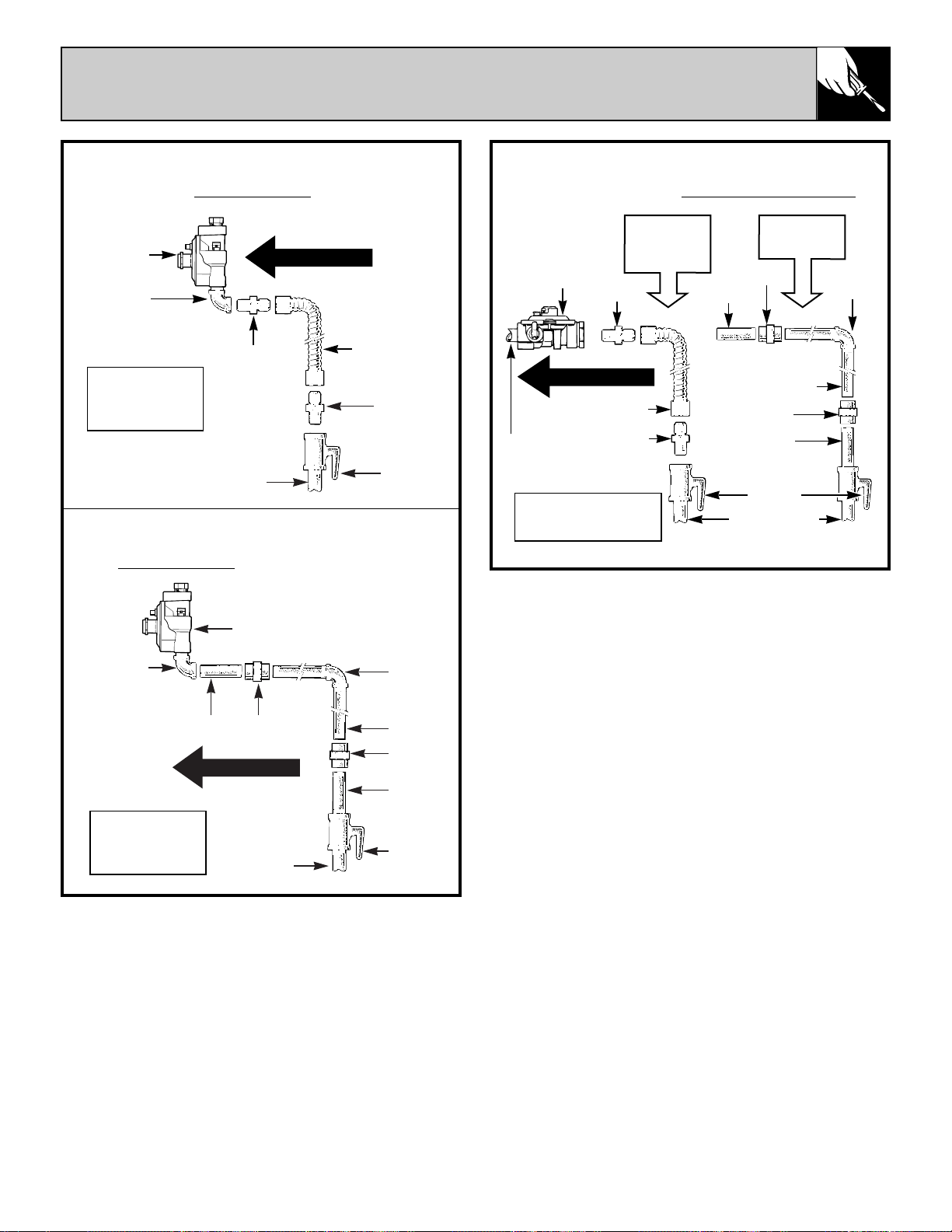

Flexible Connector and Rigid Pipe Hookups for Models Equipped with Standard Twin Burners

Flexible Connector Hookup for Models Equipped with Sealed Burners

Rigid Pipe Hookup for Models Equipped with Sealed Burners

Pressure Regulator

90° Elbow (provided)

Gas Flow into Range

Flex Connector

[1.8 m (6′) max.]

Adapter

Installer: Inform the consumer of the location of the gas shut-off valve.

1.3 cm or 1.9 cm (1/2" or 3/4")

Gas Pipe

Adapter

Gas

Shut-off

Valve

Pressure

Regulator

90° Elbow (provided)

Nipple

Union

90° Elbow

Black

Iron Pipe

Union

Nipple

Gas

Shut-off

Valve

1.3 cm or 1.9 cm (1/2" or 3/4")

Gas Pipe

Gas Flow into Range

Installer: Inform the consumer of the location of the gas shut-off valve.

Manifold Pipe

Adapter

Flex Connector

[1.8 m (6′) max.]

Adapter

Pressure

Regulator

Gas Flow into Range

Flexible

Connector

Hookup

Union

90°

Elbow

Union

Nipple

Black Iron Pipe

Nipple

Rigid Pipe

Hookup

1.3 cm or 1.9 cm (1/2" or 3/4")

Gas Pipe

(continued next page)

Gas

Shut-off

Valve

INSTALLATION INSTRUCTIONS

(continued)

ELECTRICAL CONNECTIONS

(on some models)

Electrical Requirements

220-volt, 60 Hertz, properly grounded branch circuit protected by a 15-amp or 20-amp circuit breaker or time delay fuse.

Extension Cord Cautions

Because of potential safety hazards associated with certain conditions, we strongly recommend against the use of an extension cord.

Grounding

IMPORTANT—FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

The customer should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

CONNECT THE RANGE TO GAS

(continued)

1. Install a manual gas line shut-off valve in the

gas line in an easily accessed location outside of the range. Make sure everyone operating the range knows where and how to shut off the gas supply to the range.

2. Install male 1.3 cm (1/2

″) flare union adapter to the 1.3 cm (1/2″) NPT internal thread elbow at inlet of regulator. On models equipped with standard twin burners, install the male pipe thread end of the 1.3 cm (1/2″) flare union adapter to the 1.3 cm (1/2″) NPT internal thread at inlet of pressure regulator. Use a back-up wrench on the regulator fitting to avoid damage.

When installing the range from the front, remove the 90° elbow for easier installation.

3. Install male 1.3 cm (1/2″) or 1.9 cm (3/4″)

flare union adapter to the NPT internal thread of the manual shut-off valve, taking care to back up the shut-off valve to keep it from turning.

4. Connect flexible metal appliance connector

to the adapter on the range. Position range to permit connection at the shut-off valve.

5. When all connections have been made, make sure all range controls are in the off position and turn on the main gas supply valve. Use a liquid leak detector at all joints and connections to check for leaks in the system.

When using test pressures greater than 1/2 psig to pressure test the gas supply system of the residence, disconnect the range and individual shut-off valve from the gas supply piping. When using test pressures of 1/2 psig or less to test the gas supply system, simply isolate the range from the gas supply system by closing the individual shut-off valve.

CAUTION: DO NOT USE A FLAME TO CHECK FOR GAS LEAKS.

CHECK IGNITION OF OVEN BURNER

The oven is designed to operate quietly and automatically. To operate the oven, press the BAKE pad and then press the + pad until “350°” appears in the display. After 30-90 seconds, the oven burner will ignite and burn until the set temperature is reached. The oven burner will continue to cycle on and off as necessary to maintain the oven at the temperature indicated by the display.

To check ignition of the broil burner, press the BROIL pad and then the + or – pad. After 3090 seconds, the broil burner will ignite.

Electric ignition models require electrical power to operate. In case of a power outage, the oven burners on these models cannot be lit manually with a match. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power outage occurs, the burner will shut off and cannot be re-lit until power is restored.

CHECK IGNITION OF SURFACE BURNERS

Surface Burner Ignition

Operation of all cooktop and oven burners should be checked after the range and gas supply lines have been carefully checked for leaks.

Electric Ignition Models

Select a top burner knob and simultaneously push in and turn to LITE position. You will hear a snapping sound indicating proper operation of the spark module. Once the air has been purged from the supply lines, burners should light within 4 seconds. After burner lights, rotate knob out of the LITE position. Try each burner in succession until all burners have been checked.

Quality of Flames

The combustion quality of burner flames needs to be determined visually.

(A) Yellow flames—

Call for service

(B) Yellow tips on

outer cones—

Normal for butane gas

If burner flames look like (A), call for service. Normal burner flames should look like (B).

With butane gas, some yellow tipping on outer cones is normal.

SEAL THE OPENINGS

Seal any openings in the wall behind the range and in the floor under the range when hookups are completed.

(continued next page)

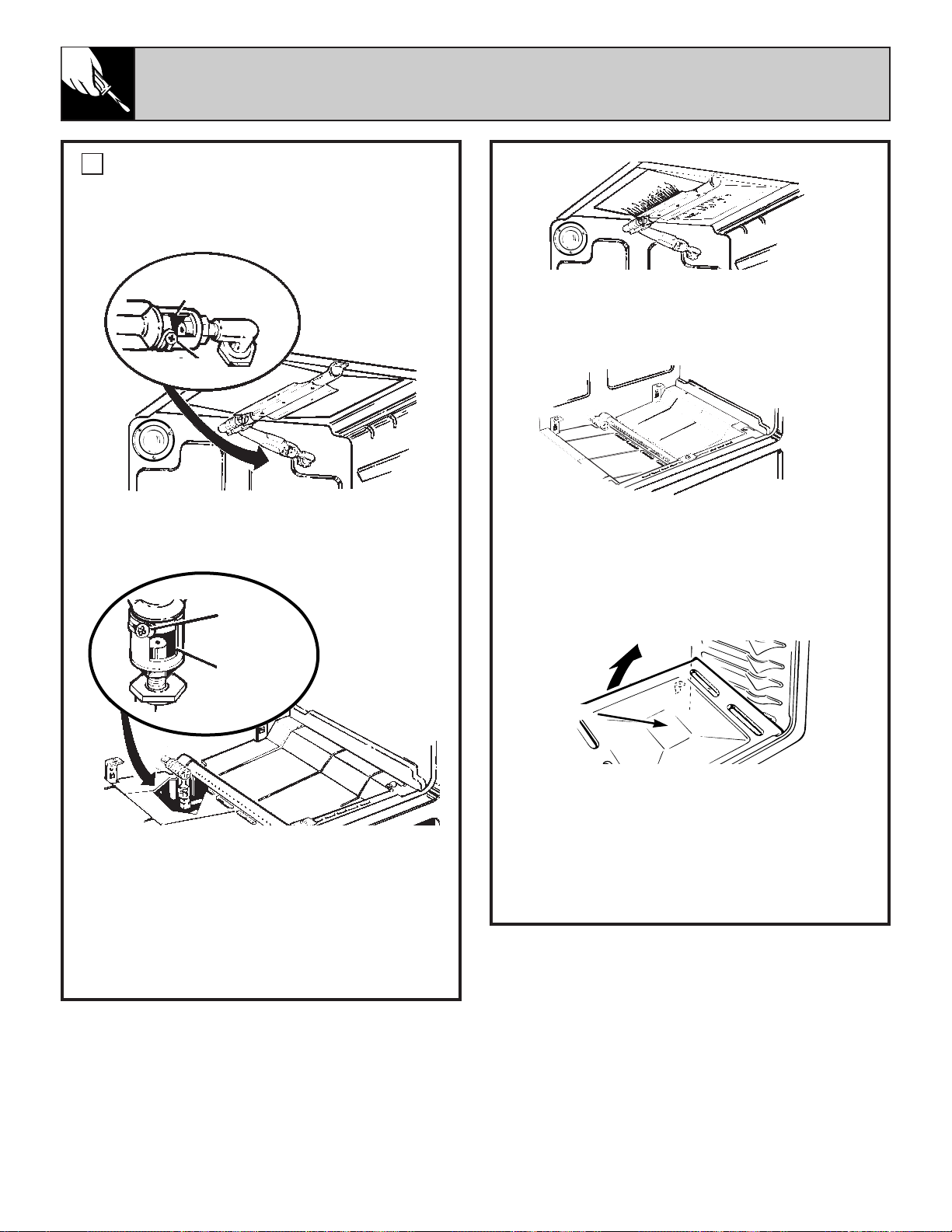

INSTALLATION INSTRUCTIONS

(continued)

The flames for the top (broil) burner should be steady with approximately 2.5 cm (1″) blue cones and should

not extend out over the edges of the

burner baffle.

To determine if the bottom burner flames are burning properly, remove the oven bottom. Flames should have approximately

2.5 cm (1″) blue cones with small yellow tips at the end of outer cones. Flames should not lift off burner ports. If lifting is observed, gradually reduce air shutter opening until flames are stabilized.

To remove the oven bottom:

1. Remove the knurled screws holding down rear

of the oven bottom.

2. Grasp the oven bottom at finger slots on each side.

3. Lift the rear of the oven bottom enough to clear the lip of the range frame, then pull out.

ADJUST BROIL AND OVEN BURNER AIR

ADJUSTMENT SHUTTERS IF NECESSARY

Air adjustment shutters for the top and bottom burners regulate the flow of air to the flames.

The air adjustment shutter for the top (broil) burner is in the center of the rear wall of the oven.

The shutter for the bottom (oven) burner is near the back wall behind the storage drawer or the kick panel (depending on the model). Remove the drawer or panel. See the Care and Cleaning section in this guide.

To adjust the flow of air to either burner, loosen the Phillips head screw and rotate the shutter toward open or closed position as needed.

Air Adjustment Shutter

Loosen

Air Adjustment Shutter

Oven Bottom

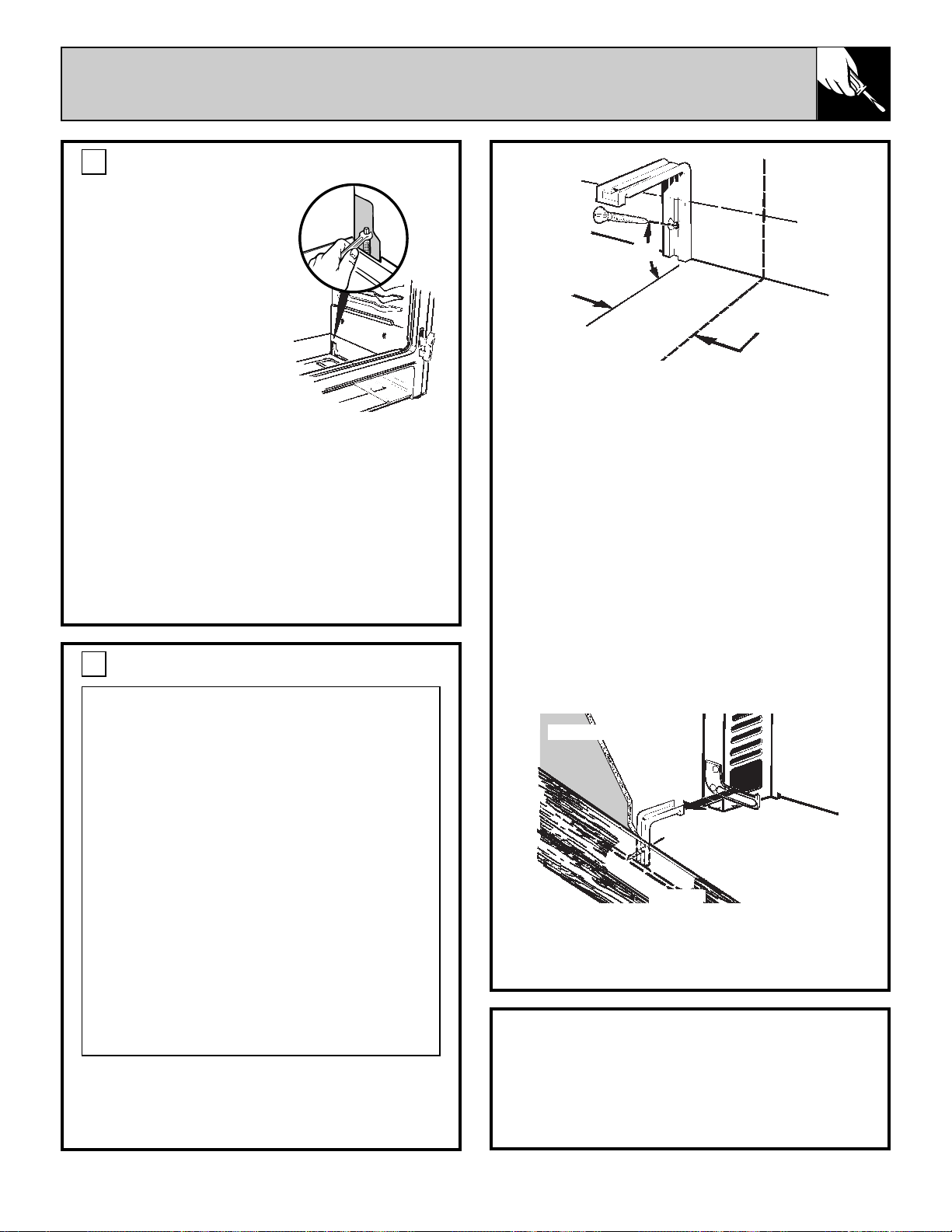

2. Locate the outside edge of the device 5.4 cm (2

⁄8″) toward the center of the range from the

marked edge of the range.

3. Using the device as a template, mark the position of the hole for the screw.

4. For wood construction, drill a pilot hole at an angle of 20 degrees from the horizontal. A nail or awl may be used if a drill is not available.

Mount the Anti-Tip device with the screw provided.

For cement or concrete construction, you will need a 6 mm x 3.8 cm (1/4″ x 1

⁄2″) lag bolt and a

1.3 cm (1/2″) O.D. sleeve anchor, which are not provided. Drill the recommended size hole for the hardware.

Install the sleeve anchor into the drilled hole and then install the lag bolt through the device. The bolts must be properly tightened as recommended for the hardware.

5. Slide the range against the wall, and check for proper installation by grasping the front edge of the cooktop and carefully attempting to tilt the range forward.

WHEN ALL HOOKUPS ARE COMPLETED: MAKE SURE ALL CONTROLS ARE LEFT IN THE

OFF POSITION. MAKE SURE THE FLOW OF COMBUSTION AND

VENTILATION AIR TO THE RANGE IS UNOBSTRUCTED.

INSTALLING THE ANTI-TIP DEVICE

1. Mark the wall where the RIGHT EDGE of the range is to be located. Be sure to allow for the countertop overhang if you intend to install the range next to cabinets.

WARNING:

• Range MUST be secured with an approved Anti-Tip device.

• Unless properly installed, the range could be tipped by you or a child standing, sitting or leaning on an open door.

• After installing the Anti-Tip device, verify that it is in place by carefully attempting to tilt the range forward.

• This range has been designed to meet all recognized industry tip standards for all normal conditions.

• The use of this device does not preclude tipping of the range when not properly installed.

• If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB02X7909.

LEVELING THE RANGE

1. Remove the storage drawer or kick panel.

2. Use a 5 mm (3/16″) open-end or socket wrench to back out both rear leveling legs approximately two turns.

3. Use a 3.5 cm (1

⁄8″) open-end or adjustable wrench to back out the front leveling legs two turns.

4. Install the oven shelves in the oven and position the range where it will be installed.

5. Check for levelness by placing a spirit level or a cup, partially filled with water, on one of the oven racks. If using a spirit level, take two readings—with the level placed diagonally first in one direction and then the other.

6. Adjust the leveling legs until the range is level.

7. After the range is level, slide the range

away from the wall so that the Anti-Tip device can be installed.

Marked Edge of Range

Approx. 20°

Slotted Head Screw

Anti-Tip Device

Wallplate

5.4 cm (2

⁄8″)

Wood Screw

Wallplate

Anti-Tip Device

Back of Range

Wallboard

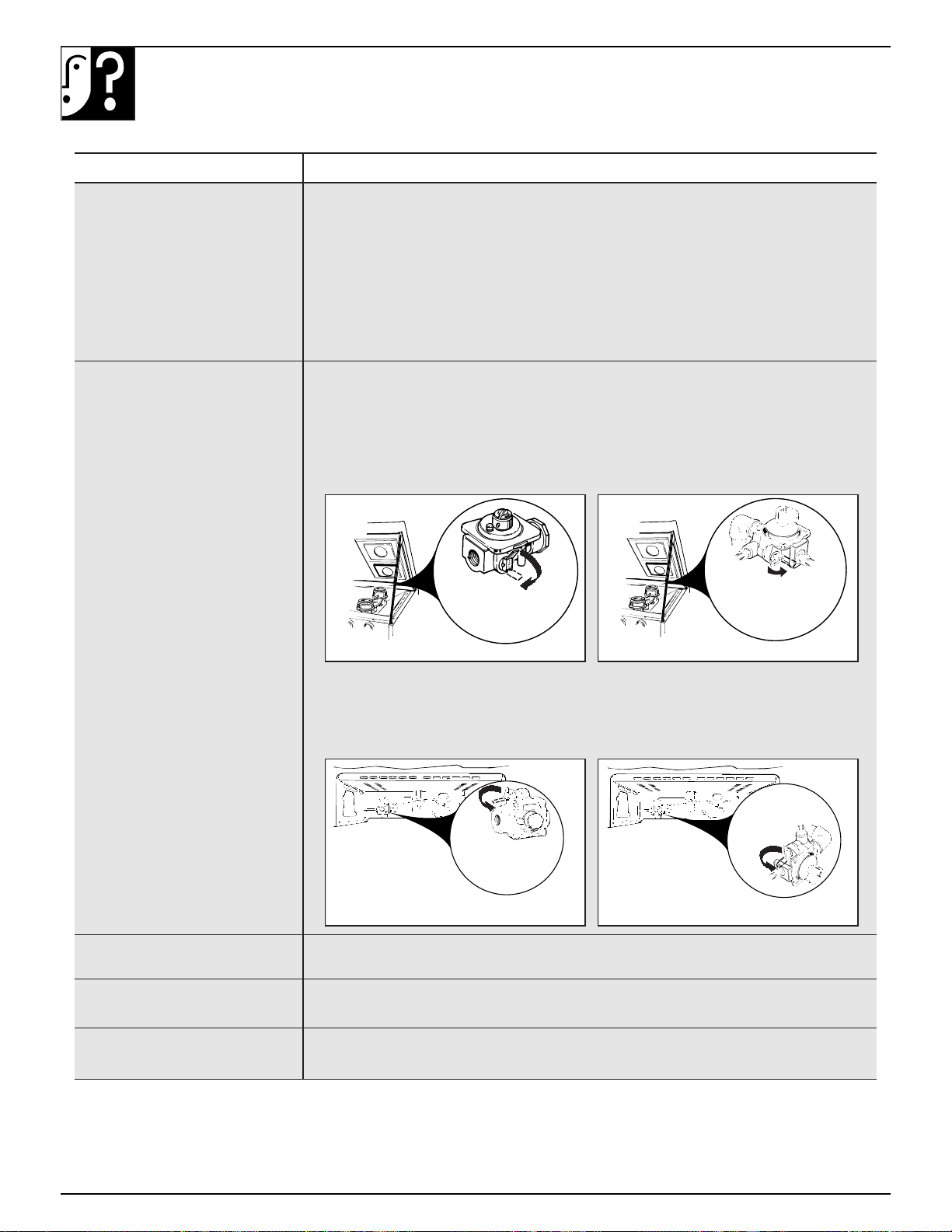

QUESTIONS?

BEFORE YOU CALL FOR SER VICE…

PROBLEM POSSIBLE CAUSE

TOP BURNERS DO NOT • Make sure electrical plug is plugged into a live power outlet. LIGHT OR DO NOT

• Burner holes on the side or around the top of burner may be clogged. Remove

BURN EVENLY

burners (on models with standard twin burners) or burner heads (on models with sealed burners) or burner caps on spill-proof models, and clean them with a sewing needle or twist tie. Make sure you do not enlarge the holes. On spill-proof models, check electrode area for burned-on food or grease.

• Make sure the drip pans are installed correctly.

• Pilot(s) is (are) not lit (on standing pilot models). See the Lighting Instructions for Standing Pilot Models in Surface Cooking.

SURFACE BURNERS • The oven gas shut-off valve may have accidentally been moved during LIGHT BUT OVEN cleaning or moving. DOES NOT

To check the oven gas shut-off valve on standard twin burner models, raise the cooktop and look for the gas shut-off lever at the extreme right rear corner. (Standing pilot models do not have a gas shut-off valve on the regulator.)

Follow the directions in box A or B that match your regulator type.

To check the oven gas shut-off valve on sealed burner models, remove the storage drawer, broiler drawer or kick panel and look for the gas shut-off lever at the back of the range.

Follow the directions in box A or B that match your regulator type.

CLOCK DOES NOT WORK • Range electrical plug must be securely seated in a live power outlet. Check for

blown fuse or tripped circuit breaker.

OVEN LIGHT DOES NOT • Bulb may be loose or burned out. COME ON

• Electrical plug must be plugged into a live power outlet.

NIGHT LIGHT DOES • Fluorescent bulb is loose or defective. Adjust or replace. NOT WORK

• Switch operating the light is broken. Call for service.

Lever shown closed.

PULL TO OPEN.

Lever shown closed.

PULL TO OPEN.

Lever shown

closed. PULL

TO OPEN.

A B

Standard Twin Burner Models

Sealed Burner Models

Lever shown closed. PULL

TO OPEN.

Sealed Burner Models

Standard Twin Burner Models

Before You Call for Service

PROBLEM POSSIBLE CAUSE

OVEN WILL NOT WORK • Plug on the range is not completely inserted in the electrical outlet.

• Pilot(s) is (are) not lit (on standing pilot models). See the Lighting Instructions for Standing Pilot Models in Using Your Oven.

• The circuit breaker in your house has been tripped, or a fuse has been blown.

• Oven controls not properly set.

OVEN TEMPERATURE • The oven thermostat needs adjustment. See the Adjust the Oven TOO HOT OR TOO COLD Thermostat—Do It Yourself section.

FOOD DOES NOT ROAST • Oven controls not properly set. See the Baking or Roasting section. OR BAKE PROPERLY

• Shelf position is not correct.

• Incorrect cookware or cookware of improper size is being used.

• The oven thermostat needs adjustment. See the Adjust the Oven Thermostat— Do It Yourself section.

• Clock not set correctly.

• Oven bottom not securely seated in position.

FOOD DOES NOT • Oven controls not properly set. See the Broiling section. BROIL PROPERLY

• Oven door not closed.

• Improper shelf position being used. See the Broiling section.

• Food is being cooked on a hot pan.

• Cookware is not suited for broiling.

• Aluminum foil used on the broiler pan grid has not been fitted properly and slit as recommended.

• Oven bottom not securely seated in position.

OVEN WILL NOT • Oven temperature is too high to set self-clean operation. Allow the range to SELF-CLEAN cool to room temperature and reset the controls.

• Door latch handle not moved all the way to the right.

OVEN DOOR WILL • Oven must cool below locking temperature. Do not lock the door with NOT UNLOCK door latch except when using self-clean feature or the oven may lock.

OVEN NOT CLEAN AFTER • Oven controls not set properly. See Operating the Self-Cleaning Oven section. CLEAN CYCLE

• Heavily soiled oven requires 31⁄2to 4 hours of cleaning time.

• Heavy spillovers should be cleaned up before starting clean cycle.

OVEN DOOR • Press the CLEAR/OFF pad. Allow the oven to cool and then unlatch the door. ACCIDENTALLY LOCKED WHILE BAKING

(continued next page)

PROBLEM POSSIBLE CAUSE

“door” APPEARS • Self-cleaning cycle has been selected but latch handle was not moved all the

IN THE DISPLAY way to the right. Move the latch handle.

• Latch handle was moved to the right but a program other than self-cleaning was selected. Move the latch handle to the right only when setting the self-cleaning cycle.

“F—AND A NUMBER” • If the time display flashed “F—and a number,” you have a function error code. FLASH IN THE DISPLAY If a function error code appears during the self-cleaning cycle, check the oven

door latch. The latch handle may have been moved, even if only slightly, from the latched position. Make sure the latch is moved to the right as far as it will go. Press the CLEAR/OFF pad. Allow the oven to cool for one hour. Put the oven back into operation.

• Disconnect all power to the range for 5 minutes and then reconnect power. If the failure code repeats, then call for service.

OVEN CONTROL SIGNALS • This is reminding you to enter a bake temperature (see the Baking section). AFTER ENTERING COOK TIME OR STOP TIME

RAINBOW EFFECT IN • This is normal. It is caused by the heat treatment applied to the oven window. THE OVEN WINDOW (on some models)

STRONG ODOR • Improper air/gas ratio in oven. Adjust oven burner air shutter.

• An odor from the insulation around the oven liner is normal for the first few times oven is used. This is temporary.

BEFORE YOU CALL FOR SER VICE…

(continued)

Before You Call for Service

NOTES

Part No. 183D5580P032 Pub No. 49-8805

JGBP35GZX

12-96 CG

This book is printed on recycled paper.

Printed in Mexico

GE JGBP35GZX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating Instructions, Tips

BAKING

TIMED BAKING

CARE AND CLEANING

Cooktop Surface Oven Bottom

Broiler Pan and Grid

INSTALLATION INSTRUCTIONS
