Specification Created 7/01

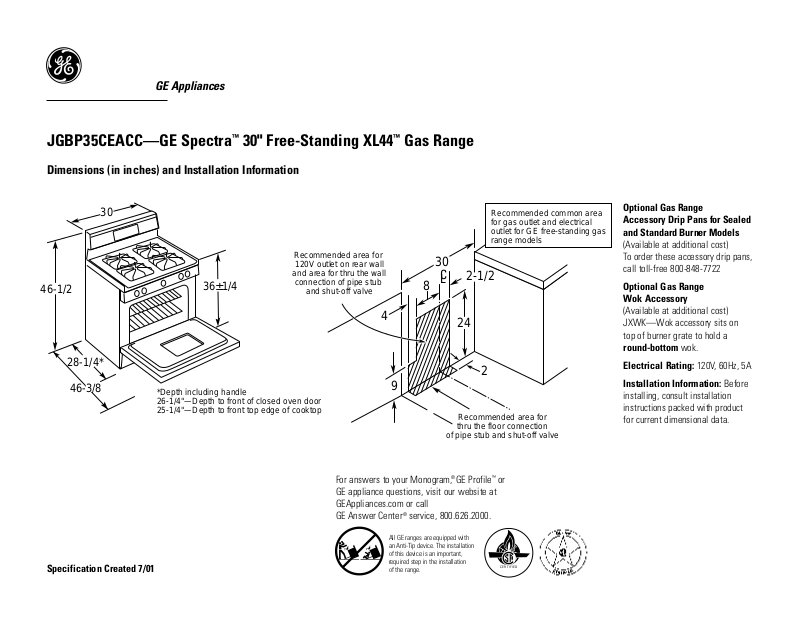

JGBP35CEACC—GE Spectra™30" Free-Standing XL44™Gas Range
Dimensions (in inches) and Installation Information
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
30
46-1/2
28-1/4*
46-3/8
36±1/4
*Depth including handle
26-1/4"—Depth to front of closed oven door
25-1/4"—Depth to front top edge of cooktop
Optional Gas Range
Accessory Drip Pans for Sealed
and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-848-7722
Optional Gas Range
Wok Accessory
(Available at additional cost)
JXWK—Wok accessory sits on
top of burner grate to hold a
round-bottom wok.
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
24
30
8
4
9
2
C
L
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
CERTIFIED
GE Appliances
Specification Created 7/01
JGBP35CEACC—GE Spectra™30" Free-Standing XL44™Gas Range
P
R
E
C
I
S
E
S
I
M
M
E
R
M
A
X
I
M
U
M
O
U
T
P
U
T
Features and Benefits
• Extra-Large 4.4 cu. ft. Capacity Self-Cleaning Oven
• One-Piece Upswept Porcelain-Enameled Cooktop
• Sealed Cooktop Burners
• (1) 12,000/1,000 BTU Maximum Output Burner
• (1) 5,000/600 BTU Simmer Burner
• (2) 9,500/850 BTU All-Purpose Sealed Burners
• TrueTemp
™
System
• SmartLogic
™
Electronic Controls
• QuickSet IV Oven Controls
• Medium Cast Removable Square Grates
• Porcelain-Enameled One-Piece Drip Pans
• Electronic Pilotless Ignition System
• Electronic Clock and Timer
• In-Oven Broiling with Extra-Large Broiler Pan with Grid
• 2 Oven Racks / 6 Embossed Rack Positions
• Removable Frameless Glass Oven Door with Big View Window
• Designer-Style Handle
• Porcelain-Enameled Scratch-Resistant Backguard
• Easy Glide Storage Drawer
• Model JGBP35WEAWW–White on White
• Model JGBP35BEABB–Black on Black
• Model JGBP35AEAAA–Almond on Almond
• Model JGBP35CEACC–Bisque
