GE JGBP30BEH User Manual

GE Appliances

JGBP30BEH – GE®30" Free-Standing Self-Clean Gas Range

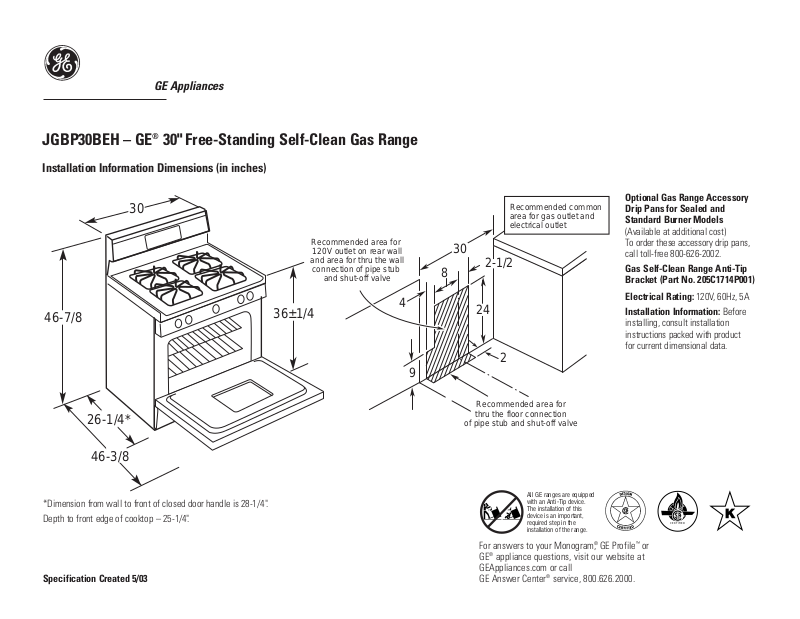

Installation Information Dimensions (in inches)

Optional Gas Range Accessory
Drip Pans for Sealed and
Standard Burner Models

(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.

Gas Self-Clean Range Anti-Tip
Bracket (Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before

installing, consult installation
instructions packed with product
for current dimensional data.

Specification Created 5/03

CERTIFIED

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.

All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.

*Dimension from wall to front of closed door handle is 28-1/4".

Depth to front edge of cooktop – 25-1/4".

30

46-7/8

26-1/4*

46-3/8

36±1/4

24

30

8

4

9

2

2-1/2

Recommended area for
thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common
area for gas outlet and
electrical outlet

GE Appliances

JGBP30BEH – GE®30" Free-Standing Self-Clean Gas Range

Features and Benefits

• Self Clean Oven – Conveniently cleans the oven cavity without need of scrubbing.

• Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more items
at once.

• TrueTemp™System – Delivers even heat distribution and maximum oven control.

• QuickSet IV Oven Controls – Feature an easy to use design that lets you set precise
cooking temperatures.

• High Output Burner – Provides a powerful burner output for efficient heat-up and sautéing.

• Precise Simmer Burner – Offers a low setting of 600 BTUs, ensuring more temperature control
for simmering.

• All Purpose Burners – Deliver a wide range of heat output ideal for most cooking requirements.

• Model JGBP30WEHWW – White on white (white door and white patterned cooktop)

• Model JGBP30CEHCC – Bisque on bisque (bisque door and bisque patterned cooktop)

• Model JGBP30BEHWH – White (black door and white patterned cooktop)

• Model JGBP30BEHCT – Bisque (black door and bisque patterned cooktop)

Specification Created 5/03

P

R

E

C

I

S

E

S

I

M

M

E

R

BROIL

SELF
CLEAN

OVEN
LIGHT

CLOCK

O

V

E

N

C

O

N

T

R

O

L

S

T

r

u

e

T

e

m

p

ON

TE

M

P

NOR

M

AL

HI

L

O

OF

F

KITCHEN
TIM

E

R

ON

OF

F

BAKE

START

ON

CLEAR

OFF

TIME

C

O

N

T

R

O

L

S

CO

O

KING
TIM

E

ON

OF

F

AUTOMATI

C

OVEN

START
TIM

E

ON

OF

F

H

IG

H

O

U

T

PU

T
