GE JGBP28WEAWW Specification

GE Appliances

Specification Created 2/00

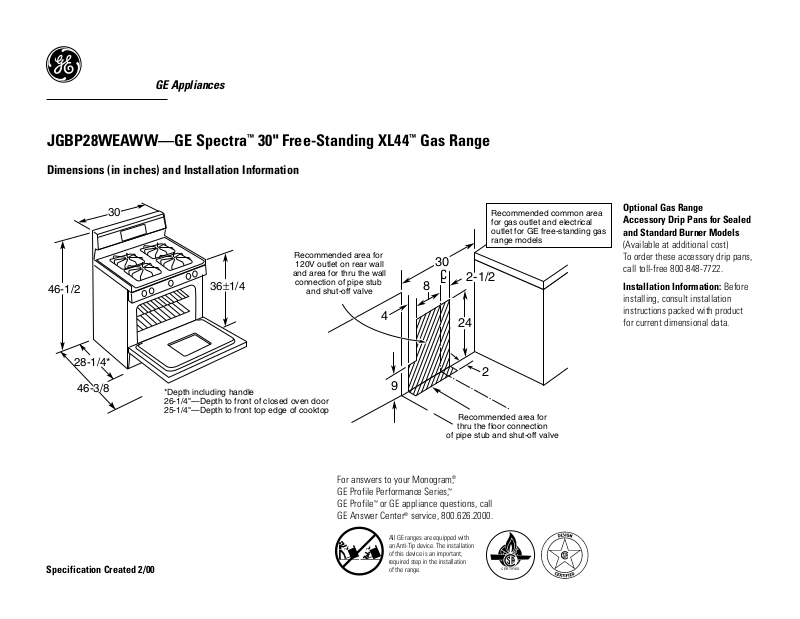

JGBP28WEAWW—GE Spectra™30" Free-Standing XL44™Gas Range

Dimensions (in inches) and Installation Information

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

30

46-1/2

28-1/4*

46-3/8

36±1/4

*Depth including handle
26-1/4"—Depth to front of closed oven door
25-1/4"—Depth to front top edge of cooktop

Optional Gas Range
Accessory Drip Pans for Sealed
and Standard Burner Models

(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-848-7722.

Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.

24

30

8

4

9

2

C

L

2-1/2

Recommended area for
thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

CERTIFIED

GE Appliances

Specification Created 2/00

JGBP28WEAWW—GE Spectra™30" Free-Standing XL44™Gas Range

I

H

8

6

4

2

0

O

F

F

RE

A

R

LITE

I

H

8

6

4

2

0

O

F

F

FR

O

N

T

O

V

E

N

L

I

G

H

T

LITE

I

H

8

6

4

2

0

O

F

F

R

EA

R

LITE

I

H

8

6

4

2

0

O

F

F

FR

O

N

T

LITE

Features and Benefits

• Extra-Large 4.4 cu. ft. Self-Cleaning Oven

• One-Piece Upswept Porcelain-Enameled Cooktop

• Sealed Cooktop Burners

• (4) 9,500/850 BTU All-Purpose Sealed Burners

• Black Standard Porcelain-Steel Square Grates

• Electronic Pilotless Ignition System

• QuickSet II Oven Controls

• Electronic Clock and Timer

• In-Oven Broiling

• Extra-Large Broiler Pan and Grid

• 2 Oven Racks / 6 Embossed Rack Positions

• Removable Frameless Glass Oven Door with Window

• Designer-Style Handle

• Porcelain-Enameled Scratch-Resistant Backguard

• Storage Drawer

• Optional Accessory One-Piece Drip Pans Available at Additional Cost

• Model JGBP28WEAWW–White on white

• Model JGBP28BEAWH–White

• Model JGBP28BEAAD–Almond
