Specification Created 6/03
GE Appliances

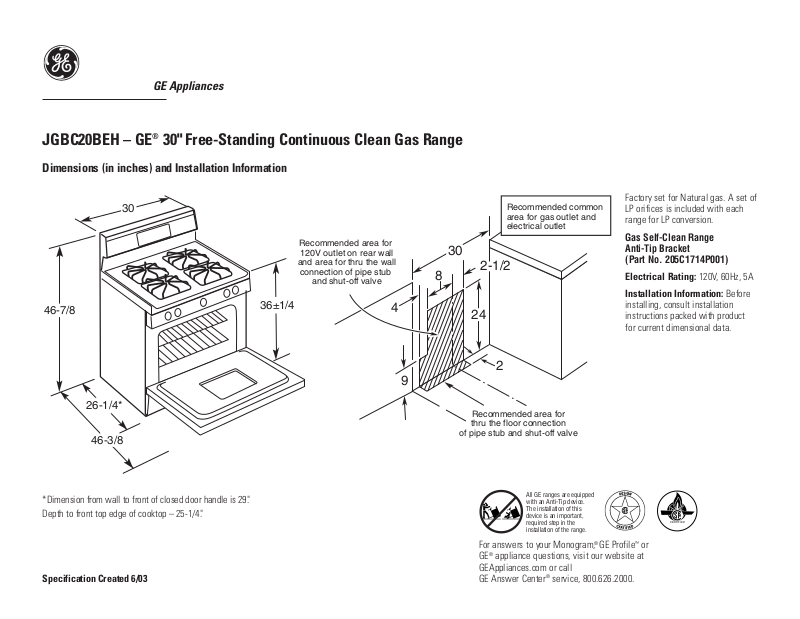

JGBC20BEH – GE®30" Free-Standing Continuous Clean Gas Range
Dimensions (in inches) and Installation Information
30
46-7/8
26-1/4*
46-3/8
36±1/4
Factory set for Natural gas. A set of
LP orifices is included with each
range for LP conversion.
Gas Self-Clean Range
Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
24
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
*Dimension from wall to front of closed door handle is 29".
Depth to front top edge of cooktop – 25-1/4".
CERTIFIED
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
Specification Created 6/03
GE Appliances
JGBC20BEH – GE®30" Free-Standing Continuous Clean Gas Range
C
L
O
C
K
S
E
T
TIMER
ON
OF
F
Features and Benefits
• Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more
items at once.
• All Purpose Burners – Deliver a wide range of heat output ideal for most
cooking requirements.
• Electronic Clock and Timer – Features a convenient digital clock and easy-to-use
timer with an audible signal to help coordinate cooking times in the kitchen.
• Standard Grates – Provide a sturdy and convenient cookware surface for
everyday cooking.
• Frameless Glass Oven Door – Offers an easy-to-clean and stylish design that
blends seamlessly into existing cabinetry.
• ClearView
™
Window – Features a convenient viewing area to check the progress
of food.
• Two Oven Racks – Feature a durable construction to help accommodate any size or
type of cookware.
•Model JGBC20WEHWW – White on white (white door and white cooktop)
• Model JGBC20CEHCC – Bisque on bisque (bisque door and bisque cooktop)
• Model JGBC20BEHWH – White (black door and white cooktop)
• Model JGBC20BEHCT – Bisque (black door and bisque cooktop)
