GE JGB850SEF Dimensions And Installation Information

Electrical Rating: 120V, 60Hz, 9A
Installation Information: Before installing, consult
installation instructions packed with product for current dimensional data.
JGB850SEF
GE® 30" Free-Standing Gas Double Oven Range
330457

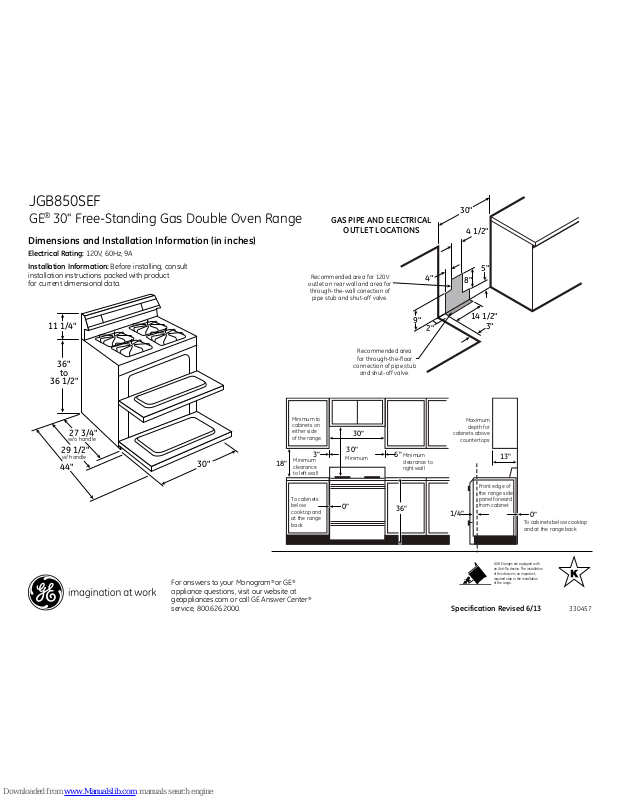

Dimensions and Installation Information (in inches)
Minimum to cabinets on either side of the range.
Minimum clearance to left wall
Minimum
Minimum clearance to right wall
Maximum
depth for
cabinets above
countertops
Front edge of the range side panel forward from cabinet
To cabinets below cooktop and at the range back
To cabinets below cooktop and at the range back
18"
3"
30"
30"
13"
6"
36"
0"
0"
1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
27 3/4"
11 1/4"
44"
29 1/2"
w/o handle
w/ handle
30"
36"
to
36 1/2"
For answers to your Monogram® or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.
JGB850SEF
GE® 30" Free-Standing Gas Double Oven Range
Specification Created 6/13
330457
Features and Benefits
• Double Oven 6.8 cu. ft . Total Capacity - Large capacity is ideal for big meals
• 17,000 BTU Power Boil Burner - Delivers intense heat for fast boiling
• Center Oval Burner - Large oval fifth burner is ideal for griddle or odd-size cookware
• Non-Stick Griddle - Large non-stick surface perfect for griddle cooking
• Precise Simmer Burner - Delicate foods don’t burn with low, even heat
• Heavy-Cast, Continuous Grates - Allow for easy movement of pans between burners
• Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Model JGB850SEFSS - Stainless steel
