GE JGB850DEFWW User Manual
JGB850DEF/EEF
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"

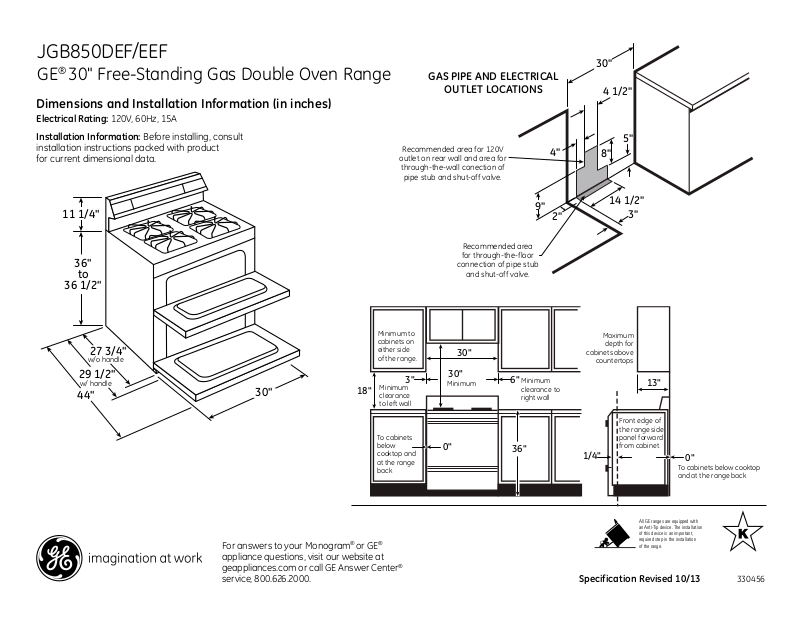

GE® 30" Free-Standing Gas Double Oven Range
Dimensions and Installation Information (in inches)
Electrical Rating: 120V, 60Hz, 15A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
4"
30"
4 1/2"
5"
8"
11 1/4"
36"
to
36 1/2"
27 3/4"
w/o handle
29 1/2"
w/ handle
44"
30"
Minimum to
cabinets on
either side
of the range.
3"
Minimum
18"
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
30"
30"
Minimum
0"
6"
Minimum
clearance to
right wall
36"
9"
2"
14 1/2"
Maximum
depth for
cabinets above
countertops
1/4"
3"
13"
Front edge of
the range side
panel forward
from cabinet
0"
To cabinets below cooktop
and at the range back
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 10/13
330456
JGB850DEF/EEF
GE® 30" Free-Standing Gas Double Oven Range
Features and Benefits
• Double Oven 6.8 cu. ft. Total Capacity - Large capacity is ideal for big meals
• 17,000 BTU Power Boil Burner - Delivers intense heat for fast boiling
• Center Oval Burner - Large oval fifth burner is ideal for griddle or odd-size cookware
• Non-Stick Griddle - Large non-stick surface perfect for griddle cooking
• Precise Simmer Burner - Delicate foods don’t burn with low, even heat
• Heavy-Cast, Continuous Grates - Allow for easy movement of pans between
burners
• Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Model JGB850DEFWW - White on white
• Model JGB850DEFBB - Black on black
• Model JGB850EEFES - Slate
Specification Revised 10/13
330456
