GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
JGB630DEF
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"

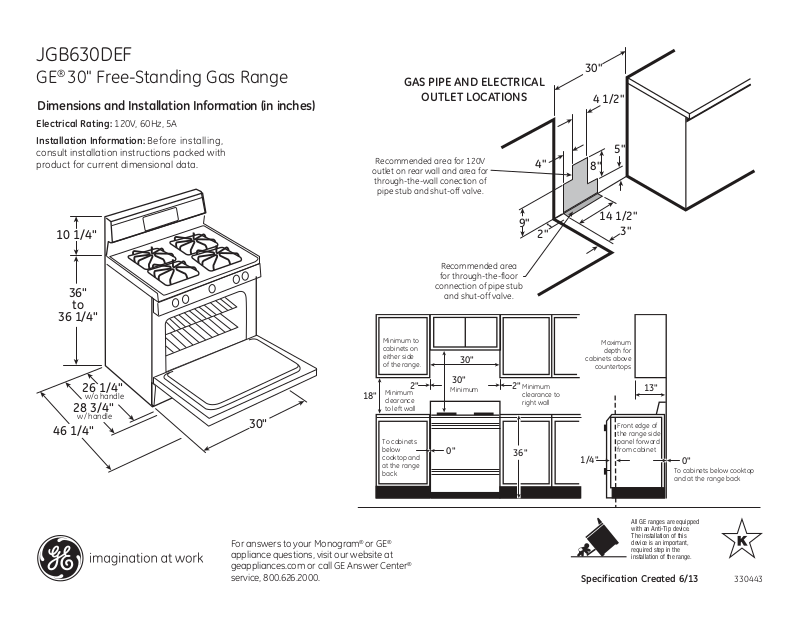

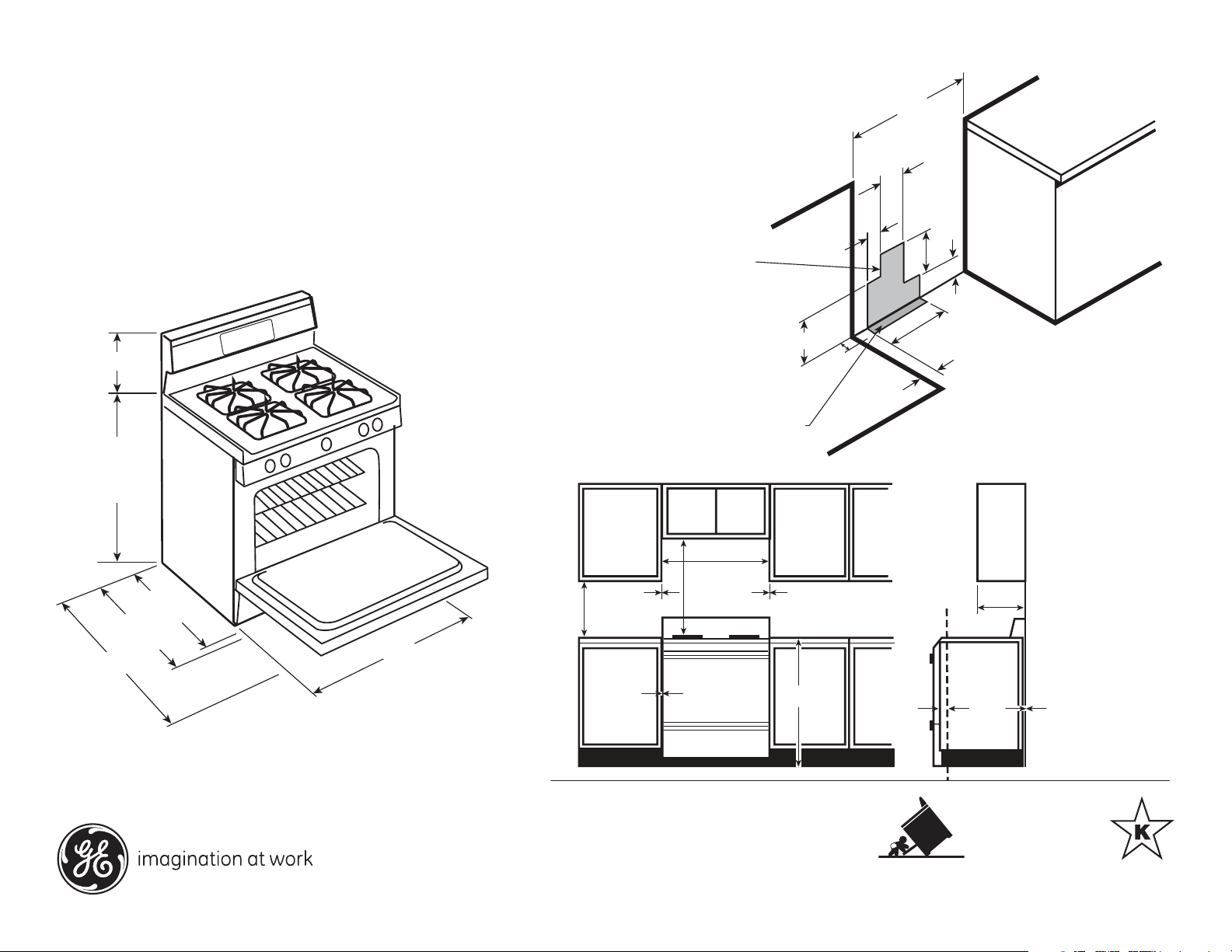

GE® 30" Free-Standing Gas Range
Dimensions and Installation Information (in inches)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
4"
30"
4 1/2"
5"
8"
10 1/4"
36"
to
36 1/4"
26 1/4"
w/o handle
28 3/4"
w/ handle
46 1/4"
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
9"
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
30"
18"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
30"
2"
30"
Minimum
0"
2"
Minimum
clearance to
right wall
36"
2"
14 1/2"
3"
Maximum
depth for
cabinets above
countertops
13"
Front edge of
the range side
1/4"
Specification Created 6/13
panel forward
from cabinet
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
0"
To cabinets below cooktop
and at the range back
330443
Page 2
JGB630DEF

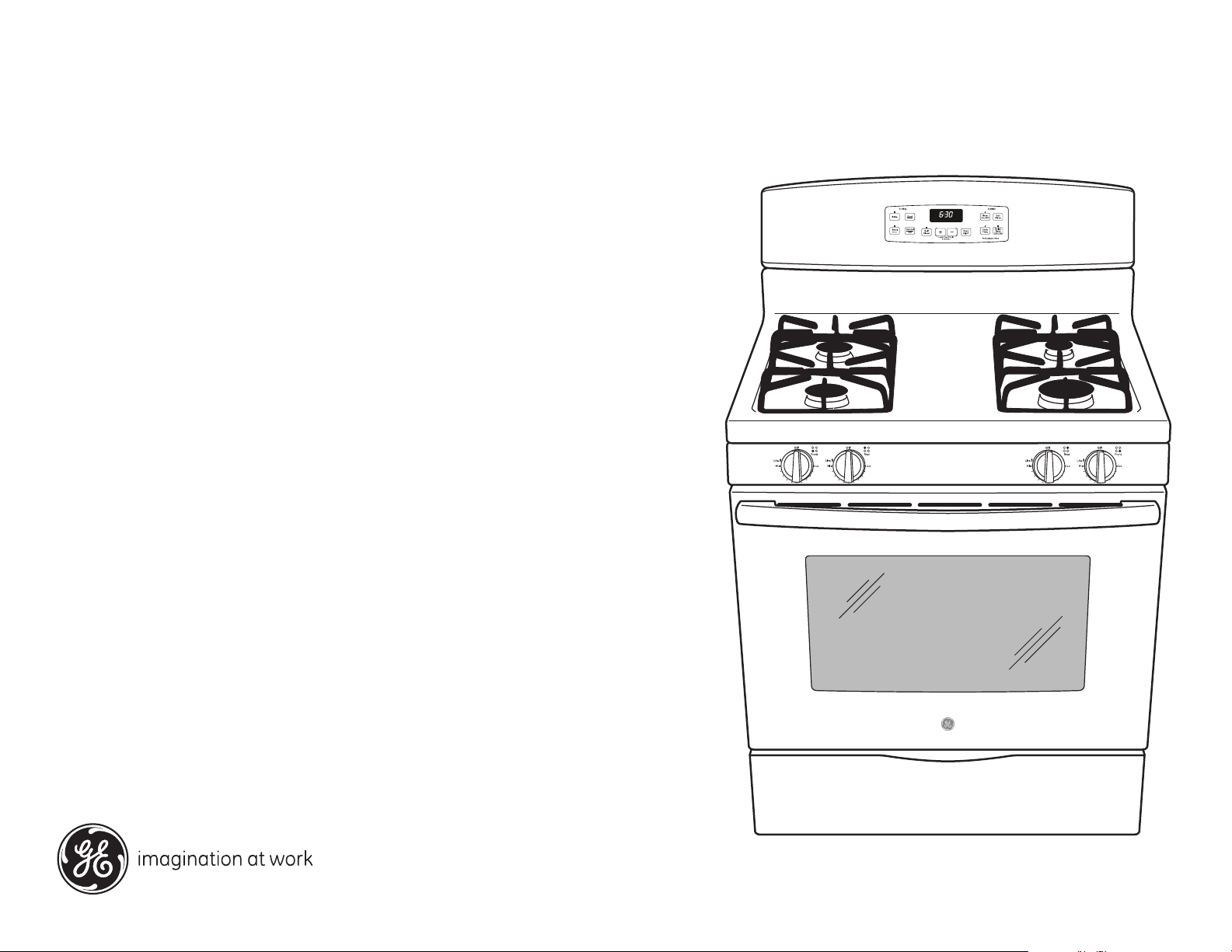

GE® 30" Free-Standing Gas Range
Features and Benefits
• 12,5000 BTU Burner - Quickly produces high heat
• Precise Simmer Burner - Delicate foods don’t burn with low,
even heat
• Self-Clean Oven - Cleans the oven cavity without the need
for scrubbing
• 5.0 cu. ft. Oven Capacity - Cook more dishes at once
• Sealed Cooktop Burners - Contains spills and make cleaning quick
and easy
• In-Oven Broil - Healthy meals are hassle-free with in-oven broiling
• Model JGB630DEFWW - White on white
• Model JGB630DEFBB - Black on black
• Model JGB630DEFCC - Bisque on bisque
Specification Created 6/13
