GE JGB620DEFBB User Manual
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
JGB620DEF
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
30"

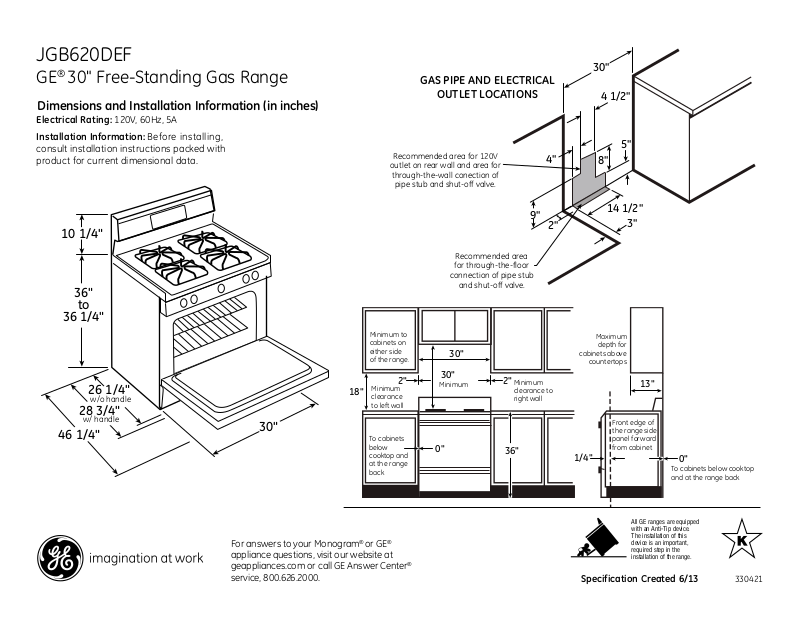

GE® 30" Free-Standing Gas Range
Dimensions and Installation Information (in inches)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
10 1/4"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall conection of
pipe stub and shut-off valve.
9"
4"
2"
30"
4 1/2"
5"
8"
14 1/2"
3"
36"
to
36 1/4"
26 1/4"
w/o handle
28 3/4"
w/ handle
46 1/4"
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
30"
Minimum to
cabinets on
either side
of the range.
18"
To cabinets
below
cooktop and
at the range
back
Minimum
clearance
to left wall
30"
2"
30"
Minimum
0"
2"
Minimum
clearance to
right wall
36"
Maximum
depth for
cabinets above
countertops
13"
Front edge of
the range side
panel forward
from cabinet
1/4"
Specification Created 6/13
To cabinets below cooktop
and at the range back
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
0"
330421
JGB620DEF
GE® 30" Free-Standing Gas Range
Features and Benefits
• 12,500 BTU Burner - Quickly produces high heat
• Precise Simmer Burner - Delicate foods don’t burn with low, even heat
• Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
• 5.0 cu. ft. Oven Capacity - Cook more dishes at once
• Sealed Cooktop Burners - Contains spills and make cleaning quick and easy
• Electronic Oven Controls - Electronic touch pads are easy to operate
• Model JGB620DEFWW – White on white
• Model JGB620DEFBB – Black on black
Specification Created 6/13
330451
