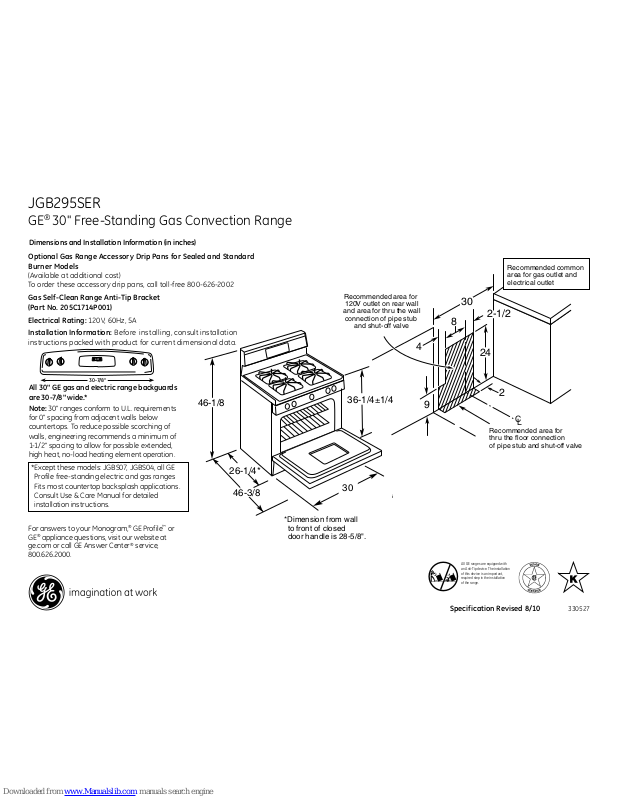

Dimensions and Installation Information (in inches)
For answers to your Monogram,
®
GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 8/10
330527
Optional Gas Range Accessory Drip Pans for Sealed and Standard
Burner Models
(Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
JGB295SER
GE® 30" Free-Standing Gas Convection Range
All GE ranges are equipped wi th
an Anti-Tip device. The installation
of this device is an importan t,
required step in the installation
of the range.
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, all GE
Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
30 -7/8"
24
30" FS Gas Ranges-CL
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
24
30" FS Gas Ranges-CL
30
8
4
2-1/2
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
46-1/8
26-1/4*
46-3/8
36-1/4±1/4
Installation Information (Dimensions in inches)
Recommended common
area for gas outlet and
electrical outlet
*Dimension from wall
to front of closed
door handle is 28-5/8".
30
Page 2
Features and Benefits
• Self-clean oven–Allows you to spare yourself from the trouble and effort it takes to
scrub the oven interior
• Super-large oven capacity–Remarkably large oven interior is ideal for holidays,
dinner parties and everyday family cooking
• Gas convection oven–Convection heating circulates the air to keep the heat
consistent, enhancing the baking or roasting results
• Heavy-cast, continuous grates–Matte-finish, connected cooktop grates provide a
study, uninterrupted surface that allows pots and pans to move easily
• Deep-recessed cooktop–Cooktop keeps spills, and everything else, contained in one
area that’s easy to wipe clean
• PowerBoil
™
16,000 BTU Burner–Delivers 16,000 BTUs of forceful heat for rapid boiling
• Precise Simmer burner–Allows for low, even heat distribution that is ideal delicate
foods and sauces
• TrueTemp
™
oven system–This feature helps ensure the temperature you set is
the temperature you get, with less variance, to give you the baking and broiling
performance you desire
• Sealed cooktop burners–Burners are sealed to the cooktop to keep foods and liquid
contained on the cooktop, making cleaning painless
• QuickSet V Oven Controls–Feature an easy to use design that allows you to set
precise cooking temperature
• Model JGB295SERSS - Stainless steel
Clear
Off
Bake
Clock
Bake
Kitchen
Timer
Oven
Light
Self
Clean
Cooking
Time
Start
True Temp
Oven Controls
Time Controls
Broil
Control
Lockout
Delay
Start
12345
6 7890
330527
Specification Revised 8/10
JGB295SER
GE® 30" Free-Standing Gas Convection Range
