Page 1

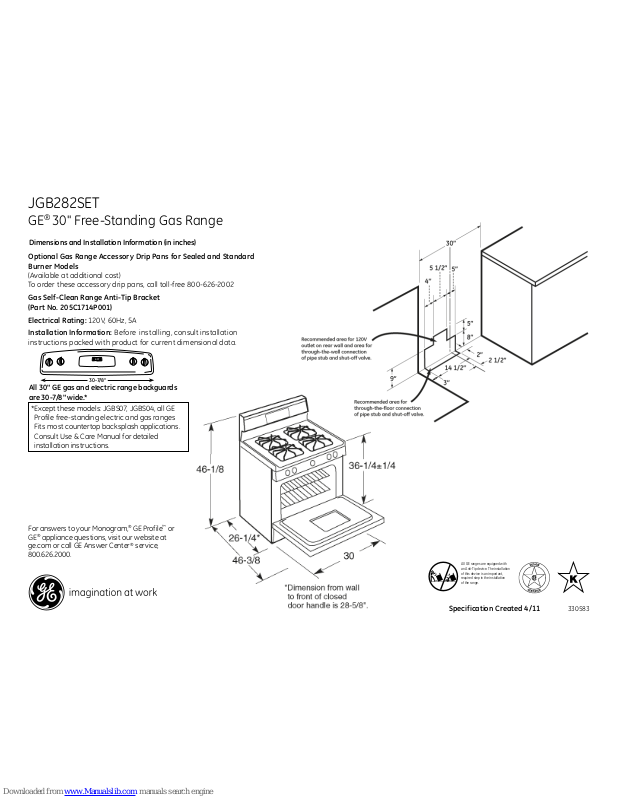

Dimensions and Installation Information (in inches)
For answers to your Monogram,
®
GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 4/11
330583
Optional Gas Range Accessory Drip Pans for Sealed and Standard
Burner Models
(Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
JGB282SET
GE® 30" Free-Standing Gas Range
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
* Except these models: JGBS07, JGBS04, all GE
Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
30 -7/8"
Page 2
Features and Benefits
• Self-clean oven - Conveniently cleans the oven cavity without the need for
scrubbing
• 5.0 cu. ft. oven capacity - Enough room to cook an entire meal at once
• 15,000 BTU PowerBoil
™
burner - Delivers high heat for faster boiling
• Center round burner - Round fifth burner allows for low, even heat distribution that
is ideal for delicate foods and sauces
• Precise simmer burner - Delivers a low setting of 140 degrees, ideal for delicate
foods and sauces
• Model JGB282SETSS - Stainless steel
330583
Specification Created 4/11
JGB282SET
GE® 30" Free-Standing Gas Range
