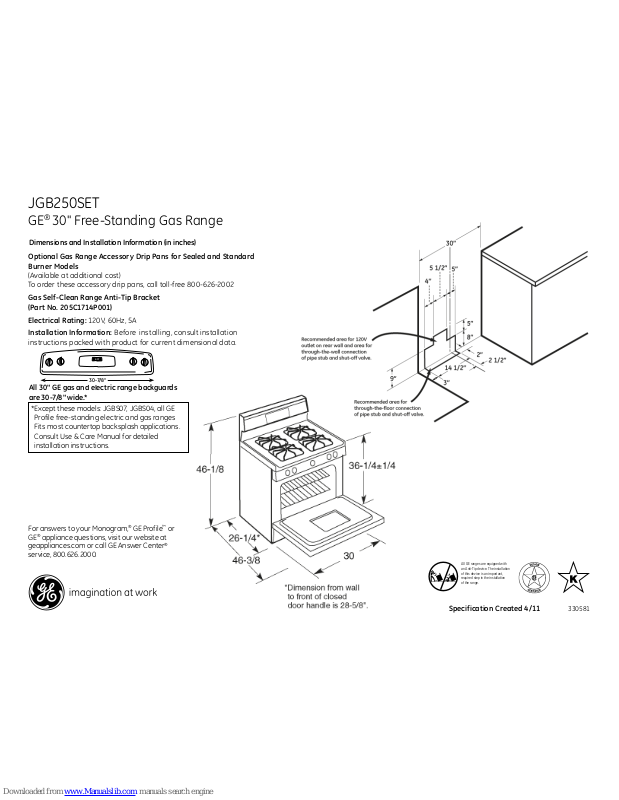

GE JGB250SETSS, JGB250SET Dimensions And Installation Information

Dimensions and Installation Information (in inches)

For answers to your Monogram,

®

GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.

Specification Created 4/11

330581

Optional Gas Range Accessory Drip Pans for Sealed and Standard
Burner Models

(Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002

Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

JGB250SET

GE® 30" Free-Standing Gas Range

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

All 30" GE gas and electric range backguards
are 30-7/8" wide.*

* Except these models: JGBS07, JGBS04, all GE

Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.

30 -7/8"

Features and Benefits

• Self-clean oven - Conveniently cleans the oven cavity without the need for

scrubbing

• 4.8 cu. ft. capacity - More room for cooking more dishes at once

• High output burner - This 12,500 BTU burner element provides the high heat ideal

for frying or sautéing and fast heat-up

• Precise simmer burner - Delivers a low setting of 140 degrees, ideal for delicate

foods and sauces

• Big hearth window - Elegantly shaped window makes it easy to monitor the

progress of food

• Model JGB250SETSS - Stainless steel

Specification Created 4/11

330581

JGB250SET

GE® 30" Free-Standing Gas Range
