Page 1
JEM25DM
15 ± 1/8
18" MIN.
receptacle
in cabinet
16" MIN.
receptacle
outside
cabinet
16-3/4
Z
Bracket
24-7/8 ± 1/8
Trim
Kit
36" MIN.*
Cabinet overlap requirements 27"
A - Overlap of trim kit over top of cabinet 1-1/4"
B - Overlap of trim kit over bottom of cabinet 1-1/4"
C - Overlap of trim kit over sides of cabinet 1-1/4"
Note:
Allow an additional inch
of clearance beyond trim
frame on all sides
B
A
C
*For ADA compliance, the microwave must be
installed no higher than 37-7/8".

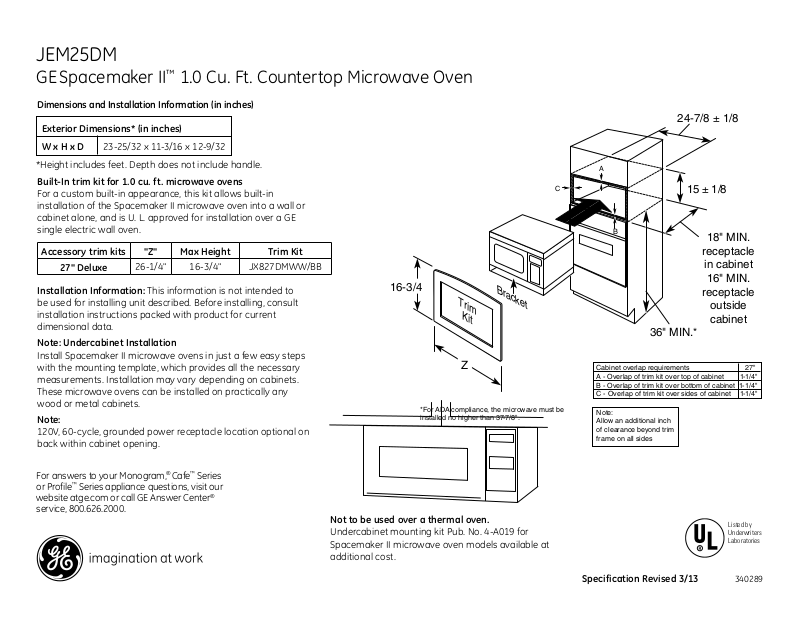

GE Spacemaker II™ 1.0 Cu. Ft. Countertop Microwave Oven
Dimensions and Installation Information (in inches)
Exterior Dimensions* (in inches)
W x H x D 23-25/32 x 11-3/16 x 12-9/32
*Height includes feet. Depth does not include handle.
Built-In trim kit for 1.0 cu. ft. microwave ovens
For a custom built-in appearance, this kit allows built-in
installation of the Spacemaker II microwave oven into a wall or
cabinet alone, and is U. L. approved for installation over a GE
single electric wall oven.
Accessory trim kits "Z" Max Height Trim Kit
27" Deluxe
26-1/4" 16-3/4" JX827DMWW/BB
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product for current
dimensional data.
Note: Undercabinet Installation
Install Spacemaker II microwave ovens in just a few easy steps
with the mounting template, which provides all the necessary
measurements. Installation may vary depending on cabinets.
These microwave ovens can be installed on practically any
wood or metal cabinets.
Note:
120V, 60-cycle, grounded power receptacle location optional on
back within cabinet opening.
For answers to your Monogram,® Cafe™ Series
or Profile™ Series appliance questions, visit our
website atge.com or call GE Answer Center®
service, 800.626.2000.
Not to be used over a thermal oven.
Undercabinet mounting kit Pub. No. 4-A019 for
Spacemaker II microwave oven models available at
additional cost.
Specification Revised 3/13
Listed by
Underwriters
Laboratories
340289
Page 2
JEM25DM
Turn
Table
Express Cook
14253
6
78
0
9
Start
Pause
Beverage
Clear
Off
Kitchen
Timer
Convenience Cooking
Delay
Start
Clock
Reheat
Popcorn
Snacks Cook
Time Auto
Power
Level
Add
30 Sec.
Defrost
Time
Cook
Defrost
GE Spacemaker II™ 1.0 Cu. Ft. Countertop Microwave Oven
Features and Benefits
• 1.0 Cu. Ft. Capacity - 800 Watts (IEC-705 test procedure)
• Convenience Controls - Allow cooking and reheating at the touch
of a button
• Optional Trim Kit - Offers a built-in appearance of a
countertop model
• Optional Hanging Kit (Part No JXA019K) - Allows quick, easy
undercabinet installation
• Auto and Time Defrost - Automatically defrosts for a specified
amount of time
• Turntable On/Off - Ideal for oversized, oblong-shaped dishes
• Kitchen Timer - Operates as a minute timer and can be used at
any time, even when the oven is operating
• Child Lock Out - Enables you to lock the keypad to prevent the
oven from being accidentally started
• Add 30 Seconds - Increases cooking times with one touch
• Electronic Touch Controls - Offer easy point-and-cook convenience
• Model JEM25DMWW – White on white
• Model JEM25DMBB – Black on black
Specification Revised 3/13
Listed by
Underwriters
Laboratories
340289
