BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions
for local inspector’s use.
IMPORTANT – Observe all governing
•
codes and ordinances.
Note to Installer – Be sure to leave these
•
instructions with the Consumer.
•
Note to Consumer – Keep these instructions for
future reference.
Skill level – Installation of this appliance requires basic
•
mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS
29-6295 11-18 M
.
Installation Instructions
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Measuring tape
Pencil
Phillips screwdriver
Tools and Parts
Drill
7/64” drill bit
Parts Supplied (not shown to scale)
Rear duct
Trim kit frame
The inlaid
Bottom duct
Short screws (20)
(17 + 3 extra)
Rails (2)
Long wood screws
(6 - painted) (4 + 2 extra)
Location Requirements
The microwave oven may be installed over a built-in oven. If installing
over a built-in oven, make sure there is a minimum of 3” (7.6 cm)
between the top of the lower oven cutout and the microwave oven
cutout oor.
The microwave oven may also be installed in a cabinet by itself
(without a built-in oven below). For best usability, we recommend a
minimum distance of 36” (91.4 cm) from the oor to the cutout oor.
Make sure the surrounding cabinetry has clearance to open and
close freely. Allow a clearance of at least 1 9/16“ (4.0cm) below the
cutout oor (3” [7.6 cm] for installation above a built-in oven), and a
clearance of at least 2” (5.1 cm) above the cutout opening.
2”
(5.1 cm)
2”
(5.1 cm)
Required Cutout Dimensions
3/4”
22
(57.8 cm)
17” (43.2 cm)
min.
1/8” (43.5 cm)
17
max.
3”
(7.6 cm)
NOTES:
Height dimension is critical: 17” (43.2 cm) minimum, 17 1/8”
(43.5 cm) maximum.
Width and depth measurements have ±1/16” (2 mm)
tolerance.
3” (7.6 cm) minimum dimension is from lower oven cutout
ceiling to microwave oven cutout oor.
Trim kit frame extends 1
cutout opening.
23 1/8” (58.7 cm)
A. Trim kit frame overhang
B. Cutout for lower oven
1/16 “ (2.7cm) above and below the
Trim Kit Frame Dimensions
29
3/4” (75.6cm)
” (58.4 cm)
19 1/11 “
(48.5 cm)
23
37/18“ (8.1 cm)*
39/17“
(8.8 cm)
12
(30.9 cm)
1 1/16”
(2.7 cm)
1
1/16”
(2.7 cm)
“
1
9/16“
(4.0 cm)
C. Lower oven cutout
A. Upper cabinet
B. Microwave oven cutout
36”
(91.4 cm)
D. Lower cabinets
E. Floor
3”
(7.6 cm)
1 3/16” (3.0 cm)
* 30“ (76.2 cm) trim kit
EN-2
Installation Instructions
Electrical Requirements
WARNING
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, re, or
electrical shock.
Install according to all local governing codes and ordinances.
Required:
A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a
fuse or circuit breaker.
Recommended:
A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.
Electrical Shock Hazard
GROUNDING INSTRUCTIONS
For all cord connected appliances:
The microwave oven must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. The
microwave oven is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
WARNING: Improper use of the grounding plug can result in a
risk of electric shock. Consult a qualied electrician or serviceman
if the grounding instructions are not completely understood, or
if doubt exists as to whether the microwave oven is properly
grounded.
Do not use an extension cord. If the power supply cord is too short,
have a qualied electrician or serviceman install an outlet near the
microwave oven.
SAVE THESE INSTRUCTIONS
Prepare Microwave Oven
Attach Rails
1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Carefully turn microwave oven onto its top, with the door facing
forward (toward installer).

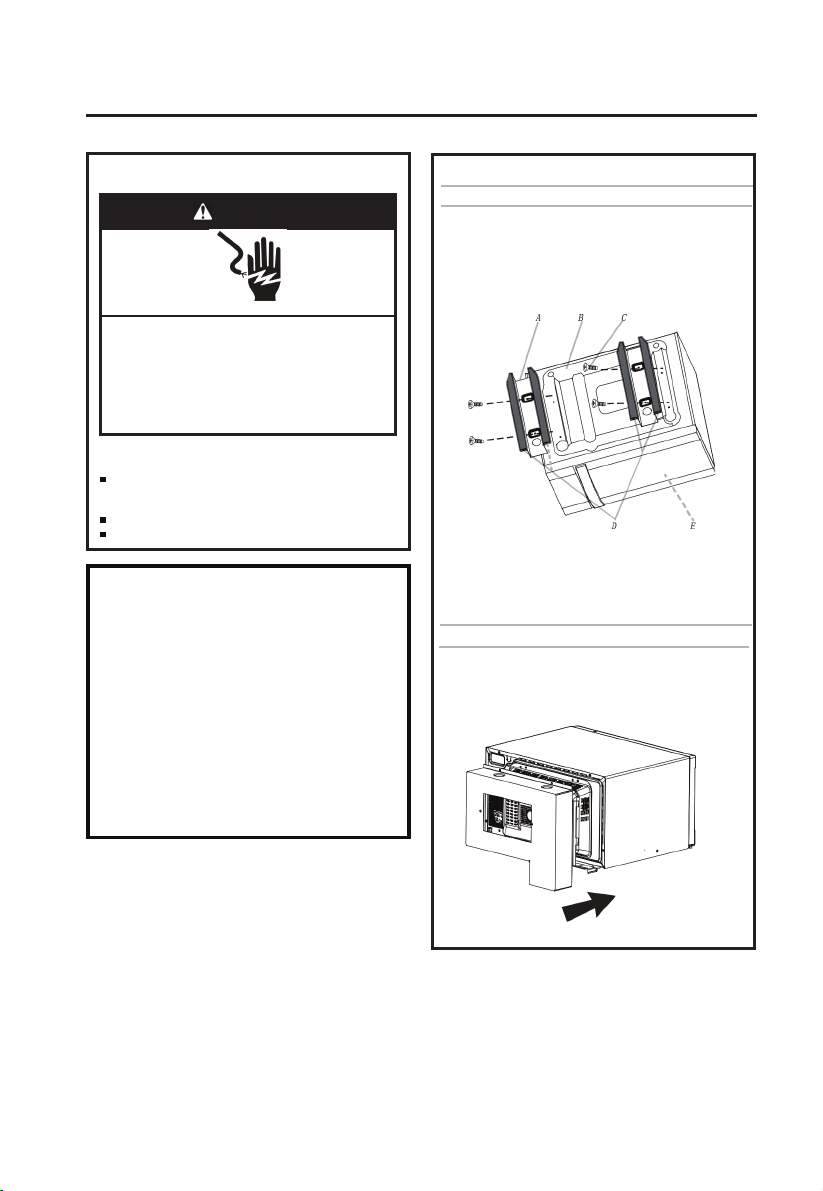

4. Align the two rails on the microwave oven bottom, as shown,
making sure the anges are forward and pointing up.
A. Rails (2)
B. Microwave oven bottom
C. Short screws (4)
5. Secure the rails to the microwave oven bottom using four short
screws.
Attaching the duct
1. Carefully return microwave oven to its upright position.
2. Align the rear duct with the back of microwave oven, as shown.
D. Flanges
E. Door
EN-3
Installation Instructions
3. Use two short screws to secure top of rear duct to the
back of microwave oven, as shown.
A. Short screws (2)
B. Rear duct
C. Back of microwave oven
4. Use three short screws to secure back of rear duct to the
back of microwave oven, as shown.
Prepare Cutout/Cabinet Opening
1. On the cutout oor, nd and mark the centerline.
2. Place the bottom duct in the opening, with the ange resting
against the bottom front facing of the opening.
A. Cutout oor
B. Centerline
C. Bottom duct
3. Align the center arrows on the bottom duct with the
centerline drawn in Step 1 above.
D. Bottom duct ange
E. Front facing
A. Short screws (4)
B. Rear duct
C. Back of microwave oven
5. Use three short screws to secure back of rear duct to the
back of microwave oven, as shown.
A. The inlaid
B. Out p anel
A. Bottom duct
B. Center arrows, aligned with centerline

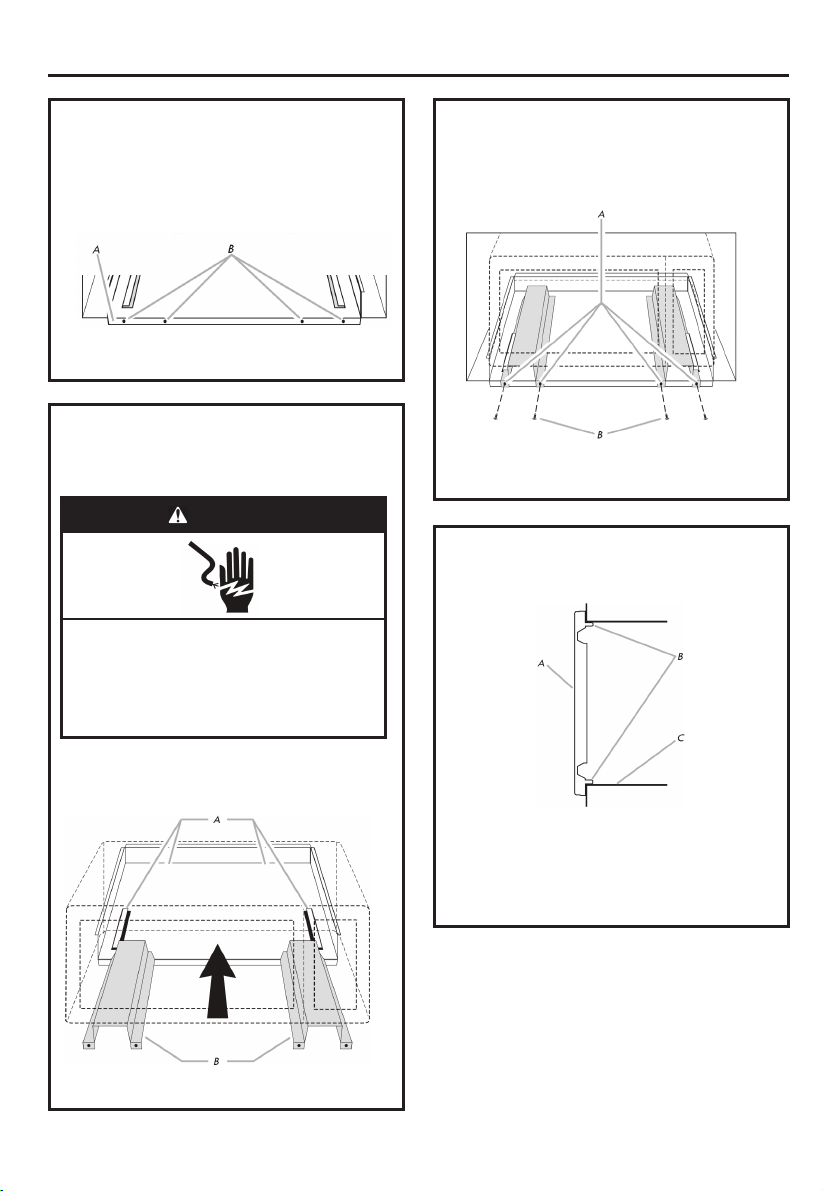

4. Align the rails with the rail guides on the bottom duct .
A. Short screws (3)
B. Bottom duct mounting holes
EN-4
Installation Instructions
5. Using a 7/64” drill bit , drill pilot holes into the three hole marks
shown in the gure above.
6. Realign and install the bottom duct with three short screws.
7. Using 7/64” drill bit, drill pilot holes through the four bottom duct
ange mounting holes on the bottom front facing of the cutout/
cabinet opening.
A. Bottom duct ange
B. Mounting holes
Install the Microwave Oven
1. Carefully return microwave oven to its upright position.
2. Position microwave oven near cutout opening.
WARNING
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, re, or
electrical shock.
Electrical Shock Hazard
5. Slide the microwave oven back and into place. The mounting
holes of the rail anges and bottom duct ange will align
against the bottom front facing of the cutout/cabinet opening.
6. Secure the microwave oven to the cutout/cabinet by installing
four short screws into the mounting holes.
A. Mounting holes
B. Short screws (4)

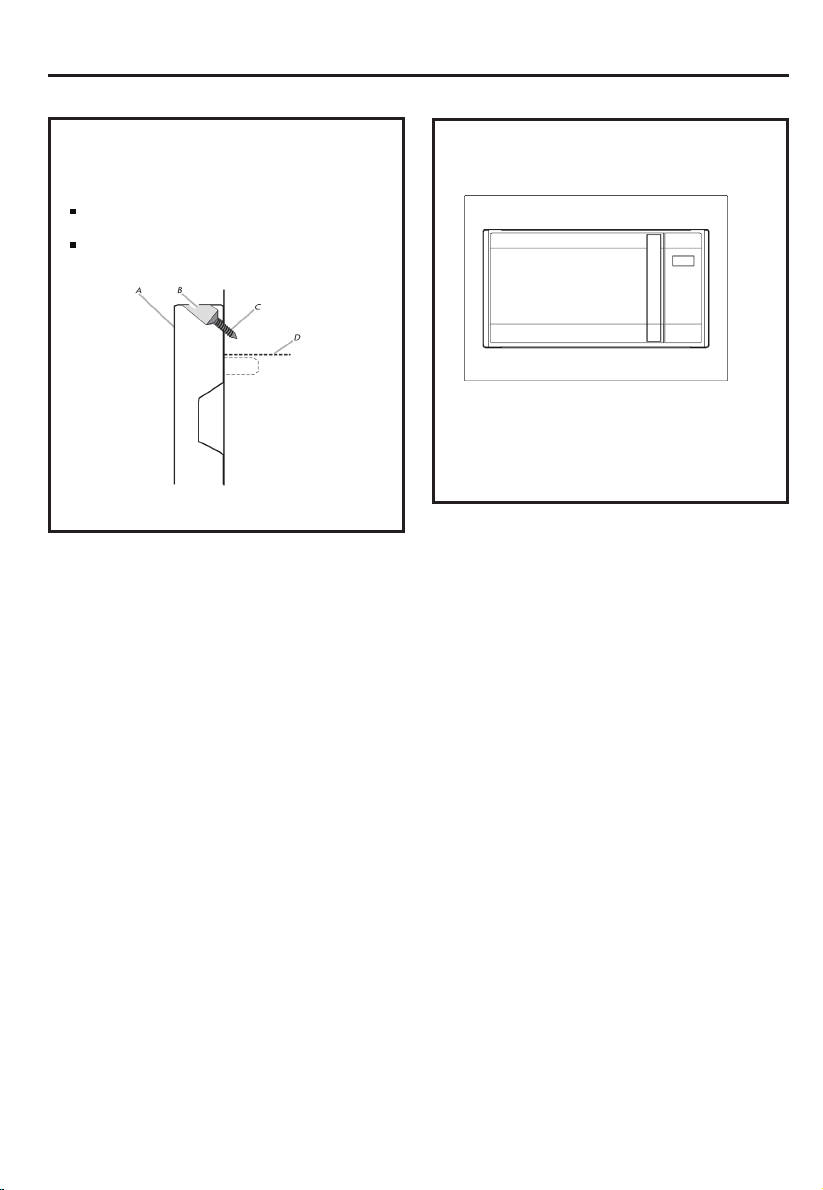

Install Trim Kit Frame
1. Position trim kit frame over the opening so that the lower tabs
rest on the cutout oor, as shown.
3. Plug in microwave oven.
4. Align the rails with the rail guides on the bottom duct .
A. Rail guides
B. Rails
EN-5
A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet oor
Installation Instructions
2. Holding the trim kit frame in place, use a 7/64” drill bit to drill
four pilot holes into the front facing of the cutout/cabinet
through the mounting hole guides in the upper and lower
corners of the trim kit frame.
NOTES:
The holes will be drilled downward from the top, and upward
from the bottom at an angle of about 45°.
To avoid damage to the trim kit frame, do not overtighten
screws.
A. Trim kit frame
B. Mounting hole guide
C. Long wood screw (4 - painted)
D. Cutout ceiling
3. Secure trim kit frame to cutout/cabinet by installing four long
wood screws (painted) into the pilot holes drilled in Step 2
above.
Installation is now complete. Replace any loose items that have
been removed from microwave oven cavity.
Save these Installation Instructions for future reference.
