Ge JDS28DN User Manual
JDS28DN
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Models JDS28 and JDP39
9/16
30" Min.
30" Min.
18" Min.
6" Min.
from walls
7-1/2
30
36
27-1/2
25
23-3/16
If necessary,
build upsides
to 1-1/4" thick
to provide
countertop
support
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
15" Min.
6" Min.
from walls
7-1/2
2-7/8"
To Front Surface
of Countertop
30
36
27-1/2
25
23-3/16
27
20-5/8" Door
Clearance
From Front
Surface of
Countertop
24
31-1/4
30
A/ B*
Accessory
Backguard
26-1/2**
*JXS37 is 5-1/4" and JXS32 is 4"
(excluding handle)
**Total depth from wall to
front of closed oven door
including handle is 29-1/2.

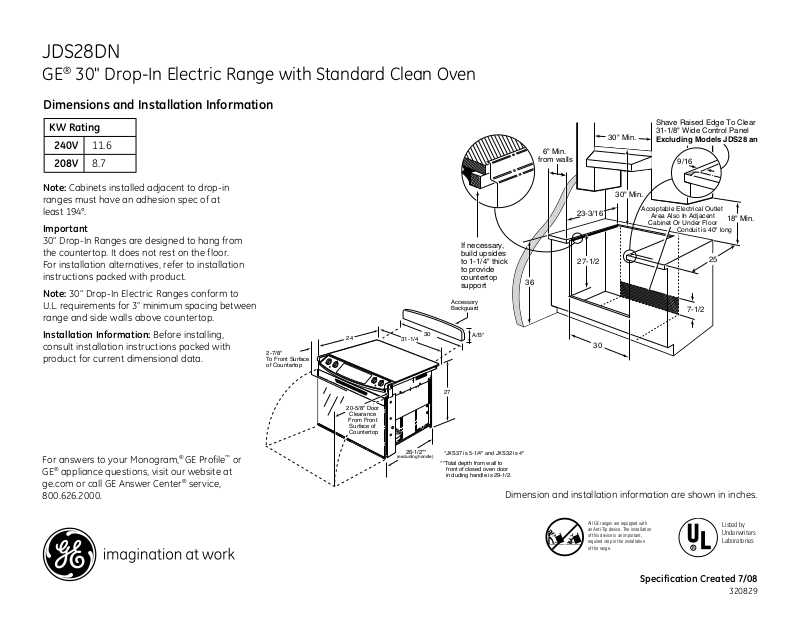

GE® 30" Drop-In Electric Range with Standard Clean Oven
Dimensions and Installation Information
KW Rating
240V
208V
11.6
8.7
Note: Cabinets installed adjacent to drop-in
ranges must have an adhesion spec of at
least 194°.
Important
30” Drop-In Ranges are designed to hang from
the countertop. It does not rest on the floor.
For installation alternatives, refer to installation
instructions packed with product.
Note: 30” Drop-In Electric Ranges conform to
U.L. requirements for 3” minimum spacing between
range and side walls above countertop.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Dimension and installation information are shown in inches.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specification Created 7/08
320829
JDS28DN
1
2
3
5
4
6
7
8
9
LO
HI
1
2
3
5
4
6
7
8
9
LO
HI
1
2
3
5
4
6
7
8
9
LO
HI
1
2
3
5
4
6
7
8
9
LO
HI
FRONT
REAR
FRONT
REAR
ON
OFF
OVEN
LIGHT
BROIL
TIME C
ONTROLS
BAKE
ST
AR
T
ON
CLEAR
OFF
CL
OCK
KIT
CHEN
LIGHT
ON
OFF
OVEN C
ONTROLS
GE® 30" Drop-In Electric Range with Standard Clean Oven
Features and Benefits
• Coil Heating Elements - Provides consistent and even heat on the cooktop with a
plug-in element that is removable for easy cleaning
• Electronic Clock And Timer - Features a convenient digital clock and easy-to-use
timer with an audible signal to help coordinate cooking times in the kitchen
• Big Hearth Window - Features an enhanced shape to add an elegant appearance
and make viewing trouble-free
• Lift-Up Porcelain Cooktop - Makes spills and messes under the cooktop easily
accessible and within reach
• Dual Element Bake - Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results
• Audible Preheat Signal - Features an audible signal that activates when the oven
has reached the desired cooking temperature
• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that
blends seamlessly into existing cabinetry
• Chrome Drip Bowls - Contain minor spills and are removable for easy cleaning
• Two Oven Racks - Feature a durable construction to help accommodate any size
or type of cookware
• Multiple Oven Rack Positions - Delivers flexibility and allows consumers to make
the most of available oven capacity
• Model JDS28DNWW - White on white (White door and white cooktop)
