GE JDP42DT Specification
JDP42DT
GE® 30" Drop-In Electric Range with Self-Cleaning Oven

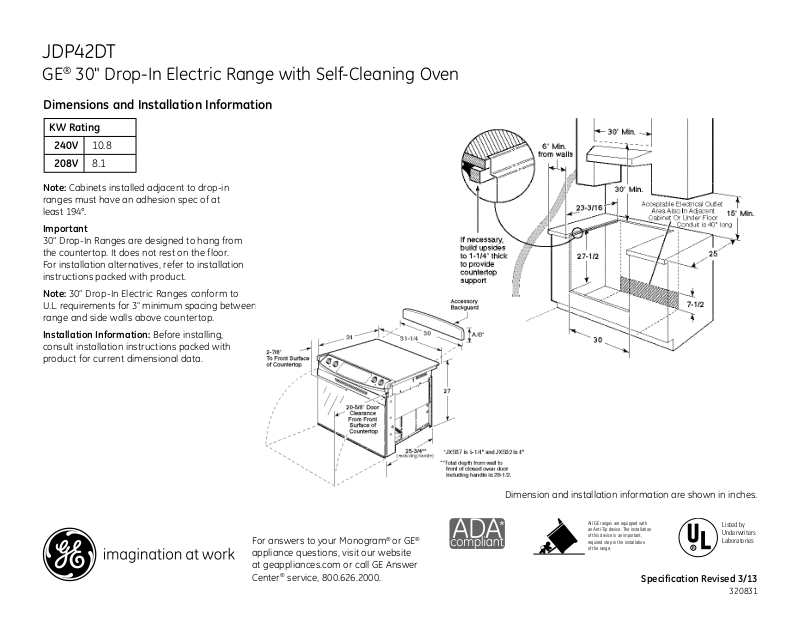

Dimensions and Installation Information
KW Rating
240V
208V
10.8
8.1
Note: Cabinets installed adjacent to drop-in
ranges must have an adhesion spec of at
least 194°.
Important
30” Drop-In Ranges are designed to hang from
the countertop. It does not rest on the floor.
For installation alternatives, refer to installation
instructions packed with product.
Note: 30” Drop-In Electric Ranges conform to
U.L. requirements for 3” minimum spacing between
range and side walls above countertop.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram
®
or GE®
appliance questions, visit our website
at geappliances.com or call GE Answer
Center® service, 800.626.2000.
Dimension and installation information are shown in inches.
*
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specification Revised 3/13
320831
JDP42DT
GE® 30" Drop-In Electric Range with Self-Cleaning Oven
Features and Benefits
• Self-clean oven - Self-clean allows you to spare yourself from the trouble and
effort it takes to scrub the oven interior
• Ribbon heating elements - Powerful heat beneath the smooth surface provides
high-speed warm-up and even heating
• Electronic oven controls - Electronic pads on the control panel are easy to
operate with just a touch
• Extra-large oven capacity - Ideal for special occasions and big meals, the extra
large oven interior allows more to cook at once
• Dual element - Choose a ribbon heating element to accommodate the size of
your pan
• Ceramic glass cooktop - A smooth cooktop surface makes cleaning quick
and easy
• Two oven racks - Includes two oven racks that are sturdy and reliable
• Certified Sabbath mode - Convenient mode keeps the oven warm in accordance
within the restrictions of the kosher kitchen
• Interior oven light - Bright interior light helps you check on the progress of
your cooking
• Multiple oven rack positions - Several positions allow you to adjust the oven racks
to accommodate any size cookware
• Model JDP42DTWW - White on white
• Model JDP42DTBB - Black on black
Specification Revised 3/13
320831
