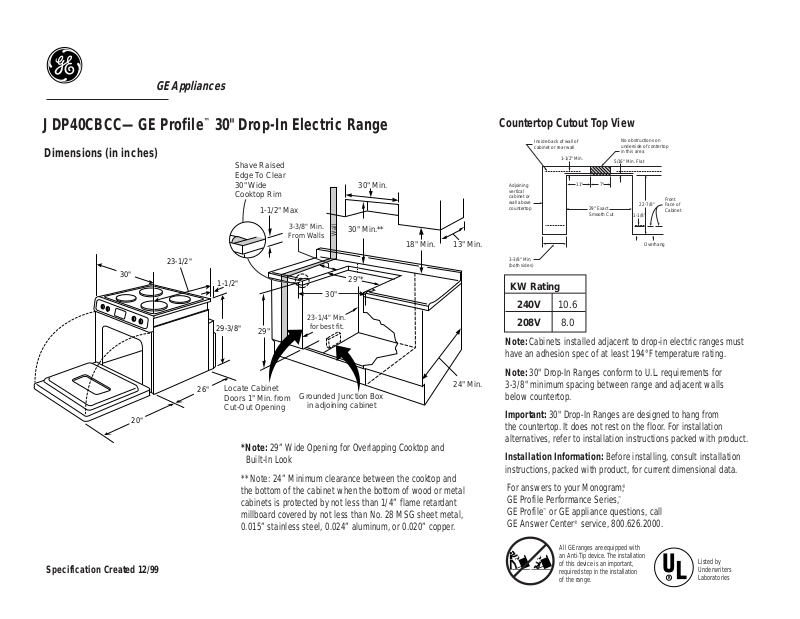

GE JDP40CBCC Specification
Specification Created 12/99
GE Appliances
JDP40CBCC—GE Profile™30" Drop-In Electric Range
Dimensions (in inches)
Countertop Cutout Top View
Note: Cabinets installed adjacent to drop-in electric ranges must
have an adhesion spec of at least 194°F temperature rating.
Note: 30" Drop-In Ranges conform to U.L. requirements for
3-3/8" minimum spacing between range and adjacent walls
below countertop.
Important: 30" Drop-In Ranges are designed to hang from
the countertop. It does not rest on the floor. For installation
alternatives, refer to installation instructions packed with product.
Installation Information: Before installing, consult installation
instructions, packed with product, for current dimensional data.
KW Rating
240V 10.6
208V 8.0
23-1/2"
1-1/2"
30"
20"
26"
29-3/8"
Inside back of wall of
cabinet or rear wall
1-1/2" Min.
5/16" Min. Flat
3-3/8" Min.
(both sides)
29" Exact
Smooth Cut
Adjoining
vertical
cabinet or
wall above
countertop
11" 7"
22-7/8"
1-1/8"
Front
Face of
Cabinet
Overhang
No obstructions on
underside of contertop
in this area
*Note: 29” Wide Opening for Overlapping Cooktop and
Built-In Look
**Note: 24” Minimum clearance between the cooktop and
the bottom of the cabinet when the bottom of wood or metal
cabinets is protected by not less than 1/4” flame retardant
millboard covered by not less than No. 28 MSG sheet metal,
0.015” stainless steel, 0.024” aluminum, or 0.020” copper.
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Shave Raised
Edge T o Clear
30" Wide
Cooktop Rim
1-1/2" Max
3-3/8" Min.
From Walls
23-1/4" Min.
29"
Locate Cabinet
Doors 1" Min. from
Cut-Out Opening
for best fit.
Grounded Junction Box
in adjoining cabinet
30"
30" Min.**
Wall
29"*
30" Min.
18" Min. 13" Min.
24" Min.
Specification Created 12/99
GE Appliances
JDP40CBCC—GE Profile™30" Drop-In Electric Range
BAKE
COIL SIZE
PREHEAT
BROIL
SELF
CLEAN
ON OFF
COOKING
TIME
STOP
TIME
KITCHEN
TIMER
CLOCK
CLEAR
OFF
Features and Benefits
• Overhanging Patterned Glass Ceramic Cooktop
• Self-Cleaning Oven with Automatic Oven Door Lock
• One 9" and Two 6" Ribbon Heating Elements
• One 6”/9” Dual Heating Element
• Removable One-Piece Drip Bowls
• 2 Oven Shelves
• Digital Temperature Display
• Electronic Clock and Kitchen Timer
• Delay Bake Option with Cook and Hold
• Variable Cleaning Time
• SmartSet Electronic Oven Controls With Touchpads
• Hot Surface Indicator Lights
• Broiler Pan With Grid
• Frameless Glass Oven Door With Window
• Interior Oven Light
• Designer-Style Handle
• Model JDP40WBWW - White on white
• Model JDP40BBBB - Black on black
• Model JDP40CBCC - Bisque
