GE JDP39CKCC, JDP39WKWW, JDP39BKBB User Manual
JDP39WK/CK/BK
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
18" Min.
6" Min.
from walls
7-1/2
30
36
27-1/2
25
23-3/16
If necessary,
build upsides
to 1-1/4" thick
to provide
countertop
support
Acceptable Electrical Outlet
Area Also In Adjacent
Cabinet Or Under Floor
Conduit is 40" long
30" Min.
30" Min.
18" Min.
6" Min.
from walls
7-1/2
2-7/8"
To Front Surface
of Countertop
30
36
27-1/2
25
23-3/16
27
20-5/8" Door
Clearance
From Front
Surface of
Countertop
24
31-1/4
30
A/ B*
Accessory
Backguard
26-1/2**
*JXS37 is 5-1/4" and JXS32 is 4"
(excluding handle)
**Total depth from wall to
front of closed oven door
including handle is 29-1/2.

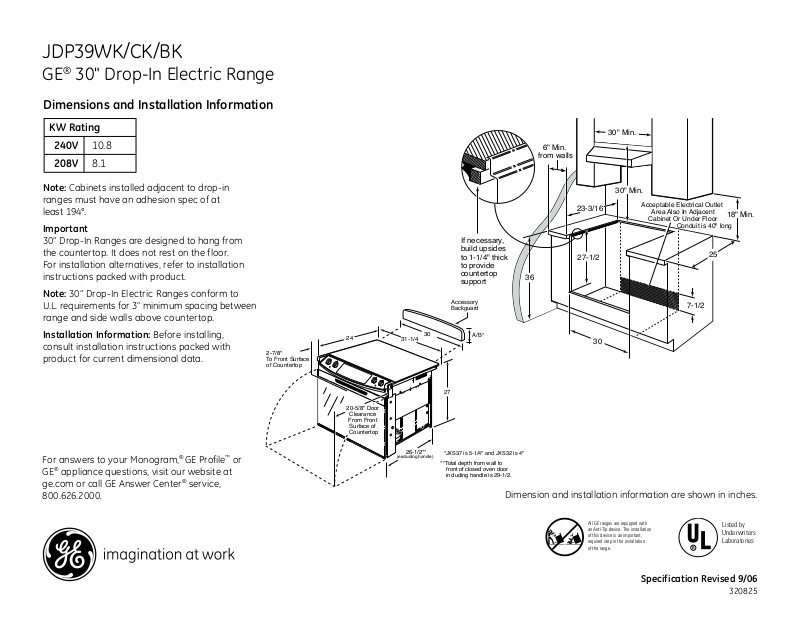

GE® 30" Drop-In Electric Range
Dimensions and Installation Information
KW Rating
240V
208V
10.8
8.1
Note: Cabinets installed adjacent to drop-in
ranges must have an adhesion spec of at
least 194°.
Important
30” Drop-In Ranges are designed to hang from
the countertop. It does not rest on the floor.
For installation alternatives, refer to installation
instructions packed with product.
Note: 30” Drop-In Electric Ranges conform to
U.L. requirements for 3” minimum spacing between
range and side walls above countertop.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Dimension and installation information are shown in inches.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specification Revised 9/06
320825
JDP39WK/CK/BK
GE® 30" Drop-In Electric Range
Features and Benefits
• Self Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow
for simple oven operation
• Coil Heating Elements - Provide consistent and even heat on the cooktop with
a plug-in element that is removable for easy cleaning
• Big ClearViewTM Window - An extra large clear window makes monitoring the
progress of food easy
• Lift-up Porcelain Cooktop - Makes spills and messes under the cooktop easily
accessible and within reach
• Chrome Drip Bowls - Contain minor spills and are removable for cleaning in
the sink or dishwasher
• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that
blends seamlessly into existing cabinetry
• Dual Element Bake - Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results
• Audible Preheat Signal - Features an audible signal that activates when the oven
has reached the desired cooking temperature
• Two Oven Racks - Feature a durable construction to help accommodate any size
or type of cookware
• Model JDP39WKWW - White on white (White door and white cooktop)
• Model JDP39CKCC - Bisque on bisque (Bisque door and bisque cooktop)
• Model JDP39BKBB - Black on black (Black door and black cooktop)
Specification Revised 9/06
