GE JDP36BW Specification

Specification Revised 11/01

GE Appliances

JDP36BW—GE 30" Drop-In Electric Range

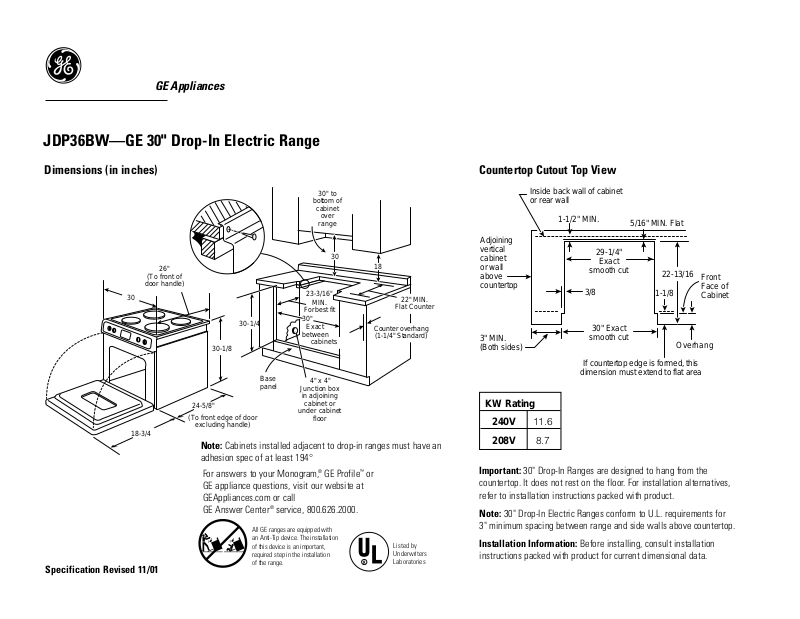

Dimensions (in inches) Countertop Cutout Top View

Important: 30" Drop-In Ranges are designed to hang from the

countertop. It does not rest on the floor. For installation alternatives,
refer to installation instructions packed with product.

Note: 30" Drop-In Electric Ranges conform to U.L. requirements for
3" minimum spacing between range and side walls above countertop.

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

KW Rating

240V 11.6
208V 8.7

Counter overhang

(1-1/4" Standard)

4" x 4"

Junction box

in adjoining

cabinet or

under cabinet

floor

Base
panel

30" to

bottom of

cabinet

over

range

Exact

between

cabinets

26"

(To front of

door handle)

30

(To front edge of door

excluding handle)

MIN.

For best fit

18-3/4

24-5/8"

30-1/8

30-1/4

23-3/16"

30

30"

18

22" MIN.

Flat Counter

30" Exact

smooth cut

Front
Face of
Cabinet

Overhang

If countertop edge is formed, this

dimension must extend to flat area

3" MIN.
(Both sides)

Adjoining
vertical
cabinet
or wall
above
countertop

Inside back wall of cabinet
or rear wall

1-1/2" MIN.

5/16" MIN. Flat

29-1/4"

Exact

smooth cut

3/8

22-13/16

1-1/8

Note: Cabinets installed adjacent to drop-in ranges must have an
adhesion spec of at least 194°

For answers to your Monogram,

®

GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.

R

Listed by
Underwriters
Laboratories

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Specification Revised 11/01

GE Appliances

JDP36BW—GE 30" Drop-In Electric Range

Features and Benefits

• Porcelain-Enameled Lift-Up Overhanging Cooktop

• Two 8" and Two 6" Plug-In Heating Elements

• Removable Chrome One-Piece Drip Bowls

• Self-Cleaning Oven With Automatic Oven Door Lock

• SmartSet Electronic Oven Control With Touchpads

• Electronic Clock and Kitchen Timer

• Delay Time Bake Option With Cook and Hold

• Auto Oven Shut-Off

• Broiler Pan With Grid

• 2 Oven Shelves

• Interior Oven Light

• Frameless Glass Oven Door With Window

• Designer-Style Handle

• Model JDS36BWWH – White

• Model JDS36BWCT – Bisque

• Model JDS36BWAD – Almond
