GE JBS86SPSS Specifications
JBS86SPSS
DOUBLE OVEN RANGE
GE® 30" Free-Standing Electric Double Oven Convection Range

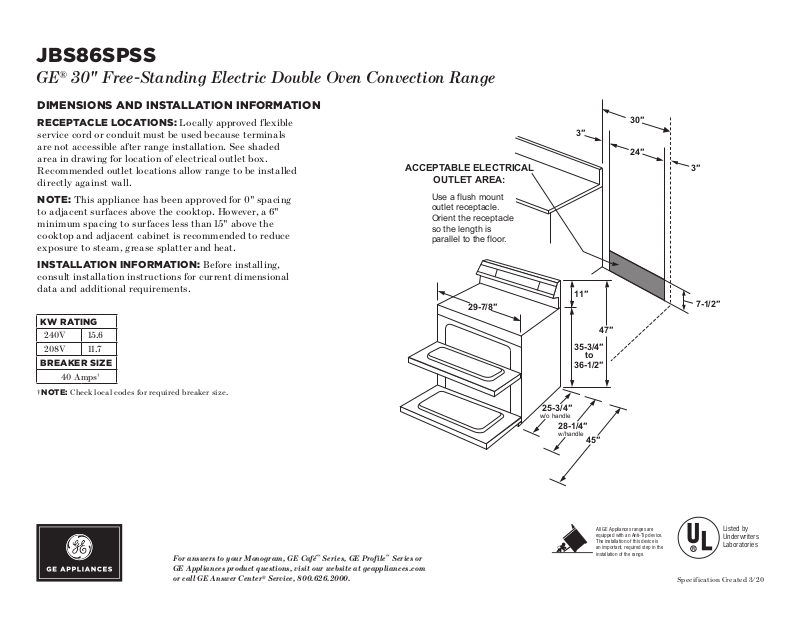

DIMENSIONS AND INSTALLATION INFORMATION
RECEPTACLE LOCATIONS: Locally approved flexible
service cord or conduit must be used because terminals
are not accessible after range installation. See shaded
area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed
directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW RATI N G
240V 15.6
208V 11.7
BREAKER SIZE
40 Amps
† NOTE: Check local codes for required breaker size.
†
ACCEPTABLE ELECTRICAL
OUTLET AREA:
Use a flush mount
outlet receptacle.
Orient the receptacle
so the length is
parallel to the floor.
29-7/8″
25-3/4″
w/o handle
28-1/4″
w/handle
3″
11″
35-3/4″
to
36-1/2″
45″
30″
24″
3″
7-1/2″
47″
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE Appliances ranges are
equipped with an Anti-Tip device.
The installation of this device is
an important, required step in the
installation of the range.
Listed by
Underwriters
Laboratories
Specification Created 3/20
JBS86SPSS
GE® 30" Free-Standing Electric Double Oven Convection Range
FEATURES AND BENEFITS
Convection – This convection oven cooks and browns more evenly, using a rear fan to
circulate hot air
12"/9" Power boil element – A power boiler produces concentrated heat for rapid
boiling in a f lexible 12-inch/9-inch burner size, so you spend less time waiting and
more time cooking
9"/6" Power boil element – A power boiler produces concentrated heat for rapid
boiling in a f lexible 9-inch/6-inch burner size, so you spend less time waiting
and more time cooking
Proof mode – Maintain the ideal temperature required to help bread dough proof
before baking
Warming mode – A warming mode that lets you to serve dishes at the right
time and temperature
Fifth element warming zone – A convenient low-heat warming zone provides even
temperature control for foods on the cooktop
Steam clean – A steam cleaning option cleans the oven cavity in a 30-minute cycle
with less odor and heat
Wall-to-wall hidden bake element – A hidden, 8-pass bake element in the upper
oven heats a large cooking area evenly and allows for quick, easy cleanup
Fast preheat – The upper oven preheats quickly and evenly with a speedy preheat feature
Large capacity double oven – This large double-oven lets you cook multiple items
at the same time thanks to its 6.6 cubic foot total capacity
Model JBS86SPSS – Stainless Steel
Specification Created 3/20
