GE Appliances
Specification Revised 4/99

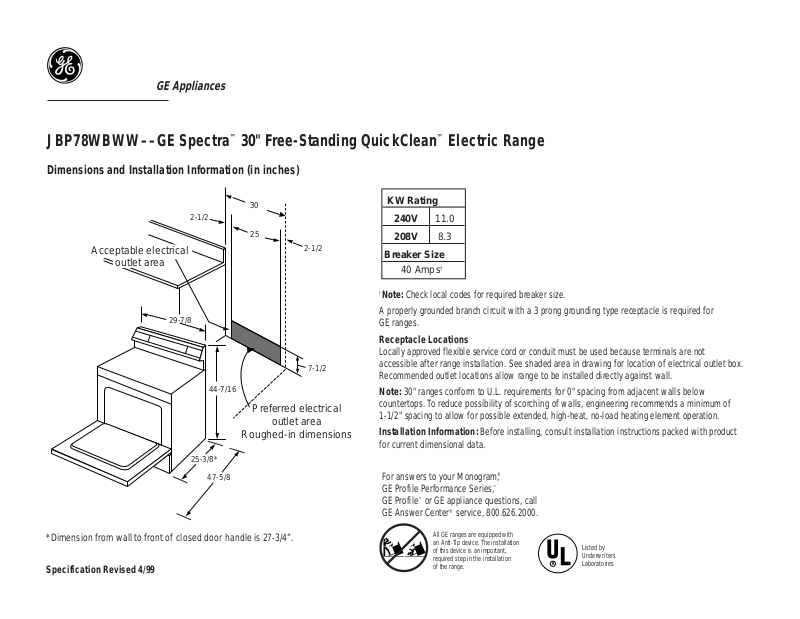

JBP78WBWW––GE Spectra™30" Free-Standing QuickClean™Electric Range
Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 27-3/4”.
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
44-7/16
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
†
Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below
countertops. To reduce possibility of scorching of walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 11.0
208V 8.3
Breaker Size
40 Amps
†
Page 2
GE Appliances
Specification Revised 4/99
JBP78WBWW––GE Spectra™30" Free-Standing QuickClean™Electric Range
OVEN
LIGHT
OVEN CLEANING –
MOVE DOOR LATCH TO RIGHT. TURN OVEN KNOB TO "CLEAN."
PREHEATED
OVEN ON
AUTOMATIC OVEN
HOUR MIN
CLOCK
COOK
TIME
ON/OFF
START
TIME
ON/OFF
TIMER
ON/OFF
TEMP RECALL
SURFACE
UNIT
FRONT
HOT
REAR
OFF OFF
OFF OFF
REAR
FRONT
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
HOT
WARM
Features and Benefits
• Super Large 5.0 Cu. Ft. Oven Capacity
• Self-Cleaning Oven with Self-Clean Latch
• One-Piece Upswept Patterned Glass-Ceramic Cooktop
• Two 6" (with Warming Option), One 8" and One 6"/9" Dual Heating Element
• TrueTemp™ System with QuickSet III Controls
• Six-Pass Power Bake Element
• SmartLogic™ Oven Controls
• Digital Temperature Display
• 2 Oven Shelves
• Time Bake with Delay
• Auto Oven Shut-Off with Override
• Audible Preheat Signal
• Dual Bake Element
• Hot Surface Lights
• Oven "On" Light
• Infinite Heat Controls
• Self-Clean Cool-Down Time Display
• Delay Clean Option
• Interior Oven Light
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• Frameless Glass Oven Door with Big View Window
• Designer-Style Handle
• Color-Matched Extra-Large Storage Drawer
• Model JBP78WBWW - White on white
• Model JBP78BBBB - Black on black
• Model JBP78ABAA - Almond on almond
