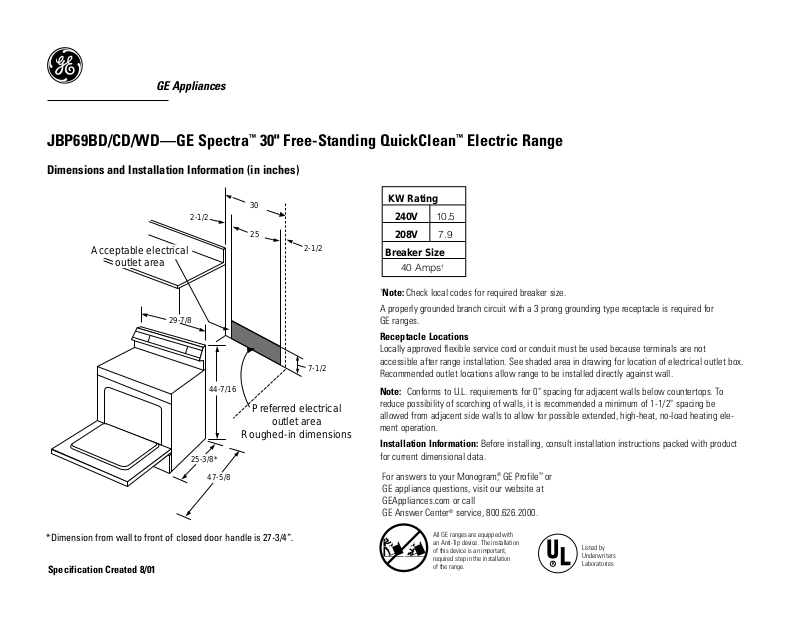

JBP69BD/CD/WD––GE Spectra™30" Free-Standing QuickClean™Electric Range
Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 27-3/4”.
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
44-7/16
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
†
Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops. To
reduce possibility of scorching of walls, it is recommended a minimum of 1-1/2" spacing be
allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 10.5
208V 7.9
Breaker Size
40 Amps
†
GE Appliances
Specification Created 8/01
JBP69BD/CD/WD––GE Spectra™30" Free-Standing QuickClean™Electric Range
OVEN
LIGHT
O
V
E
N
C
L
E
A
N
IN
G
–
M
OVE
DO
O
R LATC
H TO RIGH
T. TU
RN
OVE
N
KN
OB
TO
"CL
EAN
."
P
R
E
H
E
A
T
E
D
O
V
E
N
O
N
A
U
T
O
M
A
T
I
C
O
V
E
N
H
O
U
R
M
I
N
CLOCK
COOK
TIME
O
N
/
O
F
F
START
TIME
O
N
/
O
F
F
TIMER
O
N
/
O
F
F
T
E
M
P
R
E
C
A
L
L
S
U
R
F
A
C
E
U
N
I
T
F
R
O
N
T
H
O
T
R
E
A
R
OFF OFF
OFF
OFF
R
E
A
R
F
R
O
N
T
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
O
T
Features and Benefits
• Super Large 5.0 Cu. Ft. Oven Capacity
• One-Piece Upswept Patterned Glass-Ceramic Cooktop
• Two 6" and Two 8" Ribbon Heating Element
• Self-Cleaning Oven with Self-Clean Latch
• TrueTemp™ System with QuickSet III Controls
• Six-Pass Power Bake Element
• SmartLogic™ Oven Controls
• Digital Temperature Display
• 2 Oven Shelves
• Time Bake with Delay
• Auto Oven Shut-Off with Override
• Audible Preheat Signal
• Dual Bake Element
• Hot Surface Lights
• Oven "On" Light
• Infinite Heat Controls
• Self-Clean Cool-Down Time Display
• Delay Clean Option
• Interior Oven Light
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• Frameless Glass Oven Door with Big-View Window
• Designer-Style Handle
• Color-Matched Extra-Large Storage Drawer
• Model JBP69WDWW–White on white
• Model JBP69BDBB–Black on black
• Model JBP69CDCC–Bisque
