GE JBP66WK, JBP66CK, JBP66EK Specification

JBP66WK/CK/EK

R

30

25

29-7/8

46-7/8

2-1/2

7-1/2

25-3/8*

47-5/8

2-1/2

Acceptab

le electr

ical

outlet area

30_install_fse_ge

.eps

*Dimension from wall to front of
closed oven door handle is 27-3/4
on models JBP84/81/80/72/70/66/
65/64/35/27/24 and JBS55.

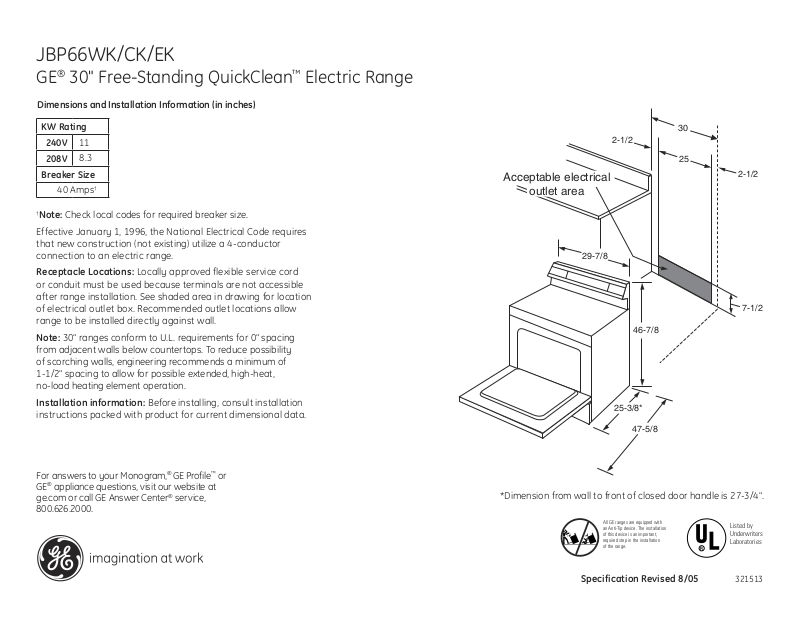

GE® 30" Free-Standing QuickClean™ Electric Range

Dimensions and Installation Information (in inches)

KW Rating

240V

208V

Breaker Size

†

Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.

Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.

Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.

Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.

11

8.3

40 Amps

†

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

*Dimension from

wall to front of closed door handle

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Specification Revised 8/05

is 27-3/4"

Listed by
Underwriters
Laboratories

321513

.

JBP66WK/CK/EK

B

R

O

IL

S

E

L

F

C

L

E

A

N

O

V

E

N

L

IG

H

T

C

L

O

C

K

T

IM

E

C

O

N

T

R

O

L

S

O

V

E

N

C

O

N

T

R

O

L

S

O

N

O

F

F

K

I

T

C

H

E

N

L

I

G

H

T

O

N

O

F

F

B

A

K

E

S

T

A

R

T

O

N

C

L

E

A

R

O

F

F

C

O

O

K

I

N

G

T

I

M

E

O

N

O

F

F

A

U

T

O

M

A

T

IC

O

V

E

N

S

T

A

R

T

T

I

M

E

O

N

O

F

F

GE® 30" Free-Standing QuickClean™ Electric Range

Features and Benefits

• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing
Super-Large 5.3 Cu. Ft. Oven Capacity - Provides an impressively large oven interior

for cooking more dishes and large meals at one time

• TrueTemp™ System - Delivers even heat distribution and maximum oven control

• Dual Size Ribbon Element - Offers a convenient choice of using a 6" or 9" heating
element, depending on the size of the pan

• Dual Element Bake - Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results

• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning quick and easy

• QuickSet IV Oven Controls - Feature an easy to use design which allows you to set
precise cooking temperatures

• Big Hearth Window - Features an enhanced shape to add an elegant appearance and
make viewing trouble-free

• Six-Pass Bake Element - The powerful, continuous heating element loops throughout
the oven, delivering evenly cooked foods

• Model JBP66WKWW – White on white (white door and white patterned cooktop)

• Model JBP66CKCC – Bisque on bisque (bisque door and bisque patterned cooktop)

• Model JBP66EKBB – Black on black (black door and black patterned cooktop)

Specification Revised 8/05

321513
