GE JBP66CH, JBP66SH, JBP66WH, JBP66EH Specification
GE Appliances
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
46-7/8
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
Electrical outlet locat ABC.eps
R

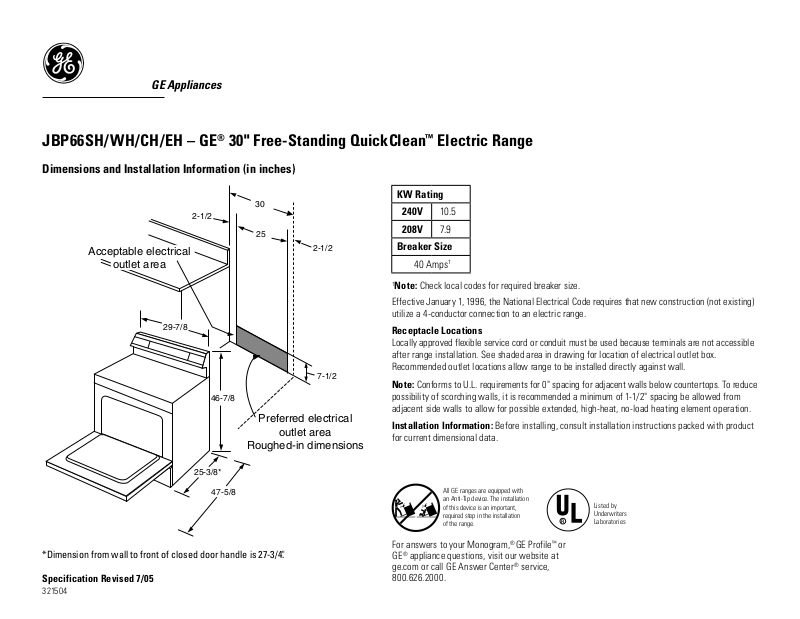

JBP66SH/WH/CH/EH – GE® 30" Free-Standing QuickClean™ Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
10.5
7.9
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops. To reduce
possibility of scorching walls, it is recommended a minimum of 1-1/2" spacing be allowed from
adjacent side walls to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
*Dimension from wall to front of closed door handle is 27-3/4".
Specification Revised 7/ 05
321504
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
GE Appliances
B
R
O
I
L
S
E
L
F
C
L
E
A
N
O
V
E
N
L
IG
H
T
C
L
O
C
K
T
IM
E
C
O
N
T
R
O
L
S
O
V
E
N
C
O
N
T
R
O
L
S
O
N
O
F
F
K
I
T
C
H
E
N
L
I
G
H
T
O
N
O
F
F
B
A
K
E
S
T
A
R
T
O
N
C
L
E
A
R
O
F
F
C
O
O
K
I
N
G
T
I
M
E
O
N
O
F
F
A
U
T
O
M
A
T
IC
O
V
E
N
S
T
A
R
T
T
I
M
E
O
N
O
F
F
JBP66SH/WH/CH/EH – GE® 30" Free-Standing QuickClean™ Electric Range
Features and Benefits
• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.
• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking more
dishes and large meals at one time.
• TrueTemp™ System – Delivers even heat distribution and maximum oven control.
• QuickSet IV Oven Controls – Feature an easy to use design that lets you set precise
cooking temperatures.
• Ceramic Glass Cooktop – A smooth cooktop surface makes cleaning quick and easy.
• Ribbon Heating Elements – Provides powerful heat beneath a smooth glass surface to
ensure even heat and fast warm-up times.
• Big ClearView™ Window – Features an extra large convenient viewing area to check the
progress of food.
Specification Revised 7/ 05
321504
• Model JBP66SHSS – Stainless steel
• Model JBP66WHWW – White on white (white door and white patterned cooktop)
• Model JBP66CHCC – Bisque on bisque (bisque door and bisque patterned cooktop)
• Model JBP66EHBB – Black on black (black door and black patterned cooktop)
• Model JBP66BHWH – White (black door and white patterned cooktop)
• Model JBP66BHCT – Bisque (black door and bisque patterned cooktop)
Loading...
