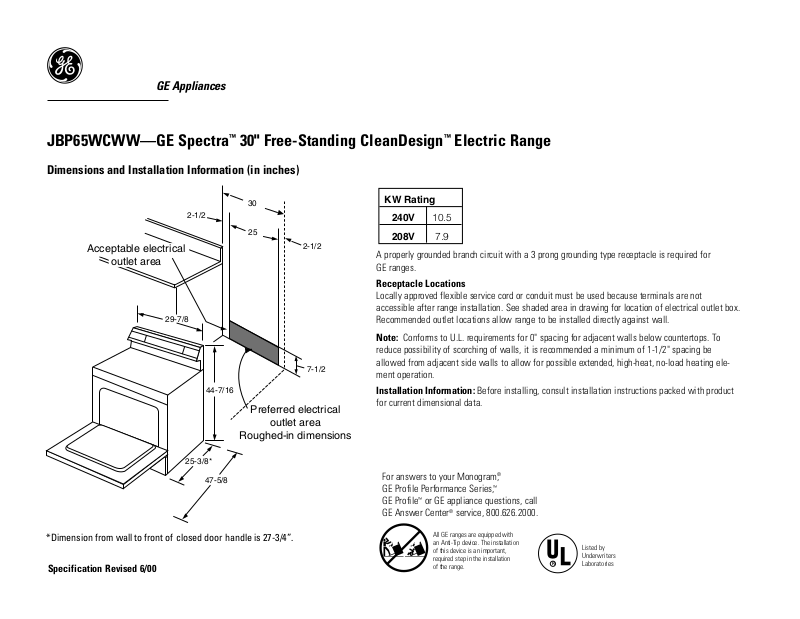

GE JBP65WCWW Specification
GE Appliances
Specification Revised 6/00
JBP65WCWW––GE Spectra™30" Free-Standing CleanDesign™Electric Range
Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 27-3/4”.
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
44-7/16
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops. To
reduce possibility of scorching of walls, it is recommended a minimum of 1-1/2" spacing be
allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 10.5
208V 7.9
GE Appliances
Specification Revised 6/00
JBP65WCWW––GE Spectra™30" Free-Standing CleanDesign™Electric Range
O
V
E
N
L
IG
H
T
W
A
R
M
IN
G
Z
O
N
E
H
O
T
FRO
N
T
R
EA
R
H
O
T
REA
R
FR
ON
T
HO
T
OFF
OFF
O
FF
O
FF
OFF
MED
O
V
E
N
C
L
E
A
N
I
N
G
–
M
O
V
E
D
O
O
R
L
A
T
C
H
T
O
R
IG
H
T
.
T
U
R
N
O
V
E
N
K
N
O
B
T
O
"
C
L
E
A
N
.
"
PREH
EA
TED
O
VEN ON
HO
UR
M
IN
C
LO
C
K
TIM
ER
Spectra
O
N
/
O
FF
S
E
T
TEM
P
RECA
LL
S
p
e
c
tr
a
Features and Benefits
• Super Large 5.0 Cu. Ft. Oven Capacity
• Self-Cleaning Oven with Self-Clean Latch
• One-Piece Upswept Patterned Glass-Ceramic Cooktop
• Two 6" and Two 8" Ribbon Heating Elements with Warming Zone
• QuickSet II Oven Controls
• Digital Temperature Display
• 2 Oven Shelves
• Auto Oven Shut-Off with Override
• Audible Preheat Signal
• Dual Bake Element
• Hot Surface Lights
• Oven "On" Light
• Infinite Heat Controls
• Interior Oven Light
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• Frameless Glass Oven Door with Window
• Designer-Style Handle
• Color-Matched Extra-Large Storage Drawer
• Model JBP65WCWW - White on white
