GE JBP64WH Specification
Specification Created 4/03
GE Appliances

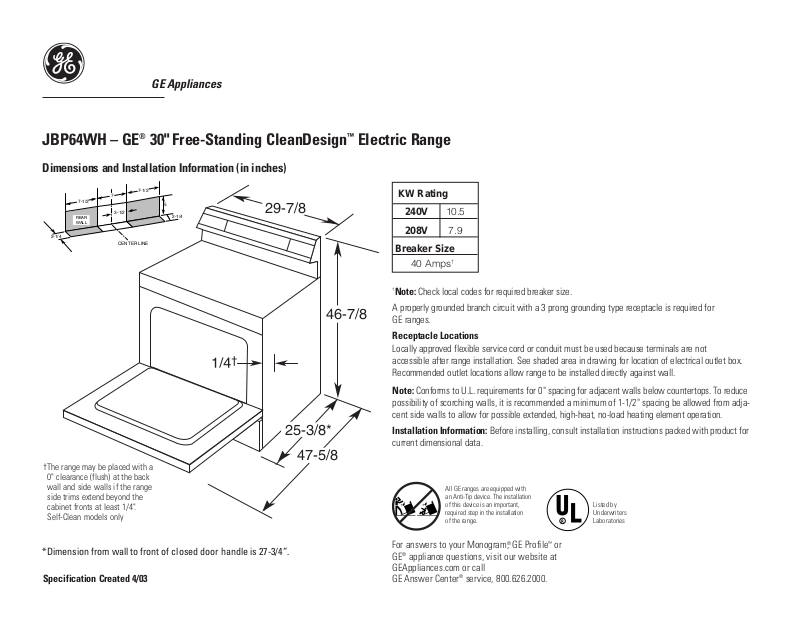

JBP64WH – GE®30" Free-Standing CleanDesign™Electric Range
Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 27-3/4”.
†
Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops. To reduce
possibility of scorching walls, it is recommended a minimum of 1-1/2" spacing be allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product for
current dimensional data.
KW Rating
240V 10.5
208V 7.9
Breaker Size
40 Amps
†
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
†The range may be placed with a
0" clearance (flush) at the back
wall and side walls if the range
side trims extend beyond the
cabinet fronts at least 1/4".
Self-Clean models only
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
29-7/8
46-7/8
25-3/8*
47-5/8
Specification Created 4/03
GE Appliances
JBP64WH – GE®30" Free-Standing CleanDesign™Electric Range
BROIL
SELF
CLEA
N
OVEN
LIGH
T
CLOCK
T
I
M
E
C
O
N
T
R
O
L
S
OVE
N
C
O
N
T
R
O
L
S
ON
OF
F
KITCHEN
L
I
G
H
T
ON
OF
F
BAKE
START
ON
CLEAR
OFF
Features and Benefits
• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.
• Super-Large Oven Capacity – Provides an impressively large oven interior for
cooking more dishes and large meals at one time.
• QuickSet III Oven Controls – Feature the easy to use design that allows you to set
precise cooking temperatures.
• Ribbon Heating Elements – Provides powerful heat beneath a smooth glass surface
to ensure even heat and fast warm-up times.
• Ceramic Glass Cooktop – A smooth cooktop surface makes cleaning quick and easy.
• ClearView
™
Window – Features a convenient viewing area to check the progress
of food.
• Dual Element Bake – Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results.
• Model JBP64WHWW – White on white (white door and white patterned cooktop)
• Model JBP64BHWH – White (black door and white patterned cooktop)
• Model JBP64BHCT – Bisque (black door and bisque patterned cooktop)
