GE JBP62BD, JBP62CD, JBP62WD Specification
GE Appliances
Specification Created 4/03

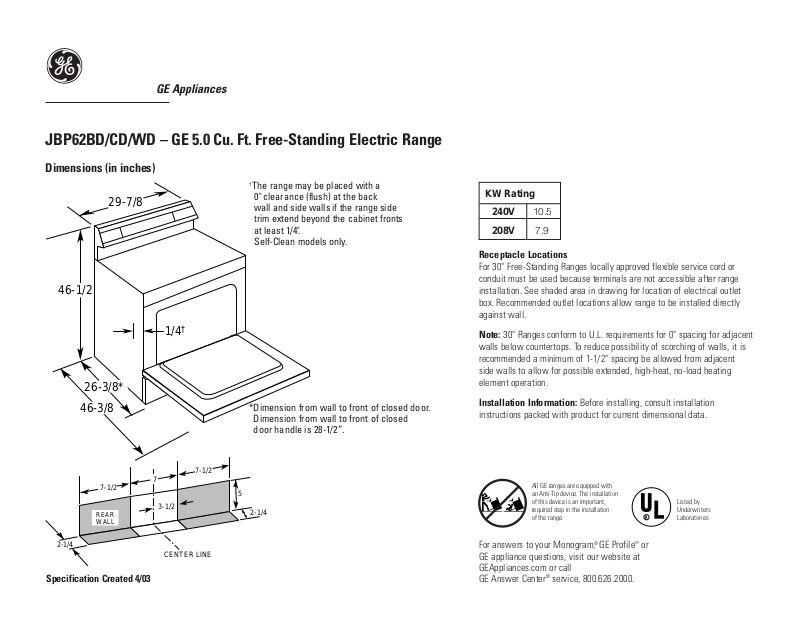

JBP62BD/CD/WD – GE 5.0 Cu. Ft. Free-Standing Electric Range
Dimensions (in inches)
26-3/8*
46-3/8
29-7/8
46-1/2
1/4
†
Note: 30" Ranges conform to U.L. requirements for 0" spacing for adjacent
walls below countertops. To reduce possibility of scorching of walls, it is
recommended a minimum of 1-1/2" spacing be allowed from adjacent
side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Receptacle Locations
For 30" Free-Standing Ranges locally approved flexible service cord or
conduit must be used because terminals are not accessible after range
installation. See shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be installed directly
against wall.
KW Rating
240V 10.5
208V 7.9
*Dimension from wall to front of closed door.
Dimension from wall to front of closed
door handle is 28-1/2”.
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
†
The range may be placed with a
0" clearance (flush) at the back
wall and side walls if the range side
trim extend beyond the cabinet fronts
at least 1/4".
Self-Clean models only.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
GE Appliances
Specification Created 4/03
JBP62BD/CD/WD – GE 5.0 Cu. Ft. Free-Standing Electric Range
H
O
T
S
U
R
F
A
C
E
U
N
I
T
S
H
O
T
O
V
E
N
L
I
G
H
T
O
V
E
N
C
L
E
A
N
I
N
G
–
M
O
V
E
D
O
O
R
L
A
T
C
H
T
O
R
I
G
H
T
.
T
U
R
N
O
V
E
N
K
N
O
B
T
O
"
C
L
E
A
N
.
"
P
R
E
H
E
A
T
E
D
O
V
E
N
O
N
H
O
U
R
M
IN
C
L
O
C
K
T
I
M
E
R
O
N
/
O
F
F
T
E
M
P
R
E
C
A
L
L
Features and Benefits
• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.
• Super-Large Oven Capacity – Provides and impressively large oven interior for cooking more dishes
and large meals at one time.
• QuickSet II Oven Controls – Feature the easy to use design that allows you to set precise
cooking temperatures.
• Ribbon Heating Elements – Provides powerful heat beneath a smooth glass surface to ensure even
heat and fast warm-up times.
• Ceramic glass cooktop – A smooth cooktop surface makes cleaning quick and easy.
• Big View Window – Provides a large, convenient viewing area to check the progress of food.
• Dual Element Bake – Alternates the upper broiling element and the lower baking element for even
heating and optimal baking results.
•Model JBP62WDWW – White on white
• Model JBP62CDCC – Bisque on bisque
• Model JBP62BDWH – White
• Model JBP62BDCT – Bisque
